Grace Company Mini Quilter Assembly And Use Instructions

Tabletop fabric frame

Advertisement

Quick Links

ASSEMBLY AND USE INSTRUCTIONS

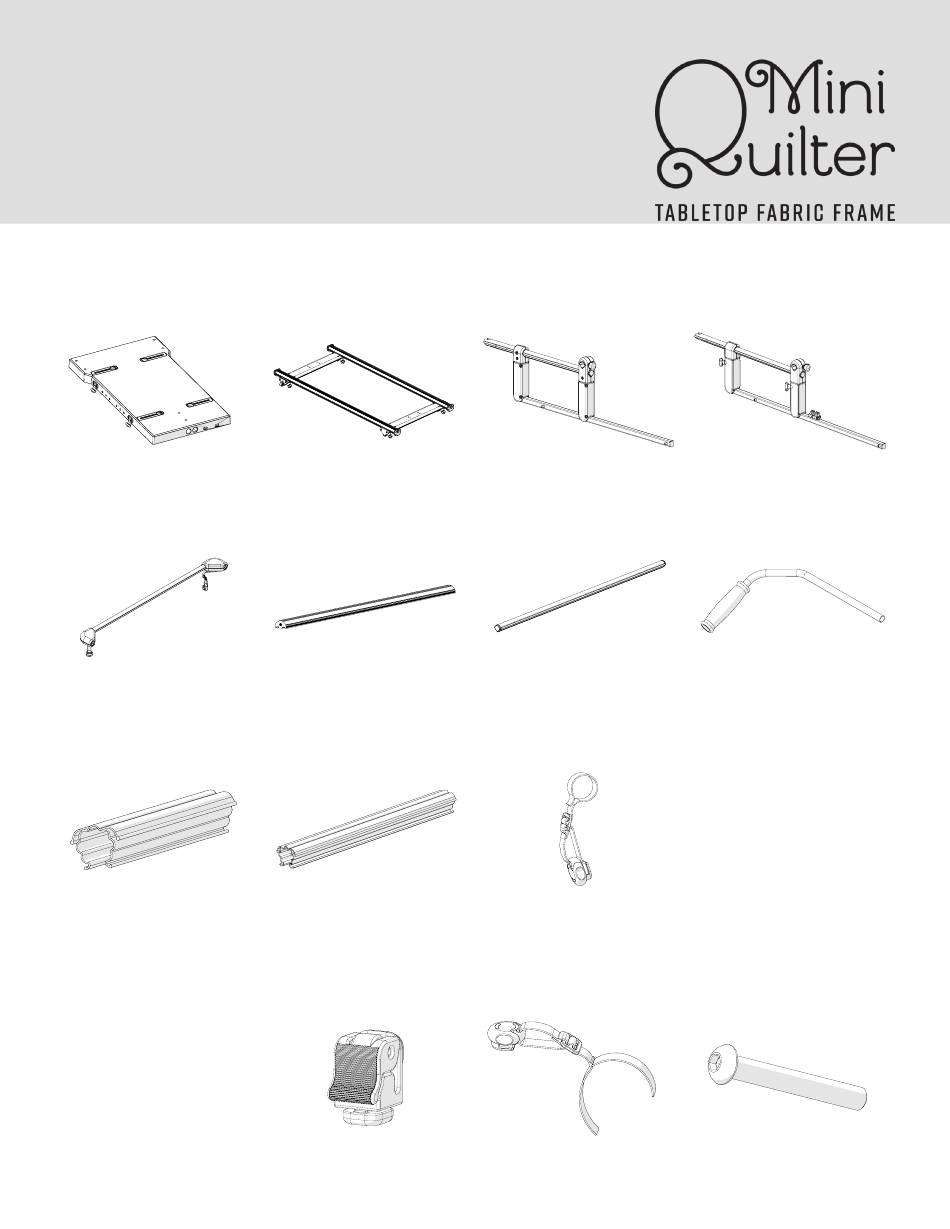

Included Parts & Tools
Top Plate
QTT-09-17757
Front Rail
MQF-09-18728
Front/Side Clamp (x4)
(Shipped on Rails)
MQF-05-18671
Hardware Box
Placement Template
1
2
1
2
3
4
5
6
7
MQF-08-18772
© Grace Company 2024
Bottom Carriage
MQF-09-18720
Frame Track (x2)
MQF-09-18675
Take-Up Clamp (x2)
(Shipped on Rail)
MQF-05-18670
Sewing Machine
Clamps (x4)
ACC-01-10324
V1.4
Side Wall (Left)
MQF-09-18719
Take-Up Rail
MQF-09-18672
Elastic Clip (x2)
(Shipped on Rail)
MQF-09-18724
Elastic Clip
(Removable)
MQF-09-18851
Side Wall (Right)
MQF-09-18726
Mini-Quilter
Handle (x2)
MQF-09-18850
Practice Grid
1
2
3
4
5
6
7
8
9
11
12
13
14
15
16
17
18
19
1
2
3
4
5
6
7
8
9
11
12
13
14
15
16
17
18
19
21
22
23
24
25
26
27
28
MQF-08-18773
SBHCS
M6 x 45 mm (x4)
HDW-03-10739
29
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mini Quilter and is the answer not in the manual?

Questions and answers

Suzanne Love
May 19, 2025

How do I attach a sure stitch elite to my mini-quilter frame? There seem to be two brackets for attachement that are missing.
