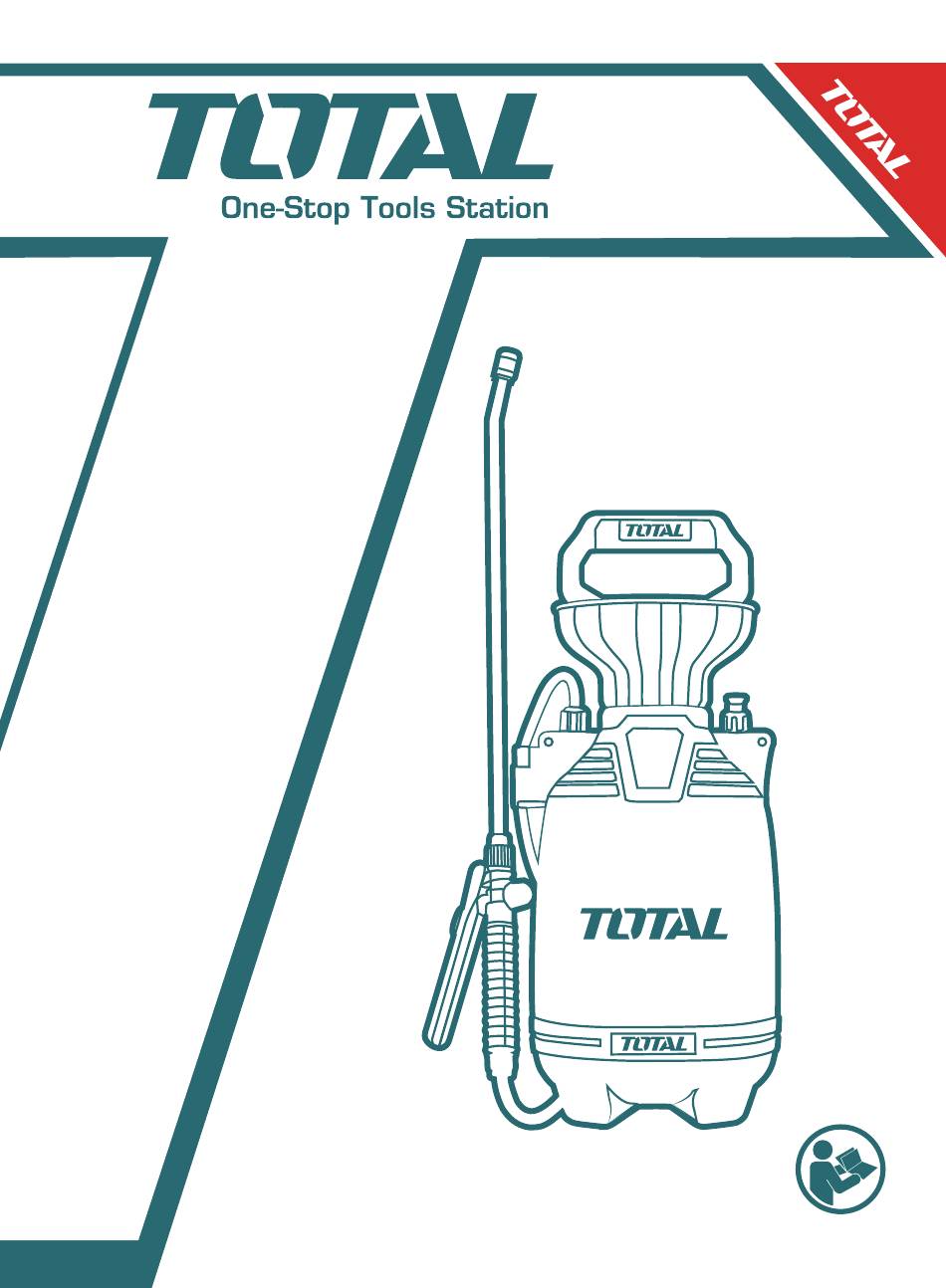

- Page 1 PRODUCT MANUAL PRESSURE SPRAYER THSPP30502 THSPP30802...
-
Page 2: General Safety Warnings
| English Original Instructions GENERAL SAFETY WARNINGS ⚠ Warning! This sprayer is not to be used with solvents, caustic chemicals, acids or concrete curing products. Do not use flammables in this sprayer. Read Product Manual completely be-fore operating this sprayer. Always refer to mixing and safety instructions as specified by chemical supplier. -
Page 3: Technical Specifications
5. Trigger 2. Pump handle 6. Safety valve 3. Spray lance clasp 7. Spray bottle 4. Nozzle connector 8. Pump Technical specifications Model No. THSPP30502 THSPP30802 Net capacity up to 5L up to 8L Work pressure 2.5bar 2.5bar Unloaded weight 1.3kg... - Page 4 | English OPERATION PICTURE...
-
Page 5: Operation
| English OPERATION Attach the nozzle by screwing it on in a clockwise direction. (see Figure A) Unscrew the pump handle in an anti- clockwise direction. (see Figure B) Fill with the desired liquid to the max Fill line as shown on bottle. (see Figure Screw the pump handle back down in a clockwise direction. -
Page 6: Cleaning Instructions
| English Cleaning instructions For sprayer longevity please follow these instructions after every use. Release pressure via trigger. Empty any leftover contents in a safe manner. Note: Even if tank 1s empty there may be residual liquid 1n pump chamber. Empty chamber by locking trigger and continuously pumping handle a few times. - Page 7 | English MAINTENANCE&MALFUNCTIONS Trouble Check Remedy Poor spray pattern or Check nozzle for blockage Remove nozzle and clean sprayer does spray. Remove and clear block-ages Note: Blockages are from trigger, lance, hose and Inspect trigger, lance, hose the most common pickup tube and pickup tube for blockage reason for a sprayer...
- Page 8 TOTAL TOOLS WORLD MADE IN CHINA T0424.V02 NEWWAY TECHNOLOGY (SUZHOU) CO., LIMITED...
