Summary of Contents for Total TAT10601

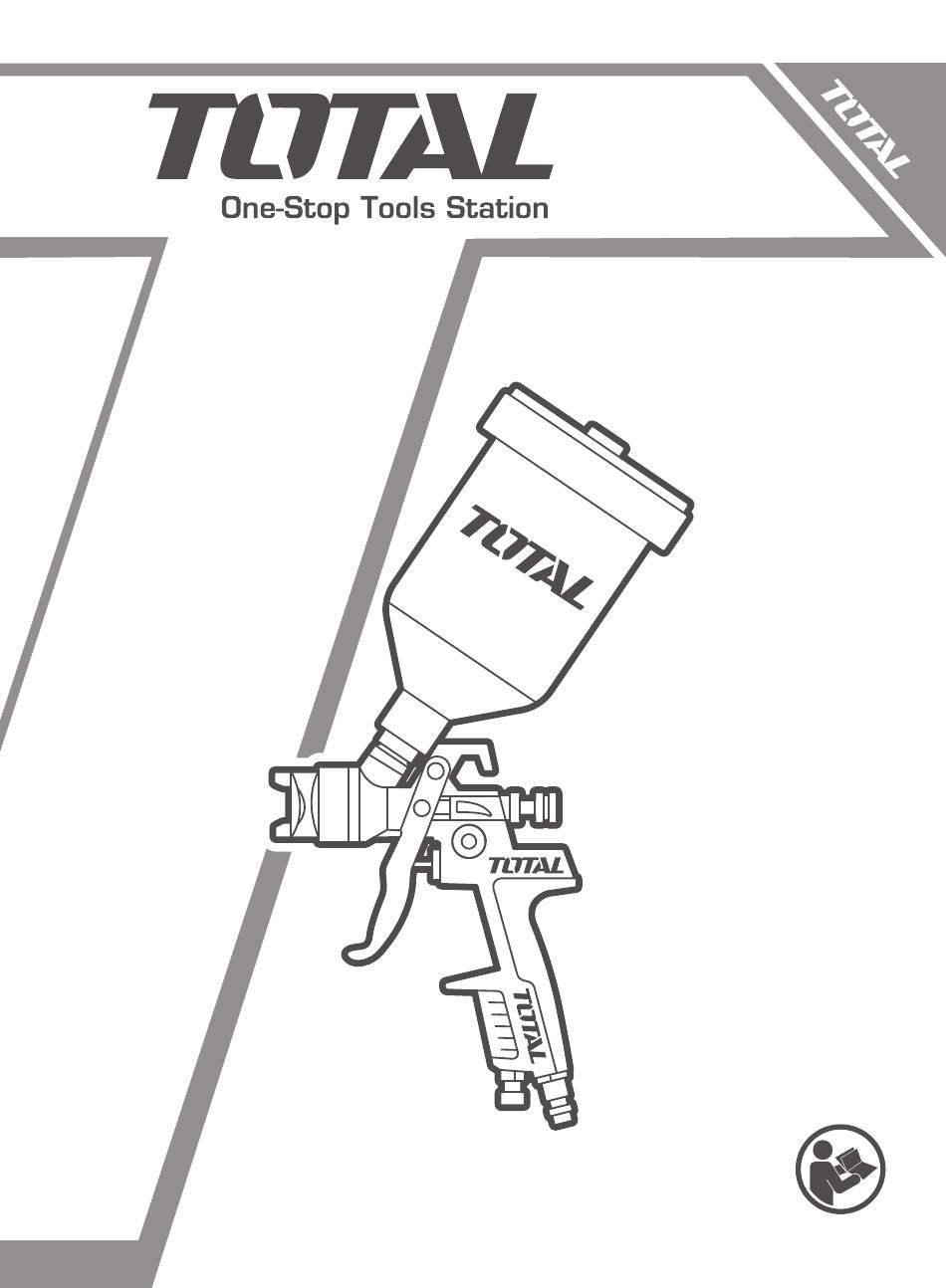

- Page 1 PRODUCT MANUAL AIR SPRAY TAT10601...
-
Page 2: General Safety Warnings
| English Original Instructions GENERAL SAFETY WARNINGS Important safety instructions oxygen bottle gas 1.For toxic vapors produced by spraying certain materials can create intoxication and serious damage to health. Always wear safety glasses, gloves and respirator to prevent the toxic vapor hazard, solvent and pointing paint coming into contact your eyes or skin. -
Page 3: Specifications
| English SPECIFICATIONS 600cc Plastic cup Fluid Adj.knob Air cap nozzle & needle Pattern Adj.knob Trigger Gun body Air Adj.knob Air inlet joint... -
Page 4: Technical Specifications
| English Technical specifications Model No. TAT10601 Air inlet 1/4 ˝ Type of feed Gravity Standard dia of nozzle 1.4mm Optional dia of nozzle 1.3-2.5mm Recommended air 2.0-3.5bar (29-50.8psi) pressure Max. Pressure of air 3.5 bar (50psi) Paint capacity 600cc Avg. -
Page 5: Instructions For Operation
| English OPERATION PICTURE OPERATION Instructions for operation Preparation 1. After unpacking the product, inspect carefully for any damage that may have occurred during transit. Make sure to tighten fittings, bolts, etc., before putting unit into service. 2. Thoroughly mix and thin paint in accordance with the paint manufacturer's instructions. - Page 6 | English Operation 1. Begin spraying. Always keep the gun at right angles to the work. 2. Keep the nozzle about 6 to 12 inches from the work surface. Grip the gun keeping perpendicular with spraying area then move it parallel for several times, stopping gun movement in mid-stroke will cause a buildup of paint and result in runs.
-
Page 7: Maintenance
| English MAINTENANCE Incomplete cleaning could cause function failures and a degradation of the fan form. 1. Remove any remaining paint by pouring it into another container. 2. Disassemble the spray gun making sure to remove the needle before disassembling the nozzle to avoid damage to the housing of the nozzle closure. 3. - Page 8 TOTAL TOOLS WORLD MADE IN CHINA T0723.V11 TOTAL TOOLS CO., PTE. LTD. No. 45 Songbei Road, Suzhou Industrial Park, China.
