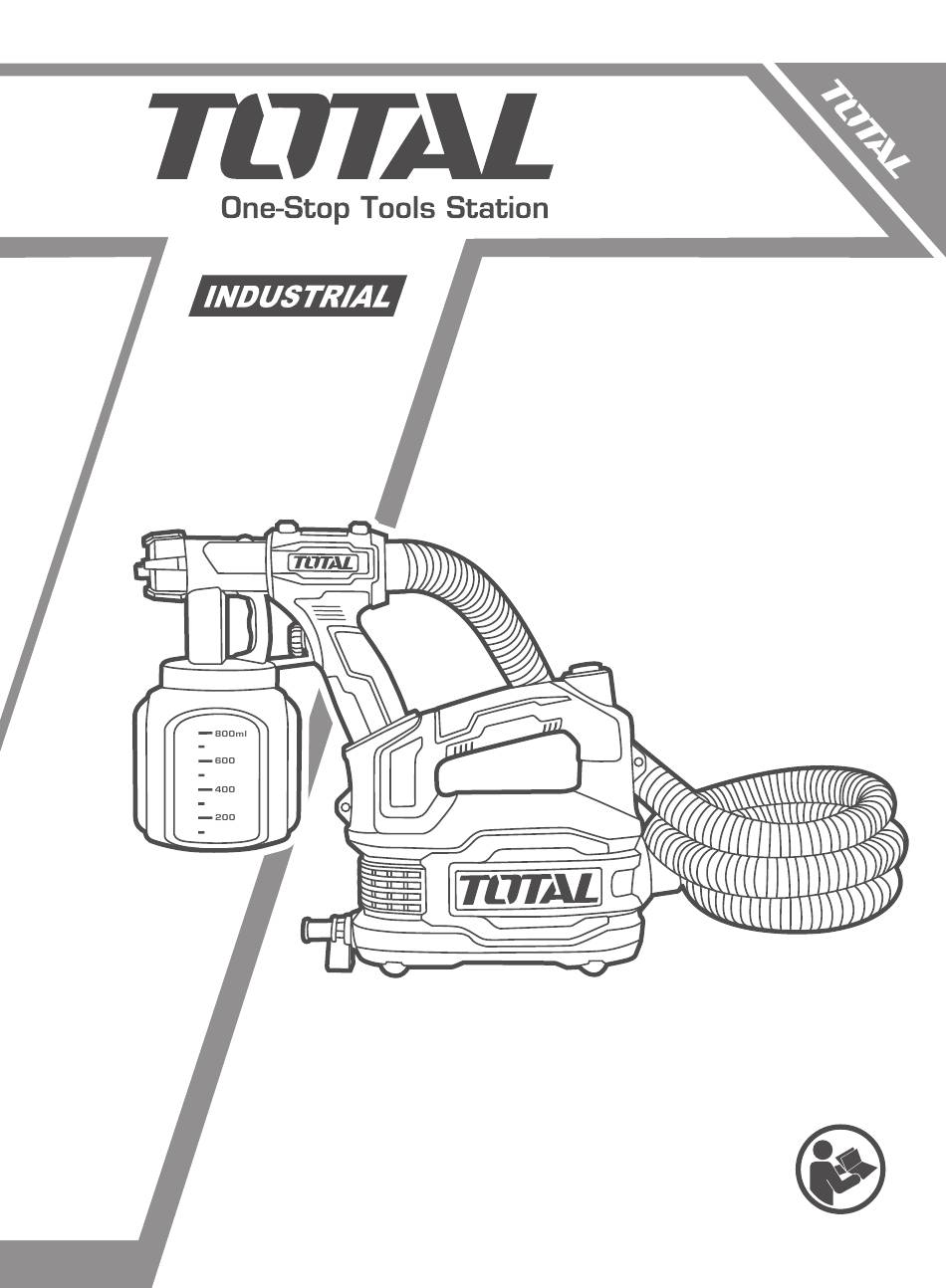

- Page 1 PRODUCT MANUAL HVLP SPRAY TT5006 UTT5006 TT5006S TT5006-4 TT5006-6 TT5006-8...
-
Page 2: General Safety Warnings
| English Original Instructions GENERAL SAFETY WARNINGS ⚠ Warning! Work area safety Keep work area clean and well lit. Cluttered and dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes. - Page 3 | English operating power tools may result in serious personal injury. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. Prevent unintentional starting.
- Page 4 | English breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
- Page 5 | English THE SYMBOLS IN INSTRUCTION MANUAL Double insulated for additional protection Read the instruction manual before using. CE conformity. Safety alert. Please only use the accessories supported by the manufacturer. Wear safety glasses, hearing protection and dust mask. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
-
Page 6: Additional Safety Warning
| English ADDITIONAL SAFETY WARNING a) Instruction not to use guns for spraying flammable materials. b) Warning to be aware of any hazards presented by the material being sprayed and instruction to consult the markings on the container or the information supplied by the manufacturer of the material to be sprayed. -
Page 7: Specifications
| English SPECIFICATIONS 1. Air hose 7. Trigger 2.ON/OFF switches 8. Adjustment button 3. Blower 9. Air cap 4. Tank 10. Nozzle 5. Power cable 11. Cap nut 6. Spray gun... -
Page 8: Technical Specifications
| English Technical specifications TT5006,TT5006S (SAA Plug) TT5006-4 (IRAM Plug) UTT5006 Model No. TT5006-6 (ISRAEL Plug) TT5006-8(BS Plug) Max. 50din-s viscosity Voltage 220-240V~ 50/60Hz 110-120V~50/60Hz Power consumpti 550W back 0.1-0.2bar pressure 850ml / min flow Class Ⅱ Power cord 2.0m Sound LpA:77 dB(A) KpA:3.0dB(A) - Page 9 | English OPERATION PICTURE...
-
Page 10: Operation
| English OPERATION Functional description The air flow generated by the motor fan flows to the spray gun. The air flow serves to atomize the coating material to the nozzle, and to pressurize the container. This pressure promotes the coating material through the riser pipe to the nozzle. Air flow and pressure settings are adjustable. - Page 11 | English Adjustment of the spray gun (see Figure B) Choice of spraying effects A = vertical flat jet, vertical flat jet. B = horizontal jet, for vertical surfaces. C = round jet, for corners and edges and other badly accessible places. Adjusting the required spray effect With the cap nut (11) loosed, turn air cap (9) to the required spray pattern.
- Page 12 | English Note : When the device is switch on the air will flow continually from the air cap. Spray technology The spraying result depends crucially on how smooth and clean the surface before spraying. Therefore, the surface must be pretreated and dust-free. Not to be sprayed must be covered with tape and newspaper.
- Page 13 | English Only use solvent with a flash point of over 21°C Turn on device and spray the solvent or water into a container. If a tube is not used, some solvent or water will be deposited outside the container. This is due to the high air volume. Repeat the above procedure until clear solvent or water comes out of the nozzle.
- Page 14 | English MAINTENANCE&MALFUNCTIONS Possible malfunctions and methods of their eliminations Troubleshooting problem Cause Remedy D PTS clogged. Clean Clogged riser. Clean Small holes on the riser pipe clogged. Clean Amounts of material adjustment screw To the right (+) is turned too far to the left (-). No coating material at the Air flow and pressure adjustment knob left...
- Page 15 TOTAL TOOLS WORLD MADE IN CHINA T0723.V07 TOTAL TOOLS CO., PTE. LTD. No. 45 Songbei Road, Suzhou Industrial Park, China.
