- Page 1 BATTERY-POWERED PAINT GUN...
-
Page 2: Security Instructions
Security instructions Caution Read all safety warnings and all instructions. Failure to follow all warnings and instructions may result in electrical shock, fire, and/or serious injury. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 3 4) Use and care of the battery tool a. Recharge the battery only with the charger specified by the manufacturer. An unsuitable charger can create a fire hazard. b. Use power tools with specifically designated batteries. Use of other batteries may create a risk of injury or fire. c.
-
Page 4: Additional Security Warnings
Safety rules for correct use Double insulation for additional protection Please read the instruction manual before use. CE conformity. Wear safety glasses, hearing protection and a dust mask. Waste electrical products must not be disposed of with household waste. Please recycle at the appropriate facilities. Check with your local authority or retailer for recycling advice. -
Page 5: Other Risks
Do not clean the paint gun with flammable solvents. • Do not use the tool for food, pharmacy or other purposes not mentioned in the • manual. Other risks Even when the power tool is used as prescribed, it is not possible to eliminate all residual risk factors: a. -
Page 6: Product Description

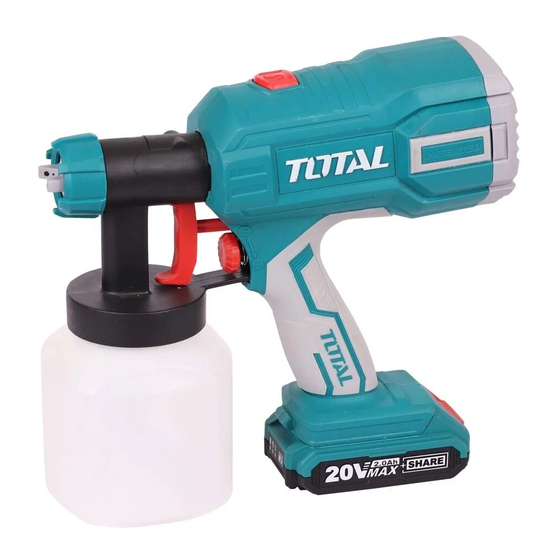

Product description 1. ON/OFF switch 2. Air intake 3. Trigger 4. Flow regulator 5. Tank/Vessel 6. Spray head 7. Mouthpiece 8. Union nut Note: Not all accessories illustrated or described need to be included in the standard delivery. The airflow generated by the motor fan flows into the paint gun. The air flow serves to atomize the coating material at the nozzle and to pressurize the container. - Page 7 Execution time required as follows: Viscosity table Lining Material Viscosity DIN-s Solvent-based paints 15-50 primers 25-50 pickling undiluted 2 component paints 20-50 varnishes 15-40 water paints 20-40 car finishes 20-40 Wood Protection Center undiluted Spray work with elevated objects Fill the container with the coating material. Tighten the thread of the gun. •...
- Page 8 Flow Rate Adjustment The volume of the material will be adjusted by turning the flow regulator screw. Turn Right More Flow Rate Turn left Lower flow rate Spray methods The result of spraying depends fundamentally on how smooth and clean the surface is before spraying.
-
Page 9: Maintenance And Troubleshooting
Clean containers and tubes with suitable cleaning tools. • Wash the tank with water or the like. • Tighten the tank. • Note: Use only solvents with a flash point greater than 37.8ºC. • Turn on the device and inject solvent or water into a container. Note: When a tube is not used, solvent or water is deposited in addition to the container. - Page 10 Problem solving Although your paint gun is actually very simple to use, if you experience problems, check the following: Problem Possible cause Solution Clogged nozzle Clean up Clogged riser pipe Clean up Small clogged riser holes Clean up Flow amount low, flow regulator to the paint does not left (-) Turn right (+)
-
Page 11: Exploded View
Environment • Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local authority for information on available collection systems. • If electrical appliances are disposed of in landfills, hazardous substances can • seep into the groundwater and enter the food chain, harming your health and well-being. - Page 12 BATTERY-POWERED PAINT GUN...
