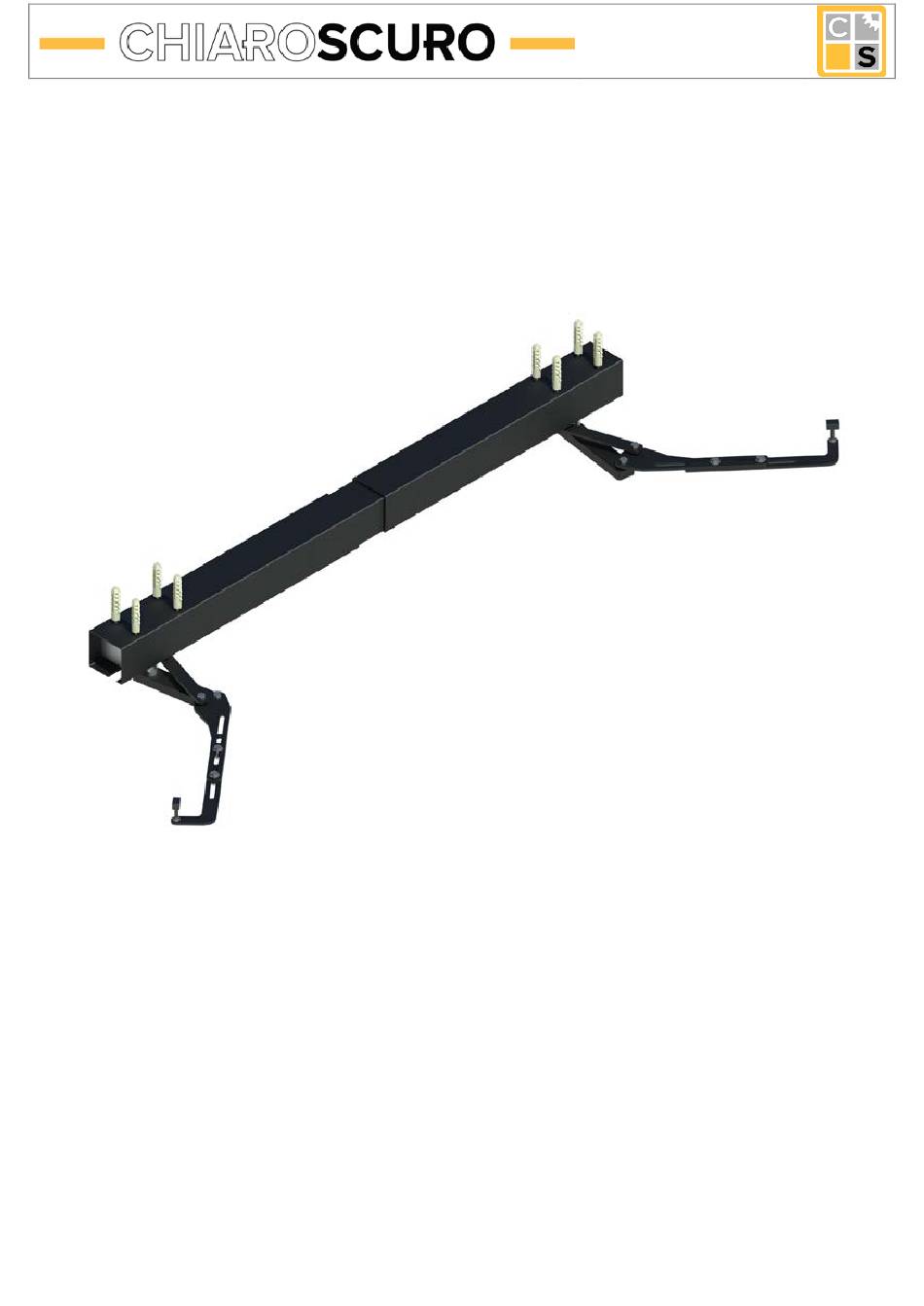

CSG2 nc "DEAD-MAN" COMMAND
ACTUATOR FOR CASEMENT BLINDS
USER AND MAINTENANCE MANUAL
English version
This user manual is an integral part of the machine and must be kept in a suitable place so that it
remains intact and can be consulted throughout the life of the machine.
The manufacturer is entitled to make changes to the production and the manual, without this implying any
obligation to update the previous production and manuals.
CHIAROSCURO SAS
di Girelli Marco & C.
Cod.
Pag.
C.so General A. Cantore 23 - 38061 Ala (TN) Italy
220517
1 di 24
P.I. IT01527050221
Advertisement
Table of Contents
Related Manuals for CHIAROSCURO ST40
Summary of Contents for CHIAROSCURO ST40
- Page 1 ST40 CSG2 nc “DEAD-MAN” COMMAND ACTUATOR FOR CASEMENT BLINDS USER AND MAINTENANCE MANUAL English version This user manual is an integral part of the machine and must be kept in a suitable place so that it remains intact and can be consulted throughout the life of the machine.
-
Page 2: Table Of Contents
FEATURES AND TECHNICAL INFORMATION GENERAL DESCRIPTIONS THE ST40 IS AN AUTOMATION FOR THE OPENING/CLOSING OF CASEMENT SHUTTERS (FRAMES). IT CONSISTS OF A HIGH-PERFORMANCE NON-REVERSIBLE AUTOMATION COUPLED WITH HIGHLY RESISTANT METAL GEARS. THE POSSIBILITY OF CLOSING OR OPENING WITH SIMPLE MANUAL CONTROLS... -
Page 3: Preface
Read it carefully and completely before installing and using the equipment. The manual must accompany the equipment in the event of resale. Partial or total reproduction of this document is forbidden without the written authorisation of CHIAROSCURO SAS. TERMS AND SYMBOLS The following paragraphs provide a set of definitions, terminologies and symbols used in the drafting of this manual. -
Page 4: Identification Of The Manufacturer
CSG2 nc “DEAD-MAN” COMMAND 2. I DENTIFICATION OF THE MANUFACTURER The nameplate, which is attached to the top of the actuator, contains all the identification data of the ST40 actuator. On the label, applied to all drives, are indications regarding... -
Page 5: Features And Technical Information
ENERAL DESCRIPTIONS The ST40 is an automation for the opening/closing of casement shutters (frames). It consists of a high- performance non-reversible automation coupled with highly resistant metal gears. The possibility of closing or opening with simple manual controls placed in remote positions (remote control) or with automation systems (home automation) allows the user to make the most of the protection offered by the shutters in the various environmental conditions present (e.g. -
Page 6: Reception And Storage
If the equipment is not used for a long period of time, store it in a dry, clean and dust-free place. In the event of material storage exceeding 24 months from registration, CHIAROSCURO SAS will provide the warranty provided for in the General Conditions of Sale. -
Page 7: Warning For Installation Types 4, 5, 6 And Derivatives
Do not exceed 150MPa of pressure on the material). The list shown is not supplied with the ST40 product, but is necessary for correct installation on the bench. D.P.I. or others are the responsibility of the O.E. depending on the field installation itself. -
Page 8: Positioning And Adjustment Of Joints
Installations with L1 (light inside the window) smaller than 80cm/160cm are only possible after checking with the "Chiaroscuro" technical office. If A2 is larger than 12cm, it may be necessary to distance the automation a few centimetres from the window wall abutment (Dimension A1, see previous drawing) to avoid contact between the 90°... - Page 9 5mm at each point of rotation of the sash. It should be noted that the ST40 product is specifically for casement windows and doors. Any other use does not guarantee correct functioning and compatibility with CE marking.
-
Page 10: Articulation Details
ST40 CSG2 nc “DEAD-MAN” COMMAND 9. A RTICULATION DETAILS Slotted 90° terminal Extended 90° terminal for Padua Engine arm Contrasting arm Forearm Slider 10. C HOICE OF APPLICATION TYPE Side-by-side guide: Position the automation as shown in the section. It is necessary to maintain a minimum distance of 25 mm between the automation and the inside of the leaf. -
Page 11: Physical Installation Of Automation
XTENDING AUTOMATION TO THE WIDTH OF THE WINDOW The structure of the ST40 consists of 3 plastic casings, one of which is extendable. Once you have opened the package, you must extend the automation so that it covers the entire width of the passageway, from the wall shoulder to the opposite shoulder in standard application cases. -
Page 12: Motor Positioning
ST40 CSG2 nc “DEAD-MAN” COMMAND PLEASE NOTE: only one part of the automation is extendable. You can easily recognise the extendable part because it is the part opposite the cable outlet and the part opposite the rectangular plate covering the electronics, which is attached to the casing with 4 screws.. -
Page 13: Fixing Automation And Joint Adjustment
ST40 CSG2 nc “DEAD-MAN” COMMAND Mark the position of the closed shutters on the top transom of window. Position template with the text facing downwards, keeping template aligned on the long side with your closed sash position marks and against the... -
Page 14: Access To Internal Electronics
At the bottom of the motor, on the cable outlet side, there is a metal cover plate, measuring 140x43 mm, attached to the ST40 casing with 4 screws. The standard board is pre-wired and configured with pre- optimised "default" parameters that are valid for most users and types of common use. The board is positioned inside the casing with a length of cable that allows the board to be completely removed from the plastic casing. -
Page 15: Electrical Installation
ST40 CSG2 nc “DEAD-MAN” COMMAND 13. E LECTRICAL INSTALLATION WARNING ! The electrical installation must be carried out in accordance with the national standards in force, as well as for all legal obligations. Electrical connections must be carried out without voltage, do not supply power to the work area until all assembly operations have been completed. -
Page 16: Electrical Connections
ST40 CSG2 nc “DEAD-MAN” COMMAND 15. E LECTRICAL CONNECTIONS 15.1 CABLE ACCESS TO MOTORS 15.2 T YPE OF CONTROL BUTTON AND CONNECTION TO THE INTEGRATED CONTROL UNIT The switch must necessarily be of the type: up and down switch interlocked without latching CHIAROSCURO SAS di Girelli Marco &... -
Page 17: Connections To The Board
ST40 CSG2 nc “DEAD-MAN” COMMAND 15.1 C ONNECTIONS TO THE BOARD CHIAROSCURO SAS di Girelli Marco & C. Cod. Pag. C.so General A. Cantore 23 - 38061 Ala (TN) Italy 220517 17 di 24 P.I. IT01527050221... -
Page 18: Circuit Diagram For Radio Receiver Model Ewsce 230
ST40 CSG2 nc “DEAD-MAN” COMMAND 15.2 C IRCUIT DIAGRAM FOR RADIO RECEIVER MODEL EWSCE Compatibility with home automation systems The automation is compatible with almost all home automation systems and existing home automation management modules that manage the opening and closing of shutters (modules available from specialist retailers). -
Page 19: Activation
ST40 CSG2 nc “DEAD-MAN” COMMAND Activation Unlock the motor arm (joint components see illustration on page 11) with a spanner No. 13 to make the leaves manually operable. Position the leaves in ajar position, approximately 5cm apart. Give an impulse to the closing command. -
Page 20: Automation Operation
ST40 CSG2 nc “DEAD-MAN” COMMAND 18. A UTOMATION OPERATION The drive operates the leaves when the button is pressed and continues to move them as long as the button is pressed. The drive switches off automatically when the force is detected, when the door is fully opened or fully closed. -
Page 21: Special Programming Functions
ST40 CSG2 nc “DEAD-MAN” COMMAND 20. S PECIAL PROGRAMMING FUNCTIONS 20.1 R EVERSING THE FIRST SASH As a standard, the first door to open is the right-hand door. To reverse the first door to open, the cover must be opened and the cable connections to the electronic board reversed. -
Page 22: Maintenance
Service Centre Never open the casing of the equipment unless expressly authorised to do so in writing by Chiaroscuro. Failure to comply with this rule will result in immediate forfeiture of the supplier's warranty and consequent liability for safety and operation. -
Page 23: Disposal
Limitations of liability The ST40 offers a torque of 40 Nm: this is the maximum drive torque available on the transmission pin which, through the arm and track, imparts movement to the sash or maintains its position. It is the responsibility of the purchaser/installer to establish whether this torque is adequate for the needs of the application required;... -
Page 24: Warranty
During the warranty period, if the Customer wishes the repair to be carried out by CHIAROSCURO SAS technicians, it is necessary to send a written request to CHIAROSCURO SAS. In this case the customer will have to bear the costs for travel, board and lodging. For interventions caused by defects or failures not clearly attributable to the material or manufacture, all travel, repair and/or replacement costs of all parts shall be charged to the customer.
