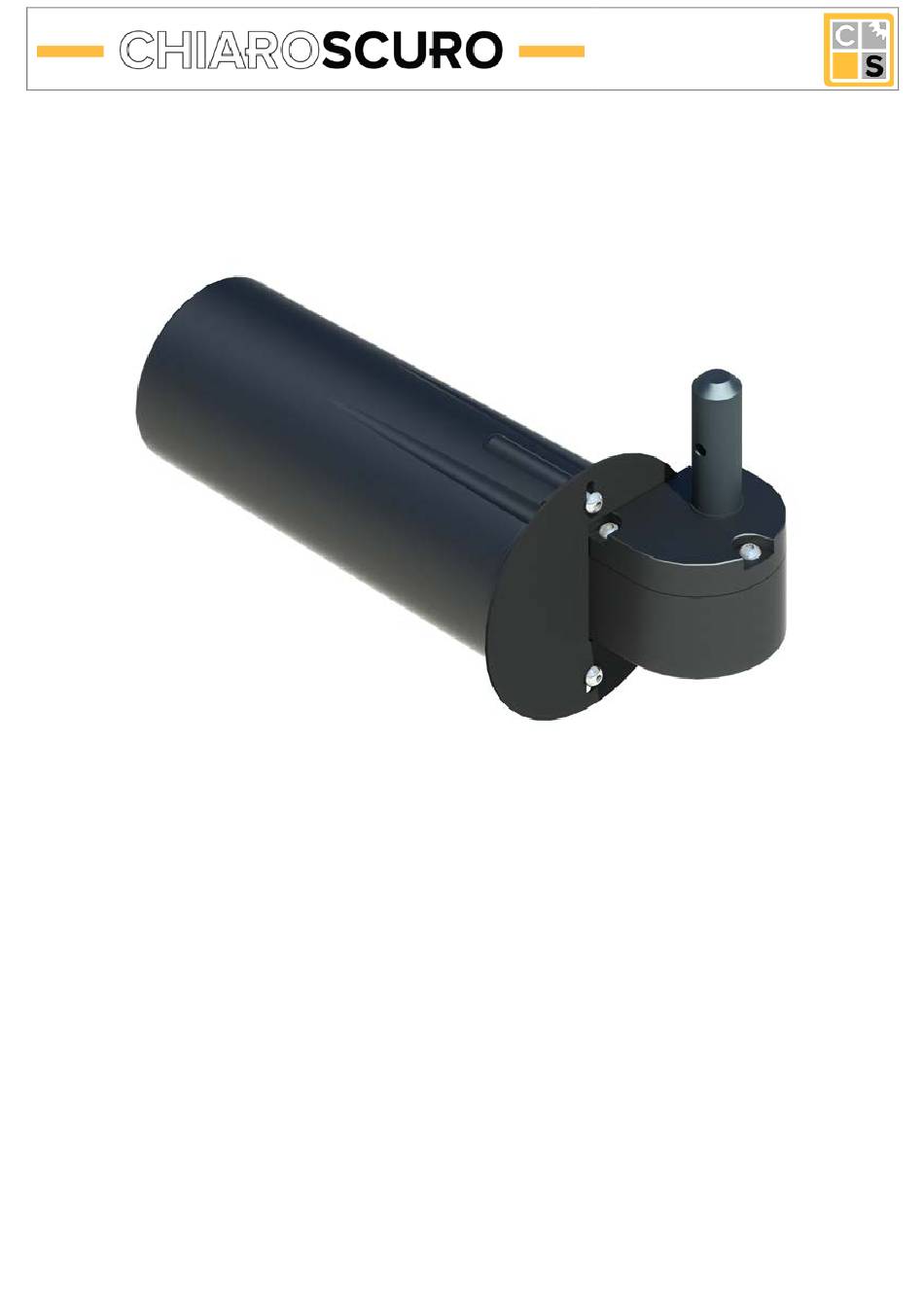

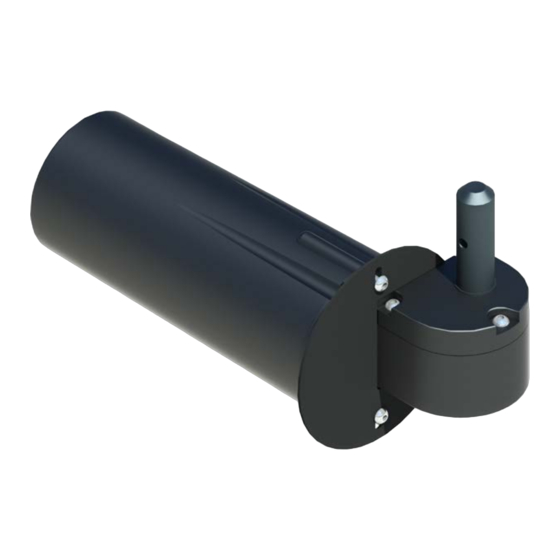

WH25
CSG2 BOARD DEAD MAN
COMMAND
ACTUATOR FOR SWING BLINDS
USE AND MAINTENANCE MANUAL
English version
This user manual is an integral part of the machine and must be kept in an appropriate manner to maintain
its integrity and allow it to be consulted during the life of the equipment.
Read this manual carefully before proceeding with any intervention on the equipment
The manufacturer has the right to make changes to the production and to the manual, without this
entailing the obligation to update the production and previous manuals.
CHIAROSCURO SAS
di Girelli Marco & C.
Cod. 220517
Pag.1 di 20
C.so General A. Cantore 23 - 38061 Ala (TN) Italy
P.I. IT01527050221

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WH25 and is the answer not in the manual?

Questions and answers

Related Manuals for CHIAROSCURO WH25

Summary of Contents for CHIAROSCURO WH25

  • Page 1 WH25 CSG2 BOARD DEAD MAN COMMAND ACTUATOR FOR SWING BLINDS USE AND MAINTENANCE MANUAL English version This user manual is an integral part of the machine and must be kept in an appropriate manner to maintain its integrity and allow it to be consulted during the life of the equipment.

  • Page 2: General Information

    CHIAROSCURO SAS by Girelli Marco & C. ENERAL NFORMATION This user manual is an integral part of the equipment supplied and constitutes the indispensable support for installation and correct use.

  • Page 3: Identification Of The Manufacturer

    COMMAND 2. I DENTIFICATION OF THE MANUFACTURER The plate fixed in the upper part of the actuator contains all the identification data of the WH25 actuator. The label, applied to all motorizations, shows information relating to the automation model used,...
  • Page 4 RADIOR RECEIVER on request The blind develops a maximum torque of 25 Nm. With WH25 and 50 Nm. With WH50. In the presence of obstacles or wind that opposes the movement of the door, the automation blocks the operation of the motor for safety. The data of compartment size, door size, weight and surface may vary depending on the conditions (wind, condition and assembly of the hinges, etc.)

  • Page 5: General Descriptions

    COMMAND ENERAL DESCRIPTIONS The WH25 / WH50 equipment is an automation for opening / closing swing shutters (windows). It consists of a high performance non-reversible automation coupled with high resistance metal gears. The possibility of closing or opening with simple manual controls placed in remote positions (remote control) or with automation systems (home automation) allows the user to make the most of the protection offered by the blinds in the different environmental conditions present (e.g.
  • Page 6 # 4 Allen screwdriver Template cutting scissors The list shown is not supplied with the WH25 / WH50 product, but is necessary for correct bench installation. D.P.I. or other are edited and evaluated by the O.E. depending on the installation itself in the field.
  • Page 7 WH25 CSG2 BOARD DEAD MAN COMMAND It is denoted that the product WH25 / WH50 is specific for doors and windows with hinged doors. Any other use is not guaranteed correct operation and compatibility with the CE marking 8. E LECTRICAL PREPARATION 9.
  • Page 8 WH25 CSG2 BOARD DEAD MAN COMMAND 9.1 CH OICE OF THE HINGES TO BE MOTORIZED For doors that have 2 hinges, you can choose to motorize the high or low hinges indifferently. For the shutters that have 3 hinges it is recommended to motorize the central hinge.

  • Page 9: Drilling The Wall

    WH25 CSG2 BOARD DEAD MAN COMMAND 10.3 DRILLING THE WALL Remove the doors and use the hammer drill with the core drill bit. Drill the wall with a depth of 150mm making sure to be perpendicular to the wall both vertically and horizontally...
  • Page 10 WH25 CSG2 BOARD DEAD MAN COMMAND Fix the strips to the doors and insert the doors on the hinges. Pay particular care and attention to the alignment of the manual hinges with the motorized hinge. Always keep in mind that the reference for alignments is always the motorized hinge. If it is necessary to protrude further, it is possible to order 10mm extensions to be interposed between the hood and the motor block.
  • Page 11 WH25 CSG2 BOARD DEAD MAN COMMAND 10.5 A SSEMBLY OF THE DOOR ON THE MOTORIZED HINGES Disassemble the doors and mark the point to be drilled 20mm from the upper edge of the eye of the strip. Drill the eye of the strip with a 6.5mm metal drill, the hole must be through and perfectly perpendicular or parallel to the door.
  • Page 12 It is the sole responsibility of the electromechanical operator to set up the system. CHIAROSCURO SAS is in no way responsible for any deficiencies of any nature on the system. All the information necessary for a good system is fully available, it is the buyer's responsibility to request them formally.

  • Page 13: Wiring Diagrams

    WH25 CSG2 BOARD DEAD MAN COMMAND 14. T YPE OF CONTROL BUTTON AND CONNECTION TO THE INTEGRATED CONTROL UNIT TYPE OF CONTROL BUTTON The switch must necessarily be of the type: interlocked up and down switch switch without restraint. 15. W IRING DIAGRAMS 15.1 E...
  • Page 14 WH25 CSG2 BOARD DEAD MAN COMMAND 15.2 W “ ” IRING DIAGRAM FOR DEAD MAN TYPE CONNECTION 15.3 W “ ” IRING DIAGRAM FOR IMPULSIVE TYPE CONNECTION 15.4 R ADIO RECEIVER WIRING DIAGRAM MOD EWSCE CHIAROSCURO SAS di Girelli Marco & C.
  • Page 15 WH25 CSG2 BOARD DEAD MAN COMMAND 15.5 E LECTRICAL DIAGRAM FOR ELECTRONIC PISTON CONNECTION The solenoid lock must be connected by bridging the motor cables corresponding to the first leaf to open. For further information, refer to the instructions in the solenoid lock package Check that the electrical setting and all the parameters are respected as indicated in the previous sheets.
  • Page 16 WH25 CSG2 BOARD DEAD MAN COMMAND OMPATIBILITY WITH HOME AUTOMATION SYSTEMS The automation is compatible with almost all home automation systems existing home automation management modules that manage the opening and closing of the shutters (modules that can be purchased from specialized dealers).

  • Page 17: Maintenance

    WH25 CSG2 BOARD DEAD MAN COMMAND 17.2 T CURR: RIMMER INCREASE OF THE MOTOR POWER Adjusting the CURR trimmer allows you to set the thrust torque. By setting a thrust level too low, the leaves will lock in an anomalous way, while too much power would lead to a single effort of the motors when the stroke is complete.
  • Page 18 If the proposed intervention has not resolved the anomaly found, interrupt the operations and request the intervention of the Assistance Center. Never open the enclosure of the equipment unless expressly authorized in writing by the Chiaroscuro company. Failure to comply with this rule leads to the immediate forfeiture of the warranty and the consequent liability of the supplier for aspects concerning safety and operation.

  • Page 19: Limits Of Liability

    Limits of liability WH25 offers a torque of 25 Nm, WH50 offers a torque of 50 Nm: these are the maximum driving torques available on the transmission pin which, through the arm and track, impart movement to the leaf or maintain its position.

  • Page 20: Warranty

    Terminal Equipment 2002/95 / EC Restriction of use of certain Hazardous Substances Compatibility with the CE marking is valid provided that the WH25 / WH50 actuator is used exclusively for the intended applications and the installation is performed according to the assembly instructions.
