Operating Guide Termix Solar A+/B+/S+

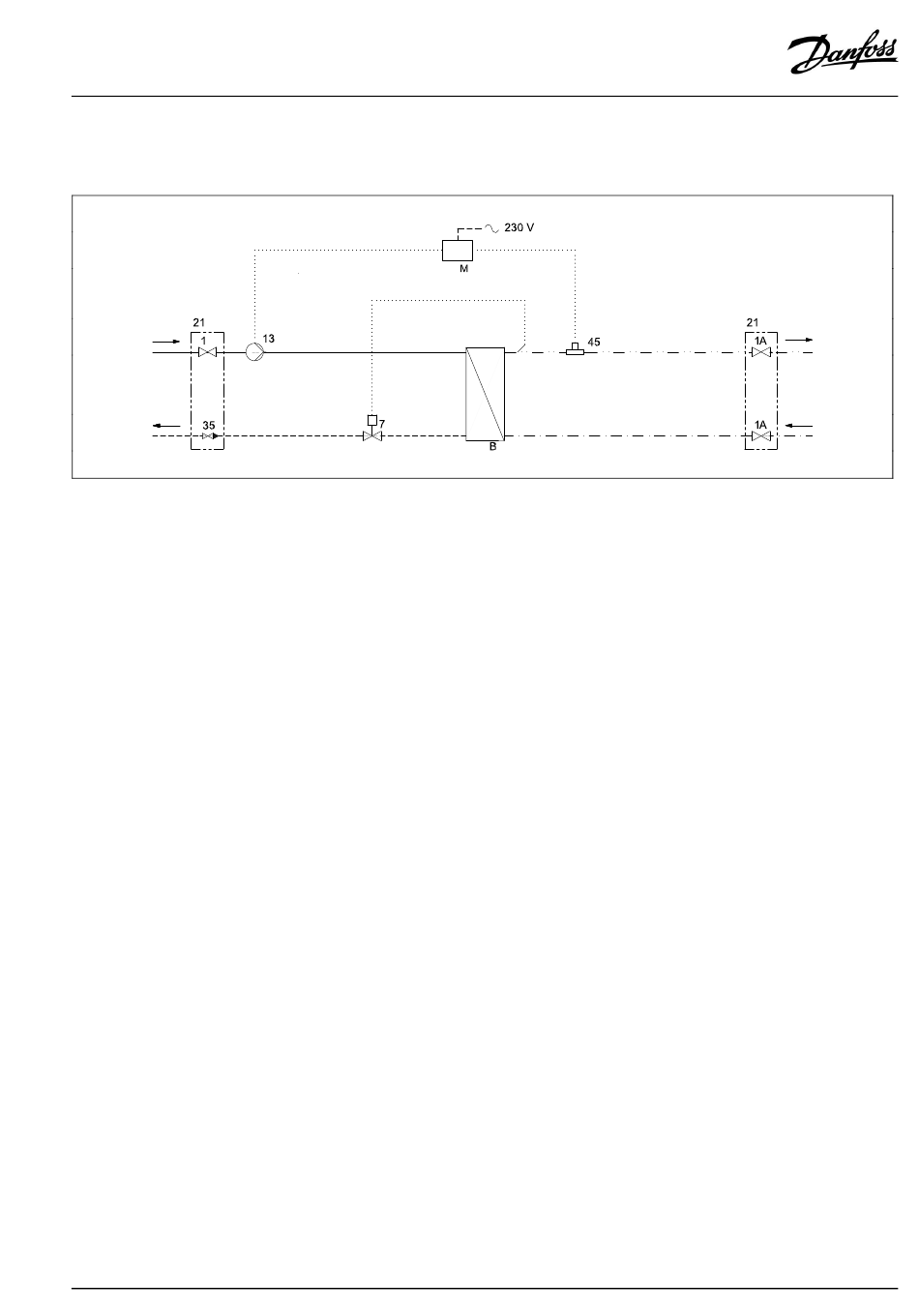

5.2 Schematic diagram
5.2.1 Schematic diagram Termix Solar A+/B+/S+
BT
Supply
BT
Return
Your substation might look different than the schematic diagram shown.
Schematic description without circulation
B Heat exchanger, DHW
M Electrical wiring box
1
Ball valve
DHW: Domestic Hot Water
DCW: Domestic Cold Water
BT Supply: Buffer tank supply
BT Return: Buffer tank return
AQ173986472867en-010501 / LUK38016
1A Ball valve, DVGW
7
Thermostatic valve
13 Charging pump
21 To be ordered separately
35 Ball valve/non-return valve
45 Flow switch
© Danfoss | 2024.01 | 9
DHW
DCW
