Operating Guide Termix Solar A+/B+/S+
5.4 Schematic diagram

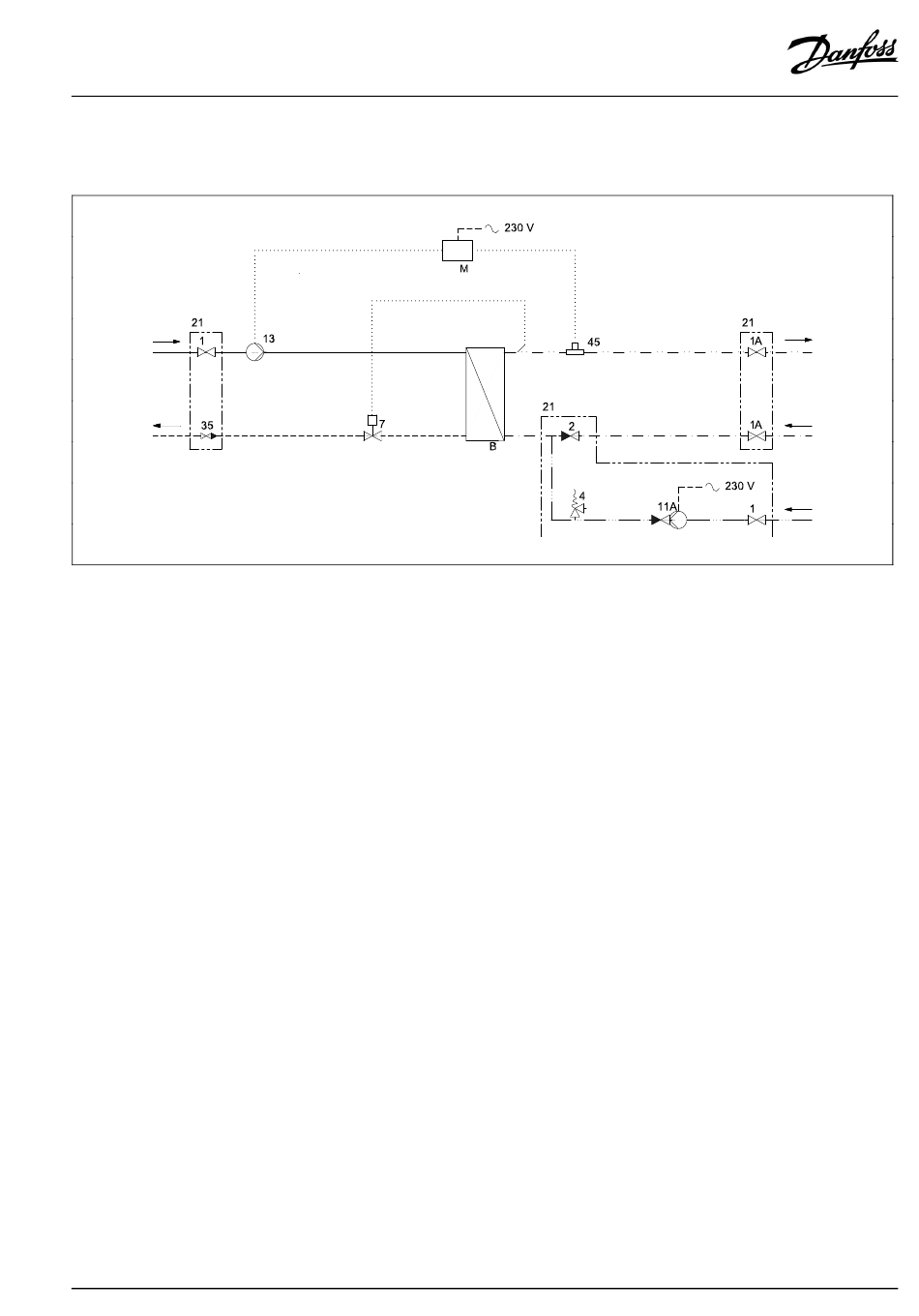

5.4.1 Schematic diagram Termix Solar A+/B+/S+ with circulation
BT
Supply
BT
Return
Your substation might look different than the schematic diagram shown.
Schematic description with circulation
B Heat exchanger, DHW
M Electrical wiring box
1
Ball valve
1A Ball valve, DVGW
DHW: Domestic Hot Water
DCW: Domestic Cold Water
HWC: Hot Water Circulation
BT Supply: Buffer tank supply
BT Return: Buffer tank return
5.4.2 Technical parameters
Technical parameters
Nominal pressure:
Max. DH supply temperature:
Min. DCW static pressure:
Brazed HEX (A+):
Brazing material (HEX):
Heat exchangers test pressure:
Gasketed HEX (B+):
Gasket material (HEX):
Heat exchangers test pressure:
Brazed HEX (S+):
Brazing material (HEX):
Heat exchangers test pressure:
Sound level:
AQ173986472867en-010501 / LUK38016
2
Single check valve
4
Safety valve
7
Thermostatic valve
11A DHW pump, with built in check valve
PN 10
120 °C
0.5 bar
Copper
30 bar
EPDM per.
13 bar
Stainless steel
24 bar
≤ 55 dB
13 Charging pump
21 To be ordered separately
35 Ball valve/non-return valve
45 Flow switch
