Summary of Contents for Avallon ABR242SGRH

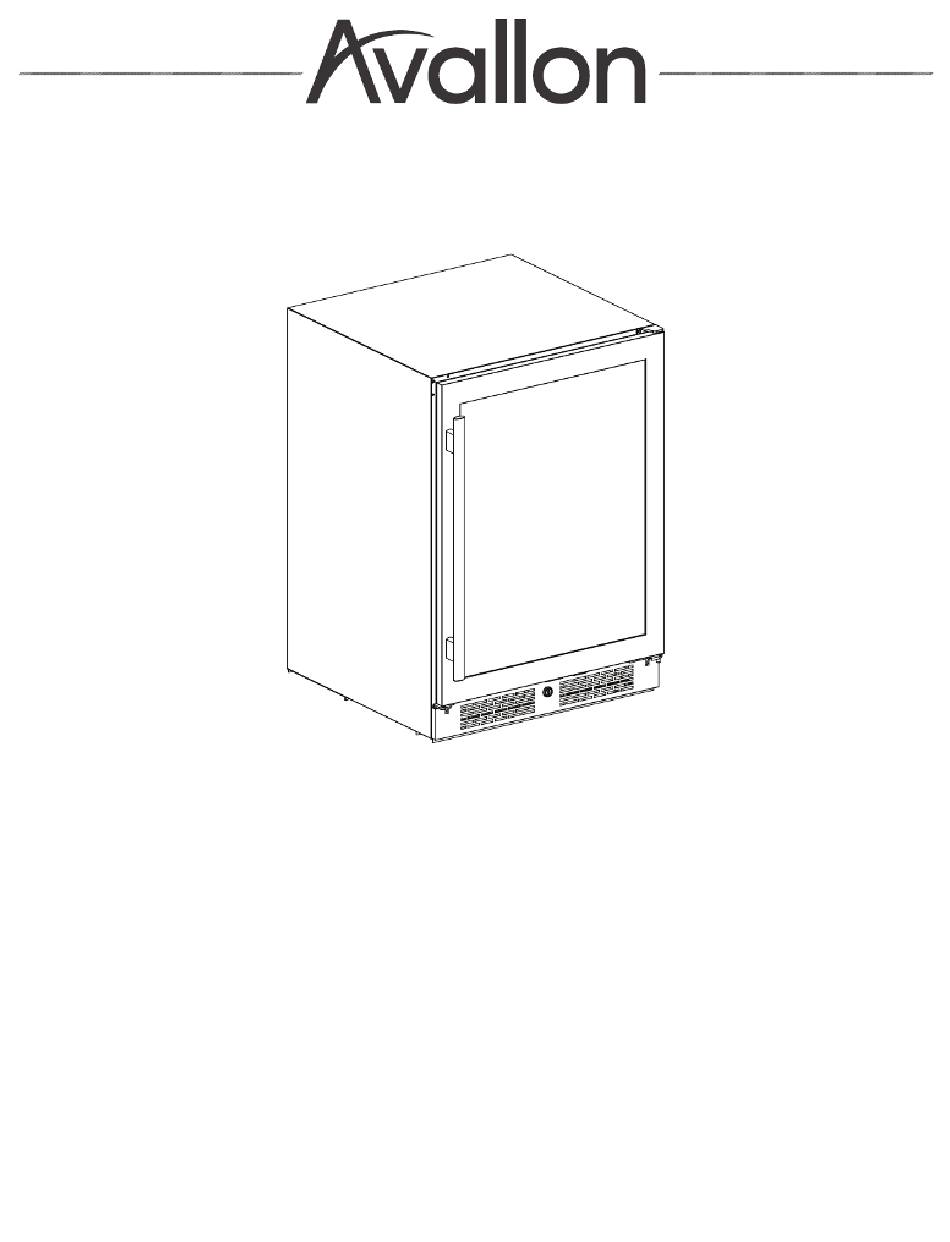

- Page 1 Owner’s Manual Undercounter Beverage Refrigerator Models: ABR242SGRH, ABR242SGLH V1.0 02012021 www.avallon.com...
-
Page 2: Important Safety Information
Important Safety Information Improper handling can cause serious damage to the Avallon refrigerator and / or injury to the user. This refrigerator is designed for domesc indoor use only. Do not use the unit for industrial or commercial use. Any other use may invalidate the warranty. Please review the rang label located inside and on the rear panel of the unit for electrical and other technical data related to this unit. -
Page 3: General Safety
Import Safety Information General Safety • To prevent injuries, use at least two people to move and install the refrigerator. • This appliance is not intended for use by persons, including children, with reduced physical, sensory or mental capabilies, unless they have been given supervision or instrucon concerning the use of the appliance by the person(s) responsible for their safety. -
Page 4: Table Of Contents
Table of Contents Important Safety Informaon ..........................2 First-Time Operang Instrucons ........................... 5 Introducon ................................5 Parts Idencaon ..............................Installaon ................................8 Unpacking the Refrigerator ..........................8 Types of Installaon ............................8 Clearance Requirements ..........................9 Electrical Requirements ..........................10 Recommended Grounding Method ...................... -
Page 5: First-Time OperaNg InstrucOns
The instrucon manual should be read before use. Introduction Thank you for purchasing this Avallon refrigerator. We hope that this purchase will be the beginning of a lasng and rewarding relaonship between you and Avallon. We will provide the customer support and exemplary products necessary to nurture that relaonship. -
Page 6: Parts IdentiCation
Parts Identication Full View: Handle Stainless Door Door Lock Front Vent Leveling Leg Empty View: Control Panel Carbon Filter Internal Fan Shelf... -
Page 7: Back View
Back View: Ra�ng Label Cabinet Power Cord Carbon Filter: A built-in carbon lter protects your contents by acng as a natural barrier against harmful odors. Internal Fan: This is an air-cooled unit equipped with an internal fan that maintains a consistent internal temperature. Note: The carbon lter should be replaced every 3 - 6 months depending on the unit’s exposure level to odor. -
Page 8: InstallaOn
Installation The refrigerator should be installed in accordance with local electrical code requirements. The refrigerator should also be placed in a locaon that is strong enough to support its total weight, keeping in mind that it will weigh substanally more when fully loaded than when empty. Before you plug the refrigerator into a power supply, be sure to let it stand upright for at least 24 hours to allow the compressor’s oils to sele. -
Page 9: Clearance Requirements
Clearance Requirements Notes: • To ensure proper service access and venlaon, allow between 1 - 2 inches of clearance at the back as shown in the diagram. • The installaon should allow the unit to be pulled forward for servicing, if necessary. •... -
Page 10: Electrical Requirements
Electrical Requirements ELECTRIC SHOCK HAZARD! • Plug into a grounded 3-prong outlet. • Never remove the grounding prong from the plug. • Never use an adapter to bypass the grounding prong. • DO NOT use an extension cord. • Failure to follow these instrucons can result in re, electrical shock, or death. Before you move your refrigerator into its nal locaon, it is important to make sure you have the proper electrical connecon: •... -
Page 11: Leveling The Refrigerator
Leveling the Refrigerator The refrigerator should be installed on a rm and level surface that will be able to support the enre weight of a fully loaded unit. It is important for the refrigerator to be leveled in order to work properly. It can be raised or lowered by rotang the plasc sheaths around each of the feet on the boom of the machine. -
Page 12: Installing The Shelves
Installing the Shelves To prevent damaging door gasket, make sure to open the door fully before pulling the shelves o their tracks. 1. Open the door completely. 2. Ensure that the metal guide posts are aached to the back of the shelf. 3. -
Page 13: OperaOn
Operation Installation Checklist before Operation 1. Have all packing materials and tape been removed from the interior and exterior of the refrigerator? 2. Have the installaon instrucons been followed, including connecng the machine to electricity? And has proper grounding been installed for the refrigerator? 3. -
Page 14: Sabbath Mode
Sabbath Mode This refrigerator is programmed with a Sabbath Mode. In Sabbath Mode, the refrigerator will connue to cool and maintain temperature. However, the refrigerator will no longer respond to user interacons. All lights, display(s), and indicators are turned o, and all alarms are disabled. To enter Sabbath Mode, hold the Power buon and press the Up buon twice. -
Page 15: Normal Sounds
If the inner temperature is lower than 25°F (-4°C), “LO” is shown on the temperature display panel and the temperature alarm will sound connuously aer een minutes. If one of these situaons occurs please reference the troubleshoong secon found in this manual or contact Avallon for support. Door Ajar Alarm This refrigerator includes a door ajar alarm, which will sound if the door is open for more than three (3) minutes. -
Page 16: Preparing The Refrigerator For Storage
Preparing the Refrigerator for Storage If the refrigerator will not be used for a long me, or is to be moved to another place, it will be necessary to defrost the unit and dry the interior. 1. Disconnect the refrigerator from the power supply by removing the power plug from the wall socket. 2. -
Page 17: Troubleshooting
Troubleshooting Before Calling for Help: If the unit appears to be malfunconing, read through the “Operaon” secon of this manual rst. If the problem persists, check the Troubleshoong Guide below and on the following page. The problem may be something that can easily be solved or explained. - Page 18 Symptoms Possible Causes Soluons The refrigerator is making Certain sounds are normal. Read the “Normal Sounds” secon. strange noises. The unit is not level or is Check to make sure that the refrigerator touching another appliance. is level, and that it is not in contact with another appliance or furniture.
-
Page 19: SpeciCaOns
Note: Technical data and performance informaon are provided for reference only. Specicaons are subject to change. Check the rang label on the refrigerator for the most accurate informaon. Product Type Undercounter Beverage Refrigerator Model ABR242SGRH / ABR242SGLH Voltage / Frequency AC 115V~60Hz Amperage Color... -
Page 20: Product Warranty
WHAT IS COVERED: One Year Parts and Labor: For one year from the date of original retail purchase, Avallon will repair or replace any part free of charge including labor that fails due to a defect in materials or workmanship. Avallon will be responsible for all transportaon costs for the rst 90 days from original purchase date, aer 90 days the consumer will be responsible. - Page 21 ©2021 Avallon...
