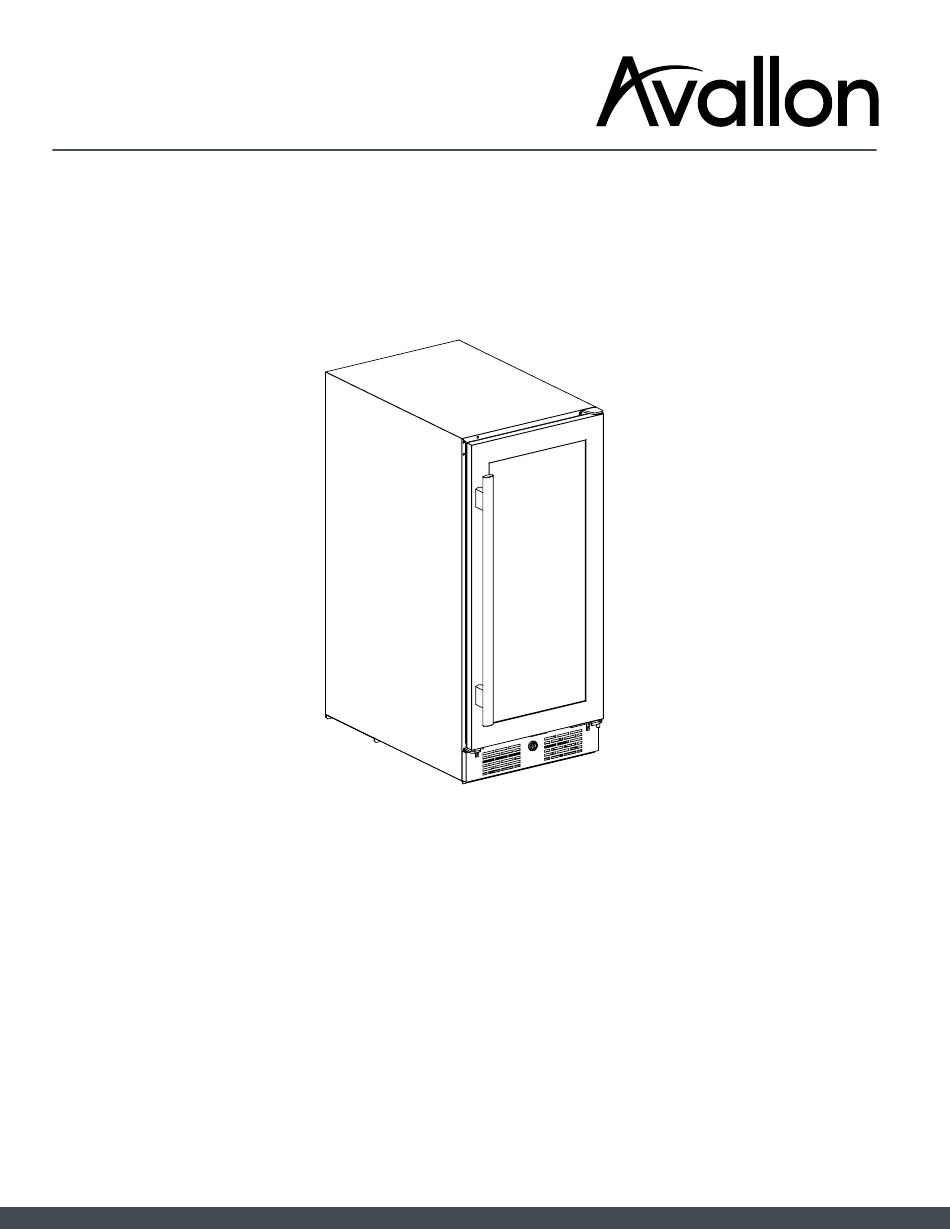

- Page 1 ® Undercounter Beverage Refrigerator Model: ABR152BLSS Owner’s Manual AVALLON.COM ©2025 Ferguson Enterprises, LLC V1.1-04042025...
-
Page 2: Important Safety Information
® Important Safety Information Improper handling can cause serious damage to the Avallon refrigerator and / or injury to the user. This refrigerator is designed for domestic indoor use only. Do not use the unit for industrial or commercial use. Any other use may invalidate the warranty. Please review the rating label located inside and on the rear panel of the unit for electrical and other technical data related to this unit. -
Page 3: General Safety
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified individual. WARNING: Risk of child entrapment. Before you throw away your old refrigerator or freezer, take off the doors and leave the shelves in place so that children may not easily climb inside. AVALLON.COM... -
Page 4: Table Of Contents
Temperature Alarm ..............................16 Door Ajar Alarm................................ 16 Defrosting .................................. 16 Preparing the Refrigerator for Storage ......................16 Cleaning and Maintenance ............................17 Exterior Cleaning ..............................17 Interior Cleaning ..............................17 Troubleshooting ................................18 Specifications ................................... 20 Product Warranty ................................21 AVALLON.COM... -
Page 5: First-Time Operating Instructions
The instruction manual should be read before use. Introduction Thank you for purchasing this Avallon refrigerator. We hope that this purchase will be the beginning of a lasting and rewarding relationship between you and Avallon. We will provide the customer support and exemplary products necessary to nurture that relationship. -
Page 6: Parts Identification
® Parts Identification Full View: Handle Black Stainless Door Trim Door Lock Front Vent Leveling Leg Empty View: Control Panel Carbon Filter Internal Fan Shelf AVALLON.COM... -
Page 7: Back View
This is an air-cooled unit equipped with an internal fan that maintains a consistent internal temperature. NOTE: The carbon filter should be replaced every 3 - 6 months depending on the unit’s exposure level to odor. If the unit is placed in the kitchen, regular replacement every 3 months is ideal. AVALLON.COM... -
Page 8: Installation
2. If the electrical outlet for the refrigerator is behind the cabinet, plug in the refrigerator. 3. Push the refrigerator into position. WARNING: DO NOT install the refrigerator behind a closed cabinet door. AVALLON.COM... -
Page 9: Clearance Requirements
If needed, you can adjust the height of the refrigerator by rotating the feet. See the “Leveling the Refrigerator” section. A standard electrical supply (115 VAC only, 60 Hz), properly grounded in accordance with National Electrical Code and local codes and ordinances, is required. AVALLON.COM... -
Page 10: Electrical Requirements
3-pronged wall socket, and grounded in accordance with the National Electrical Code and local codes and ordinances. If a mating wall socket is not available, it is the personal responsibility of the customer to have a properly grounded, 3-prong wall receptacle installed by a qualified electrician. AVALLON.COM... -
Page 11: Leveling The Refrigerator
3. Align the handle with the screws and tighten using a Phillips head screwdriver until the handle is flush against the door frame. 4. Carefully press the door gasket into its original position. CAUTION: Do not over-tighten the screws as this may cause damage to the handle or to the black stainless steel door. AVALLON.COM... -
Page 12: Installing The Shelves
3. Ensure that the shelf is pushed back completely. 4. Carefully lift either the left or right side of the shelf up 45°. 5. Pull the shelf forward until it is completely removed from the inner compartment. Metal Guide Post AVALLON.COM... -
Page 13: Reversing Your Door Swing
D. Remove the decorative covers (6) from the top left of the cabinet and install the new top hinge (5) at the tip of the cabinet with three screws. E. Install the door once correctly aligned. WARNING: Disconnect power before removing the door. NOTE: Door reversal operation requires at least two (2) persons. AVALLON.COM... -
Page 14: Operation
To switch between C and F, press and hold both the Up and Down buttons simultaneously for approximately three (3) seconds. A beep will sound and the indicator light will illuminate next to the desired temperature setting. AVALLON.COM... -
Page 15: Sabbath Mode
Water running from the evaporator to the water bin may make a splashing sound. • As each cycle ends, you may hear a gurgling sound due to the refrigerant flowing in your refrigerator. • You may hear air being forced over the condenser by the condenser fan. AVALLON.COM... -
Page 16: Temperature Alarm
If one of these situations occurs please reference the troubleshooting section found in this manual or contact Avallon for support. Door Ajar Alarm This refrigerator includes a door ajar alarm, which will sound if the door is open for more than three (3) minutes. -
Page 17: Cleaning And Maintenance
2. Open the door and remove the contents and shelves. 3. Wait until the unit defrosts. 4. With a clean cloth, wipe down the interior of the unit. 5. Reinsert the shelves and contents. 6. Reconnect power to the unit. AVALLON.COM... -
Page 18: Troubleshooting
The refrigerator is not Plug the unit in to a power outlet that plugged in. has sufficient amperage. A house fuse has blown or Replace the broken fuse in your fuse the circuit breaker is tripped. box or reset the breaker. AVALLON.COM... - Page 19 Make sure the refrigerator is on a level properly. surface. The door gasket is dirty. Clean the door gasket. The door gasket is not Make sure the door gasket is correctly installed correctly. installed. The shelves are incorrectly Install the shelves correctly. installed. AVALLON.COM...
-
Page 20: Specifications
Technical data and performance information are provided for reference only. Specifications are subject to change. Check the rating label on the refrigerator for the most accurate information. Product Type Undercounter Beverage Refrigerator Model ABR152BLSS Voltage / Frequency AC 115V~60Hz Amperage Color... -
Page 21: Product Warranty
WHAT IS COVERED: One Year Parts and Labor: For one year from the date of original retail purchase, Avallon will repair or replace any part free of charge including labor that fails due to a defect in materials or workmanship. Avallon will be responsible for all transportation costs for the first 90 days from original purchase date, after 90 days the consumer will be responsible. - Page 22 ® AVALLON.COM ©2025 Ferguson Enterprises, LLC V1.1-04042025...
