KAMINEINHEIT
FIREPL ACE UNIT
U N ITÀ CA M I N O
U N IT É D E C H E M I N É E
U N I DA D D E C H I M E N E A
DE | E N | IT | FR | ES
M AT TI
K A M I N E I N H E I T
B E DI E N U N G S A N L E I T U N G
I N S T R U C T I O N M A N UA L
I S T R U ZI O N I P E R L' U S O
I N S T R U C T I O N S D' U T I L I S AT I O N
I N S T R U C C I O N E S D E O P E R AC I Ó N
Advertisement
Table of Contents
Related Manuals for KAMINIO MATTI
Summary of Contents for KAMINIO MATTI

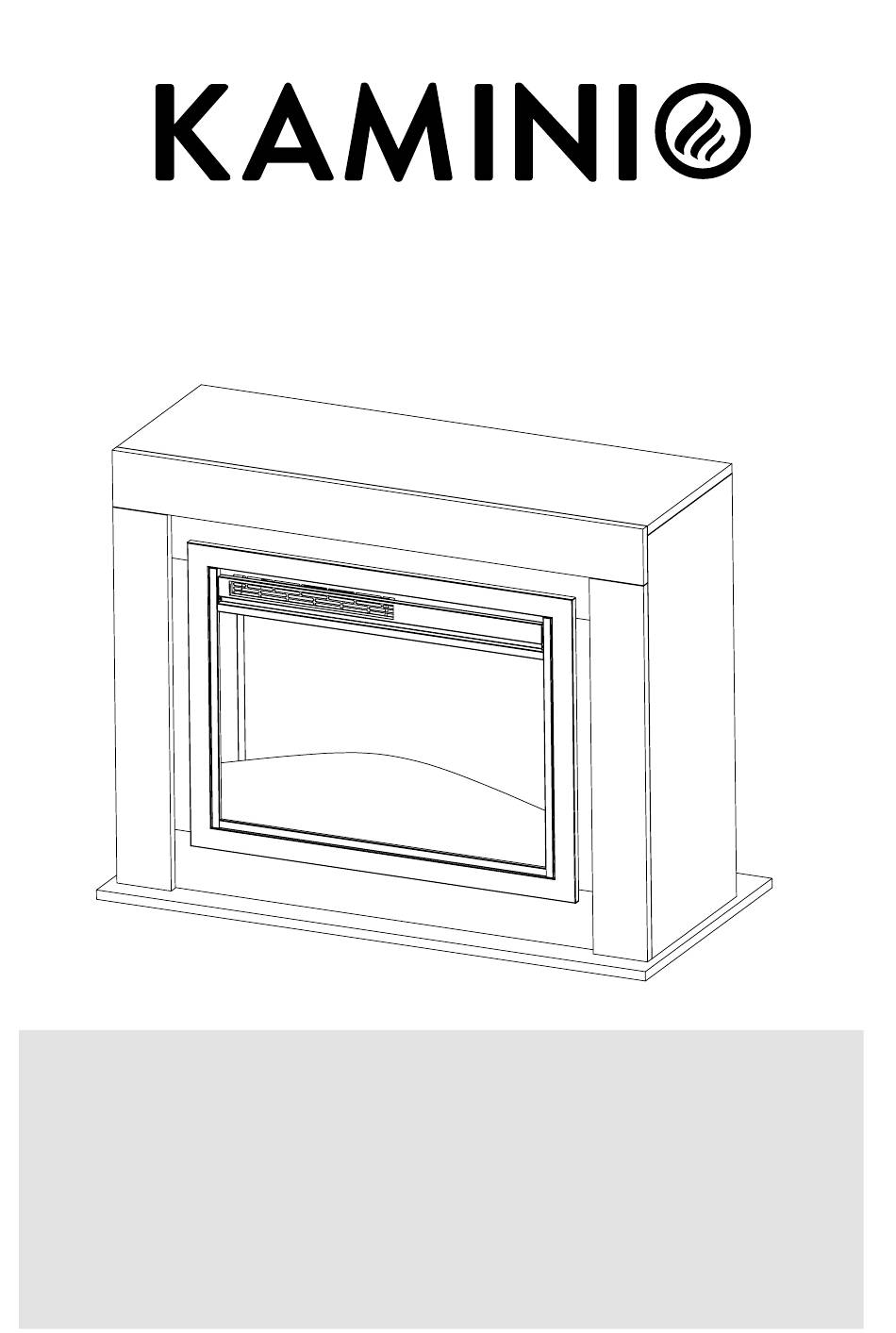

- Page 1 M AT TI K A M I N E I N H E I T B E DI E N U N G S A N L E I T U N G KAMINEINHEIT I N S T R U C T I O N M A N UA L FIREPL ACE UNIT I S T R U ZI O N I P E R L‘...
- Page 2 Download aktuelle Bedienungsanleitung Download current instruction manual Scarica le istruzioni per l'uso Télécharger les Instructions d‘utilisation Descargar las Instrucciones de operación...
- Page 3 BEDIEN U NGS A NLEIT U NG INS TRU CTION M A N UA L IS T R UZIONI PER L‘ U S O INS TRU CTIONS D‘ U TILIS ATION INS T R U CCIONES DE OPER ACIÓN Dieser Artikel wird idealerweise von 2 Personen montiert. This item is ideally installed by 2 people.
-
Page 4: Safety Instructions
SA FE T Y INS TRUCTIONS: • Read all instructions before using this appliance. • Use this electric f㘶replace only as described in this manual. Any other use may result in f㘶re, electric shock, injury, or death. • Use handles when moving the electric f㘶replace. • This electric f㘶replace contains small parts that can be swallowed. Keep children away during assembly. • This electric f㘶replace gets hot during operation. To avoid burns, DO NOT TOUCH hot surfaces. • Combustible materials (e.g., furniture, cushions, bedding, paper, clothing, or curtains) must maintain the prescribed minimum distance from all sides of the electric f㘶replace. - Page 5 • Extreme caution is required when using an electric f㘶replace. NEVER leave the appliance unattended while the electric f㘶replace is in operation. DO NOT operate an electric f㘶replace if the cord is damaged, the electric f㘶replace is not functioning properly, has been dropped, or otherwise damaged. Dispose of the electric f㘶replace or have it checked by a certif㘶ed professional. DO NOT place the cord in a walkway or where it can be overlooked. ONLY connect the device to a properly grounded outlet. ALWAYS plug the electric f㘶replace directly into a wall outlet. NEVER use an extension cord or a relocatable power tap (power strip). NEVER connect this electric f㘶replace to an old, cracked outlet or an outlet with loose wires or connections. Connecting this electric f㘶replace to a faulty outlet may cause the outlet to overheat or catch f㘶re. • Before initial use, check the plug connections. ENSURE the plug is securely inserted into the outlet.
-
Page 6: Technical Specifications
TEC H NICA L S PECIFICATIONS M O D E L L- N R .: E 01 MODEL No.: E01 Supply Voltage: AC 220–240 V 50 Hz Maximum power consumption: 2000 wat ts Power for flame effect: 6 wat ts Power for ambilight: 10 wat ts H E AT O U T P U T Nominal heat output (Pnom): 2000 wat ts... -
Page 7: Pa Rts A N D H A Rdwa Re
NOTE! The meaning of this f㘶gure is “DO NOT COVER” NOTE! When using paint or varnish to paint the mantelpiece, the paint or varnish must be heat-resistant to prevent discoloration. NOTE! Manufacturer and seller expressly disclaim any liability for perso - nal injur y, proper ty damage or loss, whether direct, indirect or accidental, resulting from the incorrect attachment, improper use, inadequate maintenance or neglect of this product. - Page 8 TIMER DATE TIME TIMER DIMMER ON/OFF 1000 W 2000 W BACK- LIGHT Fireplace unit Remote control Bat ter y Screw Securing element Securing element LED strip Cover für LED strip Screw Sleeve Manual NOTE! Tools required for installation (not included): Screwdriver.
-
Page 9: Appliance Dimensions
A PPLIA NC E DIM E NSIO NS U N I T: mm... -
Page 10: Installation Instructions
INS TA LL ATION INS TRU CTIONS LO CATI N G T H E A PPLI A N C E The MAT TI electric fireplace can be installed anywhere in enclosed spaces, provided the above safety instructions are obser ved. Observe the minimum distances to obstacles and walls. - Page 11 O PE R ATING WARNING! Make sure that the fuse(s) for the power supply are switched on. As soon as the appliance is connected to a properly ear thed socket, it is ready for operation; in the event of a power failure, the appliance loses its memor y function and is reset to factor y mode when it is switched back on.
-
Page 12: Description And Function
DESCRIP TION A ND F U NCTION This product is an energy- efficient electric fireplace for heating the room air. It has heating elements that heat the room to the set temperature. The indivi- dual functions can be switched on and off directly using the control unit or the remote control supplied. - Page 13 N O. D E S C R I P T I O N Fireplace unit Control panel Ambient light Switching between heating level 1 and 2 Standby ON/OFF Main switch ON/OFF LCD display Timer display: Selected day of the week Timer display: ON/OFF Display Standby Temperature display in °C...
-
Page 14: Remote Control
R EMOTE CONTROL NOTE: To improve operation, point the remote control at the front of the fireplace. Do not press the buttons too quickly. Give the appliance time to respond to each command input. • Remove the batter y cover from the back of the remote control. •... -
Page 15: Control Panel
CONTROL PA NEL TIMER TIMER DATE BACK- 1000 W DIMMER 2000 W ON/OFF TIME LIGHT S W I TC H F U N C T I O N AC T I O N A N D D I S P L AY Switching the electric f㘶replace on/off ON: Activates the function of the control panel and the remote control. - Page 16 I N ITI A L C O M M I S S I O N I N G Before connecting the appliance, ensure that the mains voltage and mains frequency of the appliance are identical to those of the mains supply. Connect the power cable to a free, easily accessible socket.
- Page 17 NOTE! The temperature can be set within a range of 15 - 30 °C. S E L E C T H E ATI N G L E V E L Press on the remote control or button [2.2] on the control panel [2] to switch 1000 W 2000 W between heating levels 1 and 2.
- Page 18 S E T TI N G T H E TI M E R Press on the remote control. TIMER Select the desired program number using where the timer settings should be saved. Press on the remote control again. TIMER Select the day of the week using The selected day of the week will be marked on the display.
- Page 19 PU T T H E D E V I C E O U T O F O PE R ATI O N Press to switch the electric fireplace. Press the main switch [2.4] on the control panel [2] of the electric fireplace to the “O” position after use to switch off the electric fireplace.
- Page 20 C LE A NING WARNING! Before performing any maintenance or cleaning on the outside of the fireplace, the device must be disconnected from the power supply and allowed to cool down completely. M E TA L: • Use a soft, lint-free cloth and a mild non-abrasive cleaning agent for cleaning.
-
Page 21: Maintenance
M AINTE N A NC E WARNING! The consumer should not perform any fur ther maintenance. Do not perform maintenance on the device yourself. E L E C T R I CA L A N D M OVA B L E PA R T S: •...
