Siemens ALPHA BS III 160 Installation Instructions

ALPHA BS III 160
DANGER: LIVE PARTS ENCLOSED. Ensure the unit is installed by a qualified competent person in accordance with all
relevant legislation and regulations including building regulations and wiring regulations BS 7671. If in doubt, contact a
qualified competent person.
IMPORTANT INFORMATION
Follow the instructions below before working on or inside the equipment.
•
Turn off all power supplies
•
Always use a calibrated volt-sensing device to confirm the power is off.
•
Replace all devices, doors and covers before turning on the power to this equipment.
•
To avoid ingress of swarf and similar material, always remove gland plates to allow cutting/slotting for cable entries.
•
Do not use power screwdrivers on electrical connections.
Failure to follow these instructions could result in serious injury or death.

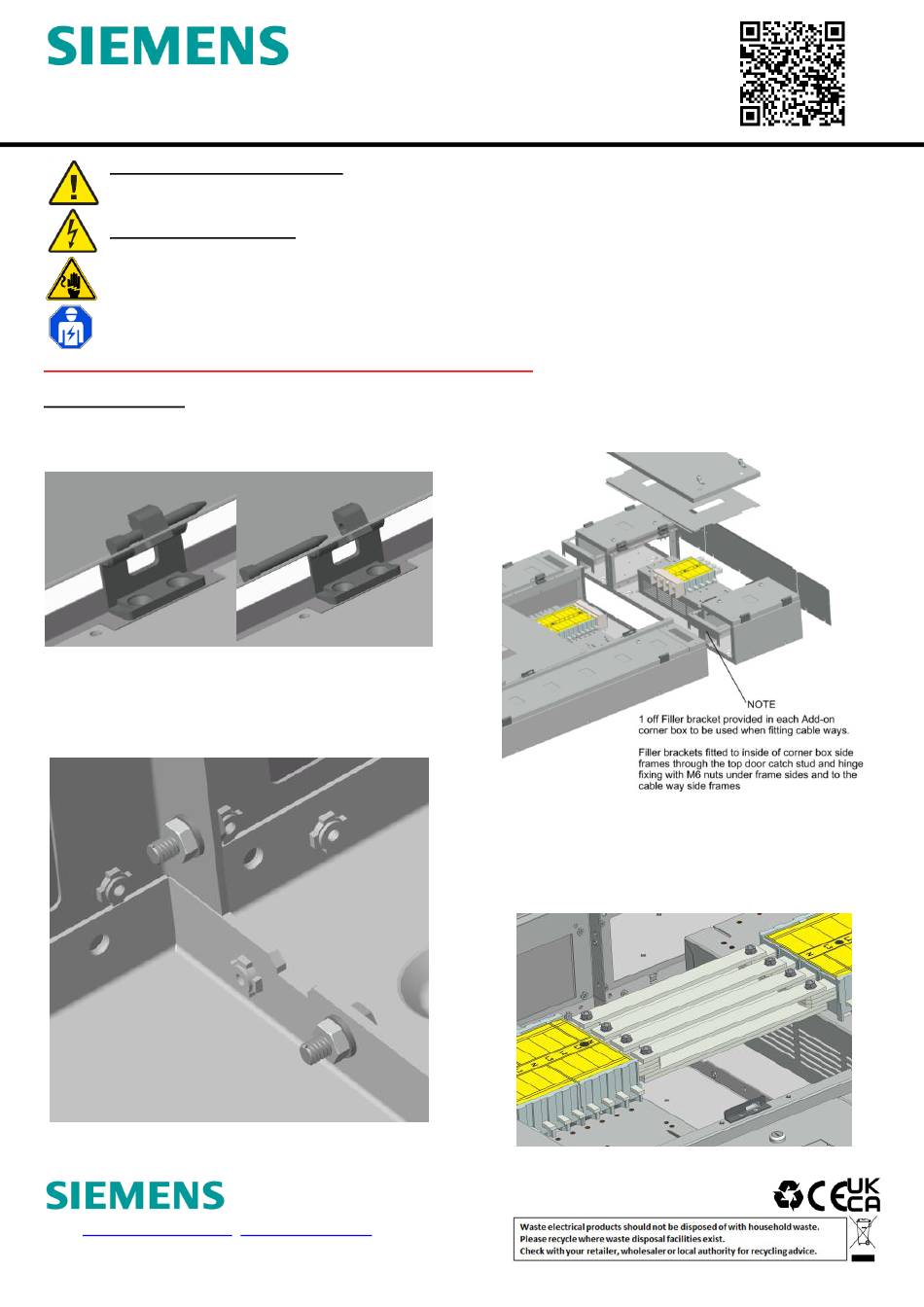

Fitting Instructions
Before assembling the Add-On enclosure to the main panel,
remove the door, front shield & the gland plate from the main
panelboard & Add-On unit. To remove the door, refer to Fig. 1.
Fig. 1
Attach the Add-On unit to the panelboard using M6 Nuts, bolts
and contact washers supplied (19 places), refer to Fig. 2 for
details.
Siemens Electrical Products (EP), Sharston Road, Wythenshawe, Manchester, M22 4RA
E-Mail: sales.gbi.industry@siemens.com estimating.uk@siemens.com
LF1685_d.docx
Installation instructions,
4P Outgoing MCCB Housing
Fig. 2
Tel: 08458 507600
Add-on 2-way 250 A
8GP1921-0DA26
Remove the shield, door, and gland plate. Then start to fit the
Add-On enclosure to the panelboard by referring to Fig. 3.
After the Add-On unit has been attached to the main
panelboard, fit the busbar connections (sold separately see
Table 1 for required kit list number) as shown in Fig. 4. M8
coach-bolts are to be fitted using the M8 fasteners provided.
Fig. 3
Fig. 4
Page 1 of 2
