General Information; Grounding Instructions - Sharp AX-1100R Service Manual

This oven is equipped with a three prong grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded
in accordance with the National Electrical Code and local codes and ordinances.
In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current.
WARNING: Improper use of the grounding plug can result in a risk of electric shock.
Electrical Requirements
The electrical requirements are a 20 volt 60 Hz, AC only, 5 or 20 amp. fused electrical supply.
It is recommended that a separate circuit serving only this appliance be provided. When install -
ing this appliance, observe all applicable codes and ordinances. A short power -supply cord is
provided to reduce risks of becoming entangled in or tripping over a longer cord. Where a two -
pronged wallreceptacle is encountered, it is the personal responsibility and obligation of the
customer to contact a qualified electrician and have it replaced with a properly grounded three-
pronged wall receptacle or have a grounding adapter properly grounded and polarized. If the
extension cord must be used, it should be a 3 -wire, 5 amp. or higher rated cord. Do not drape
over a countertop or table where it can be pulled on by children or tripped over accidentally.
CAUTION: DO NOT UNDER ANY CIRCUMSTANCES CUT OR REMOVE THE ROUND GROUNDING PRONG FROM THIS PLUG.

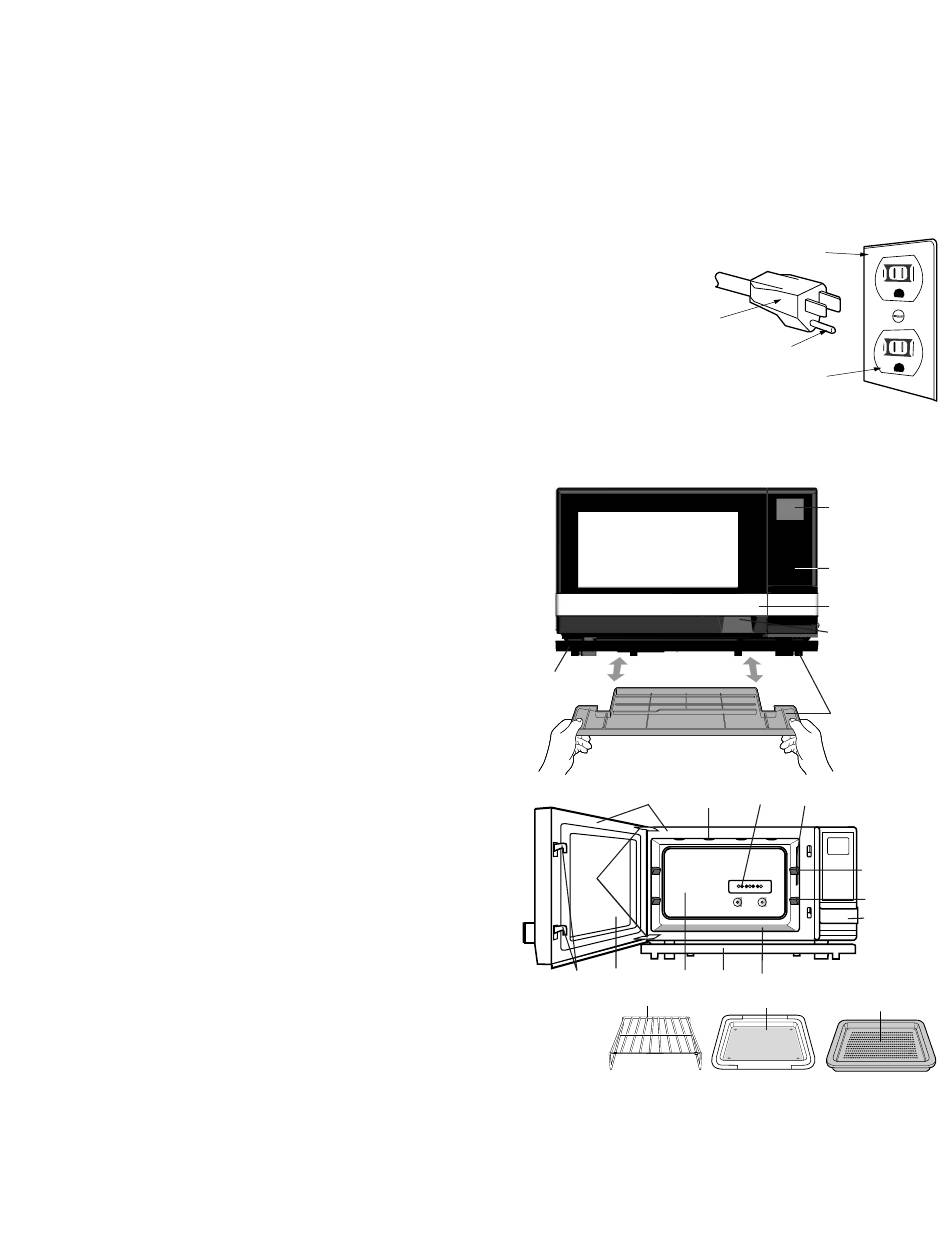

PART NAMES
 Ventilation openings
Be aware that hot steam or air comes out during steam or grill mix
cooking, and keep children away from the oven.
2 Door open handle
3 LCD display
4 Control panel
5 Oven lamp
6 Upper position (position 3)
7 Lower position (position 2)
8 Water tank
9 Door seals and sealing surfaces
0 Latch
11 Oven floor (position 1)
2 Door hinges
3 Steam outlets
4 Drip tray
5 Oven cavity
6 See through door
7 Grill heating element
(at the oven cavity ceiling)
8 Door lever
To open, grip the door lever from the bottom and pull it towards
you.
ACCESSORIES
9 Rack
For Grill and Grill Mix.
Do not use for Steam and Microwave.
Always place on glass tray.
20 Glass tray
2 Steam tray x2
For Steam only.
Always place above/on glass tray.
Do not use for Microwave, Grill and Grill Mix.
WARNING: for stacking the steam tray and glass tray:
After cooking, take out the steam tray first.
See figure 2. Be aware of excess water from the steam tray, we recommend you place it directly on a flat dish or tray to avoid
spillages.
Before taking out the glass tray, make sure that it is cool. Be aware that there may be water on the glass tray, so take care
when removing it.

GENERAL INFORMATION

GROUNDING INSTRUCTIONS

1
9
Grounded
Receptacle Box
3-Pronged
Plug
Grounding Pin
3-Pronged Receptacle
9 17
12
10 16 15 14
19
water on the glass tray, so take care
