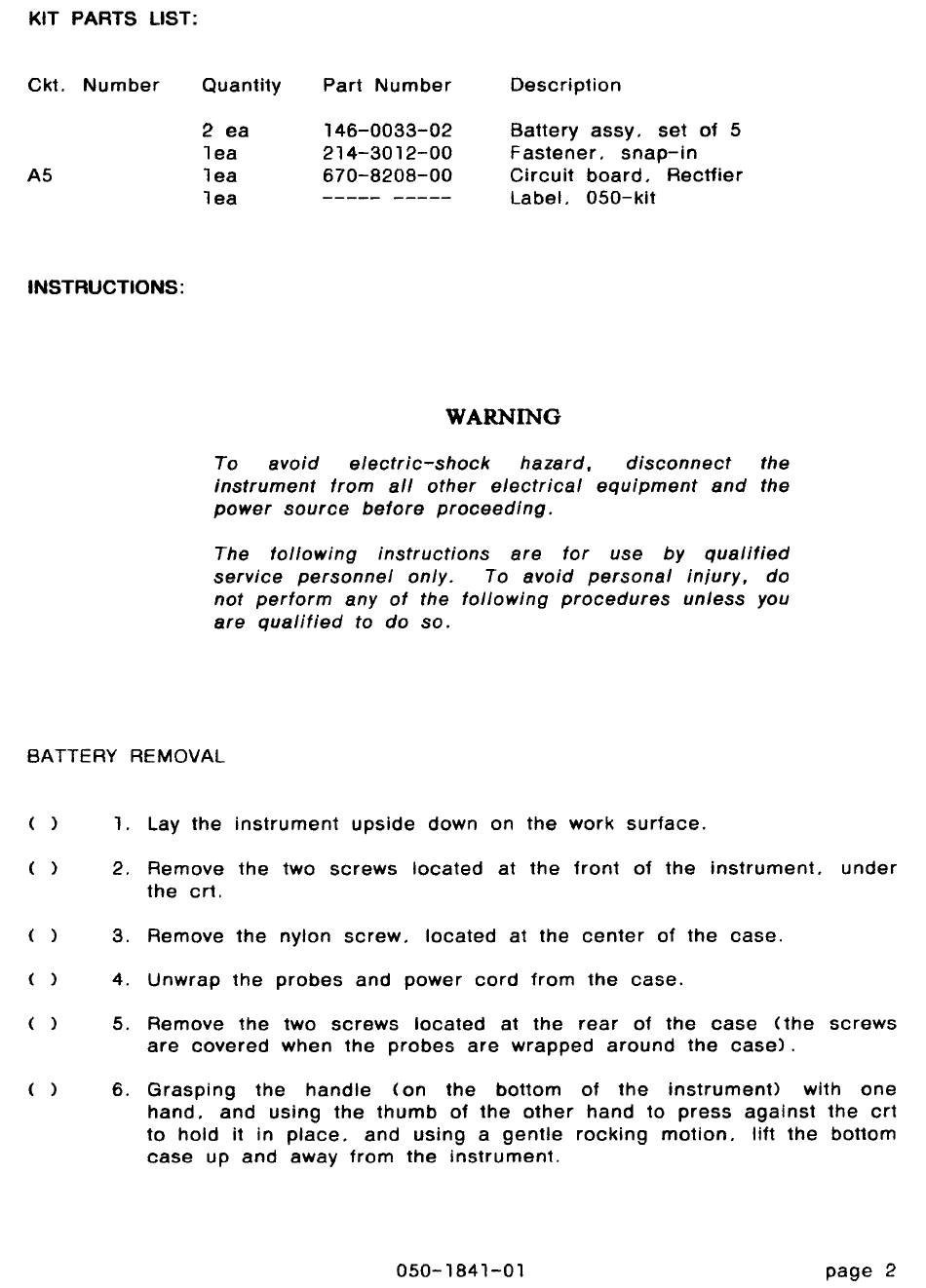

Tektronix 211 Battery Replacement page 2

KIT PARTS LIST:
Ckt. Number Quantity Part Number Description
2 ea 146-0033-02 Battery assy. set of 5
lea 214-3012-00 Fastener. snap-in
A5 lea 670-8208-00 Circuit board, Rectfier
Vea rr Ha - Label, 050-kit
INSTRUCTIONS:
WARNING
To avoid electric-shock hazard, disconnect the
instrument from all other electrical equipment and the
power source before proceeding.
The following instructions are for use by qualified
service personnel only. To avoid personal injury, do
not perform any of the following procedures unless you
are qualified to do so.
BATTERY REMOVAL
( )
Lay the instrument upside down on the work surface.
Remove the two screws located at the front of the instrument, under
Remove the nylon screw. located at the center of the case.
Unwrap the probes and power cord from the case.
Remove the two screws located at the rear of the case (the screws
are covered when the probes are wrapped around the case).
Grasping the handle (on the bottom of the instrument) with one
hand, and using the thumb of the other hand to press against the crt
to hold it in place. and using a gentle rocking motion. lift the bottom
case up and away from the instrument.
050-1841-01 page 2
