Immergas MAGIS COMBO V2 Manual page 8

4
Model
MAGIS COMBO PLUS V2
4.1
MAGIS COMBO PLUS V2
Flow Return System Filling
System System RR
M R 1/2"
3/4" 3/4"
8

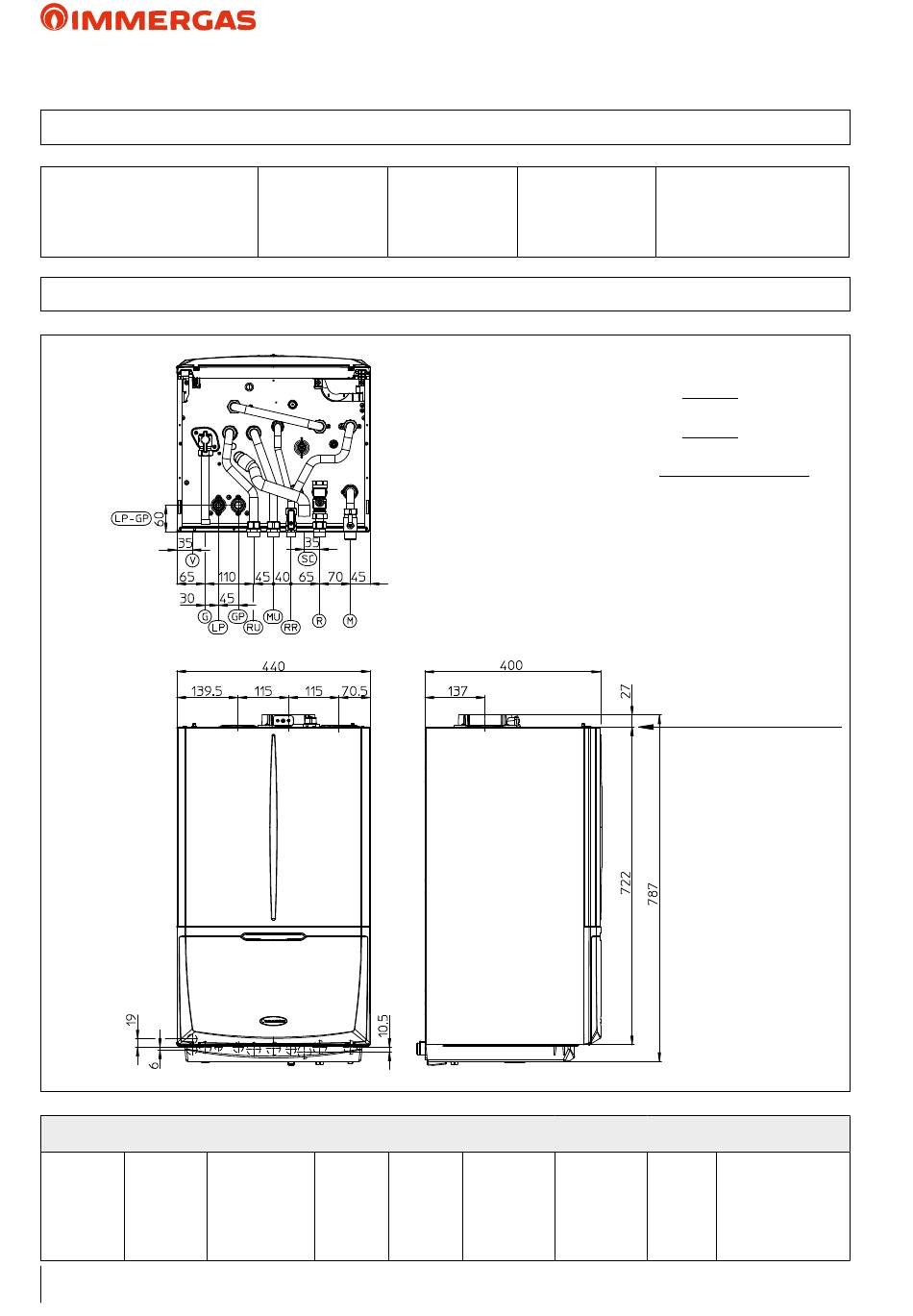

MAGIS COMBO PLUS V2 MAIN DIMENSIONS
Height mm Width mm
787 440
MAGIS COMBO PLUS V2 CONNECTIONS
A A/S A
Storage Storage
tank tank
Flow return
MU RU
3/4" 3/4"
MAGIS COMBO V2
Depth mm
400
Distance between casing upper line and
Ø 60/100 concentric bend axis: 105 mm
Distance between casing upper line and
Ø 80/125 concentric bend axis: 215 mm
Distance between casing upper line and
separator bend axis Ø 80/80: A/S = 145; mm A = 115
SC = Condensate drain (min. internal Ø= 13 mm)
A/S = intake/exhaust
A = intake
R32 R32
LP GP
1/4" 5/8"
(6.35 mm) (15.88 mm)
Ø intake/exhaust mm
100/60 - 125/80 - 80/80
Casing upper line
Gas Expansion vessel
G Litres
3/4" 10 (real 8.3)
