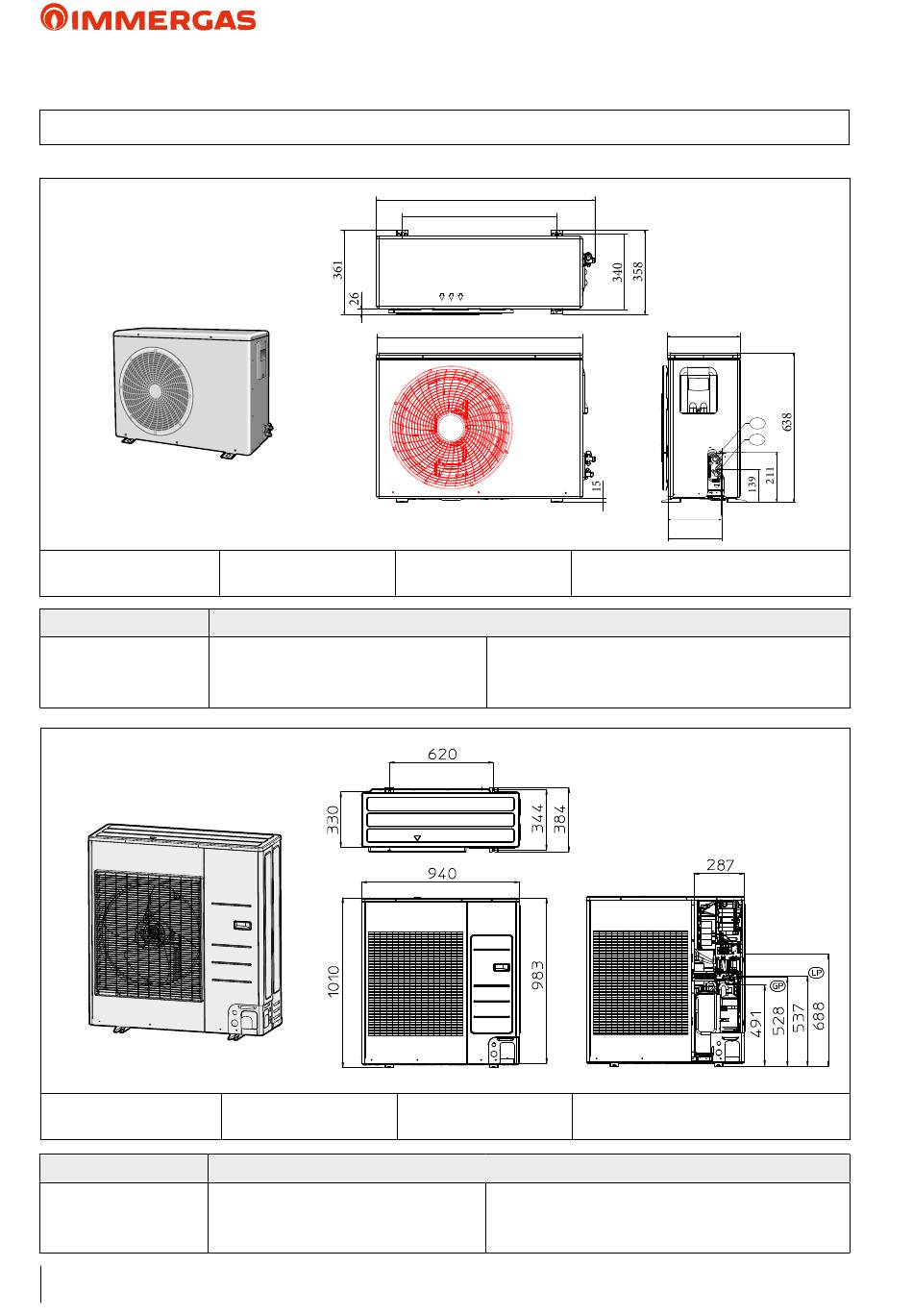

2 AUDAX PRO V2 DIMENSIONS AND CONNECTIONS (CONDENSING UNIT)
AUDAX PRO 4 / 6 V2
Height = 638 mm
R32
Model LP (Cooling liquid)
AUDAX PRO 4/6 V2 1/4" (6.35 mm)
AUDAX PRO 9 V2
Height = 1010 mm
R32
Model LP (Cooling liquid)
AUDAX PRO 9 V2 1/4" (6.35 mm)
6
Width = 880 mm
Width = 940 mm
MAGIS COMBO V2
934
660
880
Depth = 361 mm
GP (Gaseous liquid)
5/8" (15.88 mm)
Depth = 384 mm
GP (Gaseous liquid)
5/8" (15.88 mm)
310
GP
LP
229
231
Condensate drain = Ø 20 mm
Condensate drain = Ø 20 mm
