Summary of Contents for Aqara Camera Hub G5 Pro Wi-Fi

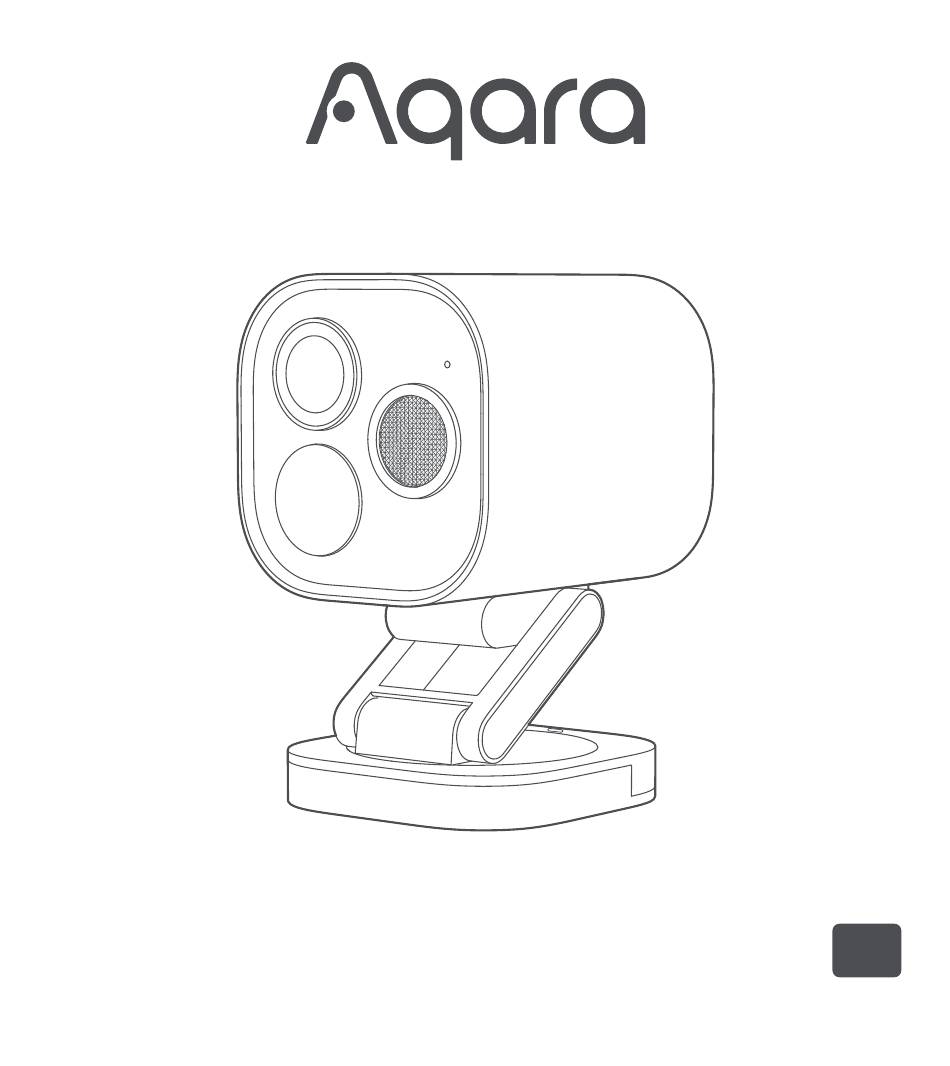

- Page 1 Camera Hub G5 Pro (Wi-Fi) User Manual...
-
Page 2: Product Introduction
Product Introduction Camera Hub G5 Pro (Wi-Fi) supports 24/7 comprehensive use. Featuring a video resolution exceeding 4 million pixels, a 133° diagonal field of view (FOV) lens, a large F1.0 aperture, and a 1/1.8” large-image sensor, this device delivers vibrant color imaging even in extremely low-light conditions. - Page 3 Indicator Light Microphone Lens Spotlight PIR Sensor Tightening Adjustment Screw Adjustable Bracket Wall Mounted Bracket Fastening Screws USB-C Power Port Speaker Rear Cover Removal Screw Rear Cover Screw Hole Button Press and Hold for 10s: Reset the Network and Unbind the Device Quick Press 10 Times: Restore Factory 1/4 "Bracket Screw Hole...
-
Page 4: Device Installation
Device Installation Select the Installation Position This product can be mounted on a wall, ceiling, or placed on a flat surface, and the instructions are as follows: Flat Surface Placement: The camera can be placed on a flat surface. After the product is successfully connected to the app, its tilt angle and left/right rotation angle can be manually adjusted based on real-time streaming, aiming the lens at whatever needs to be filmed. - Page 5 2.Loosen the fastening screws of the wall mounted bracket, take out the bracket, attach it to the selected installation position on the wall, and mark the punching points. 3.Use a Ø6 mm drill bit to drill holes according to the marked positions, with a hole drilling depth ≥...
- Page 6 4.Use the tool to hammer the 4 expansion plugs into the drilled holes, ensuring a flat surface. 5.Use the self-tapping screws from the accessory pack to secure the bracket to the wall. 6.Insert the camera along with the other parts of the bracket from top to bottom into the groove of the wall mount bracket as shown below, then tighten the screws to secure it.
- Page 7 1.Download App Search for "Aqara Home" in the Apple App Store, Google Play, Xiaomi GetApps, Huawei App Gallery, or scan the following QR code to download the Aqara Home app. 2.Add Product to Aqara Home Please connect the camera to Aqara Home or HomeKit before installing it. Refer to...
- Page 8 • During network setup, make sure that your mobile phone is connected to the Wi-Fi network in the same LAN as the camera. • During network setup, it may be necessary to scan the Aqara pairing QR code on the product, manual cover, or enter the 8-digit pairing code. Please follow the prompts on the app to complete the necessary steps.
-
Page 9: Other Functions
This product is a Zigbee hub, and also can connect with Thread child devices, please bind child devices according to the child device’s user manual. 5.Other Functions For more device functions, please log in to the Aqara Home app to explore. Description of Indicator Lights Indicator Light Status... -
Page 10: User Information
User Information Use of the Works with Apple badge means that the accessory has been designed to work specifically with the technology marked in the badge and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliant safety and regulatory standards. - Page 11 6. Please select an adapter with a minimum output parameter of 5V⎓2A to use with the product. Online Customer Service: www.aqara.com/support Manufacturer: Lumi United Technology Co., Ltd. Address: Room 801-804, Building 1, Chongwen Park, Nanshan iPark, No. 3370, Liuxian Avenue, Fuguang Community, Taoyuan Residential District, Nanshan District, Shenzhen, China.
