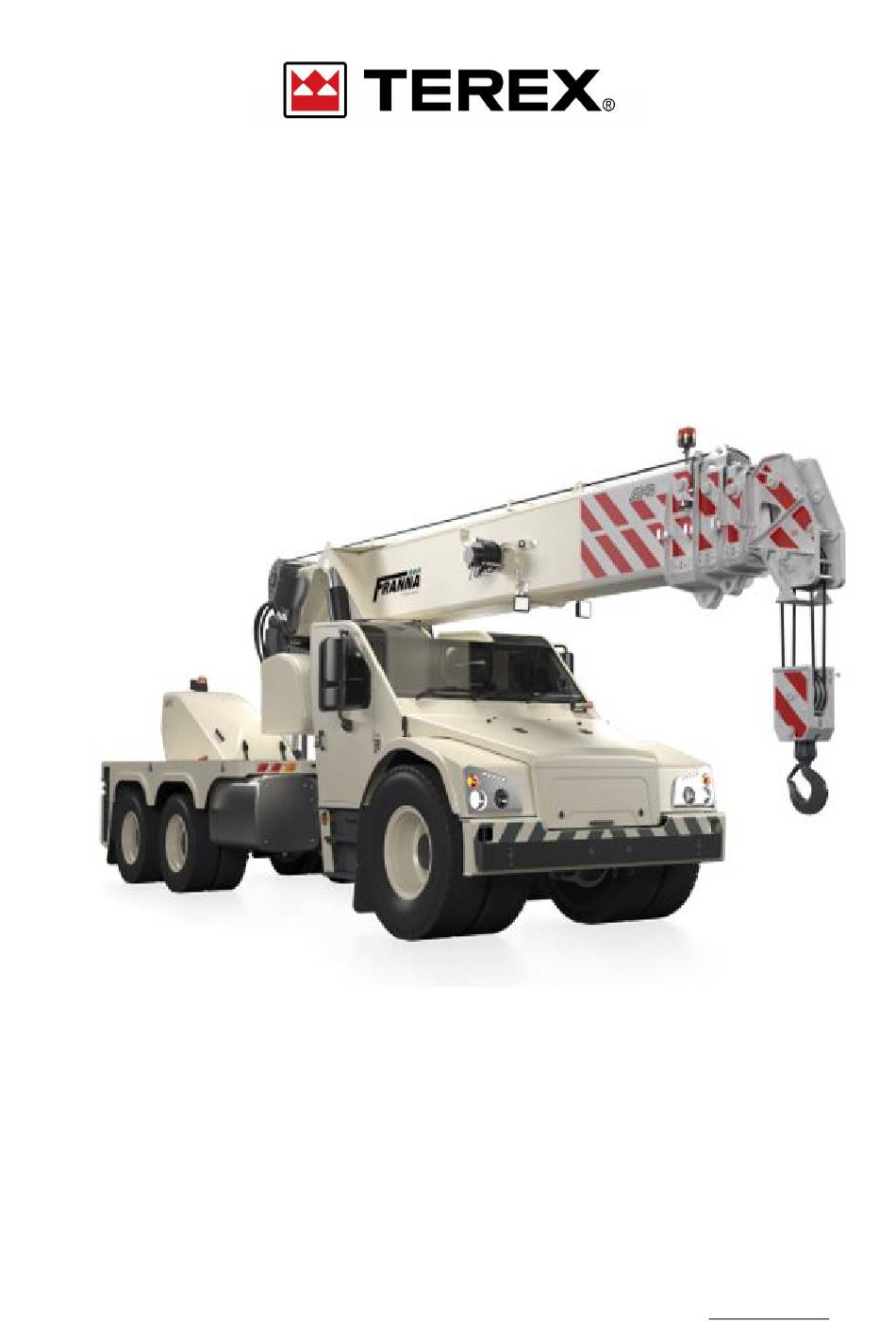

MODEL AT 40
RATED CAPACITY MANUAL
Book Part Number: T156318G
HYDRAULIC MOBILE ARTICULATED PICK & CARRY CRANE
40 tonne MAXIMUM RATED CAPACITY
Do not operate this crane unless you have read
and understood the information in this book.
ABN : 86 010 671 048
Terex Australia Pty. Ltd.
E-Mail : info@terex.com.au

Advertisement

loading
Need help?

Need help?

Do you have a question about the AT 40 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Terex AT 40

  • Page 1 MODEL AT 40 RATED CAPACITY MANUAL Book Part Number: T156318G HYDRAULIC MOBILE ARTICULATED PICK & CARRY CRANE 40 tonne MAXIMUM RATED CAPACITY Do not operate this crane unless you have read and understood the information in this book. ABN : 86 010 671 048 Terex Australia Pty.
  • Page 2: Table Of Contents

    CONTENTS WARNINGS ..................... 3 OPERATIONAL NOTICE ..................3 ATTACHMENT NOTICE ..................3 DEFINITIONS ..................4 SPECIAL PRECAUTIONS FOR ARTICULATED CRANES ....5 GENERAL ....................5 SET-UP ....................5 OPERATION ....................6 LIFT AND CARRY OPERATION ................7 OPERATION ON SLOPE ................ 8 SPECIFICATIONS ...................
  • Page 3: Warnings

    MANUAL AND CRANE RATED CAPACITY MANUAL. COPIES OF OPERATOR’S MANUALS AND CRANE RATED CAPACITY MANUAL MAY BE OBTAINED FROM: ATTACHMENT NOTICE WRITTEN AUTHORISATION IS REQUIRED FROM TEREX AUSTRALIA PTY LTD PRIOR TO THE USE OF ANY ATTACHMENT NOT SPECIFIED IN THE MANUAL.
  • Page 4: Definitions

    DEFINITIONS Articulation – The crane pivots in the middle to allow steering and slewing of the load. See Working Area diagram Deration – A decrease in the Rated Capacity due to external influences, expressed as a percentage. Freely Suspended Load – Load hanging free with no direct external force applied except by the winch rope.
  • Page 5: Special Precautions For Articulated Cranes

    If these manuals are missing, obtain replacements through Terex Australia Pty Ltd or their agents. SET-UP Reduced crane Rated Capacities for the particular job shall be established, by the operator, with due allowance for adverse operating conditions.
  • Page 6: Operation

    1 & 2 are being telescoped. Boom extension 3 is powered on the AT 40 however there is no compensation of the winch rope as the third extension is being extended.
  • Page 7: Lift And Carry Operation

    Pick & carry operation is permitted through the full Articulation range, however, Rated Capacity may be reduced by articulation, pitch or roll angle changes. The LMI in the AT 40 dynamically calculates rated capacity taking crane tilt and articulation into account.
  • Page 8: Operation On Slope

    (straight ahead) and with the boom (fully retracted) in its lowest position practical. The AT 40 is fitted with an LMI that calculates the rated capacity for the crane when the crane tilts in any direction.
  • Page 9: Specifications

    PL15A8023 107 kg T169059 (Assembly) Runner 110 kg T172738 (Lower arm) NOTE : These masses apply only to Terex Australia Pty Ltd supplied equipment. HOOK BLOCK (FALL BLOCK) Number of Maximum Hook Hook Block: Falls of Rope Block RC (kg)
  • Page 10: Tyre Specifications

    (120 psi) 830 kPa 830 kPa Rear 315/80 R22.5 (120 psi) (120 psi) AT 40 Axle Loads: Axle loads for un-laden crane, boom fully retracted and boom angle at 0 Axle 1: 11,000 kg Travel Mode: Axle 2: 9,250 kg...
  • Page 11: Crane Configuration

    CRANE CONFIGURATION RANGE DIAGRAM AT 40 WORKING AREA DIAGRAM AT 40...
  • Page 12: Crane Configuration (Runner)

    CRANE CONFIGURATION (RUNNER) RANGE DIAGRAM RUNNER AT 40 WORKING AREA DIAGRAM AT 40...
  • Page 13: Crane Configuration (Runner)

    CRANE CONFIGURATION (RUNNER) Runner 1 Runner 2 Runner 3...
  • Page 14: Rated Capacity Charts

    This code is displayed on the crane’s LMI after selection by the operator. The AT 40 is supplied with both static and pick and carry charts in all duties, under the same duty number. When the crane is stationary, the LMI will display a rated capacity based on the static chart for the particular duty.
  • Page 15 CRANE RATED CAPACITY CALCULATION FOR STEERING ARTICULATION AND/OR SLOPE The LMI uses a complex algorithm to calculate the crane rated capacity due to the configuration of the crane and slope position. The printed rated capacity manual is only a “snapshot” of what the crane is rated to in the prescribed configuration based on flat level ground.
  • Page 16: 101: Fb - Fall Block - Static

    RATED CAPACITY CHART STATIC (0 km/hr) - FALL BLOCK Duty: BOOM LENGTH TO HEAD SHEAVES - 3rd BOOM RETRACTED 3rd BOOM EXTENDING 7.23 7.50 8.00 8.50 9.00 9.50 10.00 10.50 11.00 12.00 13.00 14.00 15.00 16.00 17.00 18.00 19.83 35000 35000 35000 35000 35000 35000 35000 35000 33000 28700 25500 23000 35000 35000 35000 35000 35000 34900 34300 33700 33100 34400 30800 26100 22900 20500 18500 17000 15600 14500...
  • Page 17: 101: Fb - Fall Block - Pick And Carry

    RATED CAPACITY CHART PICK AND CARRY (0 - 1.44 km/hr) - FALL BLOCK Duty: BOOM LENGTH TO HEAD SHEAVES - 3rd BOOM RETRACTED 3rd BOOM EXTENDING 7.23 7.50 8.00 8.50 9.00 9.50 10.00 10.50 11.00 12.00 13.00 14.00 15.00 16.00 17.00 18.00 19.83...
  • Page 18: 102: Rh20 - Rhino Hook 20T - Static

    RATED CAPACITY CHART STATIC (0 km/hr) - RHINO HOOK Duty: RH20 BOOM LENGTH TO RHINO HOOK CENTRE - 3rd BOOM RETRACTED 3rd BOOM EXTENDING 7.59 8.00 8.50 9.00 9.50 10.00 10.50 11.00 11.50 12.50 13.50 14.50 15.50 16.50 17.50 18.50 20.20 20000 20000 20000 20000 20000 20000 20000 20000 20000 20000...
  • Page 19: 102: Rh20 - Rhino Hook 20T - Pick And Carry

    RATED CAPACITY CHART - RHINO HOOK Duty: RH20 BOOM LENGTH TO RHINO HOOK CENTRE - 3rd BOOM RETRACTED 3rd BOOM EXTENDING 7.59 8.00 8.50 9.00 9.50 10.00 10.50 11.00 11.50 12.50 13.50 14.50 15.50 16.50 17.50 18.50 20.20 20000 20000 20000 20000 20000 20000 20000 20000 20000 20000 20000 20000 20000 20000 20000 20000 20000 20000 20000 20000 20000 20000 18400 16600 15200 14000 13000 12100...
  • Page 20: 110: Flug - Fixed Lug - Static

    RATED CAPACITY CHART - FIXED LUG (BUTT) Duty: FLUG 40000 40000 40000 39900 39700 39100 39000 38400 37600 36900 36300 35600 35100 34300 33500 31000 UNITS: - ANGLES IN DEGREES - LENGTHS IN METRES - LOAD IN KILOGRAMS KEY: 40000 PITCH: -2.3 ROLL: -1.0 RC @ ARTIC: 0...
  • Page 21: 110: Flug - Fixed Lug - Pick And Carry

    RATED CAPACITY CHART PICK AND CARRY (0 - 1.44 km/hr) - FIXED LUG (BUTT) Duty: FLUG 40000 40000 40000 39900 39700 39100 39000 38400 37600 36900 36300 35600 34800 32100 30000 27500 UNITS: - ANGLES IN DEGREES - LENGTHS IN METRES - LOAD IN KILOGRAMS KEY: 40000...
  • Page 22: 111: Lug1 - Lug 1 - Static

    RATED CAPACITY CHART STATIC (0 km/hr) - LUG 1 Duty: LUG1 BOOM LENGTH TO LUG 1 6.58 7.00 7.50 8.00 8.50 9.00 9.50 10.00 10.83 30000 30000 30000 30000 30000 30000 30000 30000 30000 30000 30000 25800 22500 19800 30000 30000 30000 30000 30000 30000 30000 30000 30000 30000 30000 26400 22600 19800 17500 15700 30000 30000 30000 30000 30000 30000 30000 30000 30000 30000 30000 30000 30000 30000 27300 23500 20600 16900...
  • Page 23: 111: Lug1 - Lug 1 - Pick And Carry

    RATED CAPACITY CHART PICK AND CARRY (0 - 1.44 km/hr) - LUG 1 Duty: LUG1 BOOM LENGTH TO LUG 1 6.58 7.00 7.50 8.00 8.50 9.00 9.50 10.00 10.83 30000 30000 30000 30000 30000 30000 30000 30000 30000 30000 26000 22300 19500 17200 30000 30000 30000 30000 30000 30000 30000 30000 30000 30000 27500 23100 19800 17300 15400 13700 30000 30000 30000 30000 30000 30000 30000 30000 29000...
  • Page 24: 127: Rr1H - Runner 1 (10 O Offset) Hook - Static

    RATED CAPACITY CHART STATIC (0 km/hr) - RUNNER 1 (10° OFFSET) RR1H Hook Duty: RR1S Sheave Duty: BOOM LENGTH - 3rd BOOM RETRACTED 3rd BOOM EXTENDING 8.17 8.50 9.00 9.50 10.00 10.50 11.00 11.50 12.00 13.00 14.00 15.00 16.00 17.00 18.00 19.00 20.78...
  • Page 25: 127: Rr1H - Runner 1 (10 O Offset) Hook - Pick And Carry

    RATED CAPACITY CHART PICK AND CARRY (0 - 1.44 km/hr) - RUNNER 1 (10° OFFSET) RR1H Hook Duty: RR1S Sheave Duty: BOOM LENGTH - 3rd BOOM RETRACTED 3rd BOOM EXTENDING 8.17 8.50 9.00 9.50 10.00 10.50 11.00 11.50 12.00 13.00 14.00 15.00 16.00...
  • Page 26: 128: Rr2H - Runner 2 (25 O Offset) Hook - Static

    RATED CAPACITY CHART STATIC (0 km/hr) - RUNNER 2 (25° OFFSET) RR2H Hook Duty: RR2S Sheave Duty: BOOM LENGTH - 3rd BOOM RETRACTED 3rd BOOM EXTENDING 8.11 8.50 9.00 9.50 10.00 10.50 11.00 11.50 12.00 13.00 14.00 15.00 16.00 17.00 18.00 19.00 20.71...
  • Page 27: 128: Rr2H - Runner 2 (25 O Offset) Hook - Pick And Carry

    RATED CAPACITY CHART PICK AND CARRY (0 - 1.44 km/hr) - RUNNER 2 (25° OFFSET) RR2H Hook Duty: RR2S Sheave Duty: BOOM LENGTH - 3rd BOOM RETRACTED 3rd BOOM EXTENDING 8.11 8.50 9.00 9.50 10.00 10.50 11.00 11.50 12.00 13.00 14.00 15.00 16.00...
  • Page 28: 129: Rr3H - Runner 3 (30 O Offset) Hook - Static

    RATED CAPACITY CHART STATIC (0 km/hr) - RUNNER 3 (30° OFFSET) RR3H Hook Duty: RR3S Sheave Duty: BOOM LENGTH - 3rd BOOM RETRACTED 3rd BOOM EXTENDING 8.13 8.50 9.00 9.50 10.00 10.50 11.00 11.50 12.00 13.00 14.00 15.00 16.00 17.00 18.00 19.00 20.73...
  • Page 29: 129: Rr3H - Runner 3 (30 O Offset) Hook - Pick And Carry

    RATED CAPACITY CHART PICK AND CARRY (0 - 1.44 km/hr) - RUNNER 3 (30° OFFSET) RR3H Hook Duty: RR3S Sheave Duty: BOOM LENGTH - 3rd BOOM RETRACTED 3rd BOOM EXTENDING 8.13 8.50 9.00 9.50 10.00 10.50 11.00 11.50 12.00 13.00 14.00 15.00 16.00...
  • Page 30: Aftermarket Contacts List

    AFTERMARKET CONTACTS LIST AFTER HOURS SUPPORT: from anywhere within Australia National Technical Support Contact (24/7) 1800 837 395 (1800TEREXL) BUSINESS HOURS SUPPORT: Contact the relevant state office on the numbers shown below for all enquiries regarding: • Spare parts • Product support •...
