FCI 7200 Series Installation And Startup Manual

Fire alarm control
Hide thumbs Also See for 7200 Series:

Advertisement

Table of Contents

Copyright © 1994
All Rights Reserved
Published in U.S.A.
301 2nd Ave. Waltham, MA 02154-1133 USA TEL: (617) 487-0088 FAX: (617) 370-4132

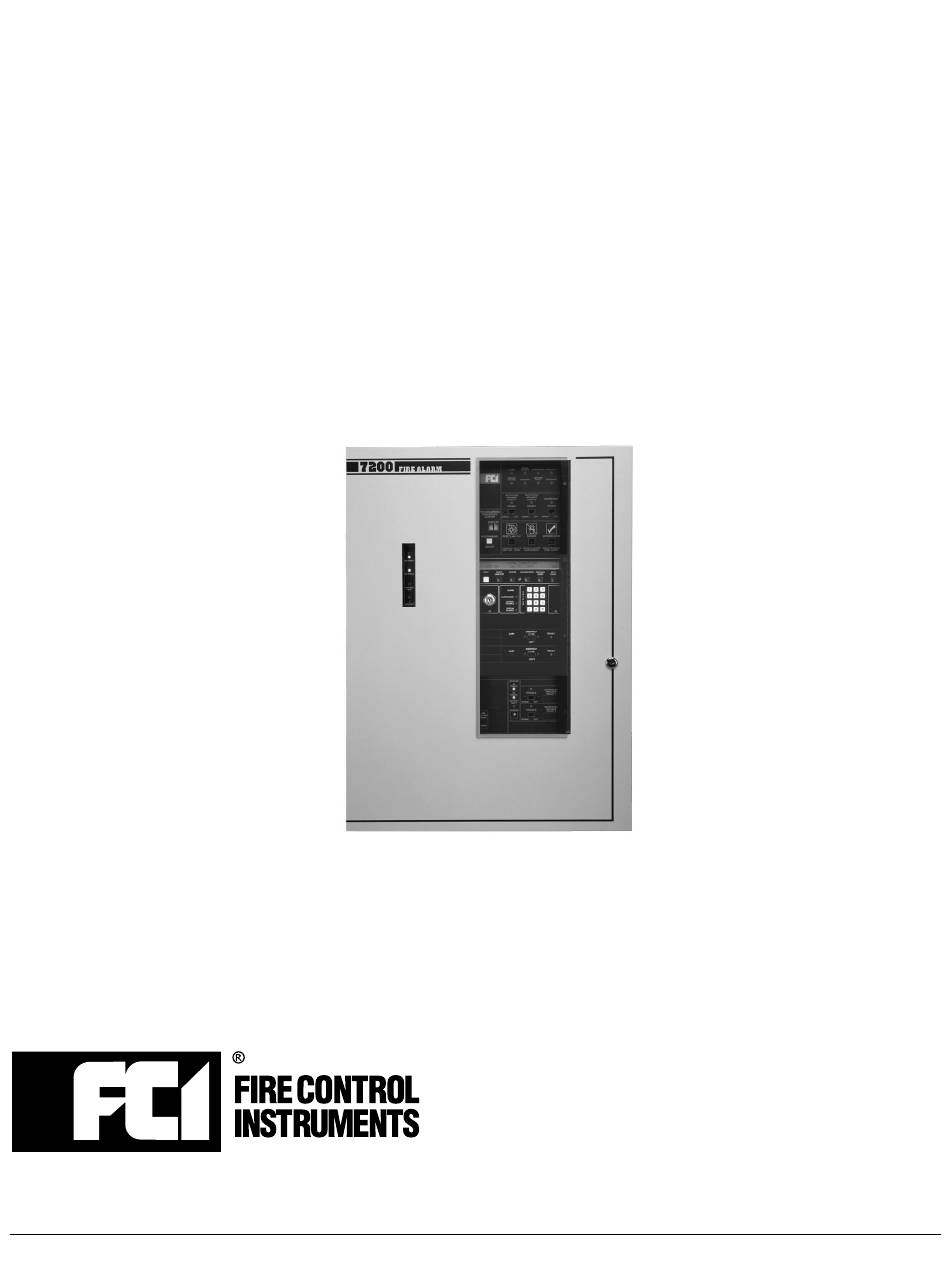

FCI - 7200 SERIES
FIRE ALARM CONTROL
DIU AND MULTIPLE ALU
INITIAL INSTALLATION
AND START-UP GUIDE
Part Number: 9000-0258
Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7200 Series and is the answer not in the manual?

Questions and answers

Related Manuals for FCI 7200 Series

Summary of Contents for FCI 7200 Series

  • Page 1 FCI - 7200 SERIES FIRE ALARM CONTROL DIU AND MULTIPLE ALU INITIAL INSTALLATION AND START-UP GUIDE Copyright © 1994 All Rights Reserved Part Number: 9000-0258 Published in U.S.A. Version 1.0 301 2nd Ave. Waltham, MA 02154-1133 USA TEL: (617) 487-0088 FAX: (617) 370-4132...

  • Page 3: System Start-Up

    1.0 SYSTEM START UP The 7200 Series Control Unit has the capability of controlling a system containing as many as 15 Analog Loop Units (ALU). A system of this size has the potential to accept inputs from and issue notification/control commands to 5,910 devices.
  • Page 4 See Figure 2 for typical wiring information. • Make continuity and resistance checks as appropriate. 301B BASE (FCI P/N 110-31150) FOR USE WITH FCI MODELS 301I, 301P, & 301PT USE RA-400Z ONLY (FCI P/N 138-01005) INITIATING CIRCUIT WIRING DO NOT BREAK TAB 3.9 K EOL...
  • Page 5 NOTE: Do not assign the same address to units of the same type. NOTE: A maximum of 30 units/modules may be installed in a 7200 Series system. A maximum of 15 active units/modules of one type may be installed. For quantities of unsupervised Keyboard Display Units, consult the 7200 Series Installation/Operating Manual, P/N 9000-0176.

  • Page 6: Termination Jumpers

    NOTE: Each group of five (5) ALUs require a PSU, SCU or DIU. Each DSU requires a transformer (XFMR). Interconnect to a PSU is critical for proper operation. Systems containing Class A, Style D, EZU/EZD modules should be mounted in D cabinets due to space. •...
  • Page 7 7200 Series. • Apply AC power to the 7200 Series. At this time, the system initialization sequence will occur for approximately 10 seconds. After the initializing period, the “AC POWER” and “DC POWER” LEDs will light. This will be followed by a system trouble and “BATTERY FAULT” indication, since the batteries are not yet connected.
  • Page 8 Rectify any faults indicated and confirm unit/modules to the list generated in Step 4. If a unit is missing, confirm the address setting and refer to the Troubleshooting Guide, P/N 9000-0185. • If a computer emulation program is in use, establish two-way communication with the 7200 Series by typing: P4 44. [Enter] (Insert a space between the first and second “4".) The system will respond with the answerback:...
  • Page 9 075 A per lamp plus .007 A is required. An FCI model CLP control panel may be used as a remote power source. Be sure to connect the negative ( - ) terminal of the CLP to PSU Terminal TB1-3 or TB1-4, and cut Jumper RJ2 on the CLP control panel so the ground fault detection will be performed by the 7200 Series system.
  • Page 10 Make AC wiring connections to the AC Unit (ACU) and Dual Signal Units (DSUs) in the first BDU. • Reapply AC power to the main 7200 Series and the first BDU. At this time, the system initialization sequence will occur at the main 7200 Series and the first remote BDU for approximately 10 seconds.
  • Page 11 7200 7200 7200 FIRE ALARM FIRE ALARM FIRE ALARM FIRE ALARM MAIN 7200 SERIES BDU NO. 1 BDU NO. 2 BDU NO. 3 BDU NO. 4 CONTROL UNIT WITH PBA Figure 6 Primary bus segment wiring ("Star Bus") Step 9 •...
  • Page 12 7200 7200 7200 FIRE ALARM FIRE ALARM FIRE ALARM FIRE ALARM MAX. 15 BDUs MAIN 7200 SERIES BDU WITH PBA BDU WITH PBA CONTROL UNIT WITH PBA 12,000 FT. (MAX) Figure 8 Secondary bus segment Step 12 • Repeat Step 7 for all RAU/RAU-FVs and remote KDUs connected to the Secondary Bus Segment No.
  • Page 13 Step 15 • Repeat Step 14 for all ALU signaling line circuits one at a time in the 7200 Series and all BDUs. • If the system is in normal condition with the two-digit SCU display showing two blinking dots, and, if installed, the local KDU displaying the message ‘Normal Condition’, or if the only trouble displaying...
  • Page 14 • The 7200 Series provides a Dual-mode Walk Test program which may be used to test the alarm/ supervision status of each initiating device connected to the system. By following the proper proce- dures, The user may select various zones to be walk tested, with or without sounding the notification appliances.

  • Page 15: Display Code

    Dual Mode Walk Test Procedure The Dual-mode Zone Walk Test program of the 7200 Series control has two (2) options: • Audible Mode - The user in the field can test with sounding of the notification appliances. • Silent Mode - The user in the field can test without sounding the notification appliances.

  • Page 16: Alarm Test

    G) Select the zones/signaling line (loop) circuits to be Walk Tested by moving the appropriate zone/signaling line circuit disconnect switches to the “DISCONNECT” position. H) If the Audible Walk Test mode is selected, placing initiating devices in each zone into alarm condition will cause four (4) pulses on the notification appliances.

  • Page 17: System Restoration

    Hold the “RESET” button down for five (5) seconds until the display shows “rS”, then release the “RESET” button. The panel returns to normal, and the display returns to blinking dots. Step 23 - Fire Drill Procedure The Fire Drill Program of the 7200 Series control is available in two modes: MODE DISPLAY CODE...
  • Page 18 269 GROVE ST. NEWTON, MA 02166-2295 USA TEL: (617) 965-2010 TELEX: 94-8212 FAX: (617) 965-0659...
