FCI 7200 Series Operating Manual Addendum

Idu addressable interface unit
Hide thumbs Also See for 7200 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
Copyright 1998
All Rights Reserved
Published in U.S.A.
301 2nd Ave. Waltham, MA 02451-1133 USA TEL: (781) 487-0088 FAX: (781) 370-4132

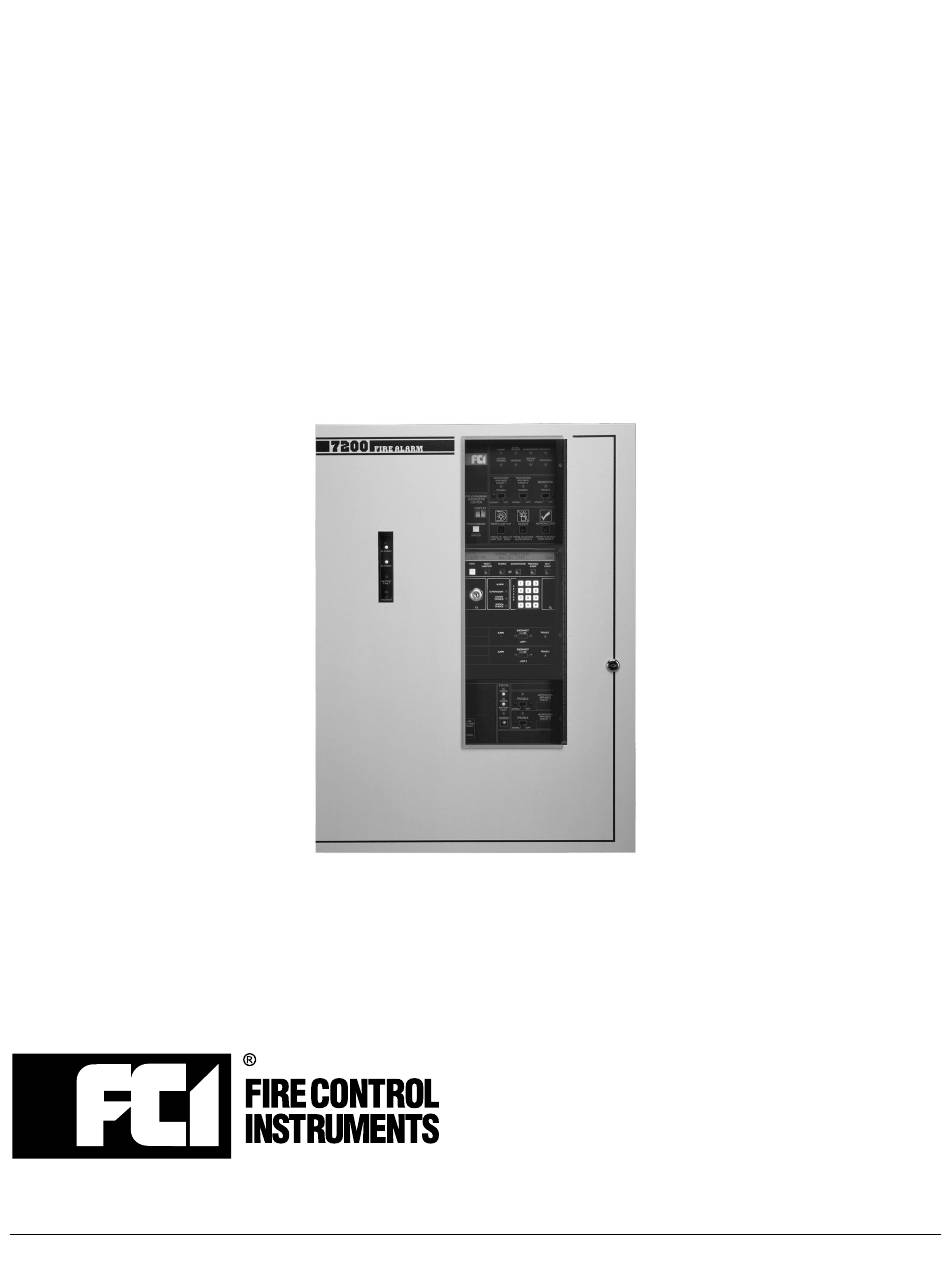

FCI - 7200 SERIES
IDU
ADDRESSABLE INTERFACE UNIT
INSTALLATION/OPERATING
MANUAL ADDENDUM
Part Number: 9000-0437
Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7200 Series and is the answer not in the manual?

Questions and answers

Related Manuals for FCI 7200 Series

Summary of Contents for FCI 7200 Series

  • Page 1 FCI - 7200 SERIES ADDRESSABLE INTERFACE UNIT INSTALLATION/OPERATING MANUAL ADDENDUM Copyright 1998 Part Number: 9000-0437 All Rights Reserved Version 1.0 Published in U.S.A. 301 2nd Ave. Waltham, MA 02451-1133 USA TEL: (781) 487-0088 FAX: (781) 370-4132...

  • Page 3: Environmental Considerations

    This equipment is Listed by various listing agencies for use in fire alarm systems. Use only components which are compatible with the FCI system. The installation MUST be in accordance with the instructions in this manual. THEREFORE: •...

  • Page 4: Installation Considerations

    We do not recommend the use of overhead or outside aerial wiring due to the increased susceptibility to nearby lightning strikes. Consult with the FCI Technical Support Department if any problems are anticipated or encountered.

  • Page 5: Fire Alarm System Limitations

    FCI reserves the right to change hardware and/or software design, which may subsequently affect the contents of this manual. FCI assumes no responsibility for any errors that may appear in this manual. Neither this manual nor any part of it may be reproduced without the advance written permission of Fire Control Instruments, Inc.
  • Page 6 IDU Addressable Interface Unit NOTE: For general installation information, consult the 7200 Series Installation/Operating Manual, P/N 9000-0176. 9000-0437 4 of 12...

  • Page 7: Address Switch

    The Sub Loop Module (SLM), provides an address for a group of devices; it can support normally open (N.O.) contact devices and up to six, two-wire UL Listed, FCI approved compatible smoke detectors mounted on conventional bases.

  • Page 8: Installing The Idu

    CAUTION: This equipment is sensitive to static electricity. It may be damaged if not properly handled. Use an ESD (electrostatic discharge) field service kit (FCI Part No. 4100-0001), consisting of a grounding wrist strap and anti-static mat, when handling this equipment. Transport this unit in a static-shielding bag.
  • Page 9 G. Refer to Table 1 for information regarding position of jumpers and external wiring connections. H. A maximum of five (5) IDUs may be installed in a 7200 Series system, with a maximum of thirty (30) units of all types combined.
  • Page 10 3.0 WIRING THE IDU See Table 1 for information regarding external wiring, jumpers, LEDs, etc. Table 1 IDU Wiring, Jumpers, LEDs, etc. Designation Description Comments FIELD WIRING CONNECTIONS TB1-1 Class B, Style 4 (+) Class B, Style 4, or Class A, Style 6 TB1-2 Class A, Style 6 return (+) Signaling Line Circuit.
  • Page 11 EOL-E RIM-U 301-ID RIM-U EOL-E Figure 3 Style 4 SLC Wiring Figure 4 Style 6 SLC Wiring B. Class B, Style 4 Wiring Instructions • Remove the electronic end of line device from Terminals 1 and 4, 5, or 8, then install it in parallel within or after the last device on the circuit.

  • Page 12: Module Connections

    3.3 Module Connections See Tables 2 and 3 for input/output wiring connections for the approved modules. Table 2 Module Connections Terminal /Wire Function CPD-ID Smoke Detector Base 7 (+) Connects to signaling line circuit, positive (IN/OUT) 4 ( - ) Connects to signaling line circuit, negative (IN/OUT) 301ID Smoke Detector Base 3 (+)

  • Page 13: Module Addresses

    Table 3 Module Connections Terminal /Wire Function RZM Remote Zone Module TB1-1 (+) 24 VDC Input power from SPSU-V TB1-5 (resettable) TB1-2 ( - ) 24 VDC Input power from SPSU-V TB1-3, 4 TB1-3 Not used TB2-1 (+) Connects to signaling line circuit positive (IN/OUT) TB2-2 ( - ) Connects to signaling line circuit negative (IN/OUT) RSM Remote Signaling Module...
  • Page 14 Table 5 DIP Switch Settings Address Switch Numbers Address Switch Numbers Number Number “X” = Place DIP switches in the “ON” position 9000-0437 12 of 12...
