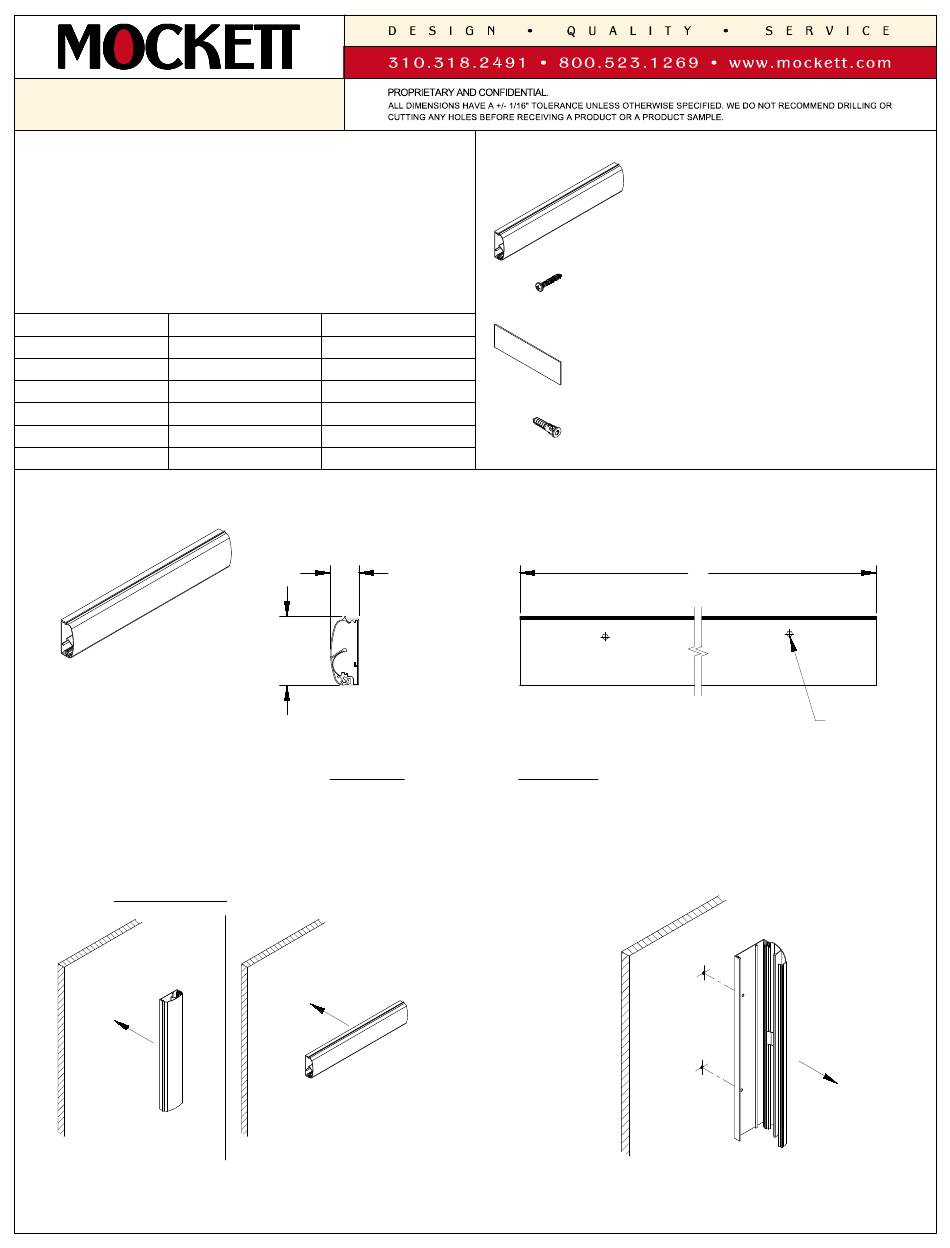

WM49 Series
SPECIFICATIONS
·
Weight capacity is 0.3 lbs. per foot.
·
Recommended table thickness is 1" MIN.
WM49-1
WM49-2
WM49-3
WM49-4
WM49-5
WM49-6
1a
Wall Installation
Determine the vertical (or horizontal) position and location of
the part on your work surface. Allow enough clearance for
part function. Level and align the part on the work surface.
2024.10.16
(A)
(B)
12"
2
24"
2
36"
3
48"
3
60"
4
72"
4
15/16"
2-5/16"
SIDE VIEW
TABLE OF CONTENTS
. . . . . . . . 2-4 X 1" No. 8 Pan-head
. . . . . . . . 1X 1-1/2" X 5" X 1/16"
. . . . . . . . . . 2-4 X Drywall Anchor
REAR VIEW
2a
Open the WM49 and mark the mounting holes on the work
surface. (Note: Skip Step 3a & Step 4a for non-drywall
installation.)
1
. . . . . . . . . . . . . . . 1X WM49
Self-tapping Screw
(Quantity may vary depending on length.)
Connector Plate
(Quantity may vary depending on length.)
(A)
(B)
3/16" DIA.
HOLE
Advertisement
Related Manuals for Mockett WM49 Series
Summary of Contents for Mockett WM49 Series
- Page 1 WM49 Series SPECIFICATIONS TABLE OF CONTENTS · Weight capacity is 0.3 lbs. per foot. · Recommended table thickness is 1" MIN....1X WM49 ..2-4 X 1" No. 8 Pan-head Self-tapping Screw (Quantity may vary depending on length.)
- Page 2 WM49 Series Drywall Anchors Drill (Not Included) Drill the 3/16" diameter pilot holes on the marked Install drywall anchors into the pilot holes. mounting position. 1" No. 8 Pan-head Self-tapping Wood Screws Align the WM49 to the drywall anchors. Secure with the 1"...
- Page 3 WM49 Series 1" No. 8 Pan-head Self-tapping Wood Screws Secure with the 1" No. 8 pan-head self-tapping screws. (Note: Use appropriate mounting hardware type and length depending on the material and thickness of the work Open the WM49 cover and mark the mounting holes under surface.)
