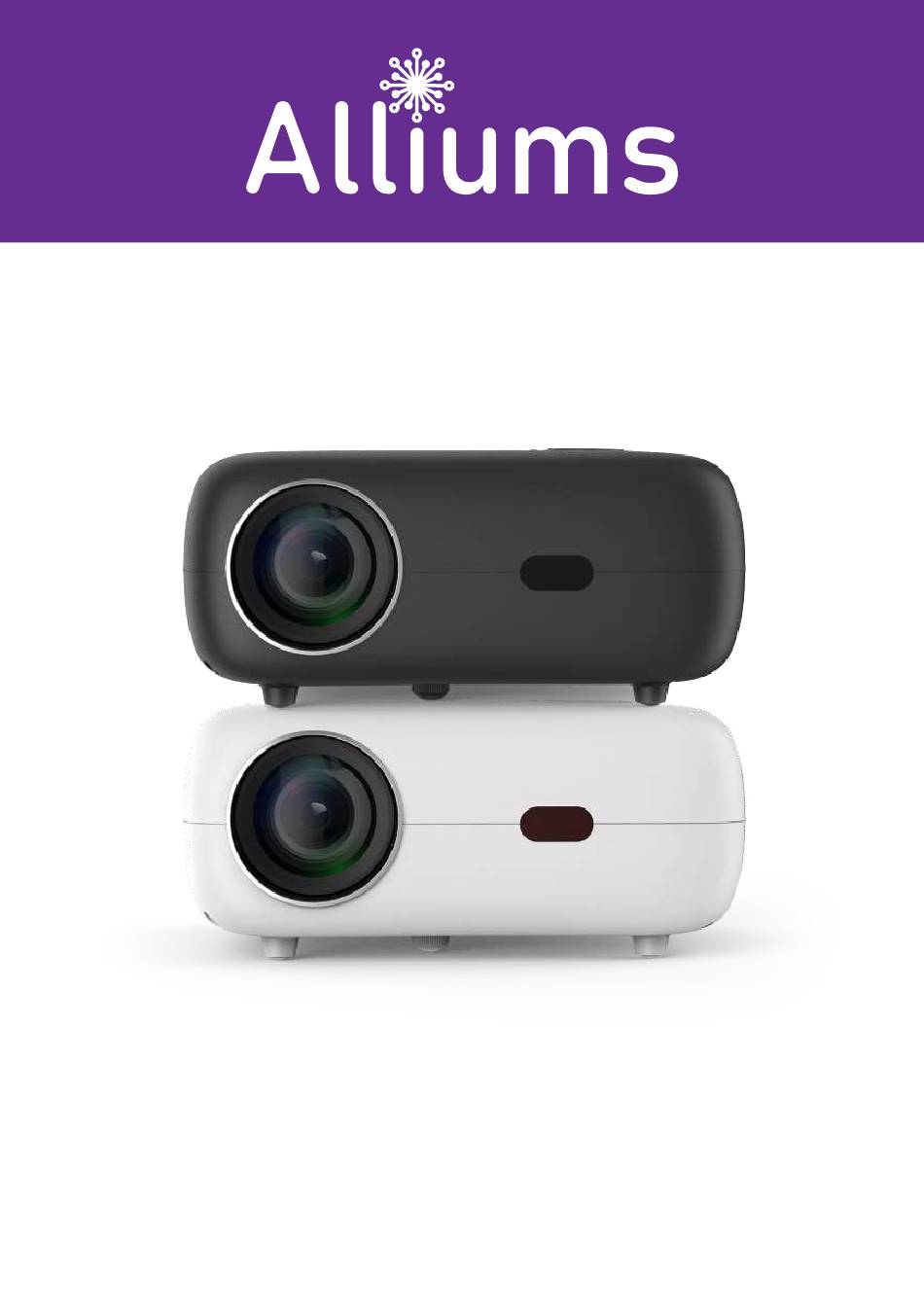

- Page 1 USER MANUAL PORTABLE 4K PROJECTOR WITH AUTO FOCUS MODEL: AP-030 / AP-030B...
- Page 2 Copyright © 2023, Alliums, Australia. All Rights Reserved.
-
Page 3: Table Of Contents
CONT EN TS TIPS PROJECTOR SPECIFICATIONS PRODUCT STRUCTURE REMOTE CONTROL INSTALLATION STARTING PROJECTOR PROJECTION IMAGE SETTINGS SETTING UP THE PROJECTOR SIGNAL LINES CONNECTION MAIN MENU FUNCTION DEFECTIVE PRODUCTS & RETURNS PLEASE READ THROUGH THIS USER’S MANUAL FOR PROPER USE OF THIS PRODUCT. -
Page 4: Tips
TIPS Do not place the projector in a room that is too warm or cold because the high temperature or low temperature will shorten the device's lifespan. The working environment would be 5°C-35°C better. If there are black spots on the projection screen, please don't worry. Please get in touch with us via email, and we can send you a video about removing the dust. -
Page 5: Projector Specifications
PROJECTOR SPECIFICATIONS DISPLAY TECHNOLOGY LIGHT SOURCE NATIVE RESOLUTION 1920XL080P ZOOM FUNCTION 50%-100% FRONT/REAR ON DESK. FRONT/ REAR INSTALLATION TYPE ON CEILING ASPECT RATIO 16: 9/4: 3/AUTO PROJECTION DISTANCE 1.5-6M POWER VOLTAGE AC100-240V 2.7KG PRODUCT WEIGHT 228* 190*90MM PRODUCT SIZE AUTO + ELECTRIC KEYSTONE CORRECTION AUTO + ELECTRIC FOCUS... -
Page 6: Product Structure
PRODUCT STRUCTURE Arrow Keys HDMI Ports Confirm HDMI Ports Back AV Ports Menu 3.5MM Headphone jack Power Infrared signal receiving window USB Ports Anti-Dust Mesh USB Ports (Regular Cleaning Recommended) -
Page 7: Remote Control
REMOTE CONTROL Power Home Arrow keys Menu Pause the tape Volume+ Volume - Mute Setting Confirmation key Back Focus+ Focus - Source NOTE Install two pieces of AAA batteries (not included) into the remote before using it. Do not combine new batteries with old ones in the remote control, which can cause operation failure due to insufficient power supply. -
Page 8: Installation Method
INSTALLATION METHOD The projector can be hung on the ceiling with a unique hanger frame and placed on the table desk to project the image according to the operating environment and requirements. In addition, the projector can be installed with the following methods: 1. -
Page 9: Projection Distance And Size
INSTALLATION METHOD PROJECTION DISTANCE AND SIZE ASPECT RATIO: 16:9 DISTANCE SCREEN SIZE 1.6M 49" 60" 2.5M 75" 93" 109" 3.5M 125" 4.5M 141" 157" 300" The image size depends on the distance between the projector and the screen. There may be a 3% measure difference among the abovelisted data. The recommended projection distance is 2.5-3m. - Page 10 INSTALLATION METHOD INSTALL ON THE CEILING Keep the projector vertical and towards the middle of the projector screen. And keep the projection image flat on the screen. To adjust the tilt base, unscrew the support rod at the bottom of the projector;...
-
Page 11: Starting Projector
STARTING PROJECTOR Remove the lens cap, connect the projector to the power through the power supply cable, and press the power key on the remote or projector; it starts working. Use the Automatic or Electronic keystone/ focus function of the projector to get a rectangle and clear image;... -
Page 12: Projection Image Settings
PROJECTION IMAGE SETTINGS 1. PROJECTION MODE Select the [ Projection Image Settings ] menu, select the [ Projection Setting Option ], and select the [Install Mode]. Press the arrow key to select and press "OK" to confirm the projection position. 2. - Page 13 PROJECTION IMAGE SETTINGS 2.1 FOUR-POINT KEYSTONE Select the [ Projection Image Settings ] menu -- Select the [ Four Point Keystone ] Option; click the "OK" button to pick the point you want to adjust at first, and then press the button " ▶ "or" ▼" to set the value(Horizontal and Vertical 0-100) needed as shown below.
-
Page 14: Zoom Setting
PROJECTION IMAGE SETTINGS 3. AUTO KEYSTONE CORRECTION AND FOCUS Please place the projector horizontally face to the wall first; select the [Projection Image Settings] menu -- turn on the [ Omnidirectional Automatic Correction ] or [ Auto Focus ] option, then it will automatically focus the picture based on the projection distance from the screen and adjust the image to a rectangle when you change the projection angle. -
Page 15: Setting Up The Projector
SETTING UP THE PROJECTOR 1. SELECT THE INPUT SIGNAL SOURCE Select the desired input signal source (HDMl1/HDMl2/ AV) on the home page or press the "S" button on the remote control to select the corresponding signal source; for USB devices, there is no need to choose the signal source. - Page 16 SETTING UP THE PROJECTOR 2. CONNECTING WITH SMARTPHONES AND IPAD The network environment will affect the fluency of screen mirroring with a wireless connection. A bandwidth of l00Mbit or more is recommended when using screen mirroring. Ensure your mobile device is close to the projector when using a wireless connection.
- Page 17 SETTING UP THE PROJECTOR Swipe up the screen of your iOS mobile device and tap ·screen Mirroring" to search for the projector. Then, select" Projector" from the search results to connect. 2.2 FOR ANDROID SYSTEM(MIRACAST) To activate this function, your Android device must support Multi-Screen/Wireless Display.
- Page 18 SETTING UP THE PROJECTOR Turn on the projector, and select "Miracast" as the Input Source. Turn on the "Multi-Screen/Wireless Display" of your Android device. Select "Projector" from the search results to connect. 3.BLUETOOTH SETTINGS 3.1 CONNECT BLUETOOTH SPEAKERS Turn on your Bluetooth Speaker. Turn on the [ Bluetooth Settings] of your projector and select [ add accessory] Select your Bluetooth speaker to connect.
- Page 19 SETTING UP THE PROJECTOR 3.2. CONNECT PHONES BLUETOOTH Enter the soundbar option in the main interface; the following interface will be displayed. Turn on your phone's Bluetooth and connect the Bluetooth of the projector named. Then the projector can play mobile phone music.
-
Page 20: Signal Lines Connection Main
SIGNAL LINES CONNECTION 1. USB MULTIMEDIA CONNECTING Select the required category "movie," "music," "photo," or "Office Suite" in the main interface, and press the "OK" key on the remote control to enter the corresponding category. According to the programs, choose: "photos, "music," "movie," or "Office Suite." Choose the file you want to play, and press the key "OK"... - Page 21 SIGNAL LINES CONNECTION 5. CONNECTING WITH DVD Use the 3-in-l AV cable in the package Turn on your DVD player and the projector; Connect the colorful female connectors to your DVD player's RCA cable with the 3-in-l AV cable in the package; Connect the black connector to the AV port of the projector, and enter the home page to select [ AV ] as the signal source.
-
Page 22: Menu Function
MENU FUNCTION 1. PROJECTION IMAGE SETTING PROJECTION IMAGE MENU INCLUDED FUNCTION SETTINGS Front-Desktop / Choose the Rear-Desktop / Install Mode projection methods, Front- Ceiling / flip the image Rear-Ceiling Adjust the four points 4-point Keystone to make the projected FourPoint Keystone correction image a rectangle: Value 0-100... -
Page 23: Other Settings
MENU FUNCTION 3. OTHER SETTINGS OTHER SETTINGS MENU INCLUDED FUNCTION English, French, German, Italian, Spanish, Choose a language Language Settings Japanese. 20 several languages Key Tone On/Off Adjust the key sound Off/ /30min/ 60min/ Set the sleep time Timing Switcher 90min/120mi n/150min/ of the projector 180min/210m/240m... - Page 24 MENU FUNCTION 3. OTHER SETTINGS ABOUT MENU INCLUDED FUNCTION Software Version Product Version Product Version System Upgrade Update the system Update Online Restore all settings to Factory Reset Reset their factory settings...
-
Page 25: Faq
The remote control does not communicate with the projector. 1) The power switch at the back of the projector is turned on or off? 2) The remote control's batteries are depleted? 3) Something obstructing the signal between the remote and IR No image on the screen. - Page 26 Auto-off after working for a while 1) The projector ventilation is blocked or the voltage is not stable. 2) Send a video to check for you. Not compatible with your bluetooth speaker? 1) The projector may not compatible with some versions bluetooth speakers of JBL.
-
Page 27: Defective Products & Returns
DEFECTIVE PRODUCTS & RETURNS Proved defective products meeting the specified warranty period should be contacted by customer support via www.alliums.com.au addressing your order number. Make sure not to dispose of your product before contacting us. Once our customer support team has approved your request, please return the unit with its order number. - Page 28 Questions or Concerns? support@alliums.com.au...
