USER MANUAL
PORTABLE 4K PROJECTOR WITH Wi-Fi & BLUETOOTH
MODEL: AP-025 / AP-025B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AP-025 and is the answer not in the manual?

Questions and answers

Related Manuals for Alliums AP-025

Summary of Contents for Alliums AP-025

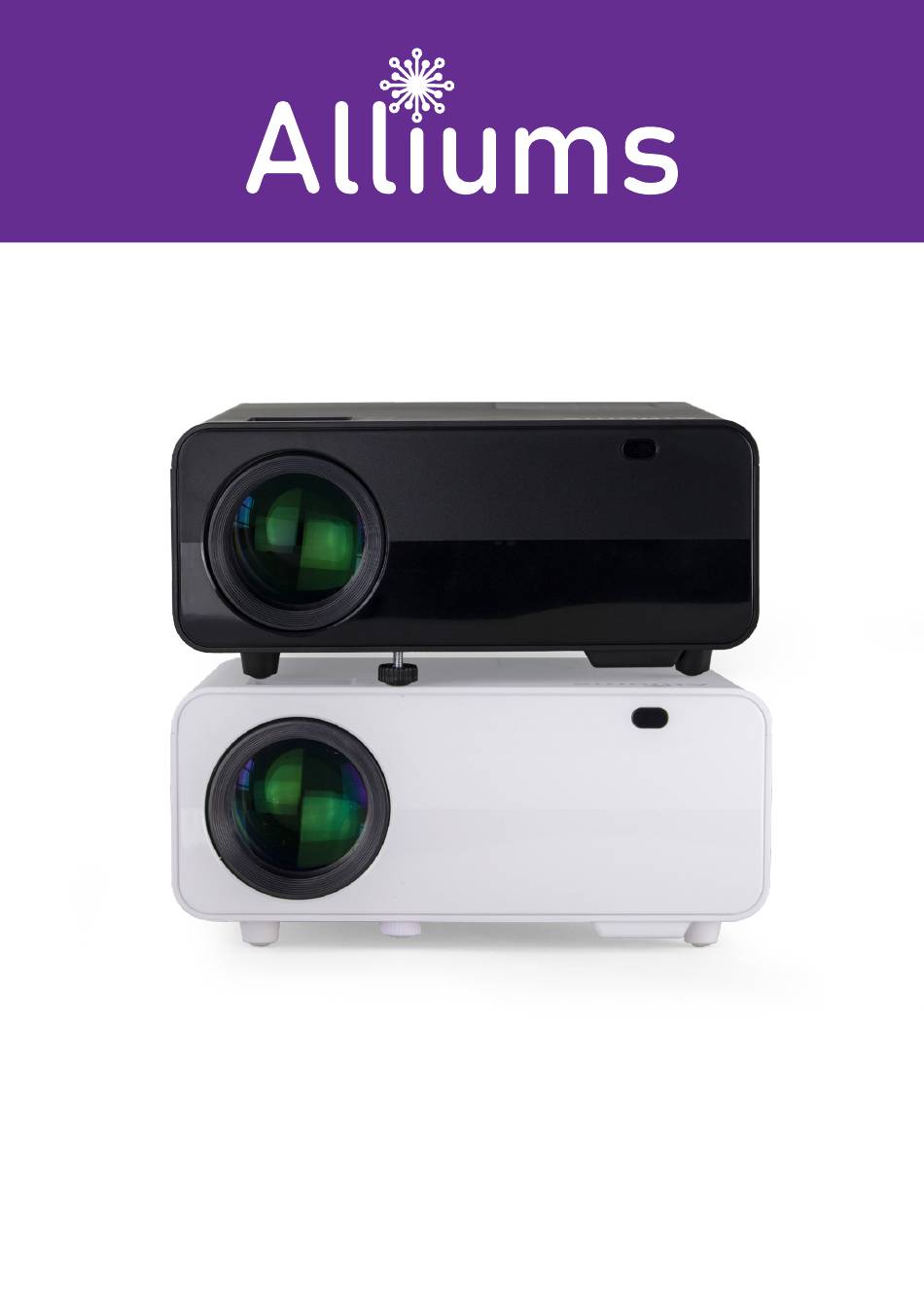

  • Page 1 USER MANUAL PORTABLE 4K PROJECTOR WITH Wi-Fi & BLUETOOTH MODEL: AP-025 / AP-025B...
  • Page 2 Copyright © 2023, Alliums, Australia. All Rights Reserved.

  • Page 3: Table Of Contents

    CONTENTS IMPORTANT SAFETY INSTRUCTIONS PRODUCT OVERVIEW REMOTE CONTROL PROJECTOR INSTALLATION METHOD CONNECTING FOCUS KEYSTONE CORRECTION SELECT SIGNAL SOURCE CONNECT AN IPHONE/IPAD SCREEN MIRRORING CONNECT AN ANDROID PHONE/TABLET CONNECT A WINDOWS DEVICE WIRELESS WIFI CONNECTION-WIFI TRANSFER CONNECT AN IPHONE/IPAD CONNECT AN ANDROID PHONE/TAPLET MORE TIPS ABOUT NETFLIX, PRIME VIDEO, HULU, ETC USB DRIVE CONNECTION CONNECT HDMI DEVICES...

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Do not look directly into the lens while the projector runs, as solid light may ● damage your eye. Do not block the air outlet to prevent the projector from cooling down ● because internal electronics are damaged. Keep the projector and accessories out of the reach of children.

  • Page 5: Product Overview

    PRODUCT OVERVIEW Detachable Dust Screen AV Port Focus Len 3.5mm Port for Audio Output Level-Stand Adjustment IR for Remote Contro IR Receiver Cooling Window USB Port Speaker HDMI Port Power Input (110-240V) Power Menu Arrow Keys Return Input Source Key Ceiling Mount Hole of Projector (can be used by removing...

  • Page 6: Remote Control

    REMOTE CONTROL Power Mute Input Source Key Menu Arrow Keys Return Home All Round Menu Key Volume Up Play Pause Key Volume Down...

  • Page 7: Projector Installation Method

    PROJECTOR INSTALLATION METHOD WARM TIPS When using the ceiling mount method, the projector cannot be higher than ● the upper edge of the screen. Otherwise, it will affect the image effect or keystone correction. Please install the projector on the symmetrical axis of the screen to avoid ●...

  • Page 8: Connecting

    CONNECTING 1. Plug the power cord into a power outlet; the projector enters standby. 2. Press the button” “on the project or on the remote control. FOCUS Let the projector be perpendicular to the wall, with the focusing button to make the picture clear.

  • Page 9: Select Signal Source

    SELECT SIGNAL SOURCE Press the desired source option on the homepage or the remote's input source key (S). Select the preferred signal source.

  • Page 10: Connect An Iphone/Ipad Screen Mirroring

    WIRED SCREEN MIRRORING CONNECTION CONNECT AN IPHONE/IPAD Press the projector or remote control's signal source key "S"and select "Mirror." Plug an original USB charging cable into the USB 1 port of this projector. Please select “Trust this device” when the iPhone asks “Trust” or “Don’t trust,”...

  • Page 11: Connect An Android Phone/Tablet

    CONNECT AN ANDROID PHONE/TABLET Press the projector or remote control's signal source key" S "and select" Mirror." Click “One-step Direct Connection” and follow the picture guide below. Slide the phone interface from the bottom up to enter the control center. Full-screen phones slide down from above, and those with the home button slide up from below.
  • Page 12 No Network Connection One-step direct connection for The device needs to be smartphone with no need to connect to the same connect to WiFi for projectors network as the projector One-Step Direct WI-FI Connection Settings Connection Version: 8.02.71 One-Step Direct Connection Wired Connection Wired connection only available for IOS Open control center and find...

  • Page 13: Wireless Wifi Connection-Wifi Transfer

    WIRELESS WiFi CONNECTION-WiFi TRANSFER CONNECT AN IPHONE/IPAD Press the projector or remote control's signal source key "S" and select "Mirror." Click “WI-FI Connection,” click “Settings,” click “Wi-Fi,” select your home wireless network in the projector display interface, and enter the password. Click “Wi-Fi Connection”.
  • Page 14 No Network Connection Please connect Wi-Fi first Next Cancel One-step direct connection for The device needs to be smartphone with no need to connect to the same connect to WiFi for projectors network as the projector One-Step Direct WI-FI Connection Settings Connection Version: 8.02.71...
  • Page 15 FLQ_856 One-step direct connection for The device needs to be smartphone with no need to connect to the same connect to WiFi for projectors network as the projector One-Step Direct WI-FI Connection Settings Connection Version: 8.02.71 WI-FI Connection CLcast-10E8 Waiting for 192.168.123.217 connection..

  • Page 16: More Tips About Netflix, Prime Video, Hulu, Etc

    CONNECTING MORE TIPS ABOUT NETFLIX, PRIME VIDEO, HULU, ETC It works with YouTube, chrome, safari, and facetime when you connect it to a smartphone directly. And it doesn’t support play-protected video when you connect it to your smartphone directly. (Netflix, Prime Video, Hulu, etc) Due to these videos having an encryption protocol, the projector has no right to recognize when it is connected directly to the phone via the USB interface.

  • Page 17: Usb Drive Connection

    CONNECTING USB DRIVE CONNECTION Unlike other devices, when you connect a USB drive via USB 2 Port, a USB icon will pop up in the upper right corner of the main menu to indicate that the device is successfully connected. You don’t need to click ”S” to select the USB signal source;...
  • Page 18 CONNECTING...
  • Page 19 CONNECTING MUSIC...
  • Page 20 CONNECTING...

  • Page 21: Connect Hdmi Devices

    CONNECTING CONNECT HDMI DEVICES HDMI interface can be connected to the computer or other device with the HDMI output interface. Press “S “ to choose the media signal channel: “HDMl1” or “HDMl2”. NOTE If your laptop has no HDMI port, you need an HDMI adapter. CONNECT AV VIDEO DEVICES Use the 3 in 1 video cable (included in the package) to connect with AV.
  • Page 22 CONNECTING Power on the projector and ensure the projector’s Bluetooth is on and in pairing mode (see the note above). Press the Menu key from the remote>>>select OPTION>>>select BT Setting>>>Select the BT Mode>>>press the navigation >l<to turn on the Bluetooth>>>Select Search BT to press the OK key from the remote when the Scan shows on the screen, press the OK key again>>>When the screen shows “Searching, pl.…”>>>the Bluetooth devices name will be shown on the screen select it and press the OK key to connect it.
  • Page 23 CONNECTING BT Setging BT Mode Search BT Available Devtce List: BT Setging BT Mode Search BT Available Devtce List:...

  • Page 24: Projector Setting

    PROJECTOR SETTING Click “Setting” of the projector menu. PICTURE” /”SOUND”/”TIME”/”OPTION” can be set manually. After you select the properties (PICTURE/SOUND/TIME/OPTION) you want to set, please press the arrow keys on the operation panel to select the setting range of the properties. OPTIONS RELATED TO “PICTURE”ARE SET ON THIS SCREEN Picture Mode: “User,”...
  • Page 25 PROJECTOR SETTING PICTURE Picture Mode Standard Color Temperature Medium Aspect Ratio 16:9 X_ZOOM Y_ZOOM Noise Redution Middle Projection mode Front OPTIONS RELATED TO “OPTION”ARE SET ON THIS SCREEN OSD Language: Set the language in the system with English as default. HDMI Link:”...

  • Page 26: Maintenance

    MAINTENANCE Dust prevention: Excessive dust will affect the heat dissipation of the projector. It is suggested to clean its dust filter every one or a half month according to the actual environment. Ventilation: As the projector integrates sound & photo-electricity, the optical source will produce heat during operation.

  • Page 27: Troubleshooting Guide

    TROUBLESHOOTING GUIDE BLURRY IMAGE · Adjust the focus ring/keystone. · The projector and screen/wall must be ineffective distance. REMOTE UNRESPONSIVE · Make sure the remote points at the IR receiver directly. · Do not cover the IR receiver. · Try a new pair of AAA batteries. UPSIDE DOWN IMAGES ·...

  • Page 28: Defective Products & Returns

    DEFECTIVE PRODUCTS & RETURNS Proved defective products meeting the specified warranty period should be contacted by customer support via www.alliums.com.au addressing your order number. Make sure not to dispose of your product before contacting us. Once our customer support team has approved your request, please return the unit with its order number.
  • Page 29 Copyright © 2023, Alliums, Australia. All Rights Reserved.
  • Page 30 Questions or Concerns? support@alliums.com.au...
