Alliums AP-018 User Manual

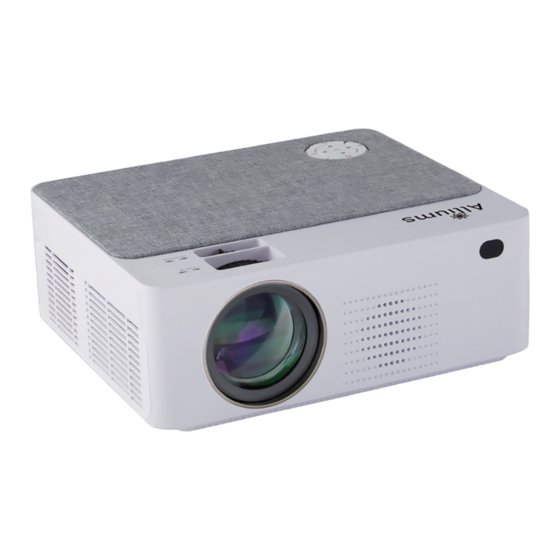

Portable 1080p projector
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AP-018 and is the answer not in the manual?

Questions and answers

Related Manuals for Alliums AP-018

Summary of Contents for Alliums AP-018

  • Page 3: Table Of Contents

    NOTE..........................1 PRODUCT OVERVIEW..................2-3 REMOTE CONTROL....................4 PROJECTOR INSTALLATION METHOD...............5 CONNECTING......................6 FOCUS...........................6 KEYSTONE CORRECTION..................6 SELECT SIGNAL SOURCE..................7 CONNECT AN IPHONE/IPAD SCREEN MIRRORING........8-9 CONNECT AN ANDROID PHONE/TABLET............10 CONNECT A WINDOWS DEVICE................10 WIRELESS WIFI CONNECTION-WIFI TRANSFER..........11 CONNECT AN IPHONE/IPAD................11-12 CONNECT AN ANDROID PHONE/TAPLET...........11-12 MORE TIPS ABOUT NETFLIX, PRIME VIDEO, HULU, ETC......13 USB DRIVE CONNECTION................14-17 CONNECT HDMI DEVICES..................18 CONNECT AV VIDEO DEVICES................18...

  • Page 4: Note

    PLEASE READ THROUGH THIS USER’S MANUAL FOR PROPER USE OF THIS PRODUCT. NOTE Do not look directly into the lens while the projector is running, as strong light may damage your eye. Do not block the air outlet to prevent the projector from cooling down because internal electronics are damaged.

  • Page 5: Product Overview

    PRODUCT OVERVIEW 14 15 9 10 Speaker AV Port Focus Len VGA Port Level-Stand Adjustment SD Port Detachable Dust Screen IR for Remote Contro IR Receiver HDMI 1 Port USB 1 Port Cooling Window Power Switch 3.5mm Port for Audio Output HDMI Port...
  • Page 6 PRODUCT OVERVIEW Power Arrow Keys Input Source Key Return Menu Ceiling Mount Hole of Projector (can be used by removing the footpad, the ceiling mount hole size is M5)

  • Page 7: Remote Control

    REMOTE CONTROL Power Source Mute Multimedia play key Arrow Keys Return Input Source Key Menu Volume Up Keystone Volume Down...

  • Page 8: Projector Installation Method

    PROJECTOR INSTALLATION METHOD WARM TIPS When using the ceiling mount method, the projector cannot be higher than the upper edge of the screen, otherwise, it will affect the image effect or keystone correction. Please install the projector on the symmetrical axis of the screen to avoid trapezoidal distortion of the left and right images.

  • Page 9: Connecting

    CONNECTING Plug the power cord into a power outlet, the projector enters standby. Press the button” “on the project or or on the remote control. FOCUS Let the projector be perpendicular to the wall, with the focusing button to make the picture clear.

  • Page 10: Select Signal Source

    CONNECTING HDMI HDMI SELECT SIGNAL SOURCE Press the desired source option on the homepage or the input source key (S) of the remote Select the desired signal source.

  • Page 11: Connect An Iphone/Ipad Screen Mirroring

    CONNECTING WIRED SCREEN MIRRORING CONNECTION CONNECT AN IPHONE/IPAD Press the signal source key “S “ of the projector or the remote control and select “Mirror”. Plug an original USB charging cable into the USB 1 port of this projector. Please select “Trust this device” when the iPhone asks “Trust” or “Don’t trust”, and enter the Your iPhone password to connect.
  • Page 12 CONNECTING WIRELESS SCREEN MIRRORING CONNEION REQUIRES CELLULAR DATA TRAFFIC TRANSFER CONNECT AN IPHONE/IPAD Press the signal source key “S “ of the projector or the remote control and select “Mirror”. cast-****** , enter the password to connect (Note: The hotspot name is on the projector screen “SSID:RKcast-******”, the password is “PSK: “12345678”).

  • Page 13: Connect An Android Phone/Tablet

    CONNECTING CONNECT AN ANDROID PHONE/TABLET Press the signal source key” S “ of the projector or the remote control and select”Mirror”. device (Note: The name of the projector device is RKcast-******), click to connect. CONNECT A WINDOWS DEVICE Press the signal source key” S “ of the projector or the remote control and select”Mirror”.

  • Page 14: Wireless Wifi Connection-Wifi Transfer

    WIRELESS WiFi CONNECTION-WiFi TRANSFER CONNECT AN IPHONE/IPAD Press the signal source key “S “ of the projector or the remote control and select ”Mirror”. select your home wireless network in theprojector display interface, enter the password. 0pen the phone WiFi settings, connect to your home wireless network. Slide the phone interface from the bottom up to enter the control central (Full- screen phones slide down from above, those with home button slide up from below), then open “Screen Mirroring”.

  • Page 16: More Tips About Netflix, Prime Video, Hulu, Etc

    CONNECTING MORE TIPS ABOUT NETFLIX, PRIME VIDEO, HULU, ETC It works with youtube, chrome, safari, facetime when you connect it to a smart phone directly. And it doesn’t support play-protected video when you connect it to your smart - tion protocol, the projector has no right to recognize when it is connected directly to the phone via the USB interface.

  • Page 17: Usb Drive Connection

    CONNECTING USB DRIVE CONNECTION Different from other devices,when you connect a USB drive via USB 2 Port, a USB icon will pop up in the upper right corner the main menu indicate that the device is successfully connected. you don’t need to click ”S” to select the USB To play a video stored in a USB Drive, select”MOVIE”...
  • Page 18 CONNECTING...
  • Page 19 CONNECTING MUSIC...
  • Page 20 CONNECTING...

  • Page 21: Connect Hdmi Devices

    CONNECTING CONNECT HDMI DEVICES HDMI interface can be connected with the computer or other devices with the HDMI output interface. Press “S “ to hoose the media signal channel: “HDMl1” or “HDMl2”. NOTE If there is no HDMI port on your laptop, you need an HDMI adapter. CONNECT AV VIDEO DEVICES Use the 3 in 1 video cable(lncluded in the package) to connect with AV.

  • Page 22: Using Bluetooth Playback

    USING BLUETOOTH PLAYBACK Pairing to Bluetooth Wireless Speakers or Sound Bar. NOTE Bluetooth is OFF by default when the projector powers ON Bluetooth can be turned ON or OFF from the“Setting”-”OPTIONS Menu. Enable Bluetooth on the receiver(external speakerssoundbaretc.) to which you wish to connectDevices such assmart-phones tablets or computers are not Bluetooth receivers and will not connect to the projector.
  • Page 23 When successfully paired,it will show”Bluetooth Connected” on the menu. Exit the menu, the sound will come out from the Bluetooth speaker The paired device will be listed in “Available Device. It can connect the last Bluetooth speaker automatically when the unit is Vpowered on again.

  • Page 25: Projector Setting

    PROJECTOR SETTING PROJECTION SETTINGS Click “Setting” of the projector menu. PICTURE” /”SOUND”/”TIME”/”OPTION” can be set manually. After you select the properties (PICTURE/SOUND/TIME/OPTION) you want to set, please press arrow keys on the operation panel to select the setting range of the properties.
  • Page 26 PROJECTOR SETTING OPTIONS RELATED TO “PICTURE”ARE SET ON THIS SCREEN Picture Mode: “User”, “Standard”, “Dynamic”, “Mild”, and other image modes are Color Temperature: “Cool”, ”Medium” and “Warm” and other multiple color temperature modes are default for different color preferences. Noise Reduction: Set the noise reduction strength.”Off”, ”Low”, ”Middle”, ”High” are default.
  • Page 27 PROJECTOR SETTING OPTIONS RELATED TO “SOUND”ARE SET ON THIS SCREEN Sound Mode:”Standard”,”Movie”, “Music” , ”Sports”, ”User” modes are default.
  • Page 28 PROJECTOR SETTING OPTIONS RELATED TO “TIME”ARE SET ON THIS SCREEN Clock: Set the system time which is the reference for using other time-related functions. Off Time: Set the automatic off time On Time: Set the automatic on time. Sleep Timer: The system will automatically sleep to save energy. Auto Sleep: The system will automatically sleep to save energy when no change occurs on the screen for a period.
  • Page 29 PROJECTOR SETTING OPTIONS RELATED TO “OPTION”ARE SET ON THIS SCREEN OSD Language: Set the language in the system with English as default. HDMI Link: : ”Enable HDMI Link”,”Auto PowerOn”,”Device Auto Standby” CEC Function. BT Setting: ”BT Mode”, ”BT Name”, ”Search BT”, ”Available Device”. Reset: Restore the factory default setting.

  • Page 30: Maintenance

    MAINTENANCE Dust prevention: Excessive dust will affect the heat dissipation of the projector the actual environment. Ventilation : As the projector integrates the sound & photo-electricity, the optical source will produce heat during its operation. Therefore, it shall be ensured that no objects around will block the air inlet and outlet of the projector to improve its working stability and service life.
  • Page 31 TROUBLESHOOTING GUIDE BLURRY IMAGE Adjust focus ring/keystone. Projector and screen/wall must be in effective distsance. REMOTE UNRESPONSIVE Make sure remote points at IR rece iver directly. Do not cover IR rece iver. Try a new pair of AAA batteries. UPSIDE DOWN IMAGES AUTO ON/OFF Go to Menu>TIME>...
  • Page 32 DEFECTIVE PRODUCTS & RETURNS contacted Customer Support via www.alliums.com.au addressing your order number. Make sure to NOT dispose of your product before contacting us. Once our Customer Support Team has reached to your request approval, please return the unit with its order number.
