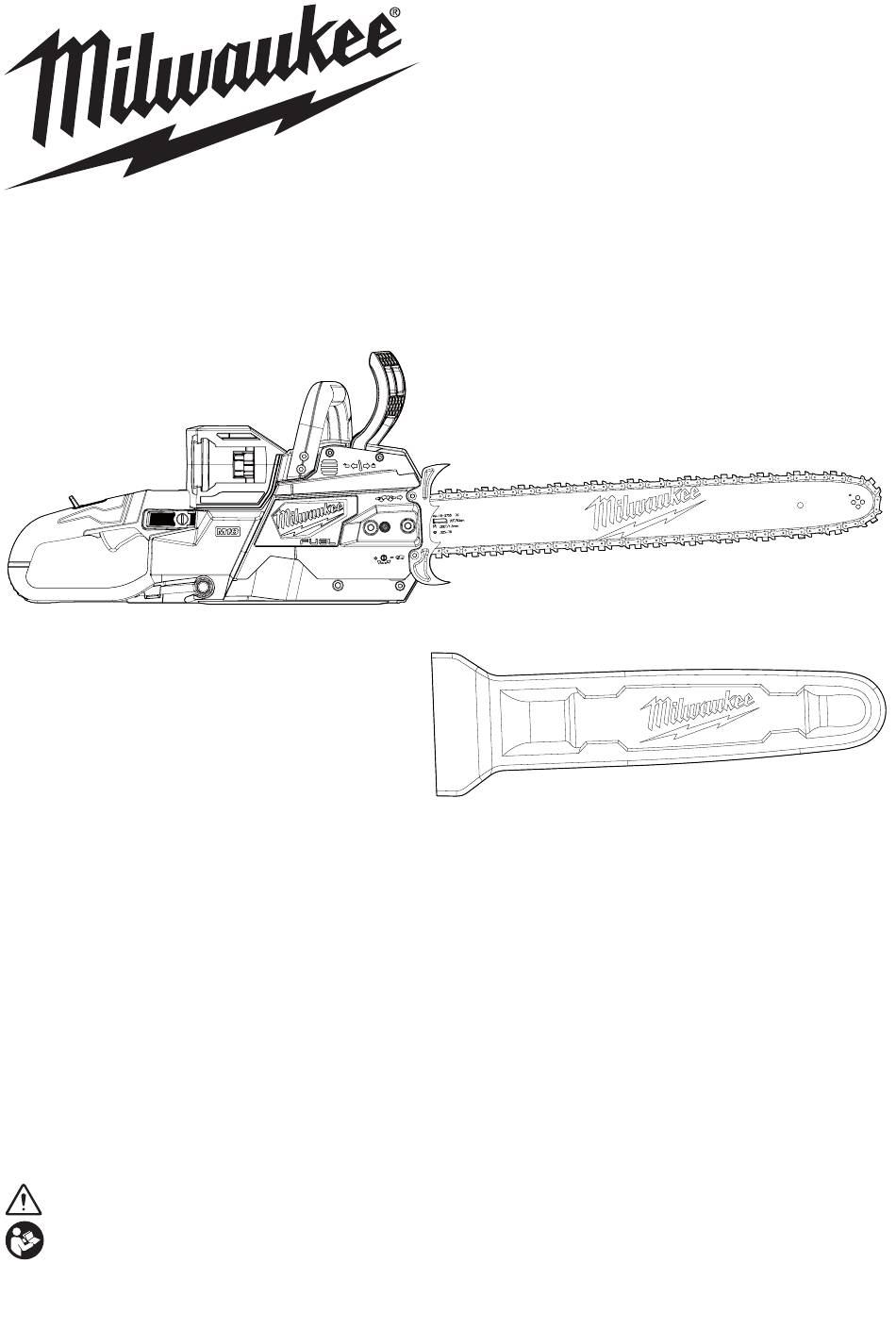

OPERATOR'S MANUAL
Cat. No.
M18 F2CHS20
M18 FUEL™ 20" (508 MM) DUAL BATTERY CHAINSAW
WARNING
To reduce the risk of injury, user must read and understand operator's manual.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M18 FUEL F2CHS20 and is the answer not in the manual?

Questions and answers

Summary of Contents for Milwaukee M18 FUEL F2CHS20

  • Page 1 OPERATOR'S MANUAL Cat. No. M18 F2CHS20 M18 FUEL™ 20" (508 MM) DUAL BATTERY CHAINSAW WARNING To reduce the risk of injury, user must read and understand operator's manual.
  • Page 2: General Power Tool Safety Warnings

    • Remove any adjusting key or wrench before GENERAL POWER TOOL turning the power tool on. A wrench or a key left SAFETY WARNINGS attached to a rotating part of the power tool may Read all safety warnings, instruc- WARNING result in personal injury.
  • Page 3: Specific Safety Rules For Chainsaws

    When cutting a limb that is under tension, be • When battery pack is not in use, keep it away • alert for spring back. When the tension in the from other metal objects, like paper clips, coins, wood fibres is released, the spring loaded limb keys, nails, screws or other small metal objects, may strike the operator and/or throw the chainsaw that can make a connection from one terminal...
  • Page 4 Never let anyone use your chainsaw who has important information. If unreadable or missing, not received adequate instructions in its ® contact a MILWAUKEE service facility for a proper use. This applies to rentals as well as replacement. privately owned saws.
  • Page 5: Functional Description

    ADDITIONAL BATTERY SAFETY RULES o reduce the risk of fire, personal WARNING DANGER Beware of kickback. injury , and product damage due to a short circuit, never immerse your tool, battery pack or charger in fluid or allow a fluid to flow inside them.
  • Page 6: Specifications

    SPECIFICATIONS Cat. No..........M18 F2CHS20 Volts............36 V DC Battery Type ..........M18™ Drive cover Charger Type..........M18™ RPM ............0-7,400 Chain Speed..........14.3 m/s Bar Length ..........508 mm Cutting Capacity ........482 mm Chain Oil Tank Capacity ......169 mL Recommended Ambient Operating Temperature ....
  • Page 7: Operation

    Performing these types of cuts If the lubrication system still does not work • can cause an accident and result in death or ® properly, contact a MILWAUKEE service serious personal injury. facility. Keep the chainsaw running at full speed the •...
  • Page 8 With a basic understanding of kickback, you can Peak Power Mode with 4.3 kW, giving users increased control over power output. Standard reduce or eliminate the element of surprise. Sudden surprise contributes to accidents. Power Mode maximises runtime and runs cooler, while Peak Power Mode provides maximum power Keep proper footing and balance at all times.
  • Page 9 Work Area Precautions Never attempt to lock the trigger WARNING in the on position. Cut only wood or materials made from wood, no • Proper Cutting Stance sheet metal, no plastics, no masonry, no non-wood building materials. Always use the proper cutting WARNING •...
  • Page 10 Trees should not be felled in a manner that would Direction of fall endanger any person, strike any utility line or cause any property damage. If the tree does make contact Hinge with any utility line, the utility company should be 50 mm or notified immediately.
  • Page 11 Bucking Logs Under Stress Never cut through to the notch WARNING when making a backcut. The When the log is supported along its entire length, it hinge controls the fall of the tree, this is the should be cut from the top or overbucking. section of wood between the notch and backcut.
  • Page 12: Troubleshooting

    Underbucking (crosscutting) Pruning is trimming limbs from a live tree. • Work slowly, keeping both hands on the chainsaw Underbucking with a firm grip. Always make sure your footing is secure and your weight is distributed evenly on both feet. •...
  • Page 13: Maintenance

    Do all of your filing at tool operation. Return the tool, battery pack, and the mid-point of the bar. charger to a MILWAUKEE ® service facility for repair.After six months to one year, depending on use, return the tool, battery pack and charger to a ®...
  • Page 14 • Correct 30° – File holders are marked with guide Feathering or burring of the bar rails is a normal marks to align file properly to produce correct top process of bar wear. Such faults should be plate angle. smoothed with a file as soon as they occur. A bar with any of the following faults should be •...
  • Page 16 Australia and New Zealand. SERVICE - AUSTRALIA and NEW ZEALAND MILWAUKEE ® prides itself in producing a premium quality product that is Nothing But Heavy Duty Your satisfaction with our products is very important to us! If you encounter any problems with the operation of this tool, please contact your authorised MILWAUKEE ®...
