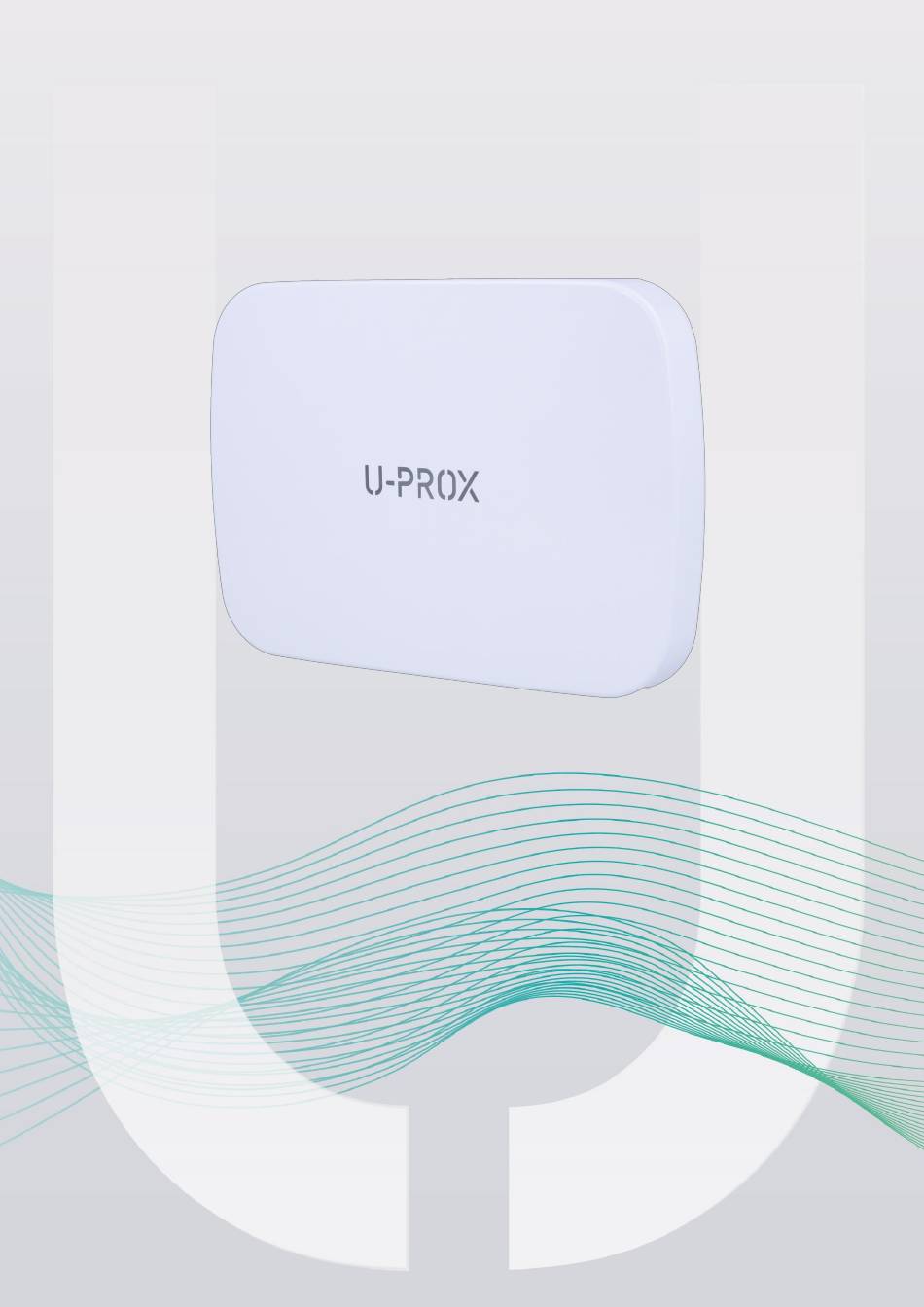

  • Page 1 U-PROX MPX L/LE Wireless security center...

  • Page 2: Table Of Contents

    Add a device to the U-Prox Cloud ............................ 17 Basic settings of the security center..........................21 Setting up Wi-Fi remotely from the U-Prox Installer WEB web portal and the U-Prox Installer mobile application ..............................26 Setting up a cellular (mobile) network......................... 28 Setting up a wired Internet connection (Ethernet, only for UProx MPX LE) .........
  • Page 3 Video surveillance ..................................48 Event log ........................................ 50 Additional options ................................... 51 Service ........................................... 54 Reset to factory settings ................................54 Compliance with standards ................................ 55 Warranty obligations ..................................55 The scope of delivery ..................................55...

  • Page 4: Introduction

    This manual describes the procedure for installing and configuring the U-Prox MPX wireless monitoring and control panel. Please read this manual carefully before using the device. Technical support for all products of the U-Prox trademark is provided by phone: +38(091)481-01-69 and/or e-mail: support@u-prox.systems. Security warnings When installing and operating the appliance, it is necessary to comply with the "Rules...

  • Page 5: Description And Principle Of Operation

    Description and principle of operation U-Prox MPX is the center of a wireless security system. It manages the home security system and supports the connection of wireless devices (detectors, keypads, key fobs, etc.) via a radio channel at a distance of up to 4800 m. The device interacts with the user and the security company using the Internet (Wi-Fi, Ethernet) and LTE communication for reliability.

  • Page 6: Functional Elements Of The Device

    Functional elements of the device 1. The case of the device 2. Light indication 3. Backplate 4. GID - serial number of the device 5. Tamper contact 6. On/off button 7. Connector for connecting the power supply unit 8. Connector for connecting an Ethernet cable (computer network)

  • Page 7: Zone

    Mobile communication U-Prox MPX L and LE supports 4G/2G communication. The 2G data transfer rate is 20- 55 kb/s, and 4G - up to 10 Mb/s. The device works sequentially with two SIM cards, when one of the cards is active, the other is in cold standby.

  • Page 8: Display In The Current Mode

    30 seconds. Display in the current mode The U-Prox indicator light on the front panel of the device shows the current status of the device: Glows green - there is a connection to U-Prox Cloud via at...

  • Page 9: Installation

    Slide the backplate down and detach it Place SIM cards of mobile operators with the PIN code request disabled in the holder Only for U-Prox MPX LE: Connect the U-Prox MPX and the router with an Ethernet cable Connect the power supply to the device connector...

  • Page 10: Turning On And Off

    Launch the U-Prox Installer application Select a device from the list Move the device to the pre-selected installation location Using the data in the U-Prox Installer mobile application, select the location with the optimal signal strength Installation Mount the plate (3) on a surface (e.g. wall) at the installation location using the...
  • Page 11 Make sure that the power supply and Ethernet cable (for U-Prox MPX LE) are connected and secured with the clips (10) Place the device on the backplate (3) and slide it down to engage and lock the tamper contact (4)

  • Page 12: Working With U-Prox Cloud

    To work with U-Prox devices in the cloud system, two separate applications are used, the functions of which are separated. The first is the U-Prox Home user application for managing the security system and the second is the U-Prox Installer application for configuring U-Prox devices.
  • Page 13 • Providing access to the U-Prox Home mobile application to users • Viewing events for all U-Prox devices added to the security company's account • Downloading the U-Prox Console event receiver software to receive events from security centers and...
  • Page 14 Online viewing of video surveillance cameras • Receive alarm notifications • Viewing images on demand or during photo verification of alarms from U-Prox PIR Cam detectors • Add users if the installer has granted the appropriate permission • Transferring the U-Prox MPX security system to a...

  • Page 15: U-Prox Installer Mobile Application

    U-Prox Home app. https:/ /web-security.u-prox.systems/ U-Prox Console v2 event receiver U-Prox Console v2 is a software for easy connection of U-Prox devices to monitoring software. U-Prox Console v2 works with most monitoring software and supports ContactID, XML, and SIA.
  • Page 16 The U-Prox Console v2 software and configuration file can be downloaded from the security company administrator's workstation on the U-Prox Installer WEB portal.

  • Page 17: Settings

    ACCESS AS AN INSTALLER OF A SECURITY COMPANY Add a device to the U-Prox Cloud Launch the U-Prox Installer application or open the web portal in a browser and log in Press the button () ("Add device") to add a device...
  • Page 18 When adding a device from the U-Prox Installer mobile application, you can add a security center by serial number or find it using Bluetooth When you click the "Connect via Bluetooh" button, the app will search for the device via Bluetooth. For the app to work properly, you need to enable...
  • Page 19 After selecting the device, the application will offer to configure Wi-Fi. Click "Skip" to perform the settings later, then the device will use the mobile Internet to communicate with the U-Prox Cloud if a SIM card is inserted or Ethernet - a wired Internet connection (only for U-Prox MPX LE) After pressing the "Set up Wi-Fi"...
  • Page 20 The device will connect to the Wi-Fi network and start connecting to the U- Prox Cloud When adding a device from the U-Prox Installer WEB web portal, you must enter the serial number of the security center. In the U-Prox Installer mobile application,...

  • Page 21: Basic Settings Of The Security Center

    The device will be connected to an account in the cloud You will go to the list of devices ATTENTION! AFTER SUCCESSFUL ADDITION, THE DEVICE IS CONNECTED TO THE ACCOUNT OF A SECURITY COMPANY OR AN INDIVIDUAL INSTALLER. TO ADD IT TO ANOTHER ACCOUNT, YOU WILL NEED TO DELETE THE DEVICE FROM THE PREVIOUS ACCOUNT.
  • Page 22 Go to the security center settings "Group settings - go to the section for managing security groups Device name setting - change the name of the security center "Software Update" setting - enable or disable automatic updates of the security center firmware from the cloud service...
  • Page 23 Light indication setting - turn on or off the indicator on the front panel of the device "Auto-cancel alarm" setting - the alarm is canceled after a specified time or after a user action in the app or after entering a code from the keyboard "Cellular data network"...
  • Page 24 12. Airborne Alarm Siren setting - enables sound notification on U-Prox Siren and U- Prox Siren Outdoor devices about airborne alarms and airborne alarms in the specified region 13. The Time Zone setting is a parameter that specifies the correction for determining the local time.

  • Page 26: Installer Mobile Application

    Setting up Wi-Fi remotely from the U-Prox Installer WEB web portal and the U-Prox Installer mobile application Select the device in which you want to set up or reconfigure Wi-Fi from the list of devices Go to the security center settings and select "Wi-Fi settings"...
  • Page 27 WARNING. THE DEVICE WORKS ONLY WITH 2.4 GIGAHERTZ WI-FI, OTHER TYPES OF WI-FI ARE NOT SUPPORTED AND WILL NOT BE DISPLAYED DURING SCANNING. The found access points are displayed in the list. Select the network you want to connect to from the list Enter the password and confirm the availability of an alternative communication channel in case the Wi-Fi connection fails The Wi-Fi network will be connected...

  • Page 28: Setting Up A Cellular (Mobile) Network

    Setting up a cellular (mobile) network From the list of devices, select the device for which you want to set special cellular network parameters Go to the security center settings and select "Cellular network settings" 3. Select the SIM card for which you want to specify special settings Set the necessary settings, confirm the availability of an alternative communication channel in case the connection fails.

  • Page 29: Setting Up A Wired Internet Connection (Ethernet, Only For Uprox Mpx Le)

    Setting up a wired Internet connection (Ethernet, only for UProx MPX LE)- From the list of devices, select the device for which you want to set the wired connection parameters Go to the security center settings and select "Ethernet" Set the necessary settings, confirm the availability of an alternative communication channel in case the connection fails.

  • Page 31: Registering Wireless Devices

    Registering wireless devices Select the U-Prox MPX to which you want to add the wireless detector from the list of devices Press the button () ("Add Radio Devices"), the security center will enter the mode of registering detectors, keypads, etc. In this window, you can click on the device icons and view the instructions for activation.
  • Page 32 Wait 15-20 seconds - the wireless detector will be registered and its settings will be opened in the app After changing the settings, device registration will continue To complete the registration, click the button  in the application window...

  • Page 33: Adding A User

    Adding a user After registering your existing wireless devices, go to the Users section to set up users Press the button () ("Add user") and enter their name. Click the "Add" button - the user will be created...

  • Page 34: Add A Passcode For A User

    Add a passcode for a user If the system uses a keyboard, provide users with a PIN code. Go to the "Users" section Select a user from the list Select "Keypad code for arming/disarming" Enter the key code and click the "Save" button The passcode will be saved...

  • Page 35: Registration Of A Wireless Key Fob

    Registration of a wireless key fob To add a wireless key fob to a user, do the following Go to the "Users" section Select a user from the list Select the "Keychain" item, keychain registration will be started...
  • Page 36 Bring the key fob to a distance of 0.5 m from the security center, press and hold the button for about 20 seconds - the key fob will be registered. Release the key fob button. If necessary, click the "Change buttons" button to reconfigure the functions of the key fob buttons...

  • Page 37: Granting User Access To A Mobile Application

    Granting user access to a mobile application Go to the "Users" section Select a user from the list Select "Mobile application" Enter the user's e-mail address, select the "Allow" option, and click the "Save" button The user will receive an email with an access invitation to the specified e-mail address.

  • Page 38: Setting Up Security Groups

    Setting up security groups A security group is a logical set of zones of a protected premises (for example, a room, apartment, garage, floor of a building, etc.), a minimum security unit. A security group allows you to manage all zones simultaneously. Security groups are independent - the user can manage and view only those security groups, devices, and events in them to which he or she has been granted access.

  • Page 39: Connecting To A Security Company

    Each security system is identified by the security company by an internal identifier - a monitoring station number or account. Select the U-Prox MPX device you want to connect to the security company from the list of devices Go to the "Remote control" section...
  • Page 40 To connect to a security company and work through the cloud, it is enough to set only the monitoring station number of the security system To connect to a security company and work directly with redundancy via the cloud, you need to set the monitoring station number of the security system and specify the IP address and port of the event receiver Additionally, you can configure the test period - the period of time for sending the Periodic Test notification, which monitors the status of the device and the...

  • Page 41: Remove The Device

    Remove the device  In the list of devices, click the button ("Uninstall") button on the U-Prox MPX you want to uninstall Select the method of deletion - full, with all settings cleared (the "Clear all settings... " option is checked, the device must be connected), or partial - the device will be disconnected from the account, but all settings will be saved (the "Clear all...

  • Page 42: U-Prox Mpx Device States

    - the battery is defective - The Ethernet communicator is fine, there is a connection to the U-Prox Cloud - no connection to the U-Prox Cloud - no Ethernet connection - connected via Wi-Fi, signal strength - there is no Wi-Fi connection...

  • Page 43: States Of Wireless Devices

    States of wireless devices - 220V power supply is normal - no 220V power supply - device temperature sensor - the device case is closed - the device case is open - the battery is charged - battery charge level - the battery is critically low - the battery is defective - level of radio communication with the...

  • Page 44: User Interaction Through The U-Prox Home App

    The user receives an invitation to their email After clicking the "Open application" link, you will be redirected to the U-Prox Home application, if it is installed, or offered to install the application and set a password for a new user.

  • Page 45: Partial Staging ("Night Mode", "Perimeter")

    a. For view A - move the joystick to the rightmost position b. For view B - select the appropriate group from the list and click the "Full staging" button 4. The time to leave the room will start counting down View A.

  • Page 46: Panic Button

    b. For view B - select the appropriate group from the list and click the "Unmount" button The group will be disarmed View A. View B. Panic button Sending an "Attack" signal ("Panic" or "Silent Alarm"). This feature must be enabled in the user's properties.

  • Page 47: Control Of Actuators

    Control of actuators 1. Go to the "Automation" section 2. Click the switch next to the corresponding device to activate or deactivate it...

  • Page 48: Video Surveillance

    Video surveillance 1. Go to the "Cameras" section 2. If not previously installed, the app will offer to download and install an additional video module. Click "Download" After the module has successfully loaded, click the button (), to add a camera and select it from the menu that appears When adding a Dahua/Imou camera, it is enough to set the camera name and scan the serial number using the built-in QR code scanner.
  • Page 49 Specify the security zone to which the camera is assigned so that the video from the nearest camera is displayed in the event of an alarm in the zone, and click Save. You can view the video for verification To add an RTSP camera, specify its name and rtsp link...

  • Page 50: Event Log

    Event log 1. Go to the "Event log" section To filter events by type, use the "Filter" button...

  • Page 51: Additional Options

    Additional options This menu contains additional options for configuring and controlling the security system "Security system" - information about the device, its communication channels, and traffic consumption. It also allows you to change the Wi-Fi network settings. "Sensors and key fobs" - information about the devices in the system and their status.
  • Page 52 "Users" - viewing users of the system, and, if granted the appropriate right, editing them "Notifications and reminders" - set up notifications and reminders for arming and disarming based on geolocation "App appearance" - customize the appearance of the home screen and sensors to show the temperature on the home screen...
  • Page 53 "Passwords and login - additional security settings, such as biometric identification and an additional PIN code to enter the application "About" - view the version of the application and send a request to the technical support service...

  • Page 54: Service

    Service The system usually requires minimal maintenance. Use a dry cloth suitable for appliances to periodically clean the device case from dust and other contaminants as they appear. Reset to factory settings 1. Remove the appliance from the backplate (3) 2.

  • Page 55: Compliance With Standards

    EN 50136-2:2013 Warranty obligations The warranty period for the U-Prox device (except for batteries) is 2 years from the date of sale. If the device does not work properly, please contact technical support first, as this issue may be resolved remotely.
