CAMDEN CX-91S TDS Series Installation Instructions Manual

Special Locking Arrangement Component
Electric Locking Mechanism
Access Control Accessory
E l ec t r if i e d Lo ck s , R e l ay s a n d Time rs
CX-91S TDS Series
Magnetic Locks
INSTALLATION INSTRUCTIONS
1. SPECIFICATIONS
CX-91S-06-TDS
600 lbs. (Factory Tested) **
Static Strength
500 lbs. (UL Verified)
50 ft-lb
Dynamic Strength
12/24V DC
Voltage Input
Current Draw
510mA/285mA
9-7/8"W x 2"H x 1"D
Dimensions
(250mm x 50mm x 25mm)
(Body)
7-5/32"W x 1-3/4"H x 15/32"D
Dimensions
(182mm x 44mm x 12mm)
(Armature Plate)
250 000
Endurance

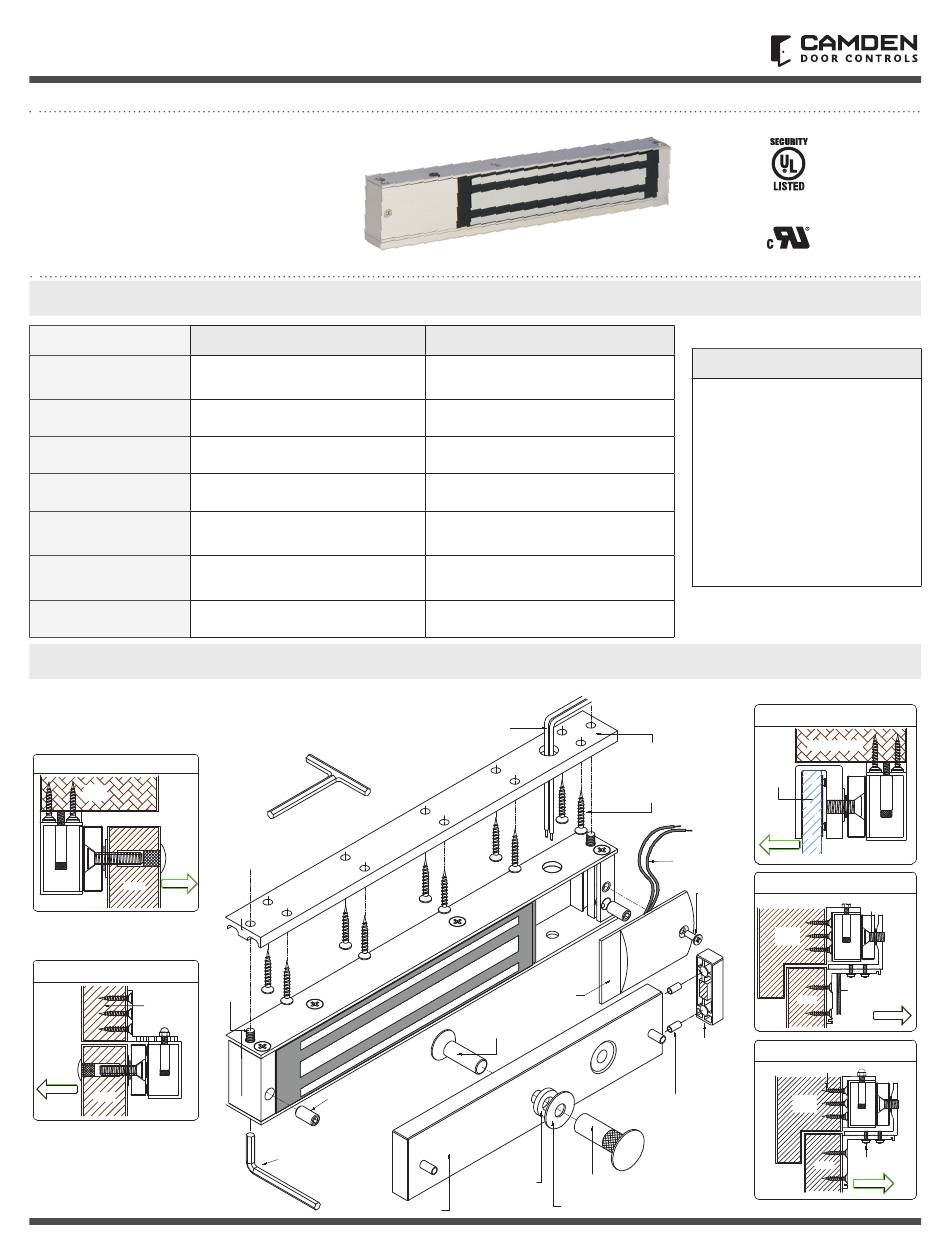

2. BASIC INSTALLATION CONCEPT & ACCESSORIES (FIGURE 1)
General Installation
Door
Frame
EM
Lock
Door
Out Swing
LS Bracket For Out-Swing Door
Door Frame
EM
Lock
Door
Out-Swing
T Handle Allen Key
(Not Included)
Fixing
Screw
x2
Anti Tamper Nut x2
Allen Wrench
(Not Included)
Armature Plate
CX-91S-12-TDS
1200 lbs. (Factory Tested) **
1000 lbs. (UL Verified)
70 ft-lb
12/24V DC
500mA/265mA
10-1/2"W x 2-5/8"H x 1-1/2"D
(266mm x 67mm x 39mm)
7-9/32"W x 2-13/32"H x 5/8"D
(185mm x 61mm x 16.5mm)
250 000
12/24 VDC Power
Cable Wire
Self-tapping Screw x10
PCB Cover
Armature Screw
Sexnut Bolt
Rubber Washer
Metal Washer
Performance Levels
- Destructive Attack = Level I
- Line Security = Level I
- Standby Power = Level I
- Endurance = Level IV
( Relay Source #2 and #3 )
U1 Bracket For Glass Door
Mounting Plate
Glass Door
Mag.
Out-Swing
Ctc Wire
Cover In-Swing Door With Cover
Screw
Door
Frame
Mag. Ctc.
LZ Bracket For In-Swing Door
Magnet
Self-tapping Screw
Self Lock Pin Door
Frame
M3x12 - 2pcs
UL 1034 / UL 294
Standard for
Burglary-Resistant
Electric Locking
Mechanisms
ULC S533-15
Standard for
Access and Egress
Door Frame
EM
Lock
LZ Bracket For
CSK M8 x16
EM
Lock
M4 Set Screw
Door
In-Swing
EM
Lock
P/H MC Screw
Door
M4 x 8
In-Swing
Page 1 of 4
