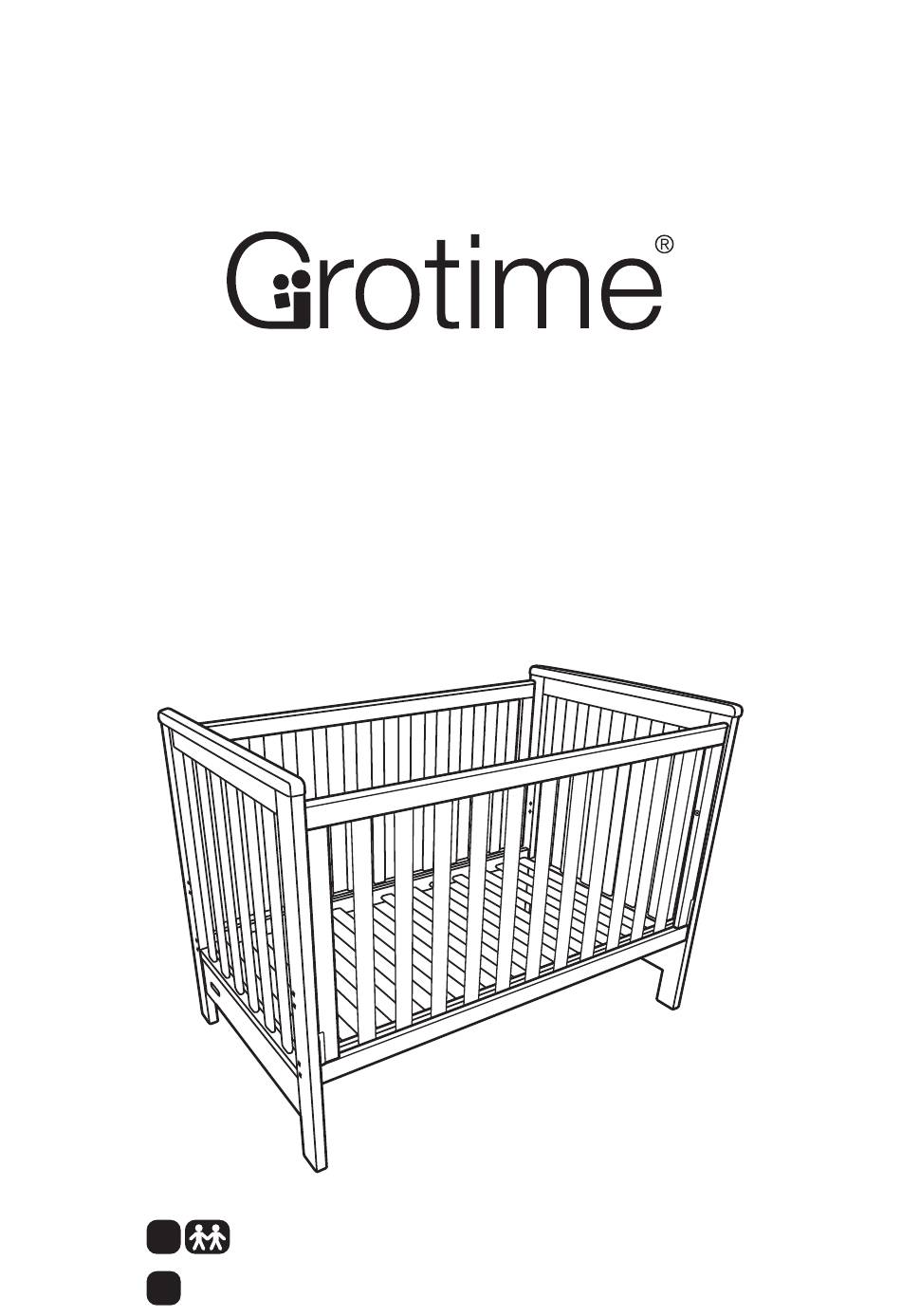

- Page 1 Hannah / Hudson 4 in 1 cot Two adults required to assemble this cot. The manufacturer's assembly instructions must be followed in detail to ensure the safety features to the cot are not compromised.
-
Page 2: Hardware Inventory
HARDWARE INVENTORY 70mm Bolts Guide Pins Bolts & Cap Nuts Allen Key PRE-INSTALLED HARDWARE 55mm Insert Nut Locking Bolts PARTS LIST 1 x Fixed Side 2 x End Panels 1 x Drop Side 1 x Cot Base... - Page 3 STEP 1 ASSEMBLE THE TWO OUTER ENDS TO THE BASE End Panels Cot Base 50mm Bolts Do not tighten bolts at this stage Chose high or low position for mattress base HIGH Bassinet level Toddler level STEP 2 ASSEMBLE FIXED SIDE TO ENDS Fixed Side 70mm Bolts Do not tighten bolts at this stage...
- Page 4 STEP 3 SCREW FOUR GUIDE PINS INTO ENDS FIRMLY Guide Pins Screw Driver STEP 4 ASSEMBLE DROP SIDE Align two access holes in the built-in Drop Side runner with the guide pins on one end. Now repeat on other end. Ensure correct side is facing out.
- Page 5 STEP 5 FULLY SCREW IN LOCKING BOLTS Lift drop side up until it clicks into the locking position. STEP 6 TIGHTEN ALL BOLTS AND PLUG FINGER ENTRAPMENTS Bolts & Cap Nuts...
- Page 6 STEP 7 OPERATION To lower drop side, lift from centre of top rail, hold side in that position while using your leg to push inward on centre of bottom rail. Then allow to slide gently down. Base shown in Lower Position.
- Page 7 DAY BED CONVERSION Remove dropside by reversing to step 4. Remove dropside guide pins (HC) from the ends to prevent injury. Day Bed COT BED CONVERSION Remove dropside by reversing to step 4. Cot Bed...
-
Page 8: Maintenance
MAINTENANCE Check your cot regularly. Retighten all bolts. For after sales service contact Grotime Service Australia on 1300 799 912; or New Zealand on 0508 476 932; RECOMMENDED MATTRESS SIZE This cot has been manufactured for use with a mattress which measures 760mm in width and 1300mm in length and 130mm in thickness.
