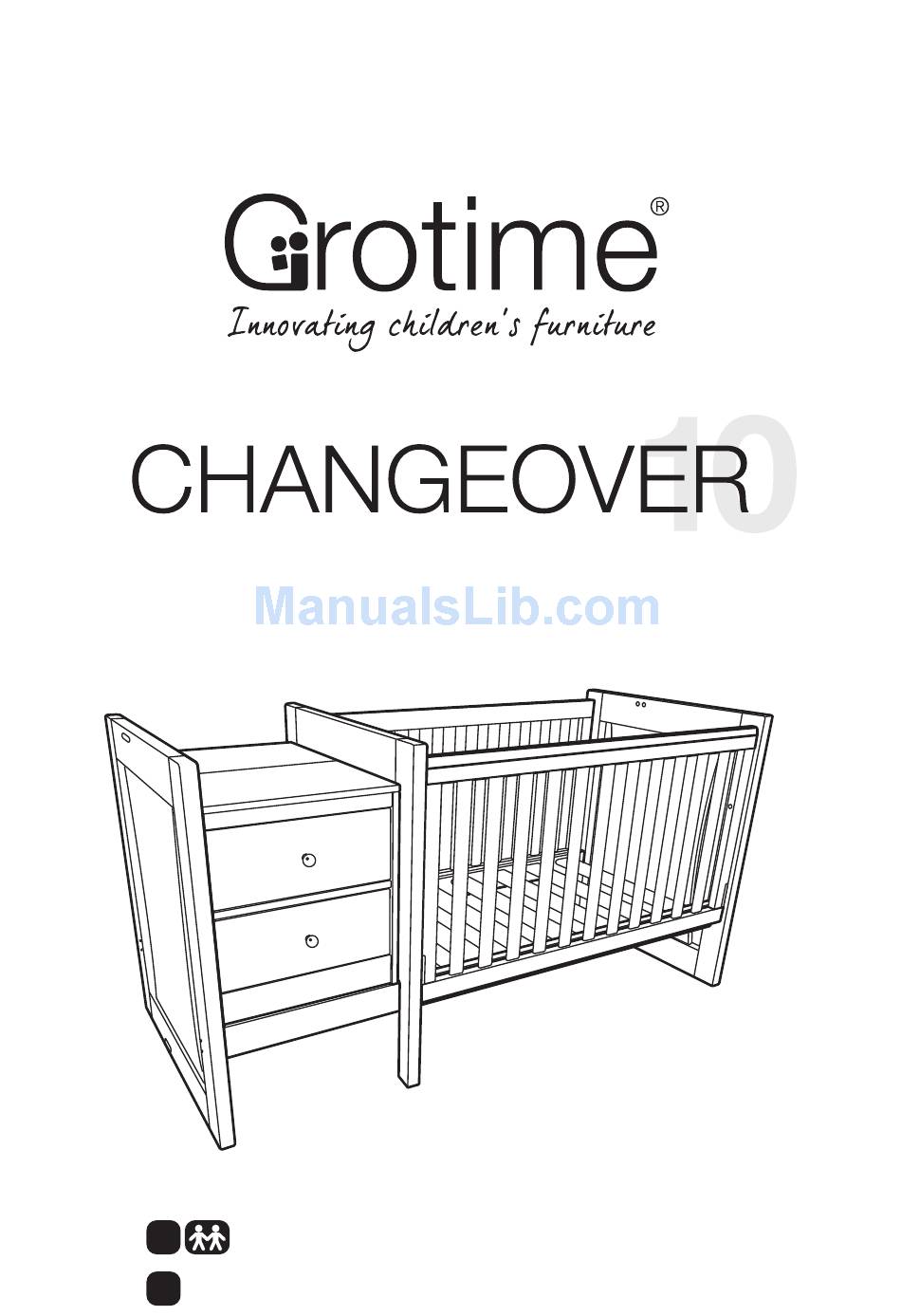

6 in 1 cot to full size single bed
This product is covered by a number of registered designs, trademarks and patents pending
!
Two adults required to assemble this cot.
The manufacturer's assembly instructions must be followed
!
in detail to ensure the safety features to the cot are not compromised.
Advertisement
Table of Contents
Related Manuals for Grotime Changeover
Summary of Contents for Grotime Changeover
- Page 1 6 in 1 cot to full size single bed This product is covered by a number of registered designs, trademarks and patents pending Two adults required to assemble this cot. The manufacturer's assembly instructions must be followed in detail to ensure the safety features to the cot are not compromised.
-
Page 2: Parts List
70mm Bolts 16mm Bolts Guide Pins Wood Screws 20mm Bolts Allen Key Feet Pads PRE-INSTALLED HARDWARE Grotime Badges Locking Bolts Drawer Handles PARTS LIST 1 x Fixed Side 2 x End Panels 1 x Drop Side 1 x Spacer End... - Page 3 STEP 1 ASSEMBLE BILATERAIL BED RAILS BILATERAIL Base Rails BILATERAIL Base Brackets 20mm Bolts Patent pending STEP 2 Assembled base rails Cot Bed Slats ASSEMBLE THE BASE USING THE COT BED SLATS Lay one side rail down then slot all slats into the mortises. Place the second side rail on top.
- Page 4 STEP 3 ASSEMBLE THE TWO OUTER ENDS TO THE BASE 70mm Bolts End Panels Assembled base with cot slats Do not tighten bolts at this stage STEP 4 ASSEMBLE THE FIXED SIDE BETWEEN ONE END AND THE SPACER END Spacer End Fixed Side 70mm Bolts Do not tighten bolts at this stage...
- Page 5 STEP 5 SCREW FOUR GUIDE PINS INTO ONE END AND THE SPACER END Guide Pins Screw Driver STEP 6 ASSEMBLE DROP SIDE Drop Side Ensure correct side is facing out.
- Page 6 STEP 7 FULLY SCREW IN LOCKING BOLTS Lift drop side up until it clicks into the locking position. STEP 8 TIGHTEN ALL BOLTS...
- Page 7 STEP 9 PLACE TWO BEDSIDE DRAWERS BACK TO BACK ON THE END OF THE COT Drawers 35mm Bolt Connecting bolt to hold drawers together. Slide drawers out to bolt the 2 units together through hole provided Ensure drawer handles are facing out. STEP 10 OPERATION To lower drop side, lift from centre of top rail, hold side in that position while using your leg to push inward on...
- Page 8 DAY BED CONVERSION Remove dropside by reversing to step 5. Remove dropside guide pins (HC) from the ends to prevent injury. Day Bed with Drawers...
- Page 9 Disassemble the cot following the STEP 1 assemble instructions in reverse ord Roll over cot ends on their sides STEP 2 REPOSITION FOUR GROTIME BADGES TO EXPOSE THE SINGLE BED BASE HOLES AND COVER THE COT BASE HOLES Grotime Badges...
- Page 10 STEP 3 Bed Base Rails (assembled) Single Bed Slats ASSEMBLE SINGLE BED BASE Lay one side rail down then slot all slats into the mortises. Place the second side rail on top. Working from one end slot all stats into the mortises. STEP 4 Use the four wood screws to x the rails and slats together.
- Page 11 STEP 5 ASSEMBLE SINGLE BED BASE BETWEEN TWO ENDS 70mm Bolts STEP 6 PLUG FINGER ENTRAPMENTS 16mm Bolts Your single bed is now complete.
- Page 12 MAINTENANCE Check your cot regularly. Retighten all bolts. For after sales service contact Grotime Service Australia on 1300 799 912; or New Zealand on 0508 476 932; RECOMMENDED MATTRESS SIZE This cot has been manufactured for use with a mattress which measures 760mm in width and 1300mm in length and 130mm in thickness.
