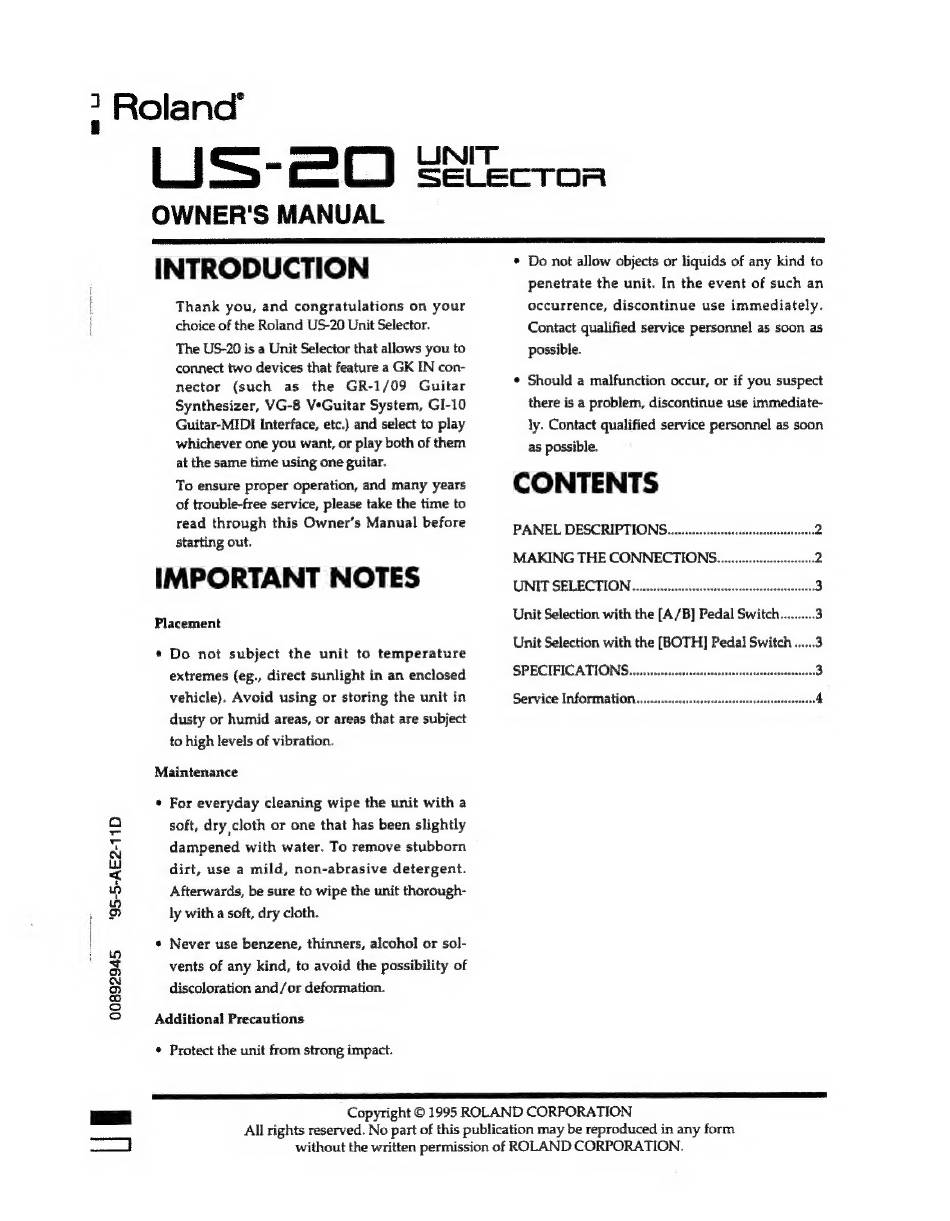

Roland US-20 Owner's Manual

: Roland'
'95-5-AE2-11D
00892945
A
=
UNIT
SELECTOR
US-2
OWNER'S MANUAL
INTRODUCTION
Thank you, and congratulations on your
choice of the Roland US-20 Unit Selector.
The US-20 is a Unit Selector that allows you to
connect two devices that feature a GK IN con-
nector (such as the GR-1/09 Guitar
Synthesizer, VG-8 VeGuitar System, GI-10
Guitar-MIDI Interface, etc.) and select to play
whichever one you want, or play both of them
at the same time using one guitar.
To ensure proper operation, and many years
of trouble-free service, please take the time to
read through this Owner's Manual before
starting out.
IMPORTANT NOTES
Placement
* Do not subject the unit to temperature
extremes (eg., direct sunlight in an enclosed
vehicle). Avoid using or storing the unit in
dusty or humid areas, or areas that are subject
to high levels of vibration.
Maintenance
* For everyday cleaning wipe the unit with a
soft, dry cloth or one that has been slightly
dampened with water. To remove stubborn
dirt, use a mild, non-abrasive detergent.
Afterwards, be sure to wipe the unit thorough-
ly with a soft, dry cloth.
* Never use benzene, thinners, alcohol or sol-
vents of any kind, to avoid the possibility of
discoloration and/or deformation.
Additional Precautions
* Protect the unit from strong impact.
* Do not allow objects or liquids of any kind to
penetrate the unit. In the event of such an
occurrence, discontinue use immediately.
Contact qualified service personnel as soon as
possible.
* Should a malfunction occur, or if you suspect
there is a problem, discontinue use immediate-
ly. Contact qualified service personnel as soon
as possible.
CONTENTS
PANEL DESCRIPTIONS. ......secsssssssssssescssneseceetanereete 2
MAKING THE CONNECTIONS........unemen 2
UNIT SELECTION... <ssiaessnsereiousossencrrapraventosieddnitevieten 3
Unit Selection with the [A/B] Pedal Switch........... 3
Unit Selection with the [BOTH] Pedal Switch ......3
SPECIFICATIONS....unennsnnsenssanssonnsennnssennonennsronnenen 3
Service Information....ensesneesseernseensennenssossensnunennenn 4
AE ESCAPE EN EET IE OEP En
Copyright © 1995 ROLAND CORPORATION
All rights reserved. No part of this publication may be reproduced in any form
without the written permission of ROLAND CORPORATION.
