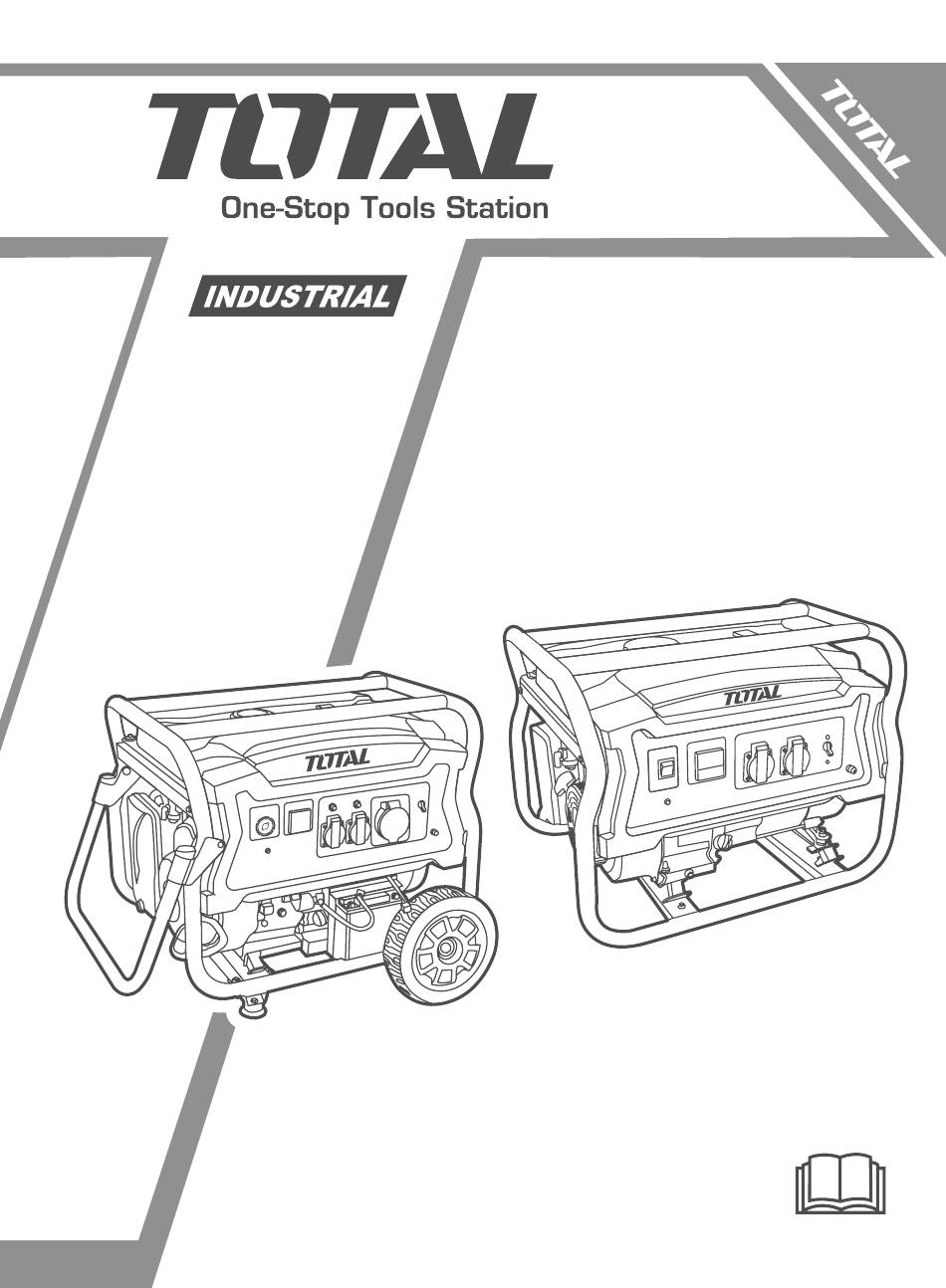

- Page 1 PRODUCT MANUAL GASOLINE GENERATOR TP135006 TP135006E TP135006x TP135006ESx x(-4,-5,-6,-8,-9,S) TP165006 TP175006 TP190006 TP185006-5P TP1105006-5P TP165006x TP175006x TP190006x x(-4,-5,-6,-8,-9,-58,S,N,EP)
-
Page 2: General Safety Warnings
| English Original Instructions GENERAL SAFETY WARNINGS ⚠ Danger Electrocution hazard - Electricity can cause DEATH or SERIOUS INJURY Do not use bare wire to connect power supply to electrical equipment, use a plug that meets local regulations. During generator operation, do not touch exposed wires. ... - Page 3 | English and protecting your most valued possessions. Every series of our safes is professionally made and designed to provide safety. Please take time to read and familiarize yourself with the proper operating procedures of your new safe presented on the following pages. Again, thank you for choosing our products! ⚠...
- Page 4 | English THE SYMBOLS IN INSTRUCTION MANUAL Some of following symbols are used in the machine or the manual. To understand their meanings will make it easy and safe for you in operation. Symbol Name Meaning Volt Voltage Unit Ampere Current Unit Hertz Frequency Unit (1Hz=60 r/min)
- Page 5 | English Exhaust gas from this generator contains Carbon Monoxide (CO), a colorless & odorless gas. Toxic Gas Excessive exposure to CO may cause loss consciousness and may lead to death in extreme circumstances. High temperature generated from operation may Fire cause fire, so operate it with caution.
-
Page 6: Additional Safety Warning
| English ADDITIONAL SAFETY WARNING ⚠ Danger Use outdoors only, exhaust gas released from the equipment contains Carbon Monoxide (CO), which cannot be seen or smelt. Excessive inhalation of CO may cause a loss of consciousness and may claim life in extreme circumstances. - Page 7 | English ⚠ Danger Do not connect the generator unit with mains supply or other power sources, use it alone. ⚠ Warning Properly ground the generator and verify grounding is in place before each use. ⚠ Warning Keep the generator clean, remove any gasoline or oil spills on or around the generator.
- Page 8 | English There is the warning decal on the machine to remind you of the safety regulations. ⚠ Warning You will be killed or seriously hurt if you do not follow the operator’s manual instructions. Generator is a potential source of electric shock. Do not expose to moisture, rain, or snow.
-
Page 9: Specifications
| English SPECIFICATIONS Fuel tank AC output Fuel fill cap Oil dipstick Engine switch Muffler Oil drain plug Spark plug Fuel gauge Carburetor Control panel Cylinder hea... -
Page 10: Technical Specifications
| English Technical specifications TP135006 TP165006 TP135006ES TP175006 TP190006 TP165006-4 TP135006-4 TP135006ESS TP175006-4 TP190006-4 TP165006-6 Model TP135006-6 TP135006ES-4 TP175006-6 TP190006-6 TP165006-8 TP135006ES-6 TP175006-8 TP190006-8 TP135006-8 TP165006-9 TP135006ES-8 TP175006-9 TP190006-9 TP135006-9 TP165006S TP135006ES-9 TP175006S TP190006S TP135006S TP165006N Frequency 50Hz Rated Power 2.8kW... - Page 11 | English Model TP165006-5 TP135006-5 TP135006ES-5 TP175006-5 TP165006-58 Frequency 60Hz Rated Power 2.8kW 5.0kW 6.0kW Gener Max. Power 3.5kW 6.5kW 7.5kW ator Rated Voltage 220-240V~ Power Factor Type 4 Strokes/Air Cooling/Single Cylinder/OHV/Horizontal Shaft Displacement(c Starting Mode Recoil Pull Start Electric Start...
- Page 12 | English Model TP185006-5P TP190006-5 TP1105006-5P TP190006EP Frequency 60Hz 50Hz Rated Power 7.5kW 9.5kW 8.0kW Gener Max. Power 8.5kW 9.0kW 10.5kW 9..0kW ator Rated Voltage 220-240V~ Power Factor Type 4 Strokes/Air Cooling/Single Cylinder/OHV/Horizontal Shaft Displacement(c Starting Mode Electric Start Fuel Tank Engine Capacity(L/US...
- Page 13 | English OPERATION PICTURE...
- Page 14 | English OPERATION PICTURE...
- Page 15 | English OPERATION PICTURE...
- Page 16 | English OPERATION PICTURE...
-
Page 17: Operation
| English OPERATION Know your generator The safe use of this generator requires an understanding of the information provided in this operator’s manual as well as a knowledge of the project you are attempting. Before use of this generator, familiarize yourself with all operating features and safety rules. -
Page 18: Starting The Engine
| English Operating guide (see Figure A) The operational steps are pasted above the fuel tank, please operate as per the instructions. Unit grounding Shift the machine outdoors, use the grounding terminal connection wire to ground to earth. One end of the wire is pressed below the butterfly nut on the unit, screw it up tightly, and the other end is connected with the metal rod that is inserted into the ground. -
Page 19: Stopping The Engine
The total power of the loads should not exceed the rated power of the unit. (see Figure K) Stopping the engine Remove any load from the generator. -
Page 20: Power Management
1200 The starting wattage of some appliances are can be higher than the operating watts. Please read the labels of the electric equipment for reference. The total power of the loads should not exceed the rated power of the generator. - Page 21 | English operation, and can also contributes to environmental protection. Maintenance schedule is as follows- Please carry out the recommended maintenance at the earlier of the stated hours or elapsed time. Every Every Every 20 hours or Every 50 hours in the hours or hours...
- Page 22 | English Replace the engine oil (see Figure Q) Clean the air filter (see Figure R) The air cleaner system uses a foam element that can be washed and reused. Open the cover with the lock nut and remove the foam air filter element. Wash the foam element in liquid detergent and water, then rinse in clean water and squeeze dry in a clean cloth.
- Page 23 | English MAINTENANCE&MALFUNCTIONS Possible malfunctions and methods of their eliminations Fault Cause Action No fuel Fill the oil tank with gasoline The Fuel valve is not turned Turn the fuel valve to ON Clean the fuel bowl (refer to The Fuel valve is blocked maintain page) No engine oil or the engine The unit can not start...
- Page 24 | English The environmental condition required to operate the generator: Suitable temperature: -15℃- 40℃ • Suitable humidity: lower than 95%. • Suitable altitude: under 1,000 meters (The power load should be reduced • where the generator is used at altitudes greater than 1000 meters.) The generator unit can only be loaded to the rated power under the specified environment conditions.
- Page 25 TOTAL TOOLS WORLD MADE IN CHINA T0623.V12 TOTAL TOOLS CO., PTE. LTD. No. 45 Songbei Road, Suzhou Industrial Park, China.
