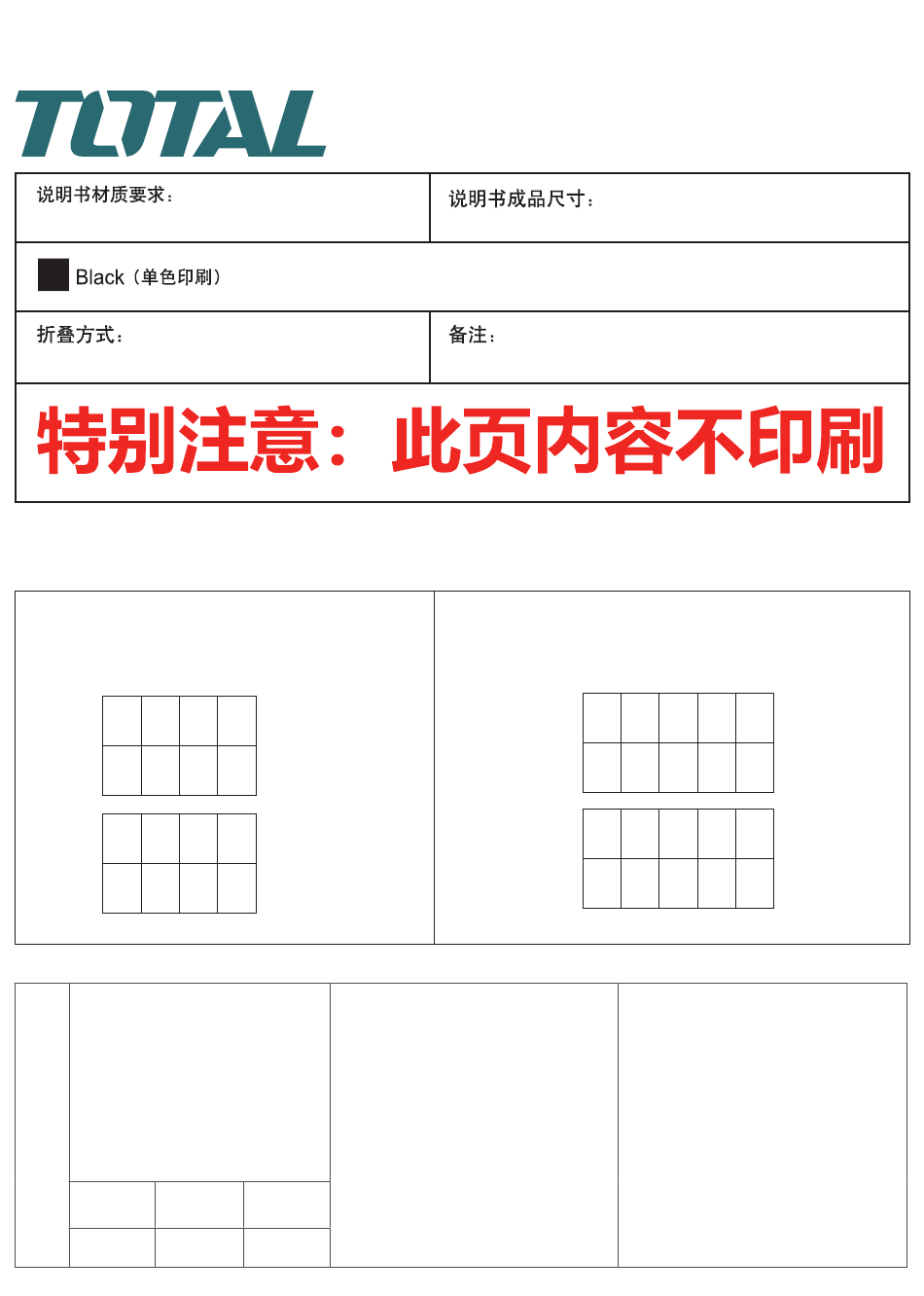

- Page 1 105g 有光铜版纸 105*143mm 骑马钉 风琴折 + 对折 页面顺序 16P 页面顺序 20P 页面顺序 封面 封面 封底 封底 1.新做 更 改 记 录 T0823.V01 2023.8.1 版本号 日期 设计师...
-
Page 2: Product Manual
PRODUCT MANUAL INVERTER GASOLINE GENERATOR TP535006 UTP535006 TP535006x UTP535006x x(-4,-5,-6,-8,-9,S) -
Page 3: General Safety Warnings
| English GENERAL SAFETY WARNINGS The words DANGER, WARNING, CAUTION and NOTICE are used throughout this manual to highlight important information. Be certain that the meanings of these alerts are known to all who work on or near the equipment. ⚠... - Page 4 | English THE SYMBOLS IN INSTRUCTION MANUAL Some of following symbols are used in the machine or the manual. To understand their meanings will make it easy and safe for you in operation. Symbol Meaning Safety alert symbol Asphyxiation hazard Burn hazard Burst/pressure hazard Don't leave tools in the area...
- Page 5 | English Pinch-point hazard Read manufacturer's instructions Read safety messages before proceeding Wear personal protective equipment (ppe)
-
Page 6: Additional Safety Warning
| English ADDITIONAL SAFETY WARNING ⚠ DANGER Never use the inverter in a location that is wet or damp. Never expose the inverter to rain, snow, water spray or standing water while in use. Protect the inverter from all hazardous weather conditions. Moisture or ice can cause a short circuit or other malfunction in the electrical circuit. - Page 7 | English Never refuel the inverter while the engine is running. Always turn • engine off and allow the generator to cool before refueling. Only fill fuel tank with gasoline. • Keep sparks, open flames or other form of ignition (such as match, •...
-
Page 8: Technical Specifications
| English SPECIFICATIONS Thank you for purchasing this superior quality portable generator. When operating and maintaining this product as instructed in this manual, your generator will give you many years of reliable service. Technical specifications This generator is an engine-driven, revolving field, alternating current (AC) portable generator. - Page 9 4 Stroke/ Single cylinder/ OHV Displacement 140cc Fuel tank capacity 6.3L Engine Oil Capacity 0.4L Starting Type Recoil start The rated power output of the generator, the following standard reference conditions shall be used Total barometric pressure：100kPa Air ambient temperature：298K (25ºC) Relative humidity：30% Altitude：0m...
- Page 10 | English OPERATION PICTURE...
-
Page 11: Operation
| English OPERATION ON/OFF start switch and choke Start switch “OFF” When the start switch is in the “OFF” position the fuel valve is switched off and the engine will not run. Start switch “CHOKE” When the start switch is in the “CHOKE” position the fuel valve is switched on and the engine can be started Start switch “ON”... -
Page 12: Control Panel Functions
How to correct Disconnect any electronic devices then stop the engine. Reduce the total wattage of connected electronic devices until it is within the generator’s rated output. Inspect the air inlet and control panel for any blockage. Remove blockage if found. - Page 13 | English ⚠ NOTE The ECO switch must be turned to the “OFF” position when using electronic devices that require a large starting current, such as a compressor. Fuel cap Turn counterclockwise to remove the fuel cap Ground terminal The generator’s ground terminal must always be used to connect the generator to a driven ground rod.
- Page 14 • When using extension lines or mobile distribution networks the total length of lines for a cross section of 1.5 mm² should not exceed 60 m; for a cross section of 2.5 mm² this should not exceed 100 m.
-
Page 15: Adding Fuel
| English instructions also. • Due to high mechanical stresses, only tough rubber sheathed flexible cable (in accordance with IEC60245-4) or the equivalent should be used. Adding fuel • Set generator on a clean and level surface in an area that is well ventilated. •... - Page 16 | English at the proper level. SAE 10w-30 oil is recommended for general use. DO NOT OVERFILL. Replace oil fill cap/dipstick and secure maintenance cover. • Check engine oil level daily and add as needed. Recommended oil: SAE 10W-30 Oil capacity: 0.35L ⚠...
- Page 17 | English • For Recoil Start: Recoil Start: Firmly grasp and pull the recoil handle slowly until you feel resistance, let it retract then pull swiftly. If it fails to start successfully, wait for 3 seconds then repeat this step. •...
- Page 18 | English How to stop engine • Turn the ECO switch to the “OFF” position • Disconnect any electronic device. All loads MUST be disconnect from the generator. Never start or stop the engine with electrical devices plugged in to the receptacles.
- Page 19 Estimate surge watts by adding the item(s) with the highest output (it is unnecessary to calculate the surge output for all devices as they should be connected one at a time). Add the surge watts to the total rated watts in step 1. Keep total load within generator’s power capacity.
-
Page 20: Wattage Reference Guide
| English Wattage reference guide (Wattages listed are just approximations. Check electronic device for actual wattage) Essentials Rated Watts Surge Watts 75W light bulbs 75 each 75 each 18 CU Ft Refrigerator / Freezer 2200 Furnace fan (⅓ HP) 2350 Sump pump (⅓... - Page 21 | English Bathroom Rated Watts Surge Watts Hair dryer 1250 Curling iron 1500 Family room X-Box or play station AM/FM Radio Color TV (27”) Home office Fax machine Personal computer (17” Monitor) Laser printer Copy machine 1600 Power tools 1000w quartz halogen work light 1000 Airless sprayer (⅓...
- Page 22 | English MAINTENANCE&MALFUNCTIONS Regular maintenance will extend the life of this generator and improve its performance. The warranty does not cover items that result from operator negligence, misuse, or abuse. To receive full value from the warranty, operator must maintain the generator as instructed in this manual, including proper storage. ⚠...
-
Page 23: Checking Spark Plug
| English After first 5 hours Change oil. Clean debris. After 8 hours or daily Check engine oil level. Check and clean air filter element. (serve more often under wet or dusty conditions.) Change engine oil. (serve more often under dirty or dusty conditions.) 6 months (100 hr use) Check muffler screen. - Page 24 | English • Replace spark plug cap, then replace cap. Standard spark plug: A5RTC Spark plug gap: 0.7 - 0.8mm (0.028-0.031 in) Spark plug torque: 20.0Nm (14.8ft-lb) （Spark plug window） Carburetor adjustment The carburetor is low emission and is equipped with a non-adjustable idle mixture valve.
-
Page 25: Air Filter
| English 30 oil is recommended for general use. • Note: Make sure the generator is level when adding oil to prevent overfilling which could cause engine damage. • Check the oil level. The oil level should be just below the edge of the hole as shown. - Page 26 | English • Reinsert the foam element into the air filter case. ⚠ CAUTION Do not run the generator without reinstalling the foam element or excessive piston and cylinder wear may result. Checking muffler and spark arrester Inspect muffler for cracks, corrosion, or other damage. Loosen bolt, then remove muffler cap, muffler screen, and spark arrester.
- Page 27 | English • Clean filter with gasoline. • Wipe the filter with a clean rag. • Install filter • Install fuel cap. Fuel filter • To clean, remove screws, remove outer casing, and drain fuel. • Lift and hold onto the clamp, then remove hose from tank.
- Page 28 | English Engine • Remove spark plug. Pour about 1 TBL of SAE 10W-30 engine oil into the spark plug hole, then reinstall spark plug. • With the 3 in 1 switch in the “OFF” position, pull the recoil starter several times to coat cylinder walls with oil.
- Page 29 | English Problem Cause Solution 1. DC circuit breaker is 1. Turn DC circuit breaker “OFF” “ON” 2. Green AC pilot light 2. Stop engine and restart. Indicator is off. Generator is running, but 3. Poor connection 3. Check and repair does not supply power.
- Page 30 | English 1. Choke was removed too 1. Move to choke until soon engine runs evenly Engine “hunts” or falters 2. Clogged fuel filter 2. Clean or replace fuel filter 3. Carburetor is running too 3. Contact service rich or too lean department...
- Page 31 | English...
- Page 33 TOTAL TOOLS WORLD MADE IN CHINA T0823.V01 NEWWAY TECHNOLOGY (SUZHOU) CO., LIMITED No. 20 Dagang Road, Fuqiao Town, Taicang City, China...
