Total Carbone TP2100K1 Manual

Diesel generator
Hide thumbs

Advertisement

Table of Contents

Marca: Total Tools
Voltaje: 110 - 220V~50/60Hz
Capacidad nominal: 15Kw /Máx 20Kw
Fase: Monofásico
Velocidad: 1500 RPM
Alternador: sin escobillas
Motor: 4 tiempos / 4 cilindros
Desplazamiento: 2.15
Potencia
15Kw
min
MAX
1500
20Kw
FICHA TÉCNICA
Producto: Generador Diésel Súper Silencioso
Generador Diésel Súper Silencioso una
DESCRIPCIÓN:
capacidad nominal de 15Kw /Máx 20Kw. Monofásico de una
velocidad total de 1500 RPM, su alternador es sin escobillas
con alambre de cobre. Motor de 4 tiempos de 4 cilindros
refrigerado por agua, eléctrico con una garantía de 3 meses
y un peso de 840 Kg.
UTP2150K1
CÓDIGO:
ATS: No integrado
Refrigeración: Enfriado por agua
Encendido: Eléctrico
Protección: contra falta de agua, aumento de
temperatura y nivel de aceite
Garantía: 3 meses
Peso: 840 Kg.
Procedencia: Importado
1
-
tiempos
1
Generadores
Alternador
Alambre de cobre
Motor
de 4
840

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Carbone TP2100K1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Total Carbone TP2100K1

Summary of Contents for Total Carbone TP2100K1

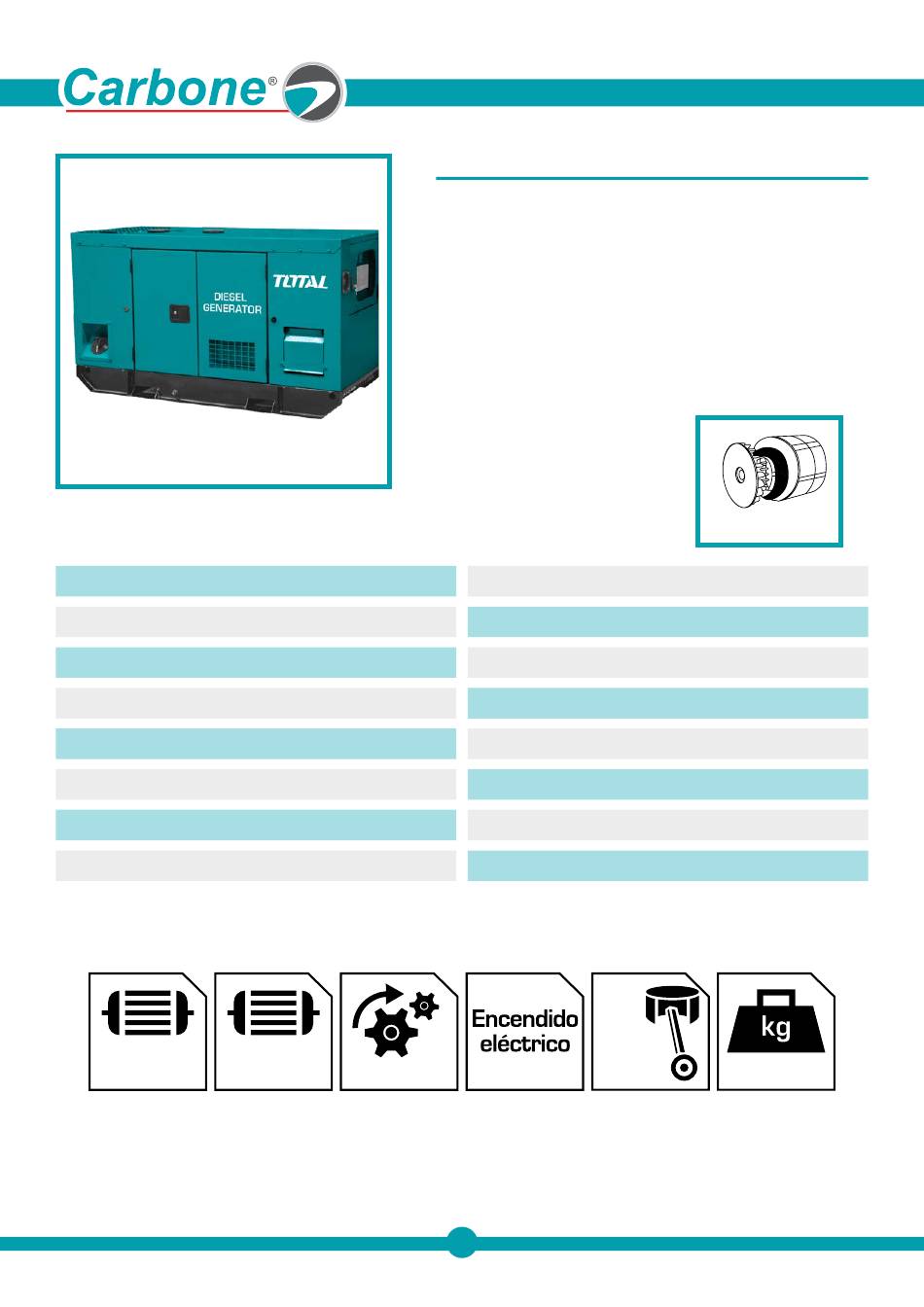

  • Page 1 DESCRIPCIÓN: capacidad nominal de 15Kw /Máx 20Kw. Monofásico de una velocidad total de 1500 RPM, su alternador es sin escobillas con alambre de cobre. Motor de 4 tiempos de 4 cilindros refrigerado por agua, eléctrico con una garantía de 3 meses y un peso de 840 Kg.
  • Page 2 One-Stop Tools Station DIESEL GENERATOR TP2100K1 TP2100K1-1 UTP2100K1 UTP2100K1-1 TP2100K1-5 TP2100K1-5-1 TP2100K3 TP2100K3-1 UTP2100K3 UTP2100K3-1 TP2100K3-5 TP2100K3-5-1 TP2150K1 TP2150K1-1 UTP2150K1 UTP2150K1-1 TP2150K1-5 TP2150K1-5-1 TP2150K3 TP2150K3-1 UTP2150K3 UTP2150K3-1 TP2150K3-5 TP2150K3-5-1 UTP2300K1 UTP2300K1-1 TP2300K3 TP2300K3-1 UTP2300K3 UTP2300K3-1 TP2300K3-5 TP2300K3-5-1 UTP2500K1 UTP2500K1-1 TP2500K3 TP2500K3-1 UTP2500K3 UTP2500K3-1 TP2500K3-5 TP2500K3-5-1...
  • Page 3 GENSET INSTALLATION MANUAL FOREWORD This installation manual will guide you to the factors to be considered in the installation of your diesel generator system. It discusses location and mounting of the generating set; size of room; ventilation and air flow; engine cooling water supply or radiator location;...
  • Page 4 Item No. TP2100K1 TP2100K1-1 UTP2100K1 UTP2100K1-1 TP2100K1-5 TP2100K1-5-1 Rated AC voltage(V) 220,230,240 110-120/220-240 220,230,240 Rated frequency(Hz) Rated AC output(kW) Phase number Power factor Brushless, Brushless, Brushless, Excitation mode Self-exciting Self-exciting Self-exciting Diesel, Diesel, Diesel, direct injection, direct injection, direct injection, Type 4-cycle,vertical 4-cycle,vertical...
  • Page 5 Item No. TP2150K1 TP2150K1-1 UTP2150K1 UTP2150K1-1 TP2150K1-5 TP2150K1-5-1 Rated AC voltage(V) 220,230,240 110-120/220-240 220,230,240 Rated frequency(Hz) Rated AC output(kW) Phase number Power factor Brushless, Brushless, Brushless, Excitation mode Self-exciting Self-exciting Self-exciting Diesel, Diesel, Diesel, direct injection, direct injection, direct injection, Type 4-cycle,vertical 4-cycle,vertical...
  • Page 6 Item No. UTP2300K1 UTP2300K1-1 TP2300K3 TP2300K3-1 UTP2300K3 UTP2300K3-1 TP2300K3-5 TP2300K3-5-1 Rated AC voltage(V) 11-120/220-240 220/380,230/400,240/415 11-120/220-240 220/380,230/400,240/415 Rated frequency(Hz) Rated AC output(kW) Phase number Power factor Brushless, Brushless, Brushless, Brushless, Excitation mode Self-exciting Self-exciting Self-exciting Self-exciting Diesel, Diesel, Diesel, Diesel, direct injection, direct injection, direct injection,...

  • Page 7: Table Of Contents

    GENSET INSTALLATION MANUAL TABLE OF CONTENTS 1. INSTALLATION FACTORS 2. MOVING THE GENERATING SET 3. GENERATING SET LOCATION 4. GENERATING SET MOUNTING 5. VENTILATION 6. ENGINE EXHAUST 7. EXHAUST SILENCING 8. SOUND ATTENUATION 9. ENGINE COOLING 10. FUEL SUPPLY 11. SELECTING FUELS FOR STANDBY DEPENDABILITY 12.

  • Page 8: Installation Factors

    GENSET INSTALLATION MANUAL 1. INSTALLATION FACTORS Never lift the generating set by attaching to the engine or alternator lifting lugs! Once the size of the generating set and the required associated control panel For lifting the generating set, lift points are switchgear have been established, plans for provided on the base frame.

  • Page 9: Ventilation

    4.2 Floor Loading radiator, the radiator fan must move large quantities of air through the radiator core. There Floor loading depends on the total generating must be enough temperature difference between weight (including fuel and water) and the the air and the water in the radiator to cool the number and size of isolator pads.
  • Page 10 GENSET INSTALLATION MANUAL...
  • Page 11 GENSET INSTALLATION MANUAL...

  • Page 12: Engine Exhaust

    See figure 6.1. using the total heat radiation to the ambient air of the engine and alternator and any part of the It is not normally recommended that the engine exhaust system.
  • Page 13 GENSET INSTALLATION MANUAL...
  • Page 14 Elbow restriction is most conveniently handled by engine horsepower output, durability and fuel calculating an equivalent length of straight pipe for consumption. Restricting the discharge of gases each elbow and adding it to the total length of pipe. elbows flexible...

  • Page 15: Exhaust Silencing

    GENSET INSTALLATION MANUAL backpressure within limits recommended by the Flexible Sections: engine manufacturer. Length(ft): 0.167 × Diameter (inches) Silencers are rated according to their degree of The following formula is used to calculate the silencing by such terms as "low degree" or backpressure of an exhaust system: "industrial", "moderate"...

  • Page 16: Sound Attenuation

    GENSET INSTALLATION MANUAL reduces exhaust system noise. Silencers mounted coolant-to-raw water (heat exchanger) types. horizontally should be set at a slight angle away from the engine outlet with a drain fitting at the In the most common generating set installation, lowest point allow...
  • Page 17 GENSET INSTALLATION MANUAL Set mounted radiators are of two types. One type is used with the cooling fan mounted on the engine. The It is recommended that a set-mounted radiator's Discharge air should flow directly outdoors through a duct that connects the radiator to an opening in an outside wall.

  • Page 18: Fuel Supply

    GENSET INSTALLATION MANUAL A remote radiator with electric motor-driven can be Ethylene glycol permanent antifreeze installed in any convenient location away from the recommended for diesel engines. It includes its generating set. See figure 9.2. own corrosion inhibitor, which eventually may have to be replenished.
  • Page 19 GENSET INSTALLATION MANUAL the engine, fuel from the bulk tank is strained just Where a remote fuel system is to be installed with prior to the electric fuel pump. When the base tank a bulk storage tank, the bulk tank may be located is full, as sensed by the fuel level sensor, the pump stops.
  • Page 20 GENSET INSTALLATION MANUAL valve is closed. Any overflow into the base tank or Fuel System 4: Some installations may require a overpressure in the base tank will flow back to the system where fuel is pumped from a freestanding bulk tank via the extended vent. bulk tank (see Figure 10.4).
  • Page 21 GENSET INSTALLATION MANUAL The key components are the bulk fuel tank (item should extend below the minimum fuel level in the 1), the day tank (item 2), remote fuel system tank. Where practical, a low point in the tank controls (item 3) located in a separate custom built should be equipped with a drain valve or plug, in an accessible location, to allow periodic removal of panel, an AC Fuel Pump (item 4), a DC motorized...

  • Page 22: Selecting Fuels For Standby Dependability

    GENSET INSTALLATION MANUAL generating sets, the day tank should have the fuels. As a result, some diesel fuel systems must following capacity to absorb excess heat in undergo major modifications to accommodate this addition to the fuel required for operation: type of fuel.
  • Page 23 GENSET INSTALLATION MANUAL Other solutions are to add inhibitors to the fuel or to obtain greater turnover by using the fuel for other purposes. A gum inhibitor added to diesel fuel will keep it in good condition up to two years. If the building furnace has an oil burner, it possible to bum diesel fuel in the furnace, connecting both the engine and the furnace to the...

  • Page 24: Tables And Formulas For Engineering Standby Generating Sets

    GENSET INSTALLATION MANUAL 12. TABLES AND FORMULAS FOR ENGINEERING STANDBY GENERATING SETS Table 1. Length Equivalents Unit Microns Meters Kilometers Inches Feet Yards Miles 1 Micron 0.000001 0.00003937 1 Meter 1,000,000 39.37 3.281 1.0936 1Kilometre 1000 39,370 3281 1093.6 0.621 1 Inch 25,400 0.0254...
  • Page 25 GENSET INSTALLATION MANUAL Table 4. Volume and Capacity Equivalents US Liquid Imperial Inches Feet Yards Meters Liters Unit Gallons Gallons 0.000579 0.0000214 0.0000164 0.004329 0.00359 0.0164 1 Inch 1728 0.03704 0.0283 7.481 6.23 28.32 1 Ft. 46656 0.765 168.35 764.6 1 Yd.
  • Page 26 GENSET INSTALLATION MANUAL Table 7. Conversions for Measurements of Water Gay. Head Head Unit Feet Pounds Liters Lb/in Ton/Ft /Min (U.S)/ (U.S) (IMP) (Ft) Feet 62.42 Pounds 0.016 0.12 0.10 0.4536 8.34 Gal (U.S) 10.0 Gal (IMP) Liters 2.2046 Head (Ft) 4.335 0.703 Lb/in...
  • Page 27 GENSET INSTALLATION MANUAL Table 9. Conversions of Units of Flow Million U.S Unit Feet /Second Meters /Hour Liters/Second Gallons/Minute Gallons/Day 1 U.S 0.001440 0.00223 0.2271 0.0630 Gallon/Minute 1 Million U.S 694.4 1.547 157.73 43.8 Gallons/Day 1 Foot /Second 448.86 0.646 101.9 28.32 1 Meter...
  • Page 28 GENSET INSTALLATION MANUAL Table 12. Electrical formulae Three-Phase Desired Data Single Phase Direct Current I x V x PF I x V x lx V x PF Kilowatts (kW) 1000 1000 1000 I x V x V x E Kilovolt- 1000 Amperes kVA 1000...
  • Page 29 GENSET INSTALLATION MANUAL TABLE 13. kVA/kW AMPERAGE AT VARIOUS VOLTAGES (0.8 Power Factor) 208V 220V 240V 380V 400V 440V 460V 480V 600V 2400V 3300V 4160V 17.5 16.5 15.2 26.1 24.7 22.6 14.3 13.6 12.3 11.3 12.5 34.7 30.1 19.2 18.2 16.6 16.2 15.1...

  • Page 30: Glossary Of Terms

    GENSET INSTALLATION MANUAL 13. GLOSSARY OF TERMS ALTERNATING CURRENT (AC) - A current which periodically reverses in direction and changes its magnitude as it flows through a conductor or electrical circuit. The magnitude of an alternating current rise from zero to maximum value in one direction, returns to zero, and then follows the same variation in the opposite direction.
  • Page 31 EFFIIENCY - The efficiency of a generating set shall be defined as the ratio of its useful power output to its total power rapt expressed as a percentage. FREQUENCY - The number of complete cycles of an alternating voltage or current per unit of time, usual second.
  • Page 32 GENSET INSTALLATION MANUAL temperature rises. RATED POWER – The stated or guaranteed net electric output which is obtainable continuously from a generating set when it is functioning at rated conditions, lf the set is equipped with additional power product devices, then the stated or guaranteed net electric power must take into consideration that the auxiliaries are delivering their respective stated or guaranteed net output simultaneously, unless otherwise agreed to.
  • Page 33 One-Stop Tools Station DIESEL GENERATOR DIESEL GENERATOR www.totaltools.cn TOTAL TOOLS CO.,LIMITED MADE IN CHINA T0815.V03...
