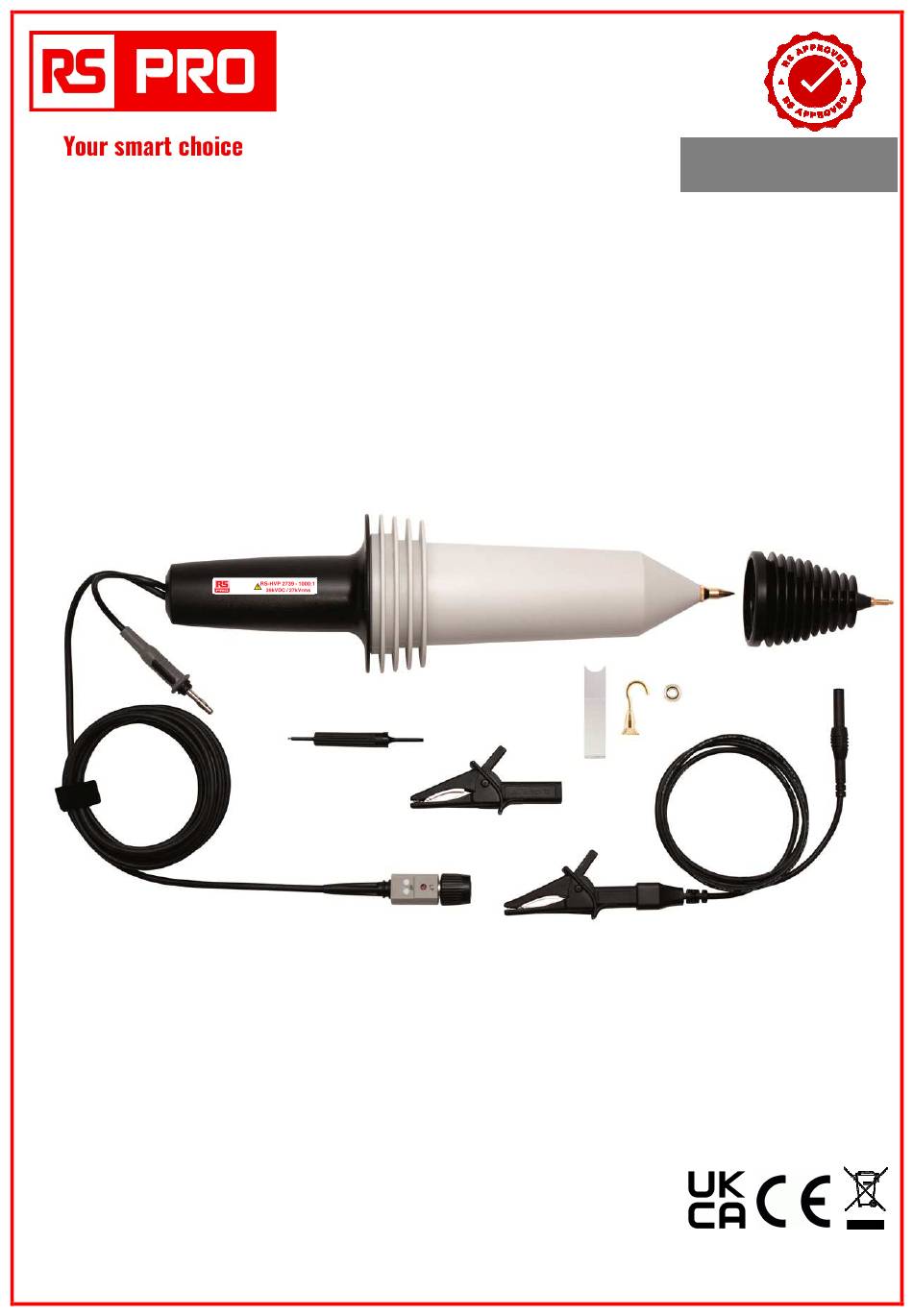

- Page 1 ENGLISH RS-HVP 2739 HIGH-FREQUENCY HIGH-VOLTAGE PROBE 50MHz / 39kV DC / 27kV AC RS Part-No. 2387411...
-
Page 2: Table Of Contents
ENGLISH TABLE OF CONTENTS 1. SPECIFICATIONS ................ 3 2. SAFETY PRECAUTIONS ............. 4 3. WARNINGS ................... 6 4. OPERATION ................. 7 5. COMPENSATION ADJUSTMENT ..........8 6. VOLTAGE DERATING CURVE ..........10 7. CLEANING .................. 10... - Page 3 ENGLISH ATTENTION! PLEASE READ! This Instruction Manual must be read thoroughly and understood completely prior to using this high voltage probe. This probe is designed to prevent accidental shock to the operator when properly used. However, improper procedures or incorrect analysis of the measurement situation can result in serious shock or even death! Strictly observe all safety precautions and warnings.
-
Page 4: Specifications
ENGLISH 1. SPECIFICATIONS Model RS-HVP 2739 Division Ratio 1000:1 Input Resistance 900MΩ Input Capacitance 2.0pF Max. DC+AC peak 39kV no measurement category Max. AC RMS. 27kV no measurement category Max. Loading Current 45µA Band Width DC ~ 50MHz Rise Time Signal / Noise >60dB @ 1KHz ;... -
Page 5: Safety Precautions
ENGLISH 2. SAFETY PRECAUTIONS • This high voltage probe must only be used by personnel who are trained, experienced, or otherwise qualified to recognize hazardous situations and who are trained in the safety precautions that are necessary to avoid possible injury when using such a device. - Page 6 ENGLISH • The probe body should be kept clean and free of any con- ductive contamination. Refer to the section on Cleaning. • The probe is for indoor use only. • If possible, always turn the high voltage source off before connection or disconnection the probe.
-
Page 7: Warnings
ENGLISH 3. WARNINGS • The ground lead is critical to the safe operation of the probe. Failure to make this connection when making high voltage measurements may result in personal injury or damage to the probe or oscilloscope. This connection must always be made BEFORE the probe tip comes in contact with the high voltage and must not be removed until the probe tip has been removed from the high voltage source. -
Page 8: Operation
ENGLISH 4. OPERATION 1. Connect the divider probe common lead (alligator clip) to a good earth ground or reliable ground. 2. Connect the BNC connector to the BNC input of your oscilloscope. 3. Select the desired range and -depending on model- attenuation coefficient in your oscilloscope settings. -
Page 9: Compensation Adjustment
ENGLISH 5. COMPENSATION ADJUSTMENT The following adjustment is required whenever the probe is transferred from one oscilloscope or input channel to another. Connect the probe to the oscilloscope, apply a 200Hz square wave to the probe tip and adjust the oscilloscope controls to display a few cycles of the waveform. - Page 10 ENGLISH WARNING, RISK OF DANGER! The RS-HVP 2739 adjustment holes 2 and 3 are for the qualified engineer only. (2) Before adjusting hole 2 and hole 3, please move off the plastic cover at first. (3) Use the supplied adjust bar only.
-
Page 11: Voltage Derating Curve
ENGLISH 6. VOLTAGE DERATING CURVE ... 7. CLEANING Clean only the exterior probe body and cables. Use a soft cotton cloth lightly moistened with a mild solution of detergent and water. Do not allow any portion of the probe to submerge at any time. - Page 12 All data is provided to the best of our knowledge and awareness and is subject to error and amendment. For more information, please visit www.rs-components.com...
