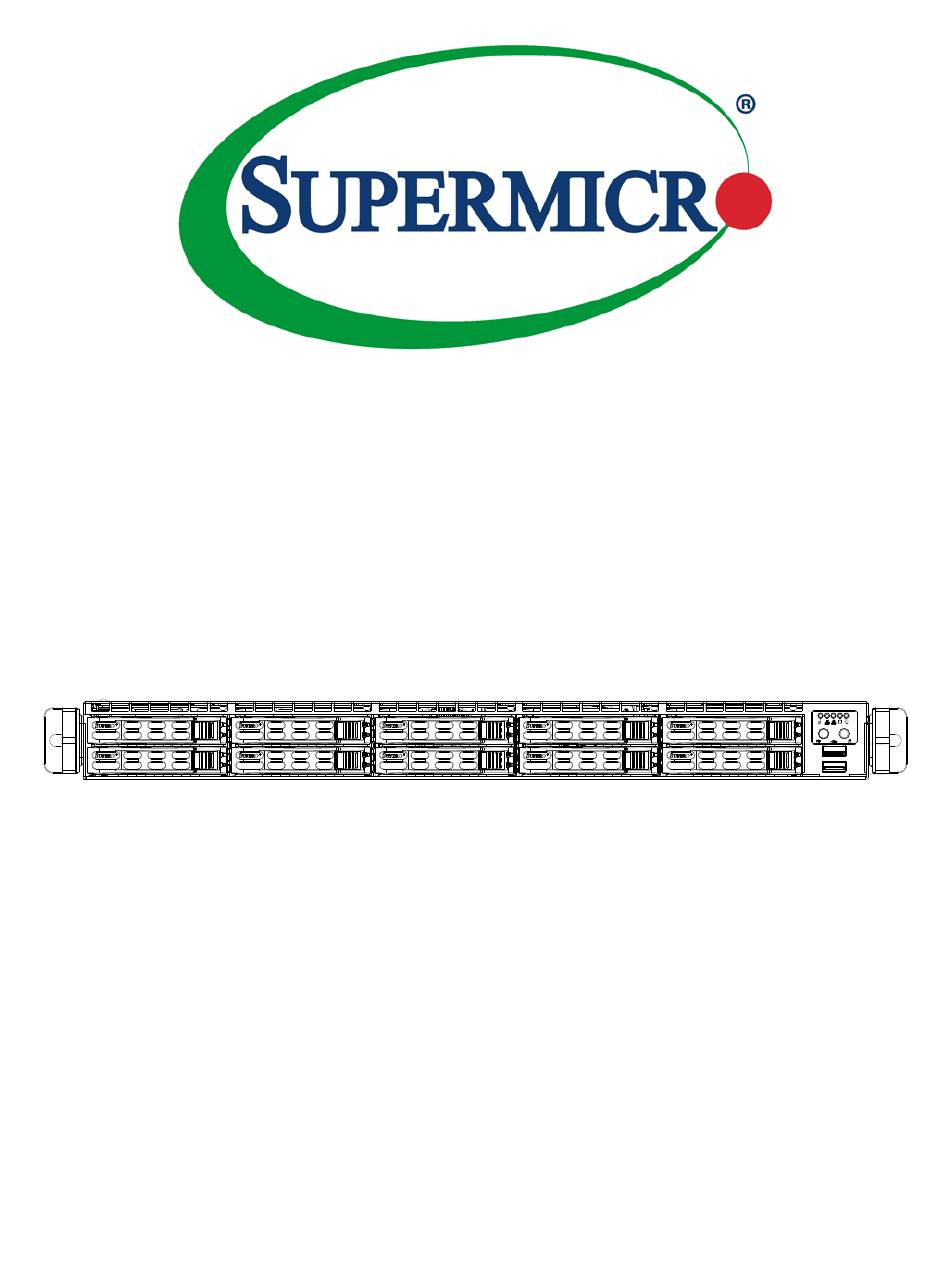

- Page 1 A+ Server AS -1114S-WN10RT AS -1114S-WN10RT-EU USER’S MANUAL Revision 1.0a...
- Page 2 State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
-
Page 3: About This Manual
If you have any questions, please contact our support team at: support@supermicro.com This manual may be periodically updated without notice. Please check the Supermicro website for possible updates to the manual revision level. Secure Data Deletion A secure data deletion tool designed to fully erase all data from storage devices can be found on our website: https://www.supermicro.com/about/policies/disclaimer.cfm?url=/wdl/utility/... -
Page 4: Table Of Contents
Preface Contents Chapter 1 Introduction 1.1 Overview ..........................8 1.2 Unpacking the System ......................8 1.3 System Features ........................9 1.4 Server Chassis Features ....................10 Control Panel ........................10 Front Features ........................11 Rear Features ........................11 1.5 Motherboard Layout ......................12 Quick Reference Table ......................13 Chapter 2 Server Installation 2.1 Overview ..........................15 2.2 Preparing for Setup ......................15 Choosing a Setup Location ....................15... - Page 5 A+ Server AS -1114S-WN10RT/WN10RT-EU User's Manual Memory Support and Installation ..................31 Memory Support ......................31 DIMM Module Population ....................32 DIMM Installation ......................33 DIMM Removal ......................33 PCI Expansion Card Installation ..................34 Motherboard Battery ......................36 3.4 Chassis Components ......................37 Hard Drives ........................37 Hard Drive Carrier Indicators ..................37 Installing an M.2 Solid State Drive ..................40 Air Shroud .........................42 Checking the Airflow ......................42...
- Page 6 Preface 6.3 Advanced ..........................68 6.4 IPMI ............................88 6.5 Event Logs .........................91 6.6 Security ..........................93 6.7 Boot ............................97 6.8 Save & Exit .........................99 Appendix A Standardized Warning Statements for AC Systems Appendix B System Specifications...
-
Page 7: Contacting Supermicro
Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Website: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML... -
Page 8: Overview
A+ Server AS -1114S-WN10RT/WN10RT-EU User's Manual Chapter 1 Introduction 1.1 Overview This chapter provides a brief outline of the functions and features of the AS -1114S-WN10RT/WN10RT-EU. The AS -1114S-WN10RT/WN10RT-EU is based on the H12SSW-NTR motherboard and the CSE-116TS chassis. Main Parts List Description Part Number Quantity... -
Page 9: System Features
Chapter 1: Introduction 1.3 System Features The following table provides you with an overview of the main features of the AS -1114S-WN10RT/WN10RT-EU. Please refer to Appendix C for additional specifications. System Features Motherboard H12SSW-NTR Chassis CSE-116TS Single AMD EPYC™ 7002 Series Processor Socket Type SP3 socket Memory... -
Page 10: Server Chassis Features
A+ Server AS -1114S-WN10RT/WN10RT-EU User's Manual 1.4 Server Chassis Features Control Panel There are two buttons located on the front of the chassis: a power on/off button and a UID button. In addition there are five LEDs. The locations of these buttons and LEDs on the control panel are described below. -
Page 11: Front Features
Chapter 1: Introduction Front Features The CSE-116TS is a 1U chassis. See the illustration below for the features included on the front of the chassis. Figure 1-2. Chassis Front View Front Chassis Features Item Feature Description Drive Bays (10) Drive bays for 2.5" hot-swap drive carriers Control panel for the server. -
Page 12: Motherboard Layout
A+ Server AS -1114S-WN10RT/WN10RT-EU User's Manual 1.5 Motherboard Layout Below is a layout of the H12SSW-NTR with jumper, connector and LED locations shown. See the table on the following page for descriptions. For detailed descriptions, pinout information and jumper settings, refer to Chapter 4. USB 2/3 LAN 2 COM1... -
Page 13: Quick Reference Table
Chapter 1: Introduction Quick Reference Table Jumper Description Default Setting UID SW Unit ID switch (push-button toggle switch ON/OFF) JBT1 Clear CMOS Open (Normal) JWD1 Watch Dog control Pins 1-2 (Reset) JPL1 LAN Enable/Disable Pins 1-2 (Enabled) Description Status LED1 UID LED Blue: UID Activated LED6... - Page 14 A+ Server AS -1114S-WN10RT/WN10RT-EU User's Manual H12SSW-NTR IPMI LAN RJ45 AMD SP3 Rev. 1.01 Rear USB 3.0 10Gb LAN 10Gb LAN RJ45 RJ45 Rear SXB1 SXB2 USB 3.0 COM1 RX 0-7 RX 15-8 ASM1042 ASM1042 TX 0-7 TX 15-8 USB controller USB controller CPU P3 [10] TX 0-15...
-
Page 15: Chapter 2 Server Installation
Chapter 2: Server Installation Chapter 2 Server Installation 2.1 Overview This chapter provides advice and instructions for mounting your system in a server rack. If your system is not already fully integrated with processors, system memory etc., refer to Chapter 4 for details on installing those specific components. Caution: Electrostatic Discharge (ESD) can damage electronic components. -
Page 16: Server Precautions
A+ Server AS -1114S-WN10RT/WN10RT-EU User's Manual • In single rack installations, stabilizers should be attached to the rack. In multiple rack in- stallations, the racks should be coupled together. • Always make sure the rack is stable before extending a server or other component from the rack. -
Page 17: Circuit Overloading
Chapter 2: Server Installation Circuit Overloading Consideration should be given to the connection of the equipment to the power supply circuitry and the effect that any possible overloading of circuits might have on overcurrent protection and power supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern. -
Page 18: Assembling The Outer Rails
A+ Server AS -1114S-WN10RT/WN10RT-EU User's Manual 2.3 Installing the Rails There are a variety of rack units on the market, which may require a slightly different assembly procedure. This rail set fits a rack between 25.6" and 33" deep. The following is a basic guideline for installing the system into a rack with the rack mounting hardware provided. -
Page 19: Installing The Outer Rails
Chapter 2: Server Installation Installing the Outer Rails Each end of the assembled outer rail includes a bracket with square pegs to fit into your rack holes. If you have an older rack with round holes, these brackets must be removed, and you must use screws to secure the rail to the rack. -
Page 20: Installing The Server Into A Rack
A+ Server AS -1114S-WN10RT/WN10RT-EU User's Manual Stability hazard. The rack stabilizing mechanism must be in place, or the rack must be bolted to the floor before you slide the unit out for servicing. Failure to stabilize the rack can cause the rack to tip over. 2.4 Installing the Server into a Rack You should now have rails attached to both the chassis and the rack. -
Page 21: Installing The Chassis Into A Telco Rack
Chapter 2: Server Installation Installing the Chassis into a Telco Rack To install the chassis into a Telco or post-style rack, use two L-shaped brackets on either side of the chassis (four total). First, determine how far follow the server will extend out the front of the rack. -
Page 22: Chapter 3 Maintenance And Component Installation
A+ Server AS -1114S-WN10RT/WN10RT-EU User's Manual Chapter 3 Maintenance and Component Installation This chapter provides instructions on installing and replacing main system components. To prevent compatibility issues, only use components that match the specifications and/or part numbers given. Installation or replacement of most components require that power first be removed from the system. - Page 23 Chapter 3: Maintenance and Component Installation Figure 3-1. Removing the Chassis Cover Note: Graphics in this manual are for illustration purposes only. Your components may look slightly different.
-
Page 24: Motherboard Components
CPU socket cap is in place and none of the socket pins are bent; otherwise, contact your retailer immediately. • Refer to the Supermicro website for updates on CPU support. All graphics in this manual are for illustration only. Your components may look different. Installing the Processor and Heatsink Begin by removing power from the system as descrbed in Section 3.1. - Page 25 Chapter 3: Maintenance and Component Installation 2. The spring-loaded force frame will raise up after the last screw securing it (#1) is removed. Gently allow it to lift up to its stopping position. Figure 3-3. Raising the Force Frame 3. Lift the rail frame up by gripping the lift tabs near the front end of the rail frame. While keeping a secure grip of the rail frame, lift it to a position so you can do the next step of removing the external cap.
- Page 26 A+ Server AS -1114S-WN10RT/WN10RT-EU User's Manual 4. Remove the external cap from the rail Frame by pulling it upwards through the rail guides on the rail frame. Remove the PnP cover cap. External Cap PnP Cover Cap Figure 3-5. Removing the External Cap 5.
- Page 27 Chapter 3: Maintenance and Component Installation Note: You can only install the CPU inside the socket in one direction with the handle at the top. Make sure that it is properly inserted into the CPU socket before closing the rail frame plate.
- Page 28 A+ Server AS -1114S-WN10RT/WN10RT-EU User's Manual 10. Place and re-screw the screws in the reverse order to the way you removed them (holes 1-2-3 in order). When finished, the force frame will be secure over both the rail frame and CPU package.. Caution: The screw tightening sequence of 1-2-3 must be executed in the proper sequence to avoid catasrophic damage to the socket or CPU package.
- Page 29 Chapter 3: Maintenance and Component Installation 11. Lower the heatsink down till it rests securely on CPU Package over the four screw. Figure 3-10. Mounting the Heatsink 12. Using a diagonal pattern, tighten the four screws down on the heatsink in a clockwise fashion till it is secure.
-
Page 30: Removing A Heatsink
A+ Server AS -1114S-WN10RT/WN10RT-EU User's Manual Removing a Heatsink We do not recommend removing the heatsink. If necessary, please follow the instructions below to prevent damage to the CPU or the CPU socket. Note: Wait for the heatsink to cool down before removing it. 1. -
Page 31: Memory Support And Installation
Chapter 3: Maintenance and Component Installation Memory Support and Installation Note: Check the Supermicro website for recommended memory modules. Important: Exercise extreme care when installing or removing DIMM modules to prevent any possible damage. Memory Support The H12SSW-NTR supports up to 4TB Registered ECC DDR4 3200MHz RDIMM/ LRDIMM/3DS/NVDIMM in 16 DIMM slots. -
Page 32: Dimm Module Population
A+ Server AS -1114S-WN10RT/WN10RT-EU User's Manual DIMM Module Population There is no specific order or sequence required when installing memory modules. However do keep the following in mind: • Always use DDR4 DIMM modules of the same type, size and speed. •... -
Page 33: Dimm Installation
Chapter 3: Maintenance and Component Installation DIMM Installation 1. Insert the desired number of DIMMs into the memory slots, there is no specific sequence or order required Receptive 2. Push the release tabs outwards on both Point ends of the DIMM slot to unlock it. 3. -
Page 34: Pci Expansion Card Installation
A+ Server AS -1114S-WN10RT/WN10RT-EU User's Manual PCI Expansion Card Installation The system includes two pre-installed riser cards: RSC-RW-6, for a low-profile PCI-E x16 card, and RSC-W-66G4, which supports two FHFL PCI-E x16 cards. Riser cards position the expansion cards at a 90 degree angle, allowing them to fit inside the 1U chassis. Installing PCI Expansion Cards The riser cards have already been pre-installed into the motherboard. - Page 35 Chapter 3: Maintenance and Component Installation Figure 3-4. Installing Riser Card to Bracket Note: Graphics in this manual are for illustration purposes only. Your components may look slightly different. Figure 3-5. PCI Expansion Card Chassis Slots Expansion Card Configurations Slot Mechanical Electrical Low profile, half length Full height, half length...
-
Page 36: Motherboard Battery
A+ Server AS -1114S-WN10RT/WN10RT-EU User's Manual Motherboard Battery The motherboard uses non-volatile memory to retain system information when system power is removed. This memory is powered by a lithium battery residing on the motherboard. Replacing the Battery Begin by removing power from the system as described in section 3.1. 1. -
Page 37: Chassis Components
Chapter 3: Maintenance and Component Installation 3.4 Chassis Components Hard Drives Your server may or may not have come with hard drives installed. Up to ten 2.5" hard drives are supported by the chassis. The drives offer U.2 NVMe support and may also be configured to accommodate SATA3 drives with the use of special cables (optional). - Page 38 3. Grasp the handle and use it to pull the drive carrier out of its bay. Figure 3-7. Removing a Drive Carrier Note: Enterprise level storage drives are recommended for use in Supermicro chassis and servers. For information on recommended drives for AS -1114S-WN10RT/WN10RT-EU, visit...
- Page 39 Chapter 3: Maintenance and Component Installation Mounting a Drive in a Drive Carrier 1. Remove the dummy drive, which comes pre-installed in the drive carrier, by removing the screws securing the dummy drive to the carrier. Note that these screws cannot be reused on the actual 2.5"...
-
Page 40: Installing An M.2 Solid State Drive
A+ Server AS -1114S-WN10RT/WN10RT-EU User's Manual Installing an M.2 Solid State Drive Note: There are some thermal limitations with M.2 drives. Please contact Supermicro Support before installing an M.2 device. The motherboard can accommodate an M.2 solid state drive (SSD). The M.2 socket supports NVMe PCI-E 4.0 x2 or SATA SSD cards in the 2280 or 22110 form factors. - Page 41 Chapter 3: Maintenance and Component Installation Installing an M.2 2280 Device 1. Power down the system as described in Section 3.1 and then remove the top chassis cover as described in Section 3.2. 2. To loosen the M.2 plastic standoff on the motherboard, lift up its top square latch, and use gentle force to pull it out of the hole.
-
Page 42: Air Shroud
A+ Server AS -1114S-WN10RT/WN10RT-EU User's Manual Air Shroud Air shrouds concentrate airflow to maximize fan efficiency. The CSE-116TS chassis air shroud does not require screws to set up. Air Shroud Installation 1. Begin by removing power from the system as described in Section 3.1. Remove the chassis cover as described in Section 3.2. -
Page 43: System Cooling
3. Unplug the fan cable from the motherboard and remove the failed fan from the chassis. 4. Replace the failed fan with an identical 4-cm fan, available from Supermicro. 5. Push the new fan into the vacant space in the housing while making sure the arrows on the top of the fan (indicating air direction) point in the same direction as the arrows on the other fans. -
Page 44: Power Supply
Replacement units can be ordered directly from Supermicro (see contact information in the Preface). The hot-swap capability of the power supply modules allows you to replace the failed module without powering down the system. -
Page 45: Chapter 4 Motherboard Connections
Chapter 4: Motherboard Connections Chapter 4 Motherboard Connections This section describes the connections on the motherboard and provides pinout definitions. Note that depending on how the system is configured, not all connections are required. The LEDs on the motherboard are also described here. A severboard layout indicating component locations may be found in Chapter 1. -
Page 46: Connectors And Headers
A+ Server AS -1114S-WN10RT/WN10RT-EU User's Manual 12V 8-pin Auxilliary Power Connector (JPWR1) JPWR1 is an 8-pin ATX power input to provide auxiliary power to the processor. Refer to the table below for pin definitions. 12V 8-pin Power Connector Pin Definitions Pins Definition 1 through 4... - Page 47 Chapter 4: Motherboard Connections SATA (SATA0, SATA1) The H12SSW-NTR has two available SATA 3.0 ports (SATA0 and SATA1) on the motherboard. These are standard SATA 3.0 ports via Asmedia 1061. SATA Connectors Pin Definitions Pin# Signal Ground SATA_TXP SATA_TXN Ground SATA_RXN SATA_RXP Ground...
- Page 48 It enables the motherboard to deny access if the TPM associated with the hard drive is not installed in the system. Please go to the following link for more information on TPM: http://www.supermicro.com/ manuals/other/TPM.pdf. Trusted Platform Module Header...
-
Page 49: Expansion Slots
Chapter 4: Motherboard Connections Expansion Slots The motherboard features several expansion slots. The table below describes each slot's type and speed. Expansion Slots Name Description JSXB1A Riser Slot JSXB1B Riser Slot (for CPU Slot1 PCI-E 4.0 x16, Slot3, PCI-E 4.0 x16) JSXB1C Riser Slot JSXB2... - Page 50 A+ Server AS -1114S-WN10RT/WN10RT-EU User's Manual IPMB System Management Bus Header (JIPMB1) A System Management Bus header for IPMI 2.0 is located at JIPMB1. Connect the appropriate cable here to use the IPMB I C connection on your system. IPMB Header Pin Definitions Pin# Definition...
-
Page 51: Front Control Panel
JF1 contains header pins for various buttons and indicators that are normally located on a control panel at the front of the chassis. These connectors are designed specifically for use with Supermicro chassis. See the figure below for the location of JF1. 3.3V PWR LED 3.3V Stby... - Page 52 A+ Server AS -1114S-WN10RT/WN10RT-EU User's Manual HDD LED The HDD LED connection is located on pins 13 and 14 of JF1. Attach a hard drive LED cable here to display disk activity detected on the motherboard's built-in disk controllers. See the table below for pin definitions.
-
Page 53: Reset Button
Chapter 4: Motherboard Connections Reset Button The Reset Button connection is located on pins 3 and 4 of JF1. Attach the hardware reset switch from the computer case to this header to reset the system. Refer to the table below for pin definitions. -
Page 54: Ports
A+ Server AS -1114S-WN10RT/WN10RT-EU User's Manual 4.3 Ports Rear I/O Ports See the figure below for the locations and descriptions of the various I/O ports on the rear of the motherboard. Figure 4-2. Rear I/O Ports Rear I/O Ports Description Description Description COM Port... - Page 55 See previous page for the front panel UID LED header location on JF1. Note: UID can also be triggered via IPMI on the serverboard. For more information on IPMI, please refer to the IPMI User's Guide posted on our website at http://www.supermicro.com...
-
Page 56: Jumpers
A+ Server AS -1114S-WN10RT/WN10RT-EU User's Manual 4.4 Jumpers Explanation of Jumpers To modify the operation of the motherboard, jumpers are used to choose between optional settings. Jumpers create shorts between two pins to change the function associated with it. Pin 1 is identified with a square solder pad on the printed circuit board. See the motherboard layout page for jumper locations. - Page 57 Chapter 4: Motherboard Connections Watch Dog (JWD1) JWD1 controls the Watch Dog function. Watch Dog is a monitor that can reboot the system when a software application hangs. Jumping pins 1-2 will cause Watch Dog to reset the system if an application hangs. Jumping pins 2-3 will generate a non-maskable interrupt signal for the application that hangs.
-
Page 58: Led Indicators
A+ Server AS -1114S-WN10RT/WN10RT-EU User's Manual 4.5 LED Indicators LAN Port LEDs The motherboard's Ethernet ports has two LED indicators. The Activity LED is green and indicates connection and activity. The Link LED may be green, orange/amber, or off to indicate the speed of the connection. - Page 59 Chapter 4: Motherboard Connections Onboard Power OK LED (LED6) LED6 is an onboard power OK LED. When this LED6 is lit, it means the system is turned on, and all the system power rails are ready. When the system is turned off, or any one of the system power rails fail, this LED will turn off.
-
Page 60: Chapter 5 Software
USB flash or media drive, or the IPMI KVM console. 2. Go to the Supermicro web page for your motherboard and click on "Download the Latest Drivers and Utilities", select the proper driver, and copy it to a USB flash drive. - Page 61 Chapter 5: Software 4. During Windows Setup, continue to the dialog where you select the drives on which to install Windows. If the disk you want to use is not listed, click on “Load driver” link at the bottom left corner. Figure 5-2.
-
Page 62: Driver Installation
The Supermicro website contains drivers and utilities for your system at https://www. supermicro.com/wdl/driver. Some of these must be installed, such as the chipset driver. After accessing the website, go into the CDR_Images (in the parent directory of the above link) and locate the ISO file for your motherboard. Download this file to a USB flash drive or a DVD. -
Page 63: Superdoctor ® 5
5.3 SuperDoctor ® The Supermicro SuperDoctor 5 is a program that functions in a command-line or web-based interface for Windows and Linux operating systems. The program monitors such system health information as CPU temperature, system voltages, system power consumption, fan speed, and provides alerts via email or Simple Network Management Protocol (SNMP). -
Page 64: Ipmi
There are several BIOS settings that are related to IPMI. Supermicro ships standard products with a unique password for the BMC ADMIN user. This password can be found on a label on the motherboard. -
Page 65: Chapter 6 Uefi Bios
Chapter 6: UEFI BIOS Chapter 6 UEFI BIOS 6.1 Introduction This chapter describes the AMIBIOS™ Setup utility for the H12SSW-NTR motherboard. The BIOS is stored on a chip and can be easily upgraded using a flash program. Note: Due to periodic changes to the BIOS, some settings may have been added or deleted and might not yet be recorded in this manual. -
Page 66: Main Setup
Note: The time is in the 24-hour format. For example, 5:30 P.M. appears as 17:30:00. The date's default value is 01/01/2015 after RTC reset. Supermicro H12SSW-NTR BIOS Version This item displays the version of the BIOS ROM used in the system. - Page 67 Chapter 6: UEFI BIOS Build Date This item displays the date when the version of the BIOS ROM used in the system was built. CPLD Version This item displays the CPLD version of the BIOS ROM used in the system. Memory Information Total Memory This feature displays the total system memory detected.
-
Page 68: Advanced
A+ Server AS -1114S-WN10RT User's Manual 6.3 Advanced Use the arrow keys to select a top item and press <Enter> to access the submenu items. Warning: Take caution when changing the Advanced settings. An incorrect value, a very high DRAM frequency, or an incorrect DRAM timing setting may make the system unstable. - Page 69 Chapter 6: UEFI BIOS Bootup NumLock State Use this feature to set the Power on state for the <Numlock> key. The options are On and Off. Wait For "F1" If Error Use this feature to force the system to wait until the 'F1' key is pressed if an error occurs. The options are Disabled and Enabled.
-
Page 70: Trusted Computing
A+ Server AS -1114S-WN10RT User's Manual Trusted Computing Security Device Support If this feature and the TPM jumper on the motherboard are both set to Enabled, onboard security devices will be enabled for TPM (Trusted Platform Module) support to enhance data integrity and network security. -
Page 71: Super Io Configuration
Chapter 6: UEFI BIOS Super IO Configuration The following Super IO information will display: • Super IO Chip AST2500 Serial Port 1 Configuration Serial Port Select Enabled to enable the selected onboard serial port. The options are Disabled and Enabled. Device Settings This item displays the status of a serial part specified by the user. -
Page 72: Console Redirection Settings
A+ Server AS -1114S-WN10RT User's Manual *If the item above set to Enabled, the following items will become available for user's configuration: Console Redirection Settings Terminal Type This feature allows the user to select the target terminal emulation type for Console Redirection. - Page 73 Chapter 6: UEFI BIOS Recorder Mode Select Enabled to capture the data displayed on a terminal and send it as text messages to a remote server. The options are Disabled and Enabled. Resolution 100x31 Select Enabled for extended-terminal resolution support. The options are Disabled and Enabled.
- Page 74 A+ Server AS -1114S-WN10RT User's Manual Bits per second Use this feature to set the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in the host computer and the client computer. A lower transmission speed may be required for long and busy lines.
-
Page 75: Legacy Console Redirection Settings
Chapter 6: UEFI BIOS Legacy OS Redirection Resolution Use this feature to select the number of rows and columns used in Console Redirection for legacy OS support. The options are 80x24 and 80x25. Putty KeyPad This feature selects the settings for Function Keys and KeyPad used for Putty, which is a terminal emulator designed for the Windows OS. -
Page 76: Cpu Configuration
A+ Server AS -1114S-WN10RT User's Manual Terminal Type Use this feature to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII character set. Select VT100+ to add color and function key support. Select ANSI to use the extended ASCII character set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes. -
Page 77: Cpu Information
Chapter 6: UEFI BIOS Core Performance Boost This setting is used to configure for Core Performance Boost. Options include Disabled and Auto. Global C-state Control This setting is used to configure for Global C-state Control. Options include Disabled, Enabled, and Auto. Local APIC Mode This setting is used for Local APIC Mode. -
Page 78: Memory Configuration
A+ Server AS -1114S-WN10RT User's Manual • L2 Data Cache (Size/Method) • L3 Cache per Scoket (Size/Method) NB Configuration North Bridge Configuration Determinism Control Use this setting to configure the Determinism Slider. The options include Manual and Auto. cTDP Control Use this setting to configure the cTDP Control. -
Page 79: Pcie/Pci/Pnp Configuration
Chapter 6: UEFI BIOS Memory Interleaving Size This setting controls the memory interleaving size. This determines the starting address of the interleave (bit 8, 9, 10 or 11). The options are 256 Bytes, 512 Bytes, 1 KB, 2 KB or Auto. Chipset Interleaving This setting controls interleave memory blocks across the DRAM chip for node 0. - Page 80 A+ Server AS -1114S-WN10RT User's Manual PCIe ARI Support Use this setting to enable/disable Alternative Routing-ID Interpretation (ARI). The options are Disabled, Enabled and Auto. PCIe Spread Spectrum Use this setting to Disable or Enable PCI-E Spread Spectrum for your system. Target Link Speed If supported by hardware and set to Force to x.S GT/S (x being a value of 2.5, 5.0 or 8.0) for Downstream Ports, this sets an upper limit on Link Operational Speed by restricting the values...
-
Page 81: Network Stack Configuration
Chapter 6: UEFI BIOS Onboard LAN1 Option ROM Use this setting to select which option ROM is to be loaded for onboard LAN1 on the system. Options include Disabled, Legacy and EFI. Onboard LAN2 Option ROM Use this setting to select which firmware function is to be loaded for onboard LAN2 on the system. -
Page 82: Usb Configuration
A+ Server AS -1114S-WN10RT User's Manual USB Configuration Legacy USB Support Select Enabled to support onboard legacy USB devices. Select Auto to disable legacy support if there are no legacy USB devices present. Select Disable to have all USB devices available for EFI applications only. -
Page 83: Network Configuration
Chapter 6: UEFI BIOS ASMedia SATA Information This section displays information on the detected ASMedia SATA devices: • SATA Mode SATA Configuration SATA Enable This item enables or disables the onboard SATA controller supported by the Intel PCH chip. The options are Enabled and Disabled. SATA Hotplug This item enables or disables the onboard SATA controller's hot plug feature (PCH). - Page 84 A+ Server AS -1114S-WN10RT User's Manual Enter Configuration Menu Create New VLAN VLAN ID This option is an input field used to enter a unique numeric VLAN ID. The valid range is from 0~4096. Priority This option is an input field used to enter a unique numeric VLAN 802.1Q priority. The valid range is from 0~7.
-
Page 85: Iscsi Configuration
Chapter 6: UEFI BIOS Local Gateway This item sets the Gateway IP address for this computer. This should be in decimal and in dotted quad form (i.e., 172.31.0.1). Local DNS This item sets the address for the local DNS servers for this computer. This should be in decimal and in dotted quad form (i.e., 172.31.0.1). - Page 86 A+ Server AS -1114S-WN10RT User's Manual Change Attempt Order TLS Authentication Configuration This submenu allows the user to configure Transport Layer Security (TLS) settings. Server CA Configuration Enroll Certification Enroll Certification Using File Use this feature to enroll certification from a file. Certification GUID Use this feature to input the certification GUID.
- Page 87 Chapter 6: UEFI BIOS Create raw This feature allows the user to create a raw RAM disk from all available memory modules in the system. When you select this submenu and press <Enter>, the following items will display: • Size (Hex): Use this feature to set the size of the raw RAM disk. The default setting is 1. •...
-
Page 88: Ipmi
A+ Server AS -1114S-WN10RT User's Manual 6.4 IPMI This tab allows you to configure the following IPMI settings for the system. Use this feature to configure Intelligent Platform Management Interface (IPMI) settings. BMC Firmware Revision This item indicates the IPMI firmware revision used in your system. IPMI Status (Baseboard Management Controller) This item indicates the status of the IPMI firmware installed in your system. -
Page 89: Bmc Network Configuration
Chapter 6: UEFI BIOS Erasing Settings Erase SEL Select Yes, On next reset to erase all system event logs upon next system reboot. Select Yes, On every reset to erase all system event logs upon each system reboot. Select No to keep all system event logs after each system reboot. - Page 90 A+ Server AS -1114S-WN10RT User's Manual Station IP Address This item displays the Station IP address for this computer. This should be in decimal and in dotted quad form. Subnet Mask This item displays the sub-network that this computer belongs to. The value of each three- digit number separated by dots should not exceed 255.
-
Page 91: Event Logs
Chapter 6: UEFI BIOS 6.5 Event Logs This tab allows the user to configure the following event logs settings for the system. Change SMBIOS Event Log Settings This feature allows the user to configure SMBIOS Event settings. Enabling/Disabling Options SMBIOS Event Log Select Enabled to enable SMBIOS (System Management BIOS) Event Logging during system boot. -
Page 92: View Smbios Event Log
A+ Server AS -1114S-WN10RT User's Manual When Log is Full Select Erase Immediately to immediately erase all errors in the SMBIOS event log when the event log is full. Select Do Nothing for the system to do nothing when the SMBIOS event log is full. -
Page 93: Security
Chapter 6: UEFI BIOS 6.6 Security This tab allows you to configure the following security settings for the system. Administrator Password Press Enter to create a new, or change an existing Administrator password. Note that if the Administrator Password is erased, the User Password will be cleared as well. Password Check Select Setup for the system to check for a password at Setup. -
Page 94: Key Management
A+ Server AS -1114S-WN10RT User's Manual This option allows you specify when the Platform Key (PK) is enrolled. When enabled, the System Mode is user deployed, and the CSM function is disabled. Options include Disabled and Enabled . Secure Boot Mode Use this item to select the secure boot mode. - Page 95 Chapter 6: UEFI BIOS Restore DB defaults Select and press Yes to restore the DB variables to factory defaults. The options are Yes and No. Platform Key (PK) This feature allows the user to configure the settings of the platform keys. Set New Key Select Yes to load the new platform keys (PK) from the manufacturer's defaults.
- Page 96 A+ Server AS -1114S-WN10RT User's Manual Authorized TimeStamps Set New Key Select Yes to load the DBT from the manufacturer's defaults. Select No to load the DBT from a file. The options are Yes and No. Append Key Select Yes to add the DBT from the manufacturer's defaults list to the existing DBT. Select No to load the DBT from a file.
-
Page 97: Boot
Chapter 6: UEFI BIOS 6.7 Boot Use this tab to configure Boot Settings: Boot Mode Select Use this item to select the type of device that the system is going to boot from. The options are LEGACY, UEFI, and DUAL. The default setting is DUAL. Legacy to EFI Support This option Enables or Disables the system to boot to an EFI OS after the boot failed from the legacy boot order. - Page 98 A+ Server AS -1114S-WN10RT User's Manual UEFI Application Boot Priorities This feature allows the user to specify which UEFI devices are boot devices. • UEFI Boot Order #1 NETWORK Drive BBS Priorities This feature allows the user to specify which UEFI network drive devices are boot devices.
-
Page 99: Save & Exit
Chapter 6: UEFI BIOS 6.8 Save & Exit Select the Save & Exit tab to enter the Save & Exit BIOS Setup screen. Save Options Discard Changes and Exit Select this option to quit the BIOS Setup without making any permanent changes to the system configuration, and reboot the computer. - Page 100 A+ Server AS -1114S-WN10RT User's Manual Discard Changes Select this option and press <Enter> to discard all the changes and return to the AMI BIOS utility Program. Default Options Restore Optimized Defaults To set this feature, select Restore Defaults from the Save & Exit menu and press <Enter>. These are factory settings designed for maximum system stability, but not for maximum performance.
-
Page 101: Appendix A Standardized Warning Statements For Ac Systems
Supermicro's Technical Support department for assistance. Only certified technicians should attempt to install or configure components. Read this appendix in its entirety before installing or configuring components in the Supermicro chassis. These warnings may also be found on our website at http://www.supermicro.com/about/... -
Page 102: Appendix A: Warning Statements
Appendix A: Warning Statements Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut. Suchen Sie mit der am Ende jeder Warnung angegebenen Anweisungsnummer nach der jeweiligen Übersetzung in den übersetzten Sicherheitshinweisen, die zusammen mit diesem Gerät ausgeliefert wurden. -
Page 103: Installation Instructions
A+ Server AS -1114S-WN10RT/WN10RT-EU User's Manual . ٌ ا ك ً ف حالة و ٌ يك أى تتسبب ف اصابة جسذ ة ٌ هذا الزهز ع ٌ خطز !تحذ ز قبل أى تعول عىل أي هعذات،يك عىل علن بالوخاطز ال ا ٌجوة عي الذوائز ٍ... -
Page 104: Circuit Breaker
Appendix A: Warning Statements Warnung Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen lesen. ¡Advertencia! Lea las instrucciones de instalación antes de conectar el sistema a la red de alimentación. Attention Avant de brancher le système sur la source d'alimentation, consulter les directives d'installation. .יש... - Page 105 A+ Server AS -1114S-WN10RT/WN10RT-EU User's Manual Warnung Dieses Produkt ist darauf angewiesen, dass im Gebäude ein Kurzschluss- bzw. Überstromschutz installiert ist. Stellen Sie sicher, dass der Nennwert der Schutzvorrichtung nicht mehr als: 250 V, 20 A beträgt. ¡Advertencia! Este equipo utiliza el sistema de protección contra cortocircuitos (o sobrecorrientes) del edificio.
-
Page 106: Power Disconnection Warning
Appendix A: Warning Statements Power Disconnection Warning Warning! The system must be disconnected from all sources of power and the power cord removed from the power supply module(s) before accessing the chassis interior to install or remove system components (except for hot-swap components). 電源切断の警告... -
Page 107: Equipment Installation
A+ Server AS -1114S-WN10RT/WN10RT-EU User's Manual אזהרה מפני ניתוק חשמלי !אזהרה יש לנתק את המערכת מכל מקורות החשמל ויש להסיר את כבל החשמלי מהספק .לפני גישה לחלק הפנימי של המארז לצורך התקנת או הסרת רכיבים يجب فصم اننظاو من جميع مصادر انطاقت وإ ز انت سهك انكهرباء من وحدة امداد انطاقت... -
Page 108: Restricted Area
Appendix A: Warning Statements Attention Seul le personnel autorisé et le personnel de maintenance qualifié doivent être autorisés à installer, remplacer ou entretenir cet équipement.. !אזהרה .יש לאפשר רק צוות מורשה ואנשי שירות מוסמכים להתקין, להחליף או לטפל בציוד זה .ينبغي... - Page 109 A+ Server AS -1114S-WN10RT/WN10RT-EU User's Manual Warnung Diese Einheit ist zur Installation in Bereichen mit beschränktem Zutritt vorgesehen. Der Zutritt zu derartigen Bereichen ist nur mit einem Spezialwerkzeug, Schloss und Schlüssel oder einer sonstigen Sicherheitsvorkehrung möglich. ¡Advertencia! Esta unidad ha sido diseñada para instalación en áreas de acceso restringido. Sólo puede obtenerse acceso a una de estas áreas mediante la utilización de una herramienta especial, cerradura con llave u otro medio de seguridad.
-
Page 110: Battery Handling
Appendix A: Warning Statements Battery Handling Warning! There is the danger of explosion if the battery is replaced incorrectly. Replace the battery only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions 電池の取り扱い... -
Page 111: Redundant Power Supplies
A+ Server AS -1114S-WN10RT/WN10RT-EU User's Manual هناك خطر من انفجار يف حالة اسحبذال البطارية بطريقة غري صحيحة فعليل اسحبذال البطارية فقط بنفس النىع أو ما يعادلها مام أوصث به الرشمة املصنعة جخلص من البطاريات املسحعملة وفقا لحعليامت الرشمة الصانعة 경고! 배터리가... - Page 112 Appendix A: Warning Statements ¡Advertencia! Puede que esta unidad tenga más de una conexión para fuentes de alimentación. Para cortar por completo el suministro de energía, deben desconectarse todas las conexiones. Attention Cette unité peut avoir plus d'une connexion d'alimentation. Pour supprimer toute tension et tout courant électrique de l'unité, toutes les connexions d'alimentation doivent être débranchées.
-
Page 113: Backplane Voltage
Appendix A: Warning Statements Backplane Voltage Warning! Hazardous voltage or energy is present on the backplane when the system is operating. Use caution when servicing. バックプレーンの電圧 システムの稼働中は危険な電圧または電力が、 バックプレーン上にかかっています。 修理する際には注意く ださい。 警告 当系统正在进行时，背板上有很危险的电压或能量，进行维修时务必小心。 警告 當系統正在進行時，背板上有危險的電壓或能量，進行維修時務必小心。 Warnung Wenn das System in Betrieb ist, treten auf der Rückwandplatine gefährliche Spannungen oder Energien auf. -
Page 114: Comply With Local And National Electrical Codes
Appendix A: Warning Statements هناك خطز مه التيار الكهزبايئ أوالطاقة املىجىدة عىل اللىحة عندما يكىن النظام يعمل كه حذ ر ا عند خدمة هذا الجهاس 경고! 시스템이 동작 중일 때 후면판 (Backplane)에는 위험한 전압이나 에너지가 발생 합니다. 서비스 작업 시 주의하십시오. Waarschuwing Een gevaarlijke spanning of energie is aanwezig op de backplane wanneer het systeem in gebruik is. -
Page 115: Product Disposal
Appendix A: Warning Statements תיאום חוקי החשמל הארצי !אזהרה .התקנת הציוד חייבת להיות תואמת לחוקי החשמל המקומיים והארציים تركيب املعدات الكهربائية يجب أن ميتثل للقىاويه املحلية والىطىية املتعلقة بالكهرباء 경고! 현 지역 및 국가의 전기 규정에 따라 장비를 설치해야 합니다. Waarschuwing Bij installatie van de apparatuur moet worden voldaan aan de lokale en nationale elektriciteitsvoorschriften. - Page 116 Appendix A: Warning Statements Attention La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de l'organisme compétent. סילוק המוצר !אזהרה .סילוק סופי של מוצר זה חייב להיות בהתאם להנחיות וחוקי המדינה التخلص...
- Page 117 Appendix A: Warning Statements Warnung Gefährlich Bewegende Teile. Von den bewegenden Lüfterblätter fern halten. Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände von den Öffnungen des Lüftergehäuses entfernt.
- Page 118 Verbindungskabeln, Stromkabeln und/oder Adapater, die Ihre örtlichen Sicherheitsstandards einhalten. Der Gebrauch von anderen Kabeln und Adapter können Fehlfunktionen oder Feuer verursachen. Die Richtlinien untersagen das Nutzen von UL oder CAS zertifizierten Kabeln (mit UL/CSA gekennzeichnet), an Geräten oder Produkten die nicht mit Supermicro gekennzeichnet sind.
- Page 119 .قيرح وأ لطع يف ببستي دق ىرخأ تالوحمو تالباك يأ مادختسا .ميلسلا سباقلاو لصوملا مجح لبق نم ةدمتعملا تالباكلا مادختسا تادعملاو ةيئابرهكلا ةزهجألل ةمالسلا نوناق رظحيUL وأCSA ( ةمالع لمحت يتلاوUL/CSA) لبق نم ةددحملاو ةينعملا تاجتنملا ريغ ىرخأ تادعم يأ عمSupermicro.
- Page 120 사항을 준수하여 제공되거나 지정된 연결 혹은 구매 케이블, 전원 케이블 및 AC 어댑터를 사용하십시오. 다른 케이블이나 어댑터를 사용하면 오작동이나 화재가 발생할 수 있습니다. 전기 용품 안전법은 UL 또는 CSA 인증 케이블 (코드에 UL / CSA가 표시된 케이블)을 Supermicro 가 지정한 제품 이외의 전기 장치에 사용하는 것을 금지합니다. Stroomkabel en AC-Adapter...
-
Page 121: Appendix B System Specifications
Appendix B: System Specifications Appendix B System Specifications Processors Single AMD EPYC™ 7002 Series Processor in an SP3 socket Note: Please refer to the motherboard specifications pages on our website for updates to supported processors. Chipset SoC chipset BIOS 256 Mb AMI® SPI Flash Memory Supports up to 4TB Registered ECC DDR4 3200MHz RDIMM/LRDIMM/3DS/NVDIMM in 16 DIMM slots Note: See the memory section in Chapter 3 for details and our website for updates to supported memory. - Page 122 A+ Server AS -1114S-WN10RT/WN10RT-EU User's Manual Power Supply AS -1114S-WN10RT: Model PWS-706P-1R AC Input Voltages: 100-240 VAC Rated Input Current: 8.5A to 6A Rated Input Frequency: 50-60 Hz Rated Output Power: 750W Rated Output Voltages: +3.3V (25A), +5V (25A), +12V (700W: 58A at 100V-140V, 750W: 62A at 180V-240V), -12V (0.6A), +5Vsb (3A) AS -1114S-WN10RT-EU: Model PWS-861A-1R AC Input...
