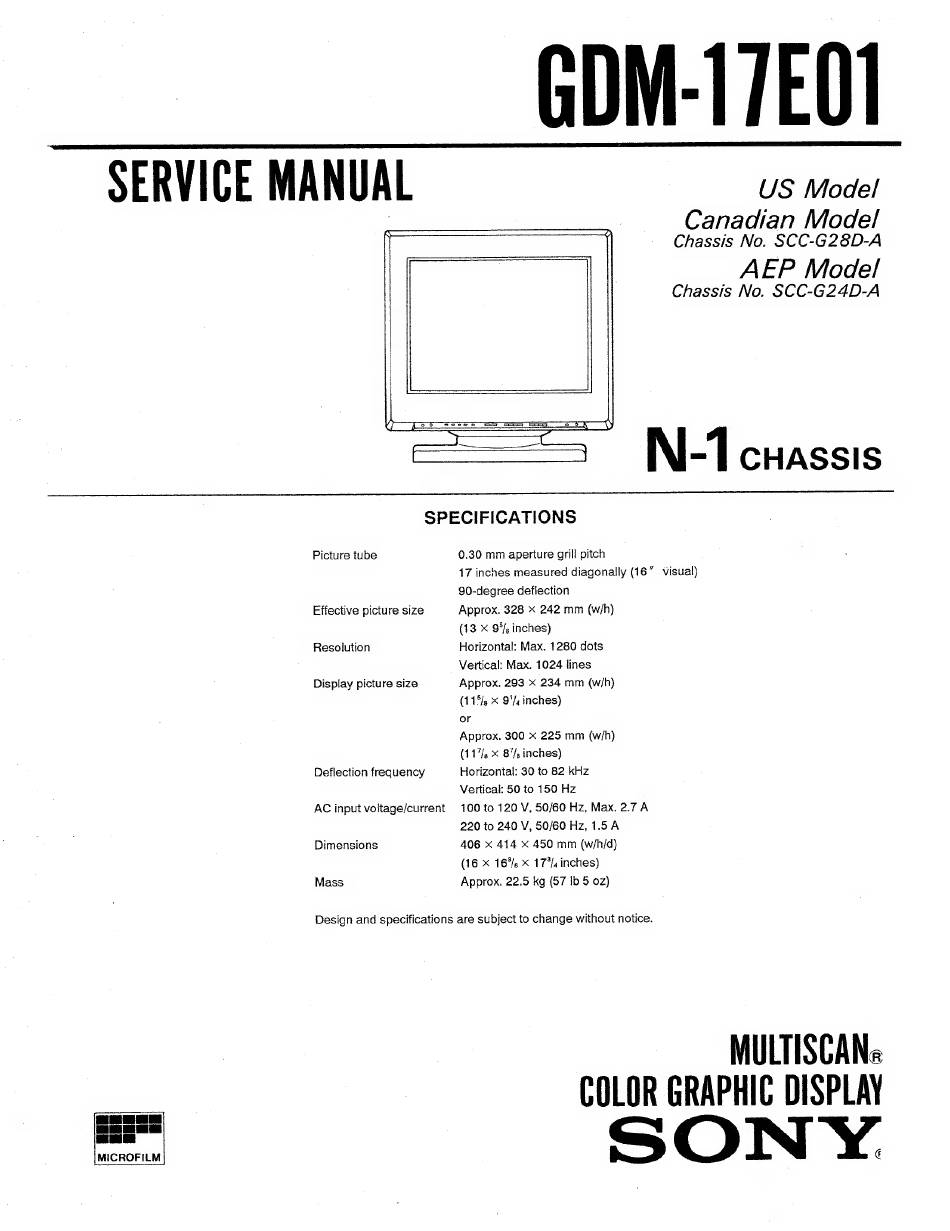

GDM-17E01
Canadian Model
Chassis No. SCC-G28D-A
AEP Model
Chassis No. SCC-G24D-A
N-1 cuassis
SPECIFICATIONS
Picture tube
0.30 mm aperture grill pitch
17 inches measured diagonally (16" visual)
90-degree deflection
Effective picture size
Approx. 328 x 242 mm (w/h)
(13 X 9%, inches)
Resolution
Horizontal: Max. 1280 dots
Vertical: Max. 1024 lines
Display picture size
Approx. 293 X 234 mm (w/h)
(11%/, x 9'/, inches)
or
Approx. 300 x 225 mm (w/h)
(11%. x 8/; inches)
Deflection frequency
Horizontal: 30 to 82 kHz
Vertical: 50 to 150 Hz
AC input voltage/current
100 to 120 V, 50/60 Hz, Max. 2.7A
220 to 240 V, 50/60 Hz, 1.5A
Dimensions
406 x 414 x 450 mm (w/h/d)
(16 x 16%. x 17°%/4 inches)
Mass
Approx. 22.5 kg (57 ib 5 oz)
Design and specifications are subject to change without notice.
MULTISCAN:
COLOR GRAPHIC DISPLAY
MICROFILM
