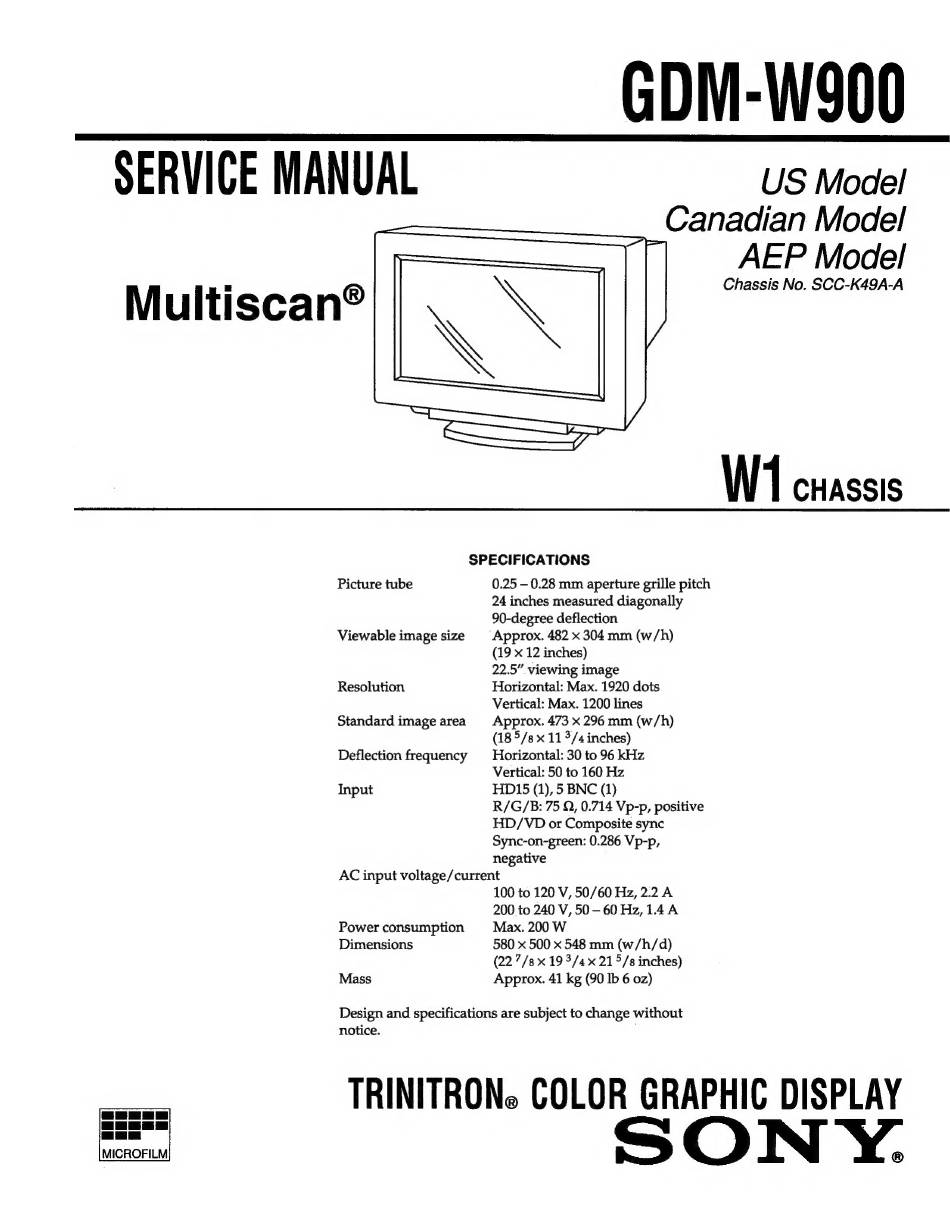

Sony TRINITRON Multiscan GDM-W900 Service Manual

GDM-W900
SERVICE MANUAL US Model
Canadian Model
AEP Model
Chassis No. SCC-K49A-A
Multiscan®
WI CHASSIS
SPECIFICATIONS
Picture tube 0.25 – 0.28 mm aperture grille pitch
24 inches measured diagonally
90-degree deflection
Viewable image size ^ Approx. 482 x 304 mm (w/h)
(19 x 12 inches)
22.5" viewing image
Resolution Horizontal: Max. 1920 dots
Vertical: Max. 1200 lines
Standard image area Approx. 473 x 296 mm (w/h)
(18 5/8 х 11 3/4 inches)
Deflection frequency ^ Horizontal: 30 to 96 kHz
Vertical: 50 to 160 Hz
Input HD15 (1), 5 BNC (1)
R/G/B: 75 Q, 0.714 Vp-p, positive
HD/VD or Composite sync
Sync-on-green: 0.286 Vp-p,
negative
AC input voltage/current
100 to 120 V, 50/60 Hz, 2.2 A
200 to 240 V, 50 – 60 Hz, 14 А
Power consumption Max. 200 W
Dimensions 580 x 500 x 548 mm (w/h/d)
(227/8 x 19 3/4 x 21 5/8 inches)
Mass Approx. 41 kg (90 15 6 oz)
Design and specifications are subject to change without
notice. |
TRINITRON. COLOR GRAPHIC DISPLAY
SONY.
