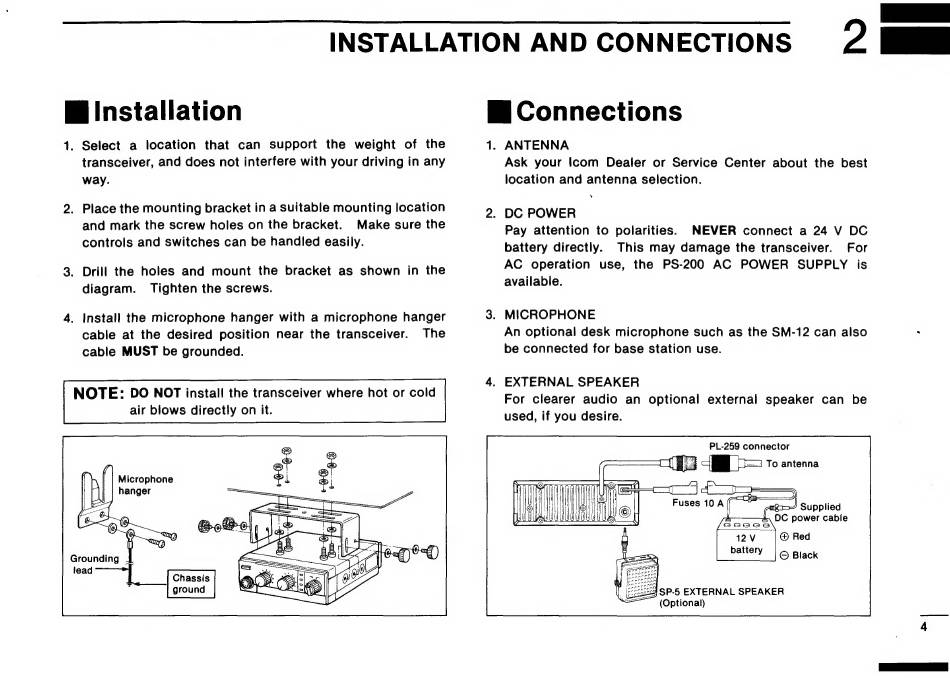

INSTALLATION AND CONNECTIONS 2 MN
W installation
1. Select a location that can support the weight of the
transceiver, and does not interfere with your driving in any
way.
Place the mounting bracket in a suitable mounting location
and mark the screw holes on the bracket. Make sure the
controls and switches can be handled easily.
Drill the holes and mount the bracket as shown in the
diagram. Tighten the screws.
Install the microphone hanger with a microphone hanger
cable at the desired position near the transceiver. The
cable MUST be grounded.
NOTE: DO NOT install the transceiver where hot or cold
air blows directly on it.
Grounding
lead
ess
ground
MN Connections
1. ANTENNA
Ask your Icom Dealer or Service Center about the best
location and antenna selection.
2. DC POWER
Pay attention to polarities. NEVER connect a 24 V DC
battery directly. This may damage the transceiver. For
AC operation use, the PS-200 AC POWER SUPPLY is
available.
3. MICROPHONE
An optional desk microphone such as the SM-12 can also `
be connected for base station use.
4. EXTERNAL SPEAKER
For clearer audio an optional external speaker can be
used, if you desire.
PL-259 connector
i S| PS To antenna
cS Supplied
& 4, DC power cable
12V
battery © Black
SP-5 EXTERNAL SPEAKER
(Optional)
i |
