Dual Roller FlexShade
Cordless operated manual shade with available fascia

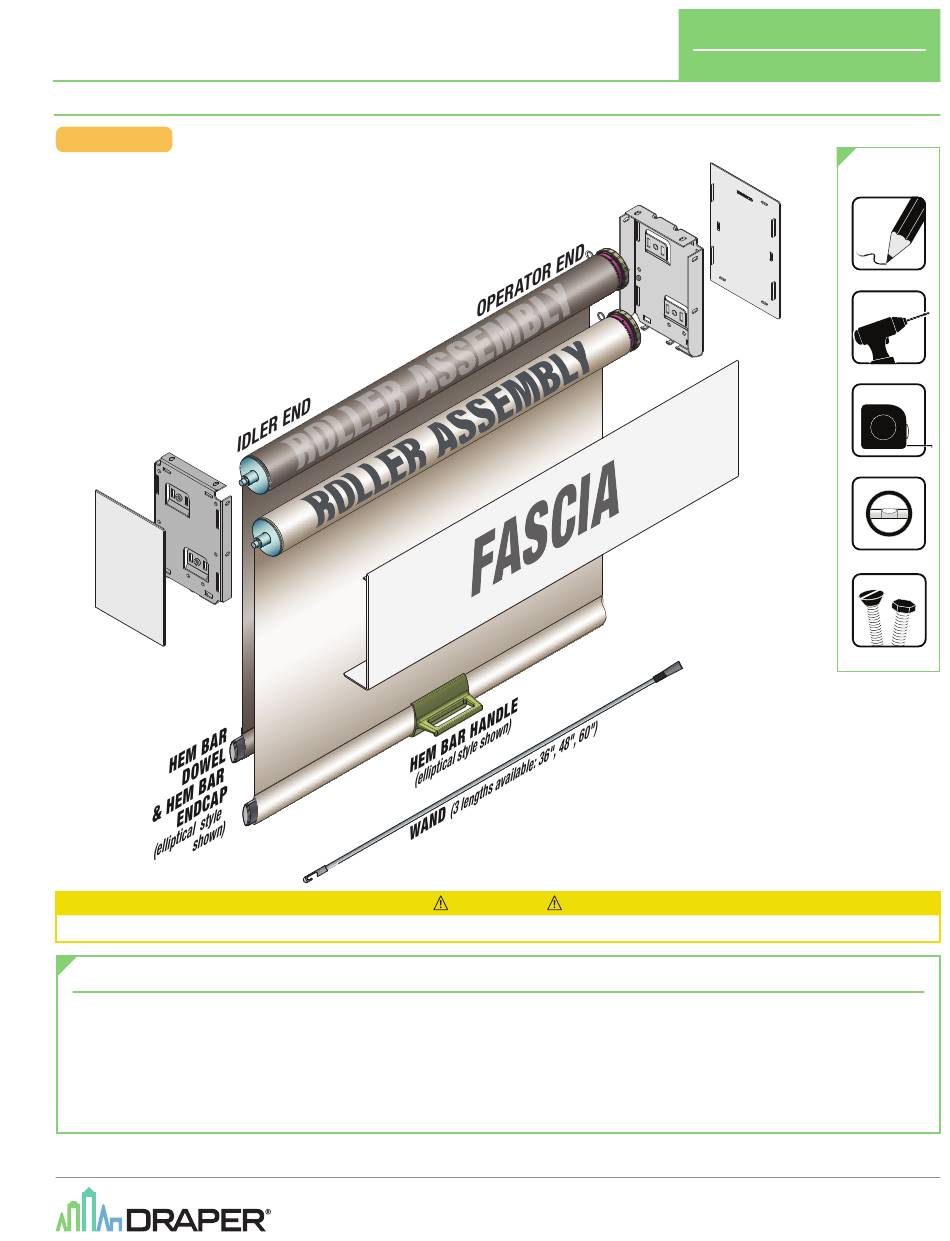

Overview - Components
DF ASCEND
E N D
C A P
E N D
C A P
C O V
E R
Read and understand all warnings
Contents
Overview - Components .......................................................................................1
PLEASE READ - Important Safety & Installation Information ........................2
PLEASE READ - Field Adjustments, Cleaning and Maintenance ...................2
Section 1 - Mounting Endcaps ............................................................................3
Section 2 - Mounting Shades ..............................................................................4
Ascend
®
CAUTION
(Page 2 of this document)
Section 3 - Installing Fascia ................................................................................5
Section 4 - Shade Operation ...............................................................................6
Section 5 - Adjusting Shade Tension .................................................................6
Section 6 - Hardware Dimensions ......................................................................7
Section 7 - Overall Dimensions ...........................................................................8
INSTRUCTIONS
INSTALLATION & OPERATION
E N D
C A P
C O V
E R
E N D
C A P
before beginning installation.
If you have any difficulties installing or servicing your
Dual Roller FlexShade
Ascend, call your dealer or Draper, Inc.
®
Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385
draperinc.com | 765.987.7999 | 800.238.7999
|
FORM: DualRoller_FS_Ascend_Inst23
© 2023 All Rights Reserved
TOOLS
REQUIRED
PENCIL
POWER DRILL
TAPE MEASURE
LEVEL
HARDWARE
(by others)
Advertisement
Related Manuals for Draper Dual Roller FlexShade Ascend
Summary of Contents for Draper Dual Roller FlexShade Ascend
-
Page 1: Table Of Contents
If you have any difficulties installing or servicing your Dual Roller FlexShade Ascend, call your dealer or Draper, Inc. ® Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385 draperinc.com | 765.987.7999 | 800.238.7999 FORM: DualRoller_FS_Ascend_Inst23 © 2023 All Rights Reserved... -
Page 2: Please Read - Important Safety & Installation Information
Even with this testing, some field Most standard Draper fabrics may be cleaned at the window by vacuuming with a soft brush adjustments may be needed for telescoping. attachment. They also may be cleaned by using a sponge or soft cloth and mild solution of warm soapy If the shade is telescoping, place a piece of shimming water. -
Page 3: Section 1 - Mounting Endcaps
Dual Roller FlexShade Ascend ® page 3 of 8 Section 1 - Mounting Endcaps IMPORTANT: Endcaps must be installed parallel, plumb, and square, with a tolerance of +/- 1/ 8 " (3mm) Verify unit measurements and ensure unit will fit in the desired location. Please Note: Installer is responsible for selecting mounting hardware appropriate for site conditions. -
Page 4: Section 2 - Mounting Shades
Dual Roller FlexShade Ascend ® page 4 of 8 Section 2 - Mounting Shades Please Note: ALWAYS START WITH THE REAR SHADE, Place spring-loaded pin into idler end endcap. AND IDLER END OF SHADE. Snap on retainer clip. Depress pin by pushing shade roller toward endcap. -
Page 5: Section 3 - Installing Fascia
Dual Roller FlexShade Ascend ® page 5 of 8 Section 3 - Installing Fascia Please Note: - Endcaps must be installed the correct - Fascia is not fully seated - Once in place, check for secure fit. until it clicks into place on If not secure, use an appropriate distance apart for fascia to be properly both ends. -
Page 6: Section 4 - Shade Operation
Dual Roller FlexShade Ascend ® page 6 of 8 Section 4 - Shade Operation To lower window shade (Large Endcap Hardware shown.) Grasp center of hem bar, or hem bar clip. Pull shade down to desired position. CAUTION: Do not expose shade roller by pulling shade fabric too far down. -
Page 7: Section 5 - Adjusting Shade Tension
Dual Roller FlexShade Ascend ® page 7 of 8 Section 5 - Adjusting Shade Tension If shade does not stop but continues If shade does not stop but continues moving UP, adjust the spring force moving DOWN, adjust the spring force by by turning adjuster ring clockwise for turning adjuster ring counter-clockwise Standard installations, and counter-... -
Page 8: Section 6 - Hardware Dimensions
Dual Roller FlexShade Ascend ® page 8 of 8 Section 6 - Hardware Dimensions 3" " 4 " 3" " FASCIA HEIGHT: 7" 1 " Section 7 - Overall Dimensions OVERALL WIDTH FASCIA FASCIA HEIGHT: 7" 1 " " " SHADE FABRIC Fabric Width = Overall Width - 1...
