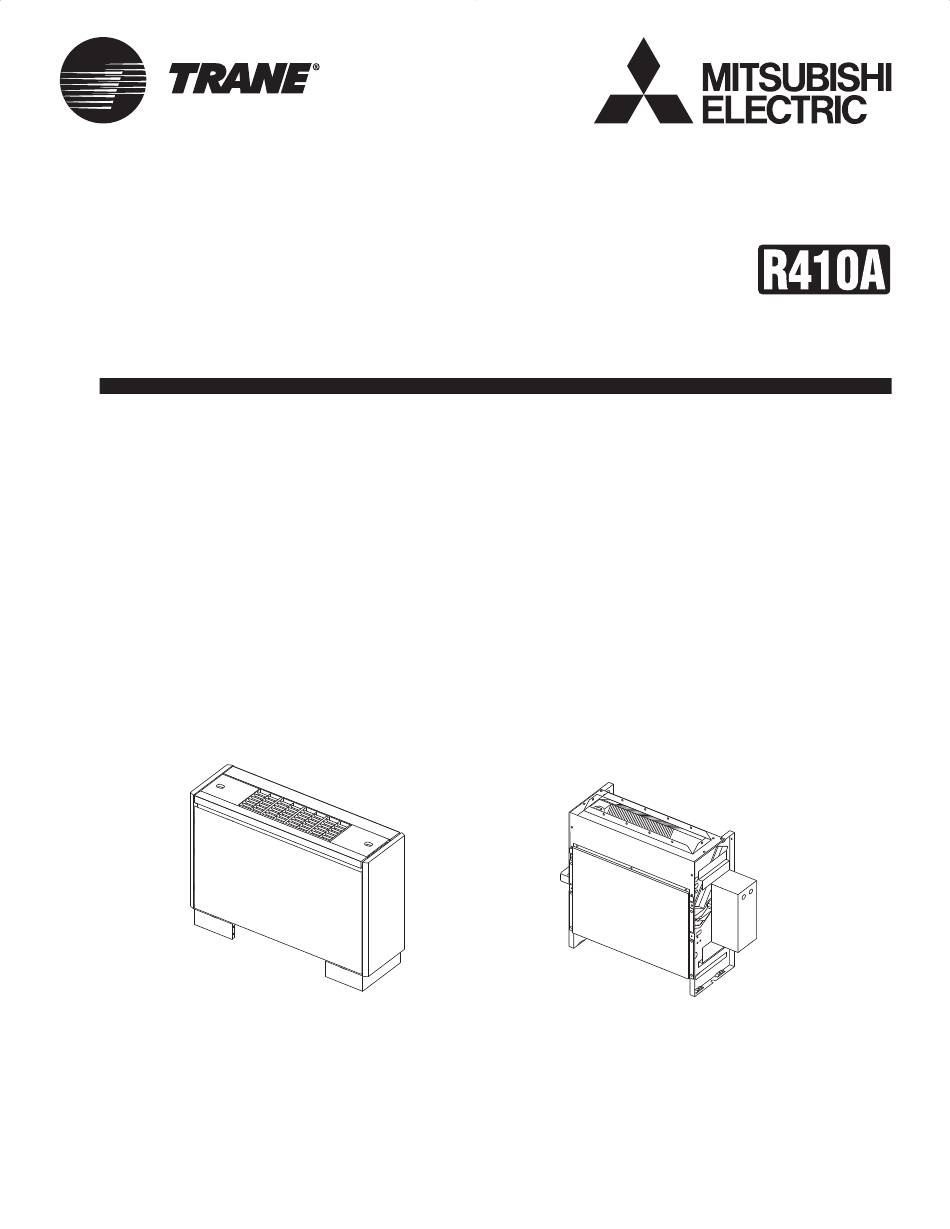

- Page 1 AIR CONDITIONERS 2019 TECHNICAL & SERVICE MANUAL Model name <Indoor unit> TPFFYP006CS140A TPFFYP006RE140A TPFFYP008CS140A TPFFYP008RE140A TPFFYP012CS140A TPFFYP012RE140A TPFFYP015CS140A TPFFYP015RE140A TPFFYP018CS140A TPFFYP018RE140A TPFFYP024CS140A TPFFYP024RE140A Exposed type Concealed type...
-
Page 2: Safety Precautions
- Inadequate strength may cause the unit to fall down, resulting in is shorted and operated forcibly, or parts other than those specified injuries. by Mitsubishi Electric Trane HVAC US LLC are used, fire or • Use the specified cables for wiring. Make the connections se- explosion may result. -
Page 3: Precautions For Devices That Use R410A Refrigerant
Precautions for devices that use Warning: • Note the following when building a heater in the air R410A refrigerant conditioning system. - Leave enough space between units for proper ventilation so that Caution: the indoor unit temperature does not exceed 40˚C when •... -
Page 4: Table Of Contents
CONTENTS I Features [1] Features............................ 1 II Components and Functions [1] Components and Functions...................... 2 III Specifications [1] Specifications..........................5 1.Specifications.......................... 5 2.Electrical parts specification ....................6 IV Outlines and Dimensions [1] Outlines and Dimensions......................7 V Wiring Diagram [1] Wiring Diagram ......................... 9 VI Refrigerant System Diagram [1] Refrigerant system diagram.................... - Page 5 HWE18370...
-
Page 6: Features
[ I Features ] I Features [1] Features Floor Standing Type Exposed type Concealed type Cooling capacity/Heating capacity Model BTU/h TPFFYP006CS140A 6000/6700 1.8/2.0 TPFFYP006RE140A TPFFYP008CS140A 8000/9000 2.3/2.6 TPFFYP008RE140A TPFFYP012CS140A 12000/13500 3.5/4.0 TPFFYP012RE140A TPFFYP015CS140A 15000/17000 4.4/5.0 TPFFYP015RE140A TPFFYP018CS140A 18000/20000 5.3/5.9 TPFFYP018RE140A TPFFYP024CS140A 24000/27000 7.0/7.9... -
Page 7: Components And Functions
[ II Components and Functions ] II Components and Functions [1] Components and Functions 1. Indoor (Main) Unit Air outlet Air outlet Air inlet Air inlet Exposed type Concealed type - 2 - HWE18370... - Page 8 [ II Components and Functions ] 2. Remote Controller [TAR-40MAAU] Once the operation mode is selected, the unit will remain in the selected mode until changed. (1) Remote Controller Interface ⑤ ⑥ ④ ③ ② ① Function buttons ⑦ ⑧ ⑨...
- Page 9 [ II Components and Functions ] (2) Remote Controller Display The main display can be displayed in two different modes: “Full” and “Basic.” The factory setting is “Full.” To switch to the “Basic” mode, change the setting on the Main display setting. ▌...
-
Page 10: Specifications
[ III Specifications ] III Specifications [1] Specifications 1. Specifications TPFFYP-CS140A TPFFYP006 TPFFYP008 TPFFYP012 TPFFYP015 TPFFYP018 TPFFYP024 Model Item CS140A CS140A CS140A CS140A CS140A CS140A Power sourse 208/230V, 60Hz Cooling Capacity BTU/h 6000 8000 12000 15000 18000 24000 Heating BTU/h 6700 9000 13500... -
Page 11: Electrical Parts Specification
[ III Specifications ] 2. Electrical parts specification Model TPFFYP006 TPFFYP008 TPFFYP012 TPFFYP015 TPFFYP018 TPFFYP024 Symbol CS140A CS140A CS140A CS140A CS140A CS140A Parts RE140A RE140A RE140A RE140A RE140A RE140A name Tranrsformer (Primary) 60Hz 208-230V (Secondary) (23.5V 0.9A) Room Resistance 0˚C[32˚F]/15kΩ,10˚C[50˚F]/9.6kΩ,20˚C[68˚F]/6.3kΩ,25˚C[77˚F]/5.4kΩ, temperature TH21 30˚C[86˚F]/4.3kΩ,40˚C[104˚F]/3.0kΩ... -
Page 12: Outlines And Dimensions
[ IV Outlines and Dimensions ] IV Outlines and Dimensions [1] Outlines and Dimensions TPFFYP006, 008, 012, 015, 018, 024CS140A Unit:mm(in.) - 7 - HWE18370... - Page 13 [ IV Outlines and Dimensions ] TPFFYP006, 008, 012, 015, 018, 024RE140A Unit:mm(in.) - 8 - HWE18370...
-
Page 14: Wiring Diagram
[ V Wiring Diagram ] V Wiring Diagram [1] Wiring Diagram TPFFYP006, 008, 012, 015, 018, 024CS(RE)140A - 9 - HWE18370... -
Page 15: Refrigerant System Diagram
[ VI Refrigerant System Diagram ] VI Refrigerant System Diagram [1] Refrigerant system diagram Gas pipe thermistor TH23 Gas pipe Liquid pipe thermistor TH22 Flare connection Heat exchanger Linear expansion valve Strainer (#100mesh) Strainer (#100mesh) Room temparature thermistor TH21 mm <in.> Capacity TPFFYP006,008,012,015CS140A TPFFYP018CS140A... -
Page 16: Troubleshooting
[ VII Troubleshooting ] VII Troubleshooting [1] Troubleshooting 1. How to check the parts Room temparature Disconnect the connector, then measure the resistance using a tester. thermistor (TH21) (Surrounding temperature 10°C~30°C[50°F~86°F]) Liquid pipe thermistor (TH22) Normal Abnormal Gas pipe thermistor (Refer to the thermistor characteristic graph (TH23) 4.3kΩ... -
Page 17: Linear Expansion Valve
[ VII Troubleshooting ] <Thermistor Characteristic graph> < Thermistor for lower temperature > Room temparature thermistor(TH21) Thermistor for Liquid pipe thermistor(TH22) lower temperature Gas pipe temparature thermistor(TH23) Drain sensor(DS) Thermistor R =15kΩ ± 3% Fixed number of B=3480kΩ ± 2% Rt=15exp { 3480( 273+t 0˚C... - Page 18 [ VII Troubleshooting ] <Output pulse signal and the valve operation> Output Output (Phase) Closing a valve Opening a valve : 4 ø1 The output pulse shifts in above order. ø2 1. When linear expansion valve operation stops, all output phase become OFF.
-
Page 19: Setting Of Address Switch
[ VII Troubleshooting ] 2. Setting of address switch Make sure that power source is turning off. Indoor unit control board < At delivery (All models)> S W 1 S W 4 < At delivery (All models)> 9 10 0 1 2 3 4 5 6 7 8 9 CN82 9 10... -
Page 20: Function Of Dip-Switch
[ VII Troubleshooting ] 3. Function of Dip-switch Operation by switch Switch Pole Remarks Function Thermistor<Intake temperature Indoor unit Built-in remote controller Address board detection>position Filter clogging detection Provided Not provided <At delivery> Filter life 2,500hr 100hr Air intake Effective Not effective 9 10 Remote indication switching Thermostat ON signal indication... -
Page 21: Function The Led Of The Indoor Unit Service Board
[ VII Troubleshooting ] 4. Function the LED of the indoor unit service board k l i LED1 Main power source At applying main power source Lighting LED2 Transmission power source Lighting At receiving M-NET transmission power source - 16 - HWE18370... -
Page 22: Disassembly Procedure
[ VIII Disassembly Procedure ] VIII Disassembly Procedure [1] Disassembly Procedure 1. Control box (Exposed type TPFFYP-CS140A) Be careful removing heavy parts. OPERATING PROCEDURE PHOTOS 1. Removing the front panel (A) Fig.1 (1) Remove the fixing screws (two) of the front panel (A). (Fig.1) (2) Hold the bottom of the front panel with your hands, and gently lift it. -
Page 23: Thermistor (Gas And Liquid Piping Temperature Detection)
[ VIII Disassembly Procedure ] 2. Thermistor (Gas and liquid piping temperature detection) Be careful removing heavy parts. OPERATING PROCEDURE PHOTOS 1. Removing the side casing (1) Open the control panel cover (A), remove the fixing screws (two) of the securing cover. (Fig.1) (2) Pull up the side casing (B). -
Page 24: Thermistor (Intake Air Temperature Detection)
[ VIII Disassembly Procedure ] 3. Thermistor (Intake air temperature detection) Be careful removing heavy parts. OPERATING PROCEDURE PHOTOS 1. Removing the thermistor Fig.1 (1) Remove the thermistor under the control box. (Fig.1) Thermistor 4. Drainpan OPERATING PROCEDURE PHOTOS Fig.1 1. -
Page 25: Fan And Fan Motor
[ VIII Disassembly Procedure ] 5. Fan and fan motor Be careful removing heavy parts. OPERATING PROCEDURE PHOTOS 1. Sliding the fan section (Fig.1) Fig.1 (1) Remove the fixing screws (two) (a). (2) Slide the fan section in direction of the arrow . 2. -
Page 26: Heat Exchanger
[ VIII Disassembly Procedure ] 6. Heat exchanger Be careful removing heavy parts. OPERATING PROCEDURE PHOTOS 1. Removing the casing Fig.1 (1) Remove the fixing screws (six) and remove the casing. (Fig.1) 2. Removing the cover 1, 2 with VIII - 2 - 2 - (1) (Fig.2) 3. -
Page 27: Casing (Concealed Type Tpffyp-Re140A)
[ VIII Disassembly Procedure ] 7. Casing (Concealed type TPFFYP-RE140A) Be careful removing heavy parts. OPERATING PROCEDURE PHOTOS 1. Removing the casing ass’y Fig.1 (1) Remove the fixing screws (nine) of the plate (A) and remove the plate. (Fig.1) 2. Removing the air diffuser ass’y (1) Remove the fixing screws (eight) of the air diffuser ass’y (B) and remove it. - Page 28 Publication No. DL-SVG060A-EN New publication effective Feb. 2019 Specifications subject to change without notice HWE18370...
