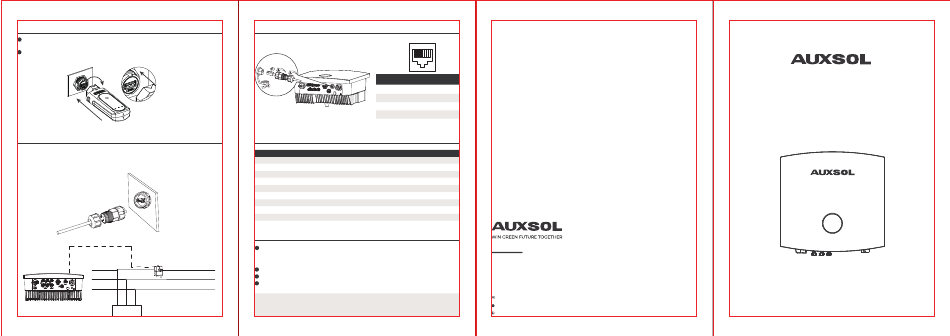

4.INSTALLATION OF DATALOGGER (OPTIONAL)
Open the COM port cover plate, assemble the datalogger and USB port together as shown in the
1
figure, and tighten the datalogger.
2
The datalogger can support Wifi or 4G communication. Refer to the datalogger installation guide
for detailed operation.
5. ANTI-REFLOW (OPTIONAL)
Install the current sensor on the L-wire of the power grid, ensure the direction of the current sensor
from the L-wire of the power grid to the home, insert the terminal into the CT port of the inverter and
tighten the terminal. Connect the black wire with "-" of the CT connector, while connect the black and
white wire with "+".
Pre-made cable in CT package
CT Arrow ← Grid
2-Pin connector
INV L
INV N
INV PE
Load
L
N
PE
6. DRM CONTROL(OPTIONAL)
7. INSPECTION BEFORE OPERATION
No.
Inspection items
1
The inverter shall be installed correctly, firmly and reliably
2
Cables shall be reasonably arranged and well protected, without damage
3
The datalogger shall be installed correctly, firmly and reliably
4
The safety signs and warning labels on the inverter are not blocked or damaged
5
" DC SWITCH "and all switches connected to the inverter are" OFF "
6
The AC output cable, DC input cable and grounding wire are connected correctly, firmly and reliably
7
Unused terminals and interfaces are protected with waterproof covers
8
Reasonable selection of AC circuit breaker
9
Reasonable installation space, clean and tidy environment, no construction remains
8. POWER ON THE SYSTEM
1
At the AC switch between the inverter and the power grid, measure the voltage at the power grid
side with a multimeter to confirm that the voltage of the power grid is within the allowable range
of the inverter operating voltage.
Grid L
Close the AC switch.
2
Set "DC SWITCH" on inverter to "ON".
Grid N
3
Observe the inverter LED indicator and check the inverter operating status.
4
Grid PE
The registered account and password can be logged in at the same time on the APP and the
website, or on multiple devices. This is a quick installation manual. If you do not know the
specific operation, please contact our technical support.
1 2 3 4 5 6 7 8
Pin
Function
Pin
Function
1
DRM 1/5
5
REF
2
DRM 2/6
6
Com/DRM0
3
DRM 3/7
7
V+
4
DRM 4/8
8
V-
Ningbo AUX Solar Technology Co., Ltd.
No.17 Fenglin Road, Cicheng Town,
Jiangbei District, Ningbo City, Zhejiang Province, China
info@auxsol.com
www.auxsol.com
+86 0574-8765 2201
QUICK INSTALLATION
MANUAL
ASN - (6 ~ 10)SL
