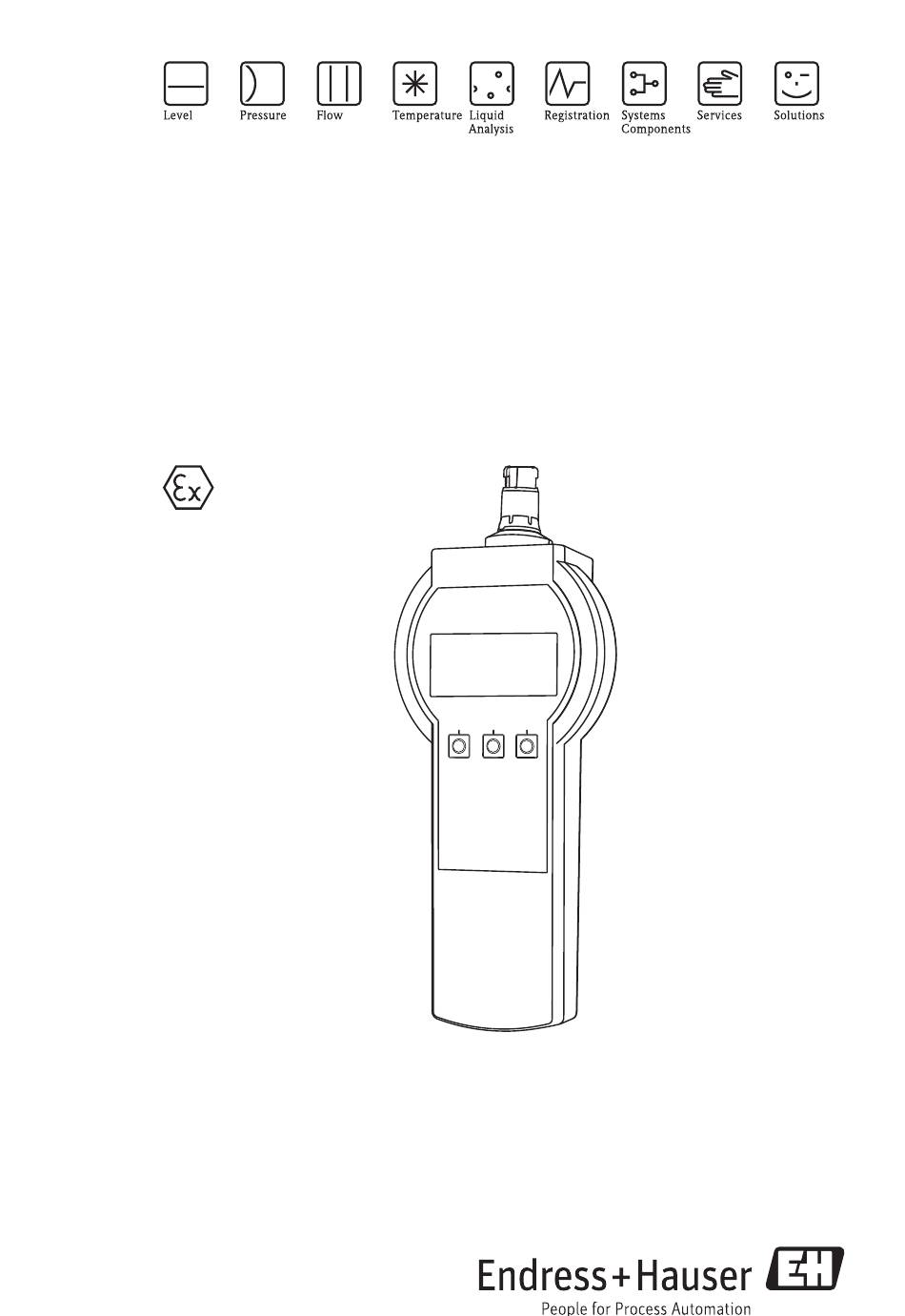

Operating Instructions
Memocheck Sim CYP03D
Testing tool for analysis measuring points
BA00481C/07/EN/14.12
71165506
valid from:
Software version 1.00.03

Advertisement

loading
Need help?

Need help?

Do you have a question about the Memocheck Sim CYP03D and is the answer not in the manual?

Questions and answers

Related Manuals for Endress+Hauser Memocheck Sim CYP03D

Summary of Contents for Endress+Hauser Memocheck Sim CYP03D

  • Page 1 Operating Instructions Memocheck Sim CYP03D Testing tool for analysis measuring points BA00481C/07/EN/14.12 71165506 valid from: Software version 1.00.03...

  • Page 3: Table Of Contents

    Technical data ... . 38 Environment ..... . 38 Endress+Hauser...

  • Page 4: Safety Instructions

    Safety instructions Designated use Memocheck Sim CYP03D is a testing tool for analysis measuring points. It enables the simulation of freely definable measured values and of errors in all sensors using Memosens technology. If the device is used for any purpose other than that described, this poses a threat to the safety of people and the entire measuring system and is thus not permitted.

  • Page 5: Operational Safety

    The device must be returned if repairs or a factory calibration are required, or if the wrong device has been ordered or delivered. According to legal regulations, Endress+Hauser, as an ISO-certified company, is required to follow certain procedures when handling returned products that are in contact with medium.

  • Page 6: Safety Instructions For Electrical Apparatus For Explosion-Hazardous Areas

    The corresponding IECEx certificate, respectively for ATEX the EC Conformity Declaration is part of this document. • The power of Memocheck Sim CYP03D is supplied via three alkaline batteries with 4.5 V nominal voltage. Only the following battery types are allowed for to use:...

  • Page 7: Notes On Safety Icons And Symbols

    Failure to avoid this situation can result in minor or medium injury. Cause (/consequences) Consequences if safety message is not heeded • Corrective action This symbol alerts you to situations that can result in damage to NOTICE property and equipment. Cause/situation Consequences if safety message is not heeded • Action/note Endress+Hauser...

  • Page 8: Identification

    The delivery comprises: • Memocheck Sim CYP03D • Operating Instructions • Cable as per order (optional) • Case for Memocheck Sim CYP03D and cable (optional) Certificates and approvals Declaration of Conformity The product meets the requirements of harmonized European standards.

  • Page 9: Device Description

    Sensor simulation in a complete measuring system consists of: • Memocheck Sim CYP03D • Transmitter with Memosens technology • Memosens data cable CYK10 a0014717 Fig. 1: Measuring system with Memocheck Sim CYP03D Transmitter with Memosens technology, e.g. Liquiline CM44x Memosens data cable CYK10 Memocheck Sim CYP03D Endress+Hauser...

  • Page 10: Iecex

    Liquiline M CM42. or alternatively to an ATEX certified, intrinsic safe Memosens sensor output providing the following maximum values as described below. In particular the effective inner inductivity and capacity of the approved, intrinsic safe sensor output must not exceed the values given below: Endress+Hauser...

  • Page 11: Quick Wiring Guide In Ex Areas

    = 112 mW (trapezoide output characteristic) = 15 μF = 14.1 μF = 95 μΗ = 237.2 μΗ The electrical connection instruction of the Installation Manual must be followed. Quick wiring guide in Ex areas a0017245-en Fig. 2: Connection in explosion-hazardous areas Endress+Hauser...

  • Page 12: Temperature Classes

    Range of T for Temperature Class Temperature Class CYP03D-**-** Memocheck Sim -20 to +50 °C (-4 to 122 °F) If above shown ambient temperatures are not exceeded there will be no invalid temperatures on the simulator according to the temperature class. Endress+Hauser...

  • Page 13: Operation

    • Configuration of parameters and numerical values • Navigation through menu In simulation mode, the MINUS and PLUS keys have the following functions: • "Run through" of sim. main values, with each values being changed by the amount of the delta value Endress+Hauser...

  • Page 14: Entering Numerical Values

    • Use the arrow keys to select the digit of the value that you wish to change. Press to change the value. • The selected digit can be increased or decreased using • Confirm your entry by pressing The escape function, pressing the keys simultaneously, is deactivated to avoid faulty insertion. Endress+Hauser...

  • Page 15: Switching On And Off

    To switch off the device, press for at least 3 seconds. Menu structure Menu Language Display Illumination Contrast Setup Simulation Parameter Memosens pH glass pH + ORP pH Isfet Conductive cond. Oxygen amper. Chlorine pH glass SIL Fixed cable Toriodal conduct. Oxygen optical Turbidity Endress+Hauser...
  • Page 16 Operation Menu Nitrate Sim. main value Test values Save setup Load setup Advanced Date Time Switch off auto. Advanced functions Calibration value Error simulation Ramp Diagnostics Diagnostic list Order code Serial number Software Hardware Reset Factory settings Switch off Endress+Hauser...

  • Page 17: Quick Start

    You can now simulate the selected parameter using the factory settings. Once you connect the Memocheck Sim CYP03D to a Memosens transmitter, the Memosens icon appears in the status line of the simulator . It indicates that the simulator is communicating with the transmitter.

  • Page 18: Configuration: Setup

    Set the number of minutes after which the device is 5 to 100 min automatically switched off. If the simulator is connected to a transmitter, this function is deactivated. In this case, the simulator does not switch off automatically. Endress+Hauser...

  • Page 19: Selecting Parameters

    Select a free setup to ensure that none of the settings previously saved are overwritten. In the "Setup/Save setup" menu, you can save up to 10 setups under the relevant parameter name. If you wish to use a saved setup, select it under the "Setup/Load setup" menu. Endress+Hauser...

  • Page 20: Simulation Mode

    Memosens: pH glass/pH glass SIL: • - pH value - Temperature - Raw value - Raw value temperature - SCS resistance pH + ORP: • - pH value - ORP potential - rH value - Temperature Endress+Hauser...
  • Page 21 - Phase • Oxygen amperometric: concentration - Current saturation partial pressure - Temperature - Salinity - Raw value current - Raw value temperature • Chlorine: - Chlorine concentration - Current - Temperature - Raw value current - Raw value temperature Endress+Hauser...
  • Page 22 - TU value [FNU] - TU value [g/l] - Raw value temperature Nitrate: • - NO content - NO N content - Temperature - Raw value temperature SAC: • - Temperature - SAC value - KHP value [mg/l] - Raw value temperature Endress+Hauser...

  • Page 23: Configuration: Advanced Functions

    Calibration value • If you change a calibration value, there will be a brief interruption to communication between the Memocheck Sim CYP03D and the transmitter to allow the transmitter to accept the calibration settings. • An unfavorable configuration may result in measured values outside the specified measuring range.
  • Page 24 Stop value Time x2-x1 Duration a0017359 Fig. 7: Negative slope There are two sorts of ramps: Ramp continuous Ramp gradual The ramp rises continuous without jumps. The ramp runs gradual. The dwell time per step is adjustable. a0017397-en a0017398-en Endress+Hauser...
  • Page 25 10 to 6000 s 1 to 200 0.5 to 600 s SCS resistance 0.001 MOhm 1.0 TOhm 60 s 0.001 MOhm to 0.001 MOhm to 1.0 10 to 6000 s 1 to 200 0.5 to 600 s 1.0 TOhm TOhm Endress+Hauser...
  • Page 26 Once you have selected an error using , the error is output at the Ref. SCS failure transmitter. Temp. sens. defect To delete the error again, remove the check mark using Glass SCS warning Ref. SCS warning Counter spillover Meas. value inval. Ramp Endress+Hauser...
  • Page 27 10 to 6000 s 1 to 200 0.5 to 600 s Raw value temp. -40.0 °C 150.0 °C 60 s -40.0 to 150.0 °C -40.0 to 150.0 °C 10 to 6000 s 1 to 200 0.5 to 600 s Endress+Hauser...
  • Page 28 10 to 6000 s 1 to 200 0.5 to 600 s Raw value -40.0 °C 150.0 °C 60 s temperature -40.0 to 150.0 °C -40.0 to 150.0 °C 10 to 6000 s 1 to 200 0.5 to 600 s Endress+Hauser...
  • Page 29 10 to 6000 s 1 to 200 0.5 to 600 s Raw value temperature -40.0 °C 150.0 °C 60 s -40.0 to 150.0 °C -40.0 to 150.0 °C 10 to 6000 s 1 to 200 0.5 to 600 s Endress+Hauser...
  • Page 30 10 to 6000 s 1 to 200 0.5 to 600 s Resistance 0.001 mOhm 1.0 GOhm 60 s 0.001 mOhm to 1.0 0.001 mOhm to 10 to 6000 s 1 to 200 0.5 to 600 s GOhm 1.0 GOhm Endress+Hauser...
  • Page 31 10 to 6000 s 1 to 200 0.5 to 600 s saturation -0.02 % Sat 1000 % Sat 60 s -0.02 to 1000 % Sat -0.02 to 1000 % Sat 10 to 6000 s 1 to 200 0.5 to 600 s Endress+Hauser...
  • Page 32 10 to 6000 s 1 to 200 0.5 to 600 s saturation -0.02 % Sat 1000 % Sat 60 s -0.02 to 1000 % Sat -0.02 to 1000 % Sat 10 to 6000 s 1 to 200 0.5 to 600 s Endress+Hauser...
  • Page 33 10 to 6000 s 1 to 200 0.5 to 600 s Raw value current -1.5 μA 0.0 pA 60 s -1.5 μA to 0.0 pA -1.5 μA to 0.0 pA 10 to 6000 s 1 to 200 0.5 to 600 s Endress+Hauser...
  • Page 34 10 to 6000 s 1 to 200 0.5 to 600 s Raw value -40.0 °C 150.0 °C 60 s temperature -40.0 to 150.0 °C -40.0 to 150.0 °C 10 to 6000 s 1 to 200 0.5 to 600 s Endress+Hauser...
  • Page 35 10 to 6000 s 1 to 200 0.5 to 600 s Raw value temp. -40.0 °C 150.0 °C 60 s -40.0 to 150.0 °C -40.0 to 150.0 °C 10 to 6000 s 1 to 200 0.5 to 600 s Endress+Hauser...

  • Page 36: Diagnostics

    -40.0 to 150.0 °C 10 to 6000 s 1 to 200 0.5 to 600 s Diagnostics Path: Menu/Diagnostics Function Info Diagnosis list The diagnostic messages provide information to Endress+Hauser service personnel. Order code CYP03D-xxx Serial no. xxxxxxxxxxx Software x.xx.xx Hardware x.xx.xx...

  • Page 37: Maintenance

    Thanks to digital technology, it is not necessary to calibrate the device. The Memocheck Sim CYP03D can, with the quality certificate, also be used as a qualification tool for your measuring point. It may be sent to Endress+Hauser for requalification, see "Returns" section. The device is tested fully, and a new quality certificate is issued.

  • Page 38: Technical Data

    Weight (incl. batteries): 0.3 kg (0.7 lbs) 8.2.2 Battery For the Memocheck Sim CYP03D, use only the following battery types, as only these are covered the Ex approval: • Duracell batteries, MN1500 (AA, 1.5 V, LR6 as per IEC), x 3 •...
  • Page 39 Appendix a0017231...
  • Page 40 a0017237...
