Summary of Contents for Belkin RACKMOUNT WHITE PAPER

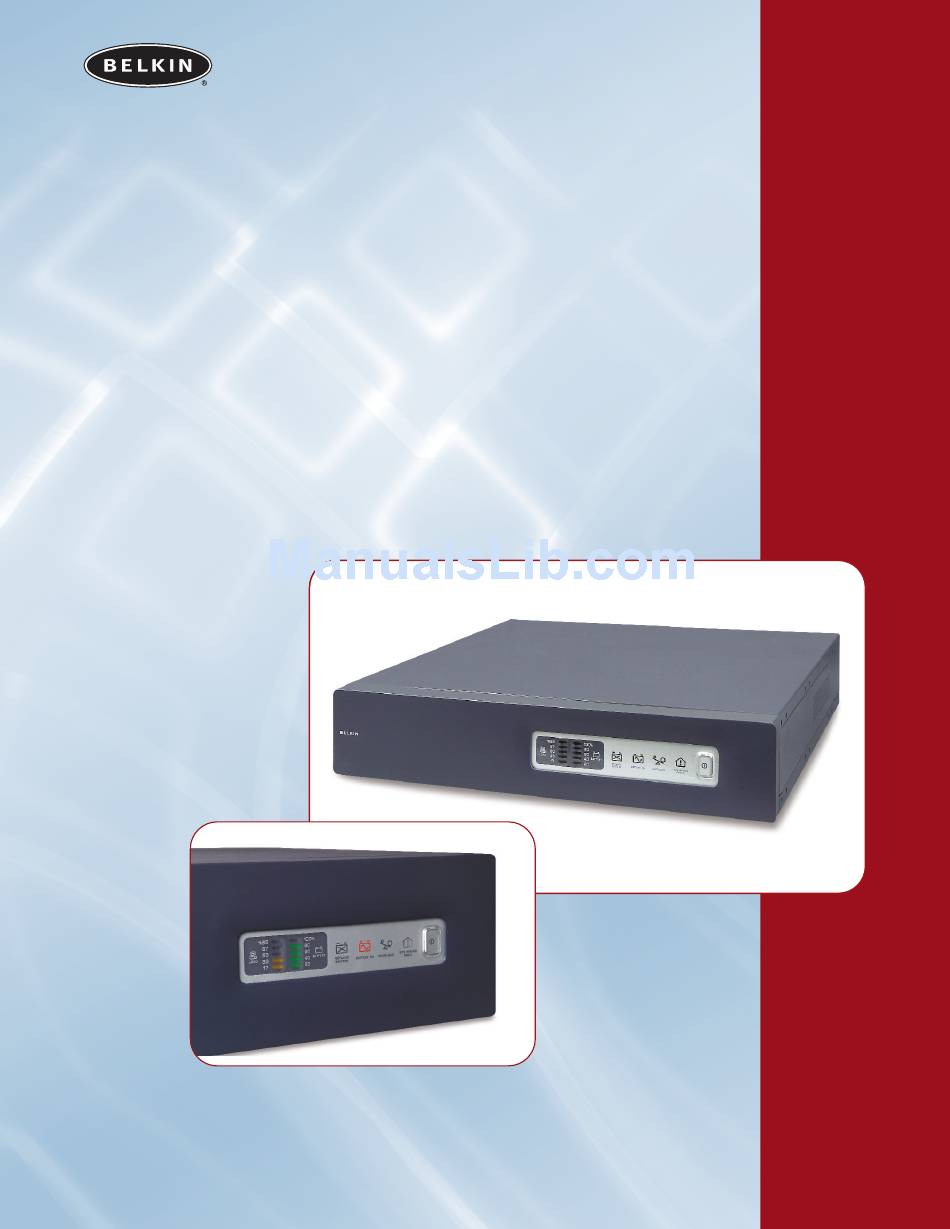

  • Page 1 ™ OmniGuard UPS Guide...
  • Page 3 Overview of Belkin OmniGuard UPS • Why buy Belkin OmniGuard management products? • Why do you need the protection of the Belkin UPS? • Protecting enterprise environments with Belkin UPSes • Ease of serviceability with hot swappable batteries • True sine wave output & line-interactive voltage regulation •...
  • Page 4 With its advanced features and conveniently accessible design, the Belkin Rackmount UPS provides complete protection for servers, storage, networking, KVM, and other enterprise devices from damaging power fluctuations. The Belkin UPS also allows end users to monitor, control, and shut down servers remotely via Internet Protocol. (see Belkin UPS options)
  • Page 5 Why do you need the protection of the Belkin UPS? These key points of information will help you realize the importance of having the right power protection in place: The amount of power required to push a single byte of information across the World Wide Web drops by half every 18 months, but the number of bytes traveling the Web doubles every 12 months.
  • Page 6 With its advanced features and conveniently accessible design, the Belkin Rackmount UPS provides complete protection for servers, storage, networking, KVM, and other enterprise devices from damaging power fluctuations. The Belkin UPS also allows end users to monitor, control, and shut down servers remotely via Internet Protocol.
  • Page 7 Ease of serviceability with hot swappable batteries Features convenient, swappable, front-access batteries While enhanced battery management has the ability to double battery service life, it cannot prevent inevitable battery failure. When your batteries reach the end of their useful life, replacement is easy with hot swappable batteries.
  • Page 8 100V-120V. Most homes and office spaces in North America are wired for 120V. For marketing purposes, Belkin chooses to use low voltage to mean 120V. The other choices for North American single-phase voltage environments are generally 208V and 240V. These voltages are sometimes described as high voltage.
  • Page 9 OmniGuard Series from 1100VA to 3200VA Rackmount UPS Belkin has made it easy for you to select and buy the UPS that is right for your system. Just go to www.belkin.com and put the Belkin UPS product selector to work for you.
  • Page 10 UPS front-panel configuration Models: F6C110-RKM-2U, F6C150-RKM-2U, F6C230-RKM-2U, and F6C320-RKM-3U 1. Power switch, ON/OFF/TEST button 2. Site Wiring Fault 3. Overload 4. Battery On 5. Replace battery 6. LED indicating the battery level up to 100% 7. LED indicating 80% to 99% battery level 8.
  • Page 11 UPS front-panel configuration Models: F6C110-RKM-2U-230V, F6C150-RKM-2U-230V, F6C230-RKM-2U-230V, and F6C320-RKM-3U-230V 1. Power switch, ON/OFF/TEST button 2. Low Battery 3. Overload 4. Battery On 5. Replace Battery 6. LED indicating the battery level up to 100% 7. LED indicating 80% to 99% battery level 8.
  • Page 12 UPS rear-panel configuration Models: F6C110-RKM-2U, F6C150-RKM-2U, F6C230-RKM-2U 1. Surge protection output receptacle 2. (5) 5-15 receptacles 3. Input circuit breaker 4. Power cord with L5-15 plug (F6C230-RKM-2U: L5-20) 5. Network transient protector 6. Output voltage configuration 7. Communications port...
  • Page 13 UPS rear-panel configuration Model: F6C320-RKM-3U 1. Surge protection output receptacle 2. Load circuit breaker 1 3. Load circuit breaker 2 4. (7) 5-15 receptacles 5. Load 2 6. Load 1 7. Input circuit breaker 8. Power cord with L5-30 plug 9.
  • Page 14 UPS rear-panel configuration Models: F6C110-RKM-2U-230V, F6C150-RKM-2U-230V, F6C230-RKM-2U-230V 1. Surge protection output receptacle 2. (5) IEC 320, 10A receptacles 3. Input circuit breaker 4. Power input socket (IEC) 5. Network transient protector 6. Output voltage configuration 7. Communications port...
  • Page 15 UPS rear-panel configuration Model: F6C320-RKM-3U-230V 1. Surge protection output receptacle 2. Load circuit breaker 1 3. Load circuit breaker 2 4. (7) IEC 320, 10A receptacles 5. Load 2 6. Load 1 7. Input circuit breaker 8. Power input socket (IEC) 9.
  • Page 16: Worldwide Power Requirements

    Worldwide Power Requirements Worldwide voltages* *See Specifications for 230VAC Model, page 21...
  • Page 17 Belkin UPS options These accessories can assist administrator in managing equipment more conveniently and also provides additional functions to the standardized products. The accessories offer users the option of customizing products to suit their specific needs.
  • Page 18 Belkin UPS options (cont.) This card initiates safe shutdown of an AS400 card IBM AS400. The iLink cards are available for Multi-Chassis. The card permits UPS, iLink UPS card RPM & ENV to be interconnected with each other via RS485 cables for...
  • Page 19 This versatile application provides system administrators with an overview of network power conditions, and enables them to configure shutdown timing, customize alert messages, and perform UPS diagnostic checks. Belkin UPS Power Management Software eSentry IV is bundled with all OmniGuard UPS models.
  • Page 20 Specifications (120VAC models)
  • Page 21 Specifications (230VAC models) Technical Specifications F6C110-RKM- F6C150-RKM- F6C230-RKM- F6C320-RKM- Model 2U-230V 2U-230V 2U-230V 3U-230V 1100 1500 2300 3200 Watts 1380 1920 Type Rackmount Model Agency Approvals CE EMC & Safety Warranty 2 yr. Input (non-battery operation) Voltage Range 130 to 300VAC default* Auto-Sensing 50/60Hz ±...
  • Page 22 Fax: +61 (0) 2 4372 8603 Belkin Tech Support US: 310.898.1100 ext. 2263 800.223.5546 ext. 2263 Europe: 00 800 223 55 460 Australia: 1800 666 040 23MS360 © 2003 Belkin Corporation. All rights reserved. All trade names are registered trademarks of respective manufacturers listed.
