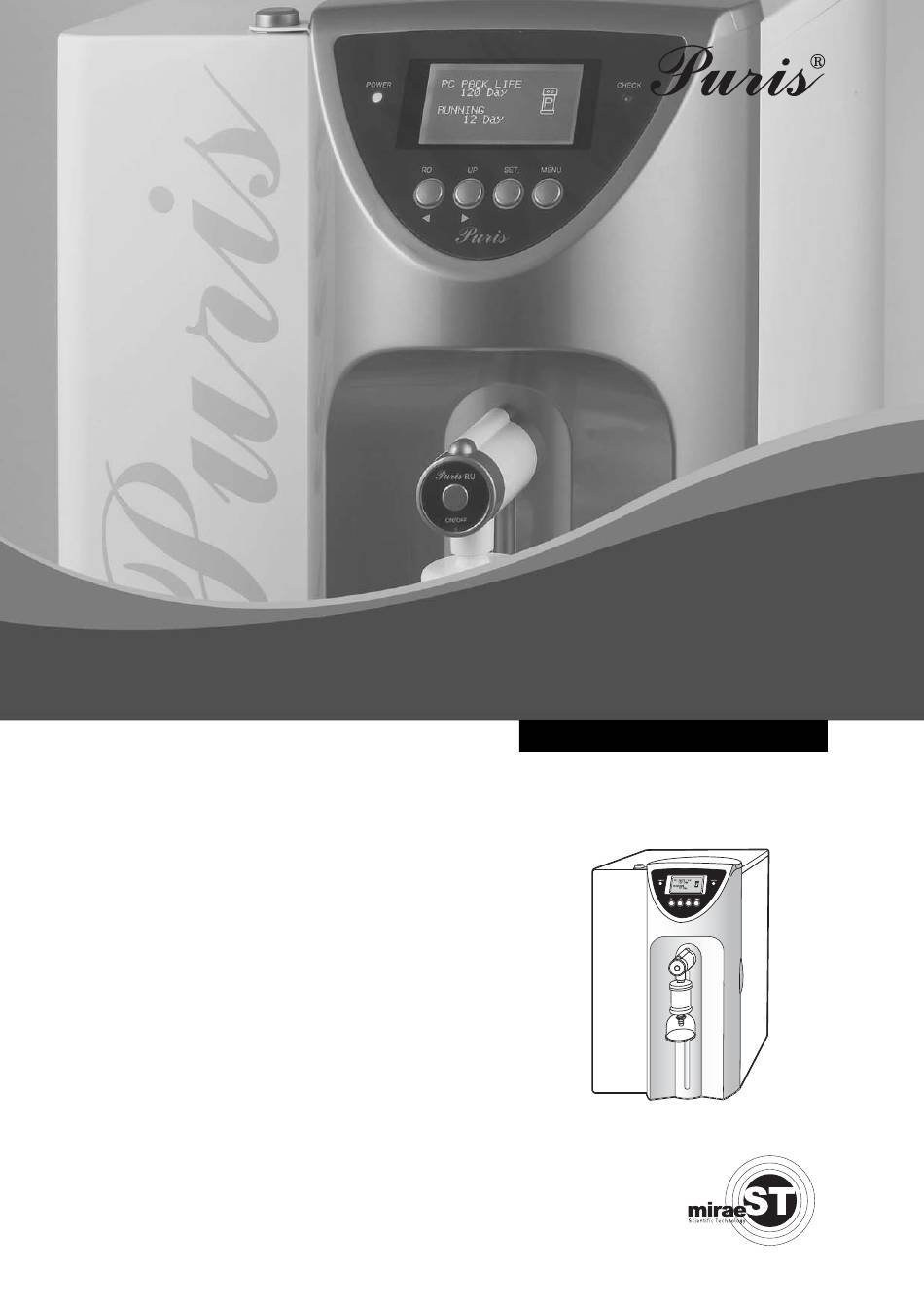

- Page 1 Puris is a trademark of MIRAE ST Co. Ltd. Puris, Expe-CB Water System (Model : Expe-CB Series) OPERATIONAL MANUAL...
- Page 2 Foreword This manual is provided to serve as the installation, operation and maintenance guide for the Expe Series LAB Water system models. The manual should be read before attempting any cycle of installation, operation and maintenance. If the instructions in this manual are not followed, the performance of this product or the safety of the user may be compromised.
-
Page 3: Symbol Explanation
Special Features of Puris Expe-CB Ele Water System. Easy Setting One-Touch Tubing system is installed for easy use. Easy Filter Change: Introduced for the first time, using this cutting edge Quick Connector will make the Pack replacing easier and eliminates The leakage while replacing it from the instrument. -
Page 4: Maintenance
Expe-CB Series Maintenance Changing Fuse - Turn off the main power, then pull out the power cord. - Check the power cord unit on the back of the instrument. - Unscrew the area where fuse sign is indicated in the middle of the instrument. - Pull out the Fuse Box which contains two fuses. - Page 5 Caution Power Supply - Make sure to connect the power cord to the instrument properly. - Make sure that the power conditions are 230V, 60Hz. - Do not open the PCB box and disconnect anything from the main PCB. - Never touch the lines connected to Main PCB and Sensor. - It can cause damage to the program and the sensor.
-
Page 6: System Specification
Expe-CB Series System Specification Inlet water condition - Feed Water : <250 / - Reverse Osmosis Water : <250 / - Temperature : 5 - 40 - DI(Deionization) Water : >1 . - Pressure : 0.07 - 6Bar - Distilled Water - Free Chlorine : 3ppm - Chlorine :... - Page 7 System function - Setting Resistivity - Setting inlet water temperature - Indicating Service Life of CI Pack - Indicating Service Life of Final Filter - Circulating function at Stand By - Setting Conductivity - Setting the tank overflow - Drain function at Stand By - Indicating Service Life of PC Pack - Indicating Service Life of RO Membrane - Setting key button alarm...
-
Page 8: Installation Instructions
Expe-CB Series Puris, Expe-CB Water System INSTALLATION INSTRUCTIONS After unpacking the instrument, please don't connect the tubing kit to the system as yet. First, check all the contents and then attach the Packs. Use the instrument in a good condition. Leave the instrument at a safe location. - Page 9 Contents checking Puris, Expe-CB Ele Water System Unit : 1 SET Filter Cartridge - Attached filter : Expe RO Pack (CB Ele10 Model):1ea (CB Ele10 Model):2ea - Detached filter : Expe-PC Pack : 1pk Expe-CI Pack : 1pk Final Filter, 0.2 : 1ea Electric cord : 1ea Tubing...
-
Page 10: Installing Instrument
Expe-CB Series Installing instrument After all the contents have been checked, take the instrument to the location where you want to have it set up then follow the following instructions: The instrument should be set up where the water faucet and the drainage is available. - To connect the tubing on the back of the instrument, first remove the plug. -
Page 11: Setting Functions
Setting functions Time Setting Turn on the Main Power on the back of the instrument. Setting-screen for the time and date. TIME SETTING 23-OCT-2009 16:09:24 - Set the correct time and date when the number blinks, by pressing the (Increase)or (Decrease) key. - Page 12 Expe-CB Series Setting functions Operating screen of RO/UP 8.0 / 18.2 . 25.0 25.0 - Keep in mind that the pure water value will range from 1~25 /cm.on the other hand the Ultrapure is above 15 .cm. Setting screen for water quantity 30-OCT 2009 0.5LITER...
-
Page 13: Menu Setting
Menu Setting Turn on the Main Power on the back of the instrument. Conductivity setting RO QUALITY 25.0 / CHECK TIME 10 min - Press the SET key and set up the RO quality & check time. - Adjusting the numerical value can be set up by pressing the (Increase)or (Decrease)key. (safety standards : 25 /cm) Resistivity setting UP QUALITY... - Page 14 Expe-CB Series Menu Setting Inlet water temperature setting TEMPERATURE 40.0 - When the inlet water temperature exceeds safety standards, the operation of unit stops automatically - Adjusting the temperature can be set up by pressing the (Increase) or (Decrease) key. - (safety standards: 40 C) The water level sensor setting LEVEL DELAY...
- Page 15 Menu Setting Ultrapure level setting UP UNIT SET - Select the symbol of UP Unit Set by pressing the (Increase) or (Decrease)key if needed. PC Pack Normal Life Time PC PACK LIFE 120 Day RUNNING 0 Day - Safety standards : 120 Day RO Membrane Normal Life Time MEMBRANE LIFE 550 Day...
-
Page 16: Password Set
Expe-CB Series Menu Setting Printing function(Option) PRINTER OUT Setting the password PASSWORD SET 0000 - Change the password by pressing the (Increase) or (Decrease)key if needed. LCD brightness setting LCD CONTRAST 50 - Adjust the LCD Contrast figure by pressing the (Increase) or (Decrease) key if needed. FILTER Normal Life Time Please check with the SET key L: 000... - Page 17 Setting Date Input - Press the MENU. - Move to the”Print Out” - Press the button to following order (SET) - (RO) - (UP) - Input the new date. Cancel the Password - Press the MENU key. - The display will show the number "5000". - Change the number to 0000 by pressing the SET key.
-
Page 18: Replacing The Filter
Expe-CB Series Replacing the Filter It is recommended that the work should be done after gaining the full of understanding about this product. otherwise the performance of this product may be compromised. Always check that the Electrical power cord and Feed water supply are switched off before attempting to change any consumables. - Page 19 Replacing the Filter Replacing the RO Membrane - Open the left side of the door with a screwdriver. - Remove the tubing connected around the RO Membrane. - Detach the RO Membrane housing from the unit. - Rotate the Membrane Housing cover counterclockwise to open. - Replace the old RO Membrane with the new one.
- Page 20 Expe-CB Series Replacing the Filter Replacing the Final Filter, 0.2 - Rotate the Final Filter to right to remove. - Attach the New Final Filter by rotating it clockwise - Set the program after replacing it Rotate the Final Filter gently otherwise it can be damaged. Set the program after replacing it.(P17)
- Page 21 Consumables and Service Life Normal Service Life Item Service Life Remark Expe-PC Pack FXPC265M 4months Expe-RO Membrane FXRM075M 18 months Ele10 Expe-RO Membrane FXRM275M 18 months Ele20 Expe-CI Pack FXCI265M 6 months Final Filter, 0.2 ASMF02-BM 6 months Printer Kit FXPD801M Validation Kit FXVAK951M...
-
Page 22: Troubleshooting
Expe-CB Series Trouble Shooting After confirming the Error Message, please observe the following process - Confirm the Error Message. - Switch off the Power then unplug the power cord. (Power Switch can be off regardless of Error Message being displayed on the screen) - Confirm the inlet water temperature or Change the filter according to the Error Message on the screen. - Page 23 ICONS...
- Page 24 We strive to guarantee our customers the complete satisfaction. MIRAE ST CO. LTD not only makes high quality products but we do our best to provide the best after service to our customers. We are always glad to receive feedbacks or any opinions from our customers.
