Belkin F5D8633-4 User Manual

N wireless modem router
Hide thumbs Also See for F5D8633-4:
Table of Contents

Advertisement

Quick Links

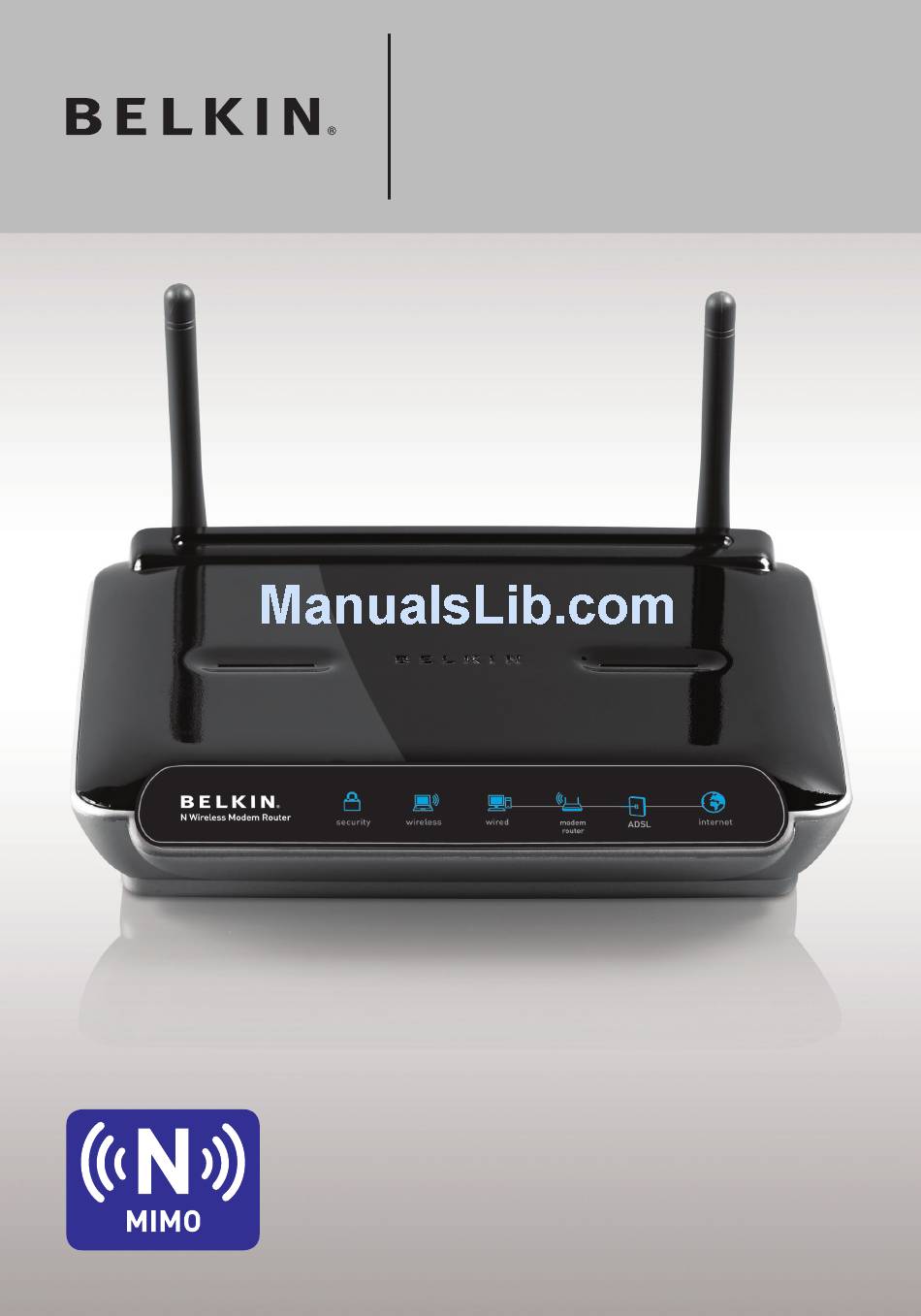

N Wireless

Modem Router

User Manual
F5D8633-4

Advertisement

Table of Contents
loading

Related Manuals for Belkin F5D8633-4

Summary of Contents for Belkin F5D8633-4

  • Page 1: Modem Router

    N Wireless Modem Router User Manual F5D8633-4...

  • Page 2: Table Of Contents

    Table of Contents 1. Introduction........1 Advantages of a Wireless Network .

  • Page 3: Introduction

    “Placement of your Wireless Networking Hardware for Optimal Performance” on the next page. By following our simple setup instructions you will be able to use your Belkin Home Network to: • Share one high-speed Internet connection with all the computers in your home •...
  • Page 4 Belkin’s N MIMO helps traffic move at the speed limit and opens more lanes—to become the superhighway in this example. The rate of...

  • Page 5: Placement Of Your N Wireless Modem Router

    To achieve the best wireless network coverage for your “wireless clients” (i.e., computers enabled by Belkin Wireless Notebook Network Cards, Wireless Desktop Network Cards, and Wireless USB Adapters): •...
  • Page 6 Introduction Avoid Obstacles and Interference Avoid placing your Router near devices that may emit radio “noise,” such as microwave ovens. Dense objects that can inhibit wireless communication include: • Refrigerators • Washers and/or dryers • Metal cabinets • Large aquariums •...
  • Page 7 • For Belkin wireless networking products, use the detailed Site Survey and wireless channel information included with your wireless network card. See your network card’s user guide for more information.
  • Page 8 Introduction Secure Connections, VPNs, and AOL Secure connections typically require a user name and password, and are used where security is important. Secure connections include: • Virtual Private Network (VPN) connections, often used to connect remotely to an office network •...
  • Page 9 Introduction Free Tech Support* You can find additional support information on our website at www.belkin.com through the tech-support area. If you want to contact technical support by phone, please call the number you need from the list below*. *Local rates apply.

  • Page 10: Product Overview

    In minutes you will be able to share your Internet connection and network your computers. The following is a list of features that make your new Belkin N Wireless Modem Router an ideal solution for your home or small office network.
  • Page 11 IP addresses to each computer automatically so there is no need for a complicated networking setup. Setup Assistant The Setup Assistant, second generation of Belkin’s renowned Easy Install Wizard, takes the guesswork out of setting up your Router. This automatic software determines your network settings for you and sets up the Router for connection to your Internet Service Provider (ISP).

  • Page 12: Integrated N Wireless Access Point

    Product Overview Integrated N Wireless Access Point N MIMO is an exciting new wireless technology based on the draft IEEE 802.11n specification. It employs MIMO (Multiple Input Multiple Output) smart-antenna technology that achieves data rates of up to 300Mbps.* Actual throughput is typically lower than the connected data rate and will vary depending on your networking environment.

  • Page 13: Knowing Your Modem Router

    Knowing your Modem Router Package Contents • Belkin N Wireless Modem Router • Quick Installation Guide • Belkin Setup Assistant Software CD • RJ11 Telephone Cord • RJ45 Ethernet Networking Cable • ADSL (Asymmetric Digital Subscriber Line) Microfilter* • Power Supply •...
  • Page 14 Knowing your Modem Router Internet Connection Settings The Setup Assistant contains a database of Internet Service Providers (ISP) in each country to help you set up your Router quickly. If your ISP is not on the list, please collect the following information from your ISP before setting up the Router: •...
  • Page 15 Knowing your Modem Router The Router has been designed to be placed on a desktop. All of the cables exit from the rear of the Router for better organization and utility. The Network Status Display is easily visible on the FRONT of the Router to provide you with information about network activity and status.
  • Page 16 Knowing your Modem Router Router/Power Status When you apply power to the Router or restart it, a short period of time elapses while the Router boots up. During this time, the “router” icon blinks. When the Router has completely booted up, the “router” icon becomes a solid light, indicating the Router is ready for use.
  • Page 17 Knowing your Modem Router Internet Status This unique icon shows you when the Router is connected to the Internet. When the light is off, the Router is NOT connected to the Internet. When the light is blinking amber, the Router is attempting to connect to the Internet.
  • Page 18 Knowing your Modem Router Connection to ADSL – Gray This port is for connection to your ADSL. Connect your ADSL to this port. An RJ11 telephone cord is provided in the package. H. Connections to Wired Computers – Yellow Connect your wired (non-wireless) computers to these ports. These ports are RJ45, 10/100 auto-negotiation, auto-uplinking ports for standard UTP category 5 or 6 Ethernet cable.
  • Page 19 “Power/Ready” light becomes solid again, the restore is complete. Power Jack – Black Connect the included 15V/.08A DC power supply to this jack. Push Button – White This button is set aside for future upgradeable features. Please check for the latest firmware updates at www.belkin.com/ support.

  • Page 20: Connecting And Configuring Your Modem Router

    User Manual on CD Setup Assistant Belkin has provided our Setup Assistant software to make installing your Router a simple and easy task. You can use it to get your Router up and running in minutes. The Setup Assistant requires that your...
  • Page 21 ADSL splitter). Note: Some ADSL connections require a microfilter. Your ADSL provider can tell you if you need one. Belkin includes a microfilter in regions known to use them. You may or may not have received one in your box.
  • Page 22 Connecting and Configuring your Modem Router Plug your Router’s power supply into the black port labeled “Power” on the back of your Router. Wait 20 seconds for the Router to start up. Look at the display on the front of the Router. Make sure the “Wired”...
  • Page 23 Connecting and Configuring your Modem Router Locate the cable that connects your old modem to your computer. Unplug that cable from your old modem, and plug it into any yellow port labeled “to Wired Computers” on the back of your new Router.
  • Page 24 Connecting and Configuring your Modem Router Step 2 Set Up the Router – Run the Setup Assistant Software Shut down any programs that are running on your computer at this time. Turn off any firewall or Internet-connection-sharing software on your computer. Insert the CD into your computer.
  • Page 25 Connecting and Configuring your Modem Router Select Country Select your country from the drop-down box. Click “Begin” to continue. Confirmation Screen Verify that you have completed all QIG steps by checking the box to the right of the arrow. Click “Next” to continue. Progress Screen Setup Assistant will show you a progress screen each time a step in...
  • Page 26 Connecting and Configuring your Modem Router Checking Settings The Setup Assistant will now examine your computer’s network settings and gather information needed to complete the Router’s connection to the Internet. Verifying Hardware Connections The Setup Assistant will now verify your hardware connection. Naming your Wireless Network The Setup Assistant will display the default wireless network name...
  • Page 27 Connecting and Configuring your Modem Router Requesting Internet Account Info (if needed) Select your ISP from the drop-down boxes. If your Internet account requires a login and password, you will be prompted with a screen similar to the illustration below. Click “Next” to continue.
  • Page 28 Connecting and Configuring your Modem Router Congratulations You have finished installing your new Belkin Router. You will see the Congratulations screen when your Router can connect to the Internet. You can begin surfing by opening your browser and going to any website.
  • Page 29 Connecting and Configuring your Modem Router Step 3 Set Up Wireless Security – Run the Security Assistant Software Now that your network is set up and working, it is recommended that you turn on wireless security to prevent unauthorized access to your network from neighboring wireless-enabled computers.
  • Page 30 Connecting and Configuring your Modem Router Picking the Security Type Select the security type for your wireless network and click “Next” to continue. Creating a Network Key Enter a network key (PSK) for your wireless network and click “Next” to continue. Transferring the Key After setting up your wireless security, you will have to transfer...
  • Page 31 Connecting and Configuring your Modem Router Verifying the Connection If all your wireless computers are able to connect to the Router, click “Next”. If you are having trouble, select “I had problem with at least one computer” and click “Next”. Then, follow on-screen instructions.

  • Page 32: Alternate Setup Method

    Alternate Setup Method Step 1 Hardware Connections – Follow the Quick Installation Guide (QIG) See the QIG or Step 1: Hardware Connections from the previous section. Step 2 Set your Computer’s Network Settings to Work with a DHCP Server See the section in this User Manual called “Manually Configuring Network Settings”...
  • Page 33 Alternate Setup Method Logging into the Router You will see the Router’s home page in your browser window. The home page is visible to any user who wants to see it. To make any changes to the Router’s settings, you have to log in. Clicking the “Login”...
  • Page 34 Alternate Setup Method (13) (3) (4) (10) (11) (12) Quick-Navigation Links You can go directly to any of the Router’s advanced UI pages by clicking directly on these links. The links are divided into logical categories and grouped by tabs to make finding a particular setting easier to find.
  • Page 35 Alternate Setup Method Internet-Status Indicator This indicator is visible in all pages of the Router, indicating the connection status of the Router. When the indicator says “Connected” in blue, the Router is connected to the Internet. When the Router is not connected to the Internet, the indicator will read “No Connection”...
  • Page 36 Alternate Setup Method Step 4 Configuring your Router for Connection to your Internet Service Provider (ISP) The “Internet/WAN” tab is where you will set up your Router to connect to your Internet Service Provider (ISP). The Router is capable of connecting to virtually any ISP’s system provided you have correctly configured the Router’s settings for your ISP’s connection type.
  • Page 37 Alternate Setup Method Connection Type From the “Connection Type” page, you can select one of these five connection types based on the instruction provided by your ISP: • PPPoE • PPPoA • Dynamic/Fixed IP (1483 Bridged) • Static IP (IPoA) •...
  • Page 38 Alternate Setup Method Setting your ISP Connection Type to PPPoE or PPPoA PPPoE (Point-to-Point Protocol over Ethernet) is the standard method of connecting networked devices. It requires a user name and password to access the network of your ISP for connecting to the Internet. PPPoA (PPP over ATM) is similar to PPPoE, but is mostly implemented in the UK.
  • Page 39 Alternate Setup Method - Enter the MTU value for your ISP. Disconnect after of x minutes of no activity - Checking the box and enter the number of minute that you want the modem router to auto disconnect after no activity. After this time has been exceeded, the connection will be terminated.
  • Page 40 Alternate Setup Method For Dynamic IP connection: IP assigned by ISP - Select “No” if your ISP instructed you to use fixed IP. IP Address - Enter an IP address assigned by your ISP for the Router WAN interface. Subnet Mask - Enter a subnet mask assigned by your ISP.
  • Page 41 Alternate Setup Method Setting your ISP Connection Type to Static IP (IPoA) This connection type is also called “Classical IP over ATM” or “CLIP”, which your ISP provides a fixed IP for your Router to connect to the Internet. WAN IP Address - Enter an IP address assigned by your ISP for the Router WAN interface.
  • Page 42 Alternate Setup Method Setting your Connection Type to Modem Only (Disable Internet Sharing) In this mode, the Router simply acts as a bridge passing packets across the DSL port. It requires additional software to be installed on your computers in order to access the Internet. Enable Bridge Service - Check this box to enable bridge service VPI/VCI...
  • Page 43 Setting Custom Domain Name Server (DNS) Settings A “Domain Name Server” is a server located on the Internet that translates Universal Resource Locaters (URLs) like “www.belkin. com” to IP addresses. Many Internet Service Providers (ISPs) do not require you to enter this information into the Router. The “Automatic from ISP”...

  • Page 44: Using The Web-Based Advanced User Interface

    Using the Web-Based Advanced User Interface Using the Web-Based Advanced User Interface Using your Internet browser, you can access the Router’s Web-Based Advanced User Interface. In your browser, type “192.168.2.1” (do not type in anything else such as “http://” or “www”) then press the “Enter”...

  • Page 45: Changing Lan Settings

    Subnet Mask There is no need to change the subnet mask. This is a unique, advanced feature of your Belkin Router. It is possible to change the subnet mask if necessary; however, do NOT make changes to the subnet mask unless you have a specific reason to do so. The...
  • Page 46 IP address to change. Local Domain Name The default setting is “Belkin”. You can set a local domain name (network name) for your network. There is no need to change this setting unless you have a specific advanced need to do so.

  • Page 47: Viewing The Dhcp Client List Page

    Using the Web-Based Advanced User Interface Viewing the DHCP Client List Page You can view a list of the computers (known as clients), which are connected to your network. You are able to view the IP address the computer, the host name (if the computer has been assigned one), and the MAC address of the computer’s network interface...
  • Page 48 To identify your wireless network, a name called the SSID is used. The SSID is your network name. The default network name of the Router is “Belkin N1 Wireless” followed by six digits that are unique to your Router. Your network name will look something like “Belkin_N1_Wireless_123456”.
  • Page 49 Using the Web-Based Advanced User Interface Changing the Wireless Channel There are a number of operating channels from which you can choose— in the United Kingdom (and most of Europe) and Australia, there are 13. In other countries, there are other channel requirements. Your Router is configured to operate on the proper channels for the country in which you reside.
  • Page 50 802.11g or 802.11b traffic in the operating environment. Use protected mode if your network consists of a mix of Belkin N1 Wireless Cards and 802.11g or 802.11b cards on your network. If you are in an environment that includes little to no 802.11g or 802.11b wireless network traffic, you will achieve the best N1 wireless...
  • Page 51 You also need to ensure that all your wireless client cards/adapters support WPA2, and that you have downloaded and installed the latest driver. Most of the Belkin wireless cards have driver updates available for download from the Belkin support site:...
  • Page 52 Using the Web-Based Advanced User Interface Setting WPA/WPA2-Personal (PSK) Like WPA security, WPA2 is available in both WPA2-Personal (PSK) mode and WPA2-Enterprise (RADIUS) mode. Typically, WPA2- Personal (PSK) is the mode that will be used in a home environment, while WPA2-Enterprise (RADIUS) is implemented in a business environment where an external radius server distributes the network key to the clients automatically.

  • Page 53: Setting Wpa Security

    Using the Web-Based Advanced User Interface IMPORTANT: Make sure your wireless computers are updated to work with WPA2 and have the correct settings to get proper connection to the Router. Setting WPA Security Note: To use WPA security, your wireless network cards must be equipped with software that supports WPA.
  • Page 54 Using the Web-Based Advanced User Interface Setting WPA-PSK From the “Security Mode” drop-down menu, select “WPA-PSK (no server)”. For “Encryption Technique”, select “TKIP” or “AES”. This setting will have to be identical on the clients that you set up. Enter your pre-shared key. This can be from eight to 39 characters and can be letters, numbers, or symbols.

  • Page 55: Setting Wep Encryption

    Using the Web-Based Advanced User Interface Setting WEP Encryption Note to Mac users: The “Passphrase” option will not operate with Apple AirPort . To configure encryption for your Mac computer, set the ® ® encryption using the manual method described in the next section. Select “128-bit WEP”...
  • Page 56 Using the Web-Based Advanced User Interface Using a Hexadecimal Key A hexadecimal key is a mixture of numbers and letters from A–F and 0–9. 64-bit keys are 10 digits long and can be divided into five two-digit numbers. 128-bit keys are 26 digits long and can be divided into 13 two-digit numbers.

  • Page 57: Using The Access Point Mode

    Using the Web-Based Advanced User Interface Using the Access Point Mode Note: This advanced feature should be employed by advanced users only. The Router can be configured to work as a wireless network access point. Using this mode will defeat the NAT IP sharing feature and DHCP server.

  • Page 58: Setting Mac Address Control

    Using the Web-Based Advanced User Interface Setting MAC Address Control The MAC address filter is a powerful security feature that allows you to specify which computers are allowed on the wireless network. Note: This list applies only to wireless computers. This list can be configured so any computer attempting to access the wireless network that is not specified in the filter list will be denied access.
  • Page 59 Using the Web-Based Advanced User Interface Setting up a Deny Access List The “Deny Access” list lets you specify computers that you DO NOT want to access the network. Any computer in the list will not be allowed access to the wireless network. All others will. Select the “Deny”...

  • Page 60: Configuring The Firewall

    Using the Web-Based Advanced User Interface Configuring the Firewall Your Router is equipped with a firewall that will protect your network from a wide array of common hacker attacks including: • IP Spoofing • Land Attack Ping of Death (PoD) •...
  • Page 61 Using the Web-Based Advanced User Interface Configuring Internal Forwarding Settings The Virtual Servers function will allow you to route external (Internet) calls for services such as a web server (port 80), FTP server (Port 21), or other applications through your Router to your internal network. Since your internal computers are protected by a firewall, computers outside your network (over the Internet) cannot get to them because they cannot be “seen”.
  • Page 62 Using the Web-Based Advanced User Interface Setting Client IP Filters The Router can be configured to restrict access to the Internet, email, or other network services at specific days and times. Restriction can be set for a single computer, a range of computers, or multiple computers.
  • Page 63 Using the Web-Based Advanced User Interface Enabling the Demilitarized Zone (DMZ) The DMZ feature allows you to specify one computer on your network to be placed outside of the firewall. This may be necessary if the firewall is causing problems with an application such as a game or video conferencing application.

  • Page 64: Using Dynamic Dns

    Using the Web-Based Advanced User Interface Using Dynamic DNS The Dynamic DNS service allows you to alias a dynamic IP address to a static host name in any of the many domains DynDNS.org offers, allowing your network computers to be more easily accessed from various locations on the Internet.

  • Page 65: Utilities

    Using the Web-Based Advanced User Interface Blocking an ICMP Ping Computer hackers use what is known as “pinging” to find potential victims on the Internet. By pinging a specific IP address and receiving a response from the IP address, a hacker can determine that something of interest might be there.

  • Page 66: Restarting The Router

    Using the Web-Based Advanced User Interface Restarting the Router Sometimes it may be necessary to restart or reboot the Router if it begins working improperly. Restarting or rebooting the Router will NOT delete any of your configuration settings. Restarting the Router to Restore Normal Operation Click the “Restart Router”...
  • Page 67 Using the Web-Based Advanced User Interface Restoring Factory Default Settings Using this option will restore all of the settings in the Router to the factory (default) settings. It is recommended that you back up your settings before you restore all of the defaults. Click the “Restore Defaults”...
  • Page 68 Using the Web-Based Advanced User Interface Saving a Current Configuration You can save your current configuration by using this feature. Saving your configuration will allow you to restore it later if your settings are lost or changed. It is recommended that you back up your current configuration before performing a firmware update.
  • Page 69 Using the Web-Based Advanced User Interface When the save is complete, you will see this window. Click “Close”. The configuration is now saved. Restoring a Previous Configuration This option will allow you to restore a previously saved configuration. Click “Browse”. A window will open that allows you to select the location of the...
  • Page 70 Using the Web-Based Advanced User Interface You will be asked if you want to continue. Click “OK”. A reminder window will appear. It will take up to 60 seconds for the configuration restoration to complete. Click “OK”. A 60-second countdown will appear on the screen. When the countdown reaches zero, the Router’s configuration will be restored.

  • Page 71: Updating The Firmware

    Using the Web-Based Advanced User Interface Updating the Firmware From time to time, Belkin may release new versions of the Router’s firmware. Firmware updates contain feature improvements and fixes to problems that may have existed. When Belkin releases new firmware, you can download the firmware from the Belkin update website and update your Router’s firmware to the latest version.
  • Page 72 Using the Web-Based Advanced User Interface Downloading a New Version of Firmware If you click the “Check Firmware” button and a new version of firmware is available, you will see a screen similar to the one below: To download the new version of firmware, click “Download”.
  • Page 73 Using the Web-Based Advanced User Interface When the save is complete, you will see the following window. Click “Close”. The download of the firmware is complete. To update the firmware, follow the next steps in “Updating the Router’s Firmware”. Updating the Router’s Firmware In the “Firmware Update”...
  • Page 74 Using the Web-Based Advanced User Interface You will be asked if you are sure you want to continue. Click “OK”. You will see one more message. This message tells you that the Router may not respond for as long as one minute as the firmware is loaded into the Router and the Router is rebooted.
  • Page 75 Using the Web-Based Advanced User Interface Changing System Settings The “System Settings” page is where you can enter a new administrator password, set the time zone, enable remote management, and turn on and off the NAT function of the Router. Setting or Changing the Administrator Password The Router ships with NO password entered.
  • Page 76 Router to contact the time servers on the Internet and get a response. You cannot set the clock yourself. Enabling Remote Management Before you enable this advanced feature of your Belkin Router, MAKE SURE YOU HAVE SET THE ADMINISTRATOR PASSWORD. Remote management allows you to make changes to your Router’s settings from anywhere on the Internet.
  • Page 77 The default access port is set to port 80. Enabling/Disabling UPnP UPnP (Universal Plug-and-Play) is yet another advanced feature offered by your Belkin Router. It is a technology that offers seamless operation of voice messaging, video messaging, games, and other applications that are UPnP-compliant. Some applications require the Router’s firewall to be configured in a specific way to operate...
  • Page 78 Using the Web-Based Advanced User Interface Enabling/Disabling Auto Firmware Update This innovation provides the Router with the built-in capability to automatically check for a new version of firmware and alert you that the new firmware is available. When you log into the Router’s advanced interface, the Router will perform a check to see if new firmware is available.

  • Page 79: Manually Configuring Network Settings

    Manually Configuring Network Settings Set up the computer that is connected to the cable or DSL modem FIRST using these steps. You can also use these steps to add computers to your Router after the Router has been set up to connect to the Internet.
  • Page 80 Manually Configuring Network Settings Manually Configuring Network Settings in Mac OS X Click on the “System Preferences” icon. Select “Network” from the “System Preferences” menu. Select “Built-in Ethernet” next to “Show” in the Network menu.
  • Page 81 Manually Configuring Network Settings Select the “TCP/IP” tab . Next to “Configure” , you should see “Manually” or “Using DHCP”. If you do not, check the PPPoE tab to make sure that “Connect using PPPoE” is NOT selected. If it is, you will need to configure your Router for a PPPoE connection type using your user name and password.
  • Page 82 Manually Configuring Network Settings Manually Configuring Network Settings in Windows 2000, NT, or XP Click “Start”, “Settings”, then “Control Panel”. Double-click on the “Network and dial-up connections” icon (Windows 2000) or the “Network” icon (Windows XP). Right-click on the “Local Area Connection” associated with your network adapter and select “Properties”...
  • Page 83 Manually Configuring Network Settings Manually Configuring Network Adapters in Windows 98SE or Me Right-click on “My Network Neighborhood” and select “Properties” from the drop-down menu. Select “TCP/IP Settings” for your installed network adapter. You will see the following window. If “Specify an IP address” is selected, your Router will need to be set up for a static IP connection type.

  • Page 84: Recommended Web Browser Settings

    Recommended Web Browser Settings In most cases, you will not need to make any changes to your web browser’s settings. If you are having trouble accessing the Internet or the advanced web-based user interface, then change your browser’s settings to the recommended settings in this section. Microsoft Internet Explorer 4.0 or Higher ®...
  • Page 85 Recommended Web Browser Settings Make sure there are no check marks next to any of the displayed options: “Automatically detect settings”, “Use automatic configuration script”, and “Use a proxy server”. Click “OK”. Then click “OK” again in the “Internet Options” page. Netscape Navigator 4.0 or Higher...

  • Page 86: Troubleshooting

    Troubleshooting Setup Assistant CD does not automatically start. If the CD-ROM does not start the Setup Assistant automatically, it could be that the computer is running other applications that are interfering with the CD drive. If the Setup Assistant Welcome screen does not appear within 15-20 seconds, open up your CD-ROM drive by double-clicking on the “My Computer”...
  • Page 87 Troubleshooting Unplug power to the Router for 10 seconds, and then plug the power back into the Router. Ensure that the Router’s “router” LED is on; it should be solid BLUE. If not, check to make sure that the AC adapter is connected to the Router and plugged into a wall outlet.
  • Page 88 Troubleshooting I can’t connect to the Internet wirelessly. If you are unable to connect to the Internet from a wireless computer, please check the following items: Look at the lights on your Router. They should be as follows: • The “router” LED should be on. •...
  • Page 89 (as opposed to wirelessly), ensure that “Broadcast SSID” is enabled. This setting is found on the Router’s wireless “Channel and SSID” configuration page. If you are still unable to access the Internet after completing these steps, please contact Belkin Technical Support.
  • Page 90 Troubleshooting • My wireless network performance is inconsistent. • Data transfer is sometimes slow. • Signal strength is poor. • Difficulty establishing and/or maintaining a Virtual Private Network (VPN) connection. Wireless technology is radio-based, which means connectivity and the throughput performance between devices decreases when the distance between devices increases.
  • Page 91 Troubleshooting I am having difficulty setting up Wired Equivalent Privacy (WEP) security on my Belkin Router. Log into your Router. Open your web browser and type in the IP address of the Router. (The Router’s default is 192.168.2.1.) Log into your Router by clicking on the “Login”...
  • Page 92 Router. For example: C3030FAF4BB2C3D44BC3D4E7E4 = 128-bit key Click “OK”, and then “Apply” to save the settings. If you are NOT using a Belkin wireless client card, please consult the manufacturer’s user manual for that wireless client card.
  • Page 93 Download the patch here: http://www.microsoft.com/downloads You also need to download the latest driver for your Belkin Wireless 802.11g Desktop or Notebook Network Card from the Belkin support site. Other operating systems are not supported at this time. Microsoft’s patch only supports devices with WPA-enabled drivers such as Belkin 802.11g products...
  • Page 94 Troubleshooting I am having difficulty setting up Wireless Protected Access (WPA) security on a Belkin wireless client card for a home network. Clients must use the same key that the Router uses. For instance, if the key is “Smith Family Network Key” in the Router, the clients must also use that same key.
  • Page 95 Troubleshooting I am NOT using a Belkin client card for a home network and I am having difficulty setting up Wireless Protected Access (WPA) security. If you are not using a Belkin Wireless Desktop or Wireless Notebook Network Card that is not equipped with WPA-enabled software, a file from Microsoft called “Windows XP Support Patch for Wireless...
  • Page 96 Troubleshooting What’s the difference between 802.11b, 802.11g, 802.11a, and draft 802.11n? Currently there are four levels of wireless networking standards, which transmit data at very different maximum speeds. Each is based on the designation for certifying network standards. The most common wireless networking standard, 802.11b, transmits information at 11Mbps;...
  • Page 97 Troubleshooting Wireless Comparison Chart G Plus MIMO N MIMO N1 MIMO (802.11g with (draft 802.11n (draft 802.11n (802.11g) MIMO MRC) with MIMO) with MIMO) Up to 54Mbps* Up to 54Mbps* Up to 300Mbps* Up to 300Mbps* Common Common Common Common household devices household devices household devices...

  • Page 98: Technical Support

    Troubleshooting Technical Support You can find technical-support information on our website, www.belkin.com, by navigating to the tech-support section. If you want to contact technical support by phone, please call the number you need from the list below*. *Local rates apply.

  • Page 99: Information

    Belkin warrants the Belkin product for the lifetime of the product. What will we do to correct problems? Product Warranty. Belkin will repair or replace, at its option, any defective product free of charge (except for shipping charges for the product). What is not covered by this warranty? All above warranties are null and void if the Belkin product is not provided to Belkin for inspection upon Belkin’s request at the sole expense of...
  • Page 100 Belkin product to Belkin for inspection shall be borne solely by the purchaser. If Belkin determines, in its sole discretion, that it is impractical to ship the damaged equipment to Belkin, Belkin may designate, in its sole discretion, an equipment repair facility to inspect and estimate the cost to repair such equipment.
  • Page 101 +39 02 862 719 fax +31 (0) 20 654 7349 fax © 2007 Belkin International, Inc. All rights reserved. All trade names are registered trademarks of respective manufacturers listed. Mac, Mac OS, Apple, and AirPort are trademarks of Apple Computer, Inc., registered in the U.S.
