impact LS-CTB Series Instructions Manual

20/40-inch turtle base c-stand kit
Hide thumbs

Advertisement

Quick Links

Download this manual
LS-CTB Series
20-Inch Turtle Base
C-Stand Kit
40-Inch Turtle Base
C-Stand Kit
INSTRUCTIONS
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the LS-CTB Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for impact LS-CTB Series

Summary of Contents for impact LS-CTB Series

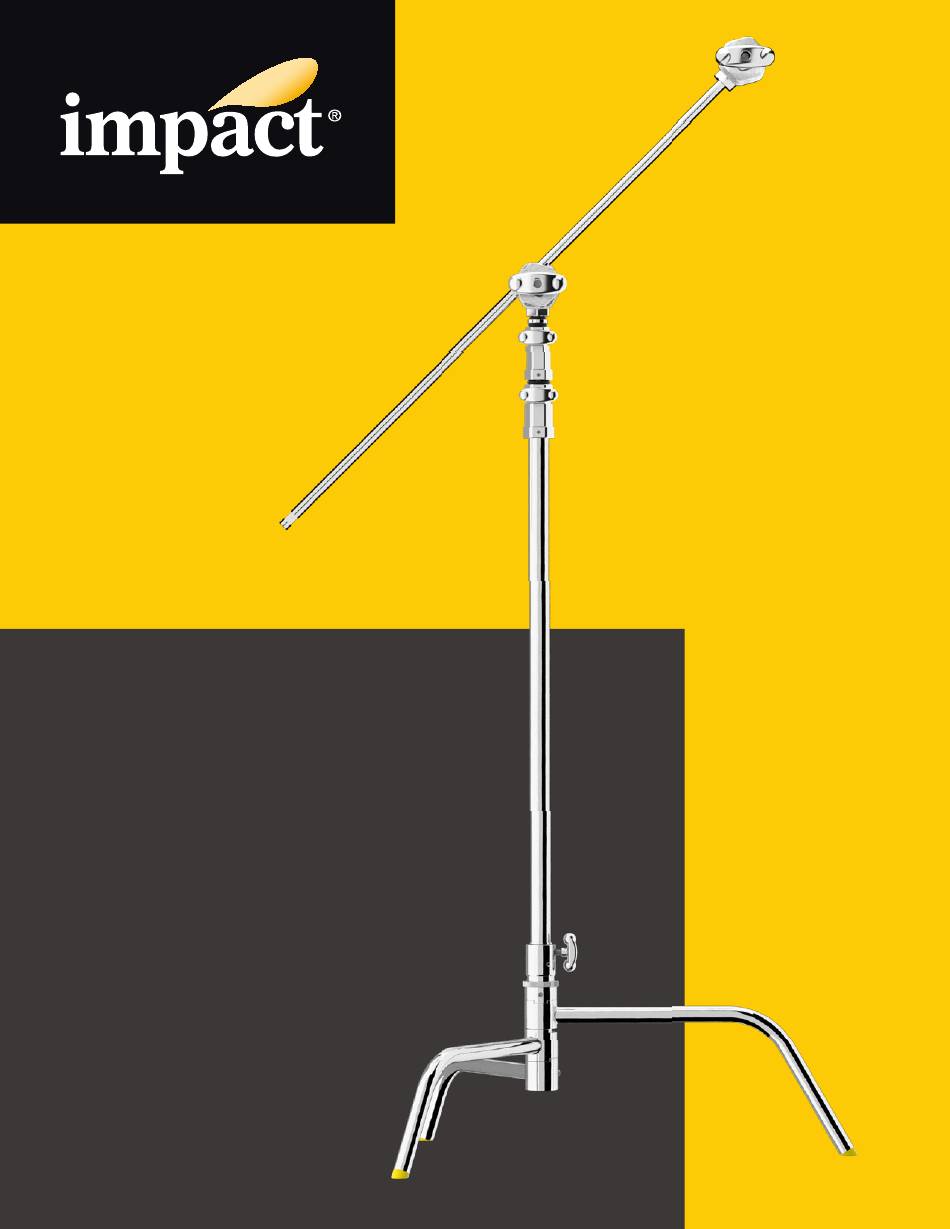

  • Page 1 LS-CTB Series 20-Inch Turtle Base C-Stand Kit 40-Inch Turtle Base C-Stand Kit INSTRUCTIONS...
  • Page 2 TV industries. The stands are made to industry-standard size, so they’ll perfectly fit on grip trucks or C-stand racks and carts. When combined with Impact’s grip head and grip arm, there’s no better tool for supporting light fixtures, a wide variety of grip gear, and light-modifying gobos like flags, silks, and scrims.
  • Page 3 Precautions ⚠ • Please read and follow these • Make sure the load is balanced. instructions, and keep this manual in a safe place. • When carrying a C-Stand kit (grip head and grip arm mounted on top • Make sure that this product pin), always grab the riser and grip is intact and that there are no arm together to prevent your hand...
  • Page 4 Overview and Setup Turtle Base C-Stand Overview 1. Baby pin 2. Riser sections 3. Riser locks 4. Brake castings 5. Junior pin 6. Junior receiver lock 7. Junior receiver 8. Leg release locking collar...
  • Page 5 Turtle Base C-Stand Setup Setting Up the Legs 1. Hold the stand so that the riser sections are parallel to the floor with the legs facing up. 2. Pull the locking collar away from the legs. 3. Rotate the main riser so that the legs fall away from you.
  • Page 6 Removing and Replacing the Riser 1. Remove all fixtures and accessories, and remove the grip arm and grip head. 2. Loosen the base locking knob and lift the riser out of the junior receiver. 3. Replace it with a replacement riser, a junior-to-baby-pin adapter, or any other 1 1/8 in.
  • Page 7 Grip Head Overview 1. T-knob 7. Baby receiver 2. Washer 8. Friction disc 3. Front disc 9. Registration pin 4. Rear disc 10. Registration hole 5. Baby receiver lock 11. Central bolt 6. Main grip body 1. 3/8 in. 2. 5/8 in. 3.
  • Page 8 Grip Head Setup 1. Loosen the locking knob and place the grip head’s baby receiver over the baby pin. Tighten the locking knob until secure. 2. For short pins, the head can be inverted on the baby pin, so the set screw engages with the pin.
  • Page 9 Grip Arm Overview 1. Hex pin 2. Grip arm 3. Grip head 4. Set-screw...
  • Page 10 Grip Arm Setup The Impact GA-20 and GA-40 grip arms give you two options for attaching lights and accessories. Use the grip head to attach accessories like gobos, flags, scrims, cutters, and backdrops. Use the grip arm’s hexagonal pin to attach small lights and accessories.

  • Page 11: Specifications

    Specifications C-stand 20 in. 40 in. Load Capacity 22 lb. (10 kg) 22 lb. (10 kg) Top Mount 5/8 in. (16 mm) 5/8 in. (16 mm) Maximum Working Height 59.06 in. (1,500 mm) 119.88 in. (3,045 mm) Minimum Working Height 33.46 in.

  • Page 12: One-Year Limited Warranty

    One-Year Limited Warranty This Impact product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider’s responsibility with respect to this limited warranty shall be limited solely to repair...
