impact Cruiser ACDC-TX Quick Start Manual

Wireless controller for canon, nikon, and sony cameras
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

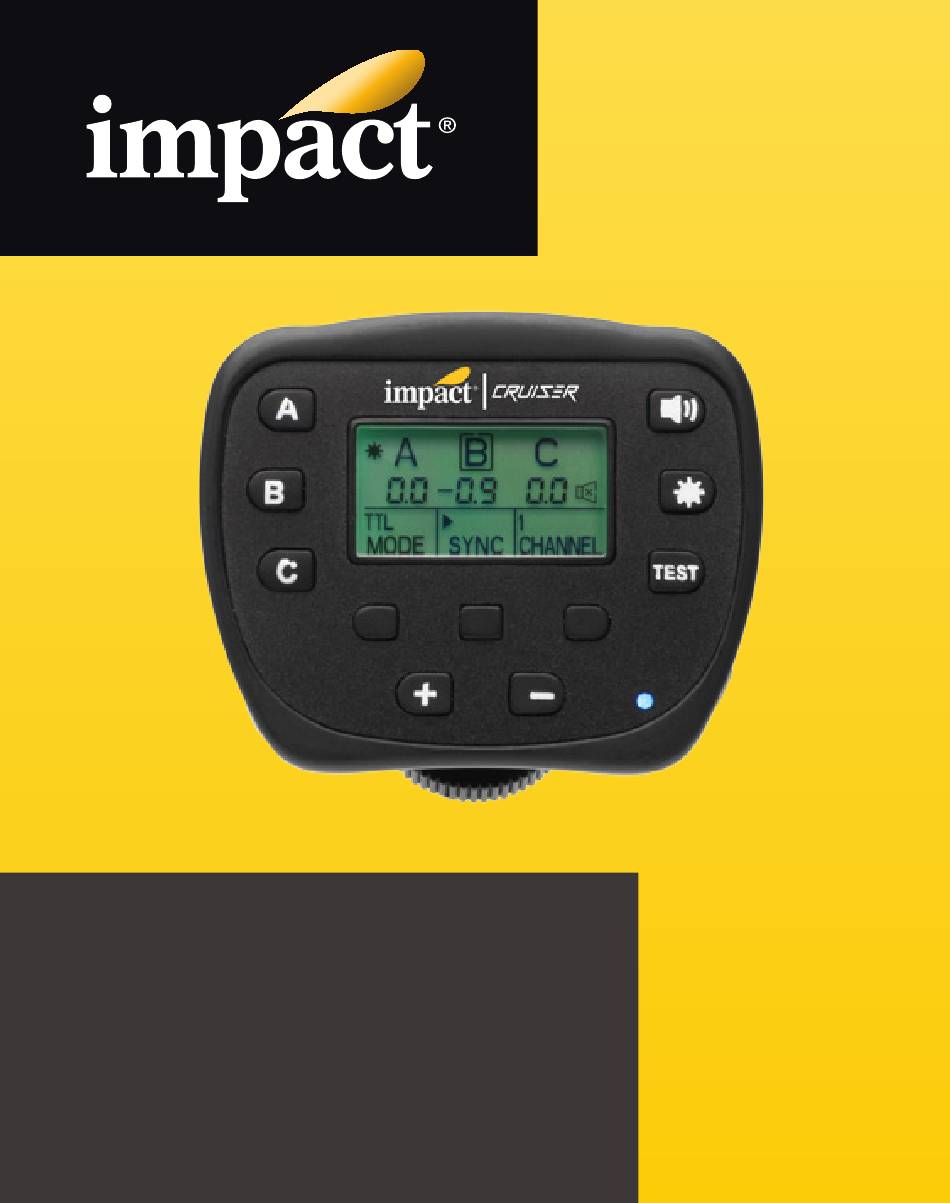

ACDC-TX
Impact Cruiser
Wireless Controller
for Canon, Nikon, and Sony Cameras
QUICK-START GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cruiser ACDC-TX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for impact Cruiser ACDC-TX

Summary of Contents for impact Cruiser ACDC-TX

  • Page 1 ACDC-TX Impact Cruiser Wireless Controller for Canon, Nikon, and Sony Cameras QUICK-START GUIDE...
  • Page 2 Introduction Thank you for choosing Impact. The Impact Cruiser Wireless Controller is a compact wireless 2.4 GHz transmitter that provides the Cruiser TTL 500 Monolight with TTL and high-speed sync (HSS) functionality. It allows you to control and trigger the flash from a distance of 358 feet (100 m) via 2.4 GHz wireless...
  • Page 3 Overview LCD screen: Modeling light Output power Manual/TTL FCS, SCS, HSS indicator Channel Sound Group MODE SYNC CHANNEL...
  • Page 4 Overview (continued) Controller: through the power range. In TTL mode, press to adjust Group buttons EV compensation. Press to select group A, B, or C. Power LED The selected group is outlined. Indicates when power is on. Press and hold to enable or disable a group.
  • Page 5 Overview (continued)

  • Page 6: Getting Started

    Instructions Getting Started Install two AAA batteries into the battery compartment, following the orientation icons in each battery slot. Loosen the locking collar by turning it counterclockwise. Insert the mounting foot into the camera’s hot-shoe mount. Make sure it is completely inserted into the shoe. Tighten the locking collar by turning it clockwise until secure.

  • Page 7: Specifications

    Specifications Frequency 2.4 GHz Channels 8 (1 to 8) Groups 3 (A, B, C) Connections 3.5 mm sync port, Micro-B USB Operating range 328 ft. (100 m) Dimensions 3 × 2.37 × 2 in. (7.6 × 6 × 5.2 cm) Weight (with batteries) 3.2 oz.

  • Page 8: One-Year Limited Warranty

    One-Year Limited Warranty This Impact product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later.
