impact PCSLEDK-110 Instructions Manual

Pro copy stand with dual led panel light kit
Hide thumbs

Advertisement

Quick Links

Download this manual
PCSLEDK-110
Pro Copy Stand with
Dual LED Panel Light Kit
INSTRUCTIONS

Advertisement

loading
Need help?

Need help?

Do you have a question about the PCSLEDK-110 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for impact PCSLEDK-110

Summary of Contents for impact PCSLEDK-110

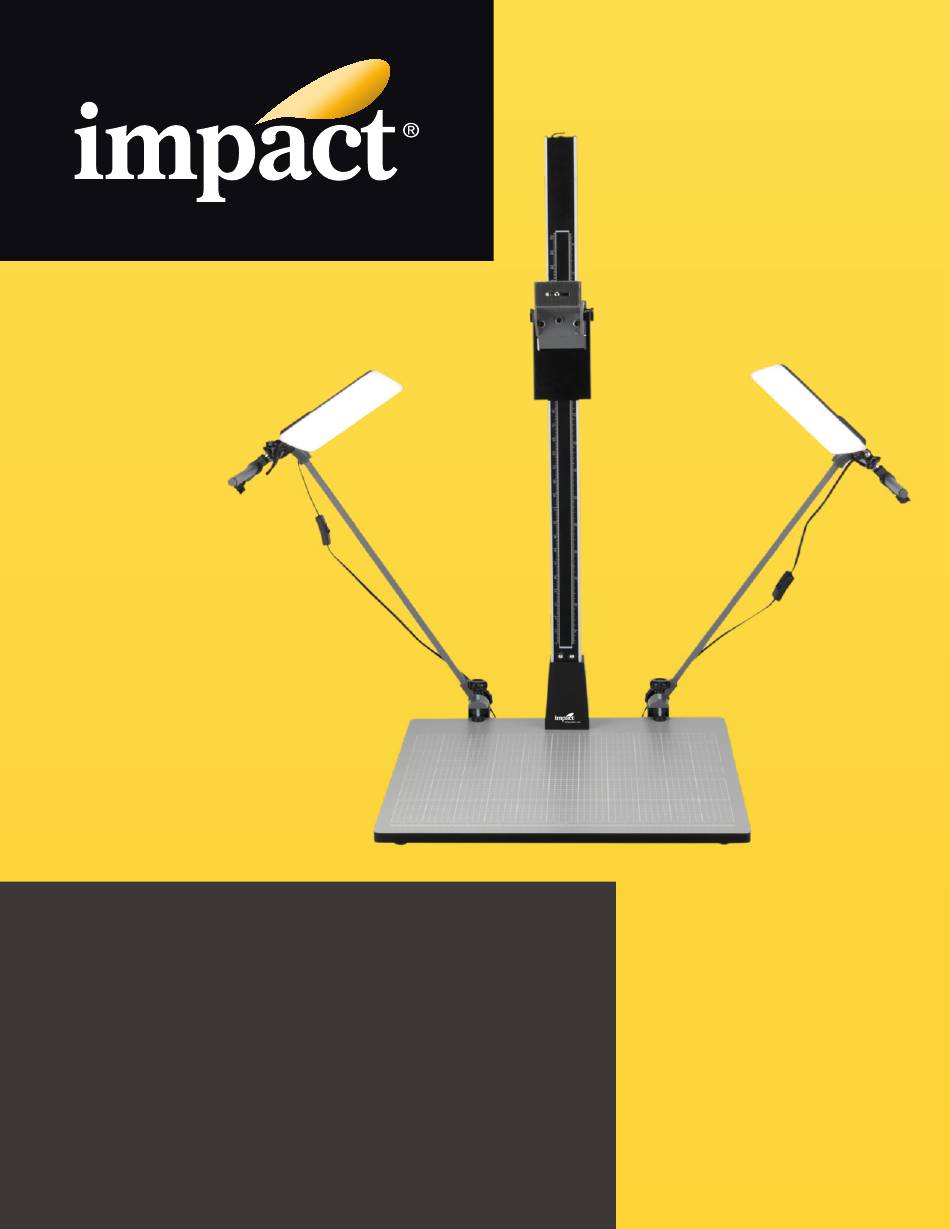

  • Page 1 PCSLEDK-110 Pro Copy Stand with Dual LED Panel Light Kit INSTRUCTIONS...
  • Page 2 Introduction Thank you for choosing Impact. The Impact Pro Copy Stand allows you to accurately and repeatedly shoot products or documents. It provides an alignment grid, top-down shooting platform, and dual LED lighting. The grid makes it easy to align each shot and take the same image again and again.

  • Page 3: Specifications

    Specifications Baseboard finish 18% matte gray Grid Column height 42 in. (106.7 cm) Camera mount 1/4-20 3/8-16 bushing Weight capacity 8 lb. (3.6 kg) Clamp width 1.45 in. (3.7 cm) Light type LED count 96 each Max output 20 W Color temp 5600 K Beam angle...
  • Page 4 Overview 1. Hex key holder 15. Table clamp (×2) 2. Slide column 16. Baseboard 3. Camera mounting screw with 17. Alignment grid 1/4-20 thread and 3/8-16 bushing 18. Leveling feet 4. Mounting screw cap 19. LED panel (×2) 5. Platform extension 20.
  • Page 5 13 14...
  • Page 6 Setup Base and Slide Column Assembly 1. Remove the hex key from its storage holder on top of the sliding column. 2. Use the hex screws and washers to attach the baseplate, baseboard, and slide column. Make sure the camera platform is positioned over the baseboard.
  • Page 7 Table Clamp / Light Assembly Follow these instructions for both support arms. 1. Unscrew and remove the clamp’s pivot locking knob. 2. Align the vertical support with the clamp. Screw the pivot locking knob through the washer and into the clamp assembly. Tighten until secure. 3.
  • Page 8 4. Slide the horizontal support’s adapter over the vertical support. Tighten the adapter’s locking knob until secure. 5. Loosen the LED’s support adapter, and slide it over the horizontal support. Tighten until secure. 6. Plug each of the LED panels into a power source, and press the power switches to On.

  • Page 9: Mounting A Camera

    Mounting a Camera 1. Unscrew the mounting screw cap to reveal the 3/8-16 bushing. Remove the bushing to reveal the 1/4-20 threaded screw. 2. Align and mount your camera onto the 3/8-16 or 1/4-20 threaded screw. Tighten until secure. 3. Press the quick release handle to raise or lower your camera.
  • Page 10 Removing the Camera Platform Extension The camera platform extension can be removed to accommodate a larger camera setup. 1. Use the hex key to remove the three screws from the front of the camera platform, and then remove the platform extension. 2.
  • Page 11 Adjustments Camera height Lighting support pivot LED panel tilt Lighting support vertical LED panel rotation and horizontal adjustment...

  • Page 12: One-Year Limited Warranty

    One-Year Limited Warranty This Impact product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider’s responsibility with respect to this limited warranty shall be limited solely to repair...

This manual is also suitable for:

Impcsledk110
