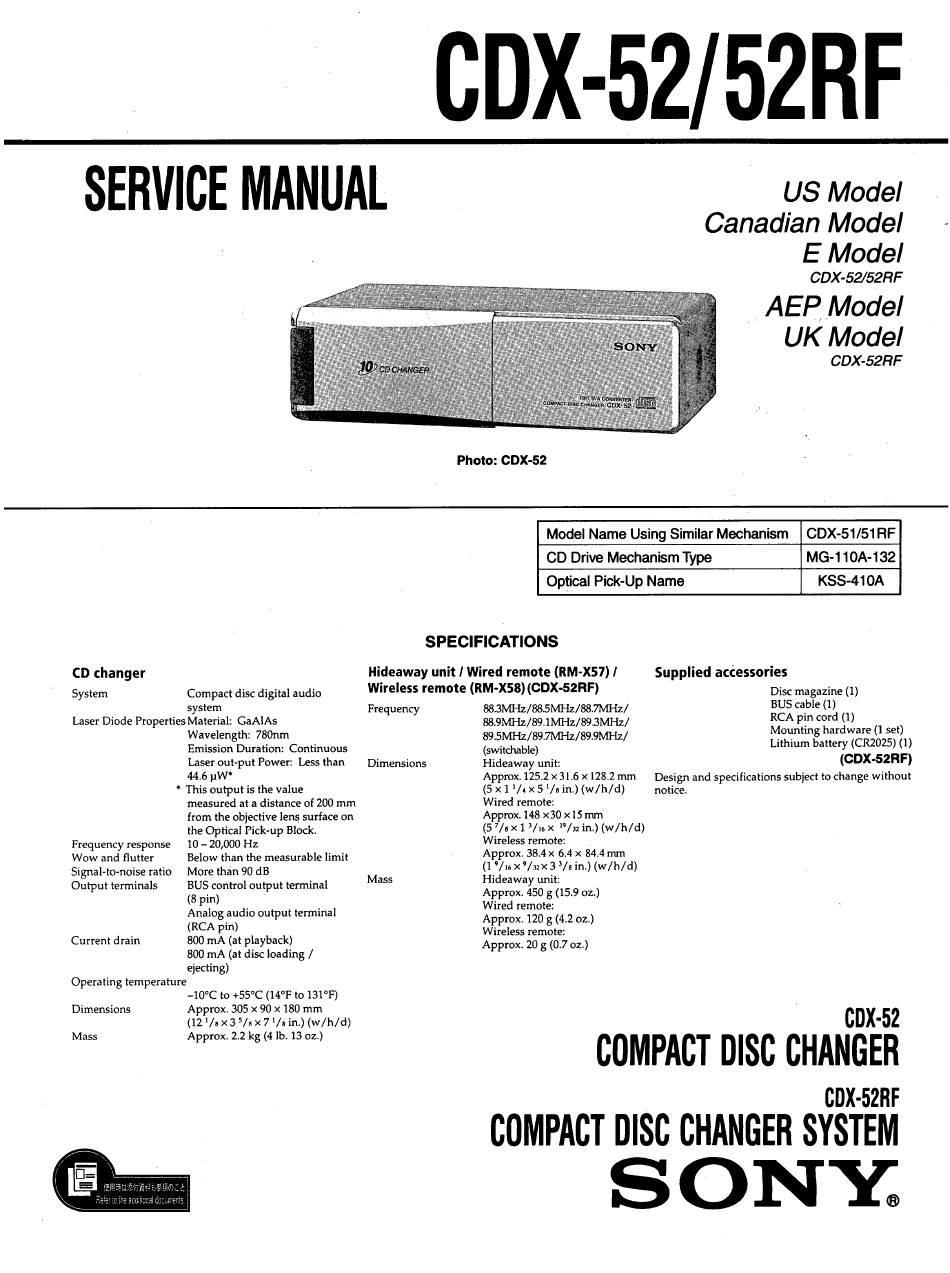

Sony CDX-52 Service Manual

Canadian Model _ -
E Model
CDX-52/52RF
_ AEP Model
UK Model
CDX-52RAF
Photo: CDX-52
Model Name Using Similar Mechanism | CDX-51/51RF
MG-110A-132
KSS-410A
CD Drive Mechanism Type
Optical Pick-Up Name
SPECIFICATIONS
CD changer Hideaway unit / Wired remote (RM-X57) / Supplied accessories
System Compact disc digital audio Wireless remote (RM-X58) (CDX-52RF) Disc magazine (1)
system Frequency 88.3MHz/88.5MHz/88.7MHz/ BUS cable (1)
Laser Diode Properties Material: GaAlAs 88.9MHz/89.1MHz/89.3MHz/ RCA pin cord (1)
Wavelength: 780nm 89.5MHz/89.7MHz/89.9MHz/ Mounting hardware (1 set)
Emission Duration: Continuous (switchable) Lithium battery (CR2025) (1)
Laser out-put Power: Less than = Dimensions Hideaway unit: (CDX-52RF)
— 44.6 pW"
Approx. 125.2 x31.6x128.2mm
Design and specifications subject to change without
* This output is the value (5x11/4x5'/s in.) (w/h/d) notice.
measured at a distance of 200 mm Wired remote:
from the objective lens surface on Approx. 148 x30 x 15mm
the Optical Pick-up Block. (57/8x 13/16 x 19/3 in.) (w/h/d)
Frequency response 10 - 20,000 Hz Wireless remote: ;
Wow and flutter Below than the measurable limit Approx. 38.4 x 6.4 x 84.4mm
Signal-to-noise ratio More than 90 dB (1 °/16 x ?/32x 39/8 in.) (w/h/d)
Output terminals BUS control output terminal Mass Hideaway unit:
(8 pin) : Approx. 450 g (15.9 oz.)
Anal di inal Wired remote:
nalog audio output termina Approx. 120 g (4.2 02.)
(RCA pin) Wirsless retmete,
; ireless remote:
Current drain 800 mA (at playback) Approx. 20 g (0.7 0z.)
800 mA (at disc loading /
ejecting)
Operating temperature
-10°C to +55°C (14°F to 131°F)
Dimensions Approx. 305 x 90 x 180 mm
(12/0 x3 5/07 "/e in.) (w/h/d) CDX-52
COMPACT DISC CHANGER SYSTEM
SONTY.
